In real installations, the connector body is rarely the weakest point. Most failures start at the cable-to-connector transition—where bending, pulling, vibration, and moisture gradually damage the jacket, loosen terminations, or compromise sealing.

That’s why “extra protection” matters. For harsh environments, the WEIPU SF Series can be configured with the right protection approach based on how the cable is used:

• IP sealing (e.g., IP67 when mated) to protect against dust and moisture
• Reinforced bend relief (anti-bending strain relief) to improve flex life at the cable exit
• Overmolded cable assembly as a higher-integration option that strengthens the cable joint (and typically includes strain relief)

(1) IP67 sealing: keep moisture and dust from becoming downtime

The SF Series is built for sealed connectivity in environments where splash, washdown, dust, and humidity are common. IP67 protection (when properly mated) helps protect contacts from contamination that can cause intermittent signals, corrosion, or unexpected disconnects—especially in outdoor equipment, mobile systems, and factory areas near coolant or cleaning processes.

What this helps prevent:

moisture ingress, dust contamination, corrosion-related instability, and reduced contact reliability over time.

(2) Anti-bending strain relief: protect the #1 failure point (cable exit)

Even with a strong connector, repeated bending at the cable outlet can lead to conductor fatigue, shielding damage, or internal loosening. Adding reinforced bend relief / strain relief is a simple but high-impact upgrade for applications with frequent cable movement.

For SF series cable plugs, reinforced bend relief helps:

• guide the cable into a safer bend radius
• reduce stress concentration at the cable-to-connector transition
• improve reliability under vibration and repeated motion

Where it matters most:

robot dress packs, moving gantries, handheld tools, test equipment leads, and any cable that is flexed repeatedly.

Available part numbers (bend relief versions):

SF610, SF611, SF810, SF811, SF1010, SF1011, SF1210, SF1211, SF1214, SF1610, SF1611, SF2010, SF2011

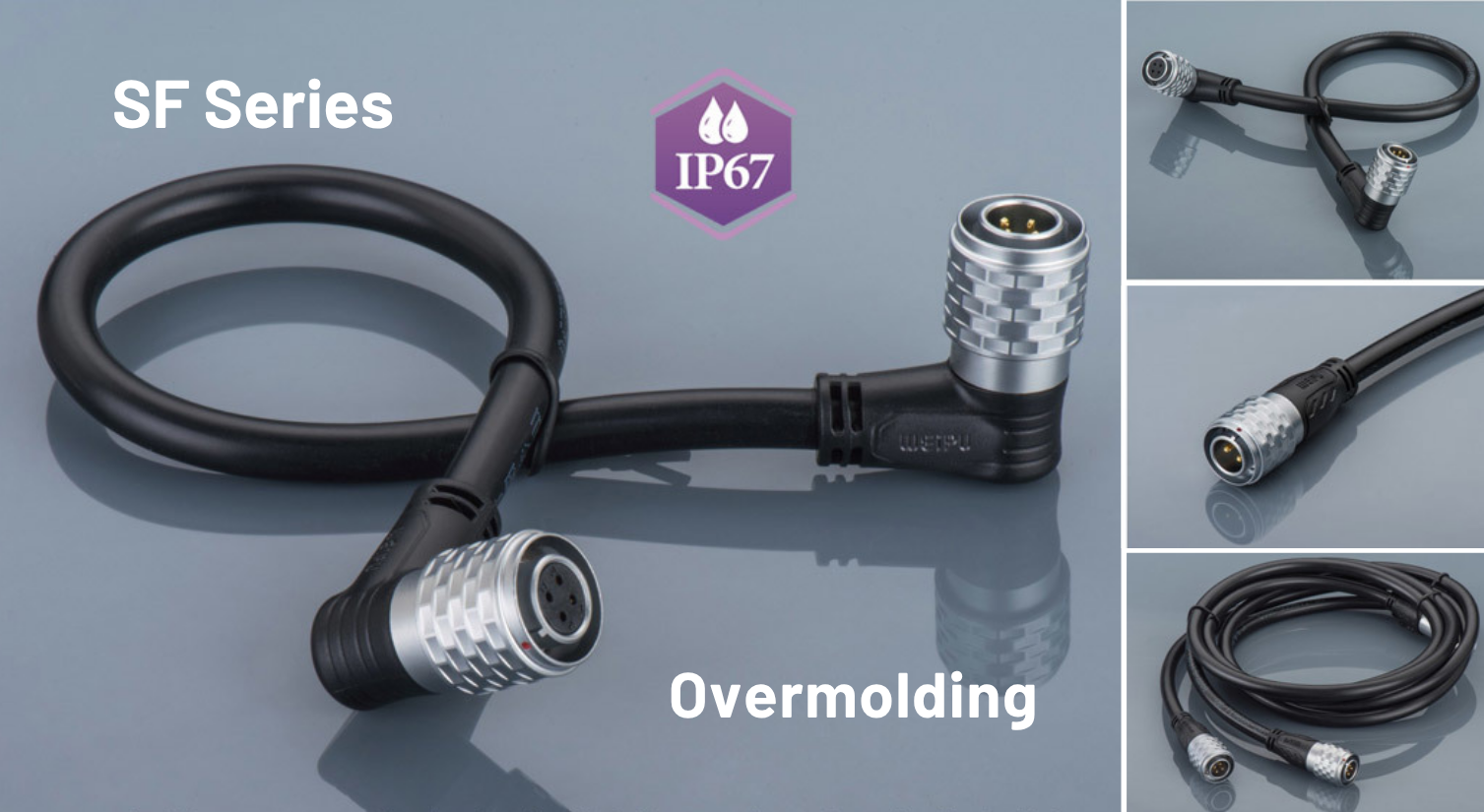

(3) Overmolding option: the “upgrade path” for higher durability and cleaner builds

For applications that need stronger cable protection and more consistent assembly quality, WEIPU also offers SF overmolded cable assemblies. Overmolding is not only aesthetic—it reinforces the joint and typically provides integrated strain relief plus improved stability at the cable exit.

What overmolding improves:

• strengthens the joint to reduce failures from pulling, bending, and twisting
• adds a more continuous barrier to support resistance to water/dust ingress
• improves durability for frequent handling, tight cable routing, and long-term vibration

When overmolding is most valuable:

• moving equipment (robotic arms, automated machinery, portable tools)
• outdoor use (rain, washdown, dust)
• frequent plug/unplug service cycles
• tight routing where the cable exit is under constant stress

SF example: An overmolded SF cable assembly is a common choice when the goal is a rugged, field-ready interface with cleaner routing and stronger cable-joint protection.

The SF Series isn’t only about push-pull convenience—it’s about making the connection last in real conditions. With IP67 sealing, bend-relief options for cable flex, and an overmolded cable assembly upgrade for harsh-duty applications, SF connectors can reduce cable-related failures and improve long-term field reliability.
