WEIPU SF10 Cable Assemblies Waterproof Mini Connectors Overmolding & Cable Assembly

IP67 Highly Sealed
Flexible Options
Full Compatibility: connector + cable integration

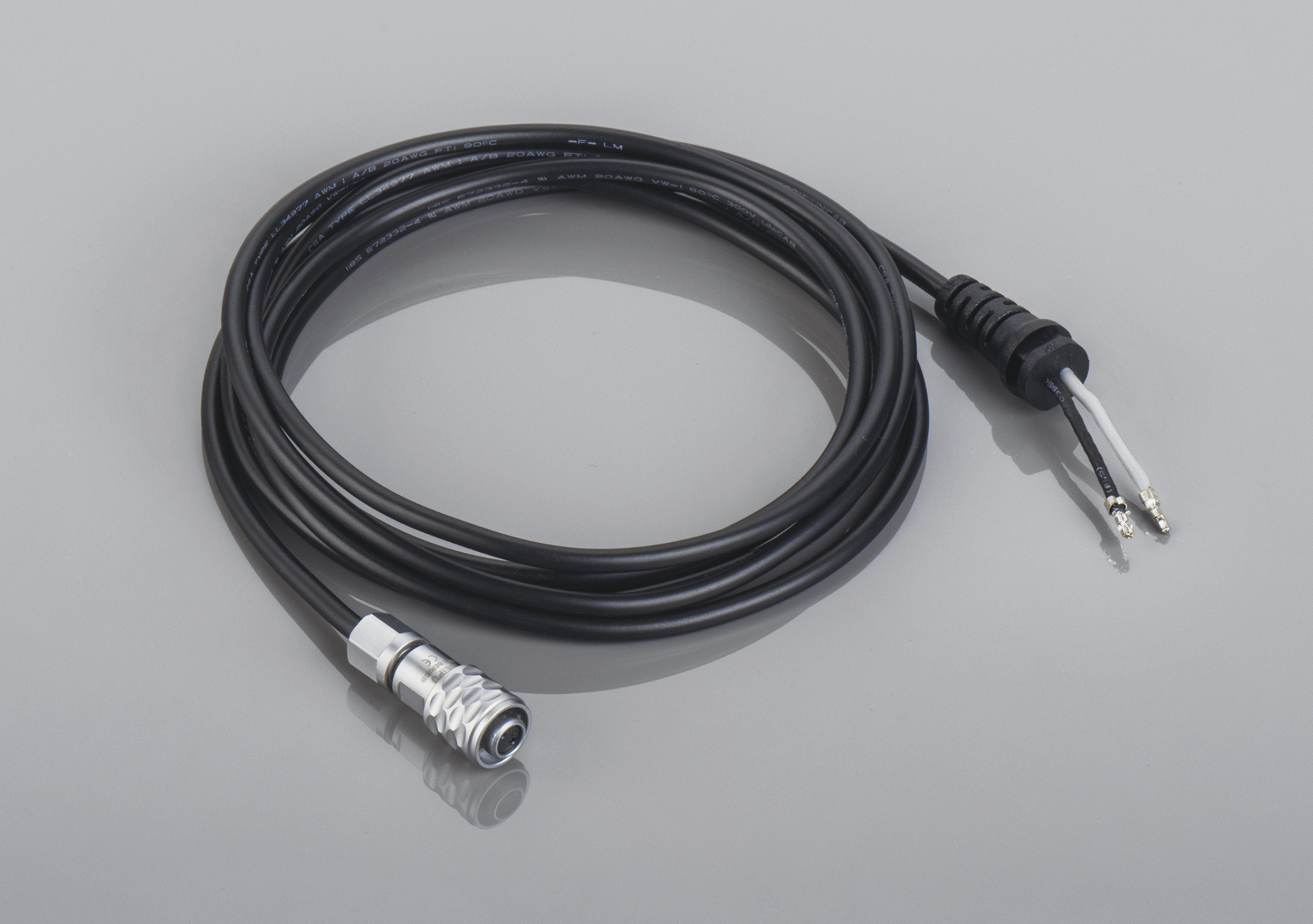

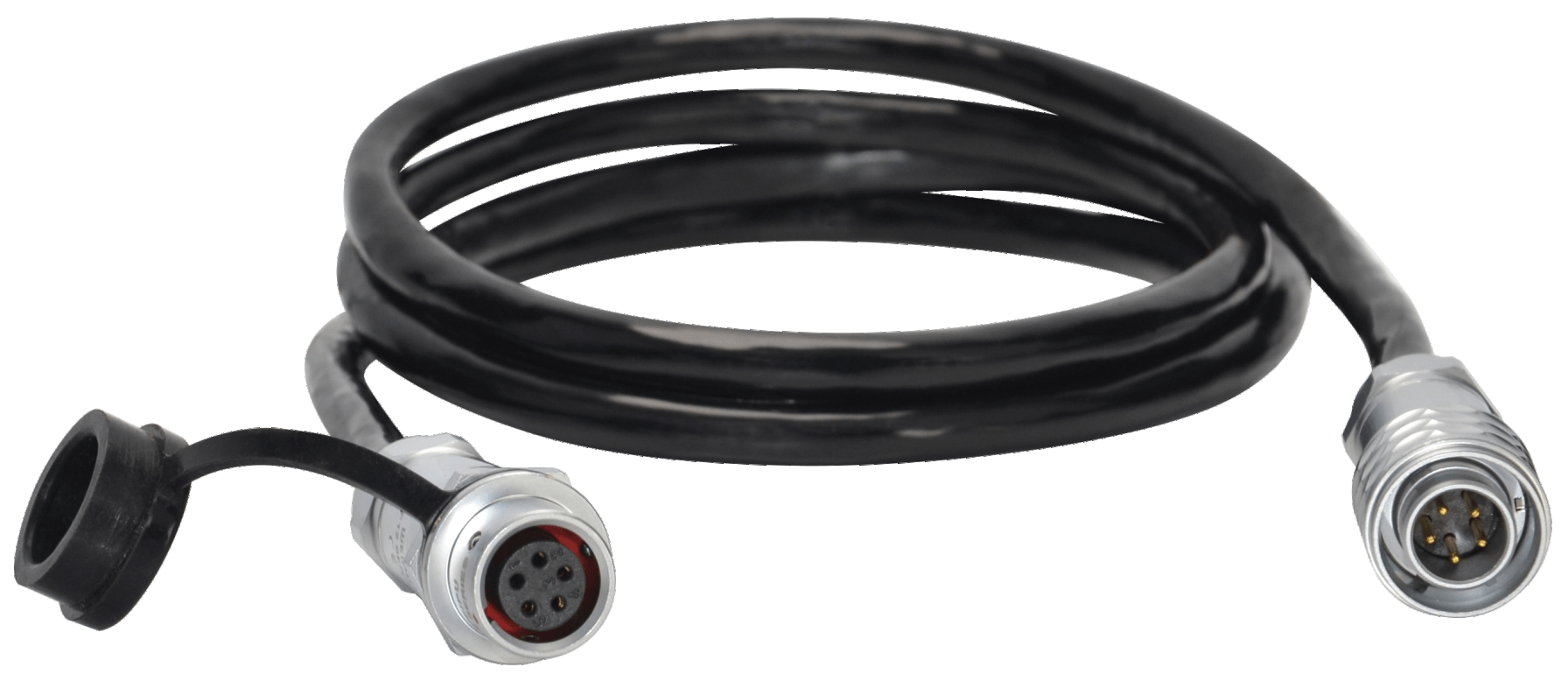

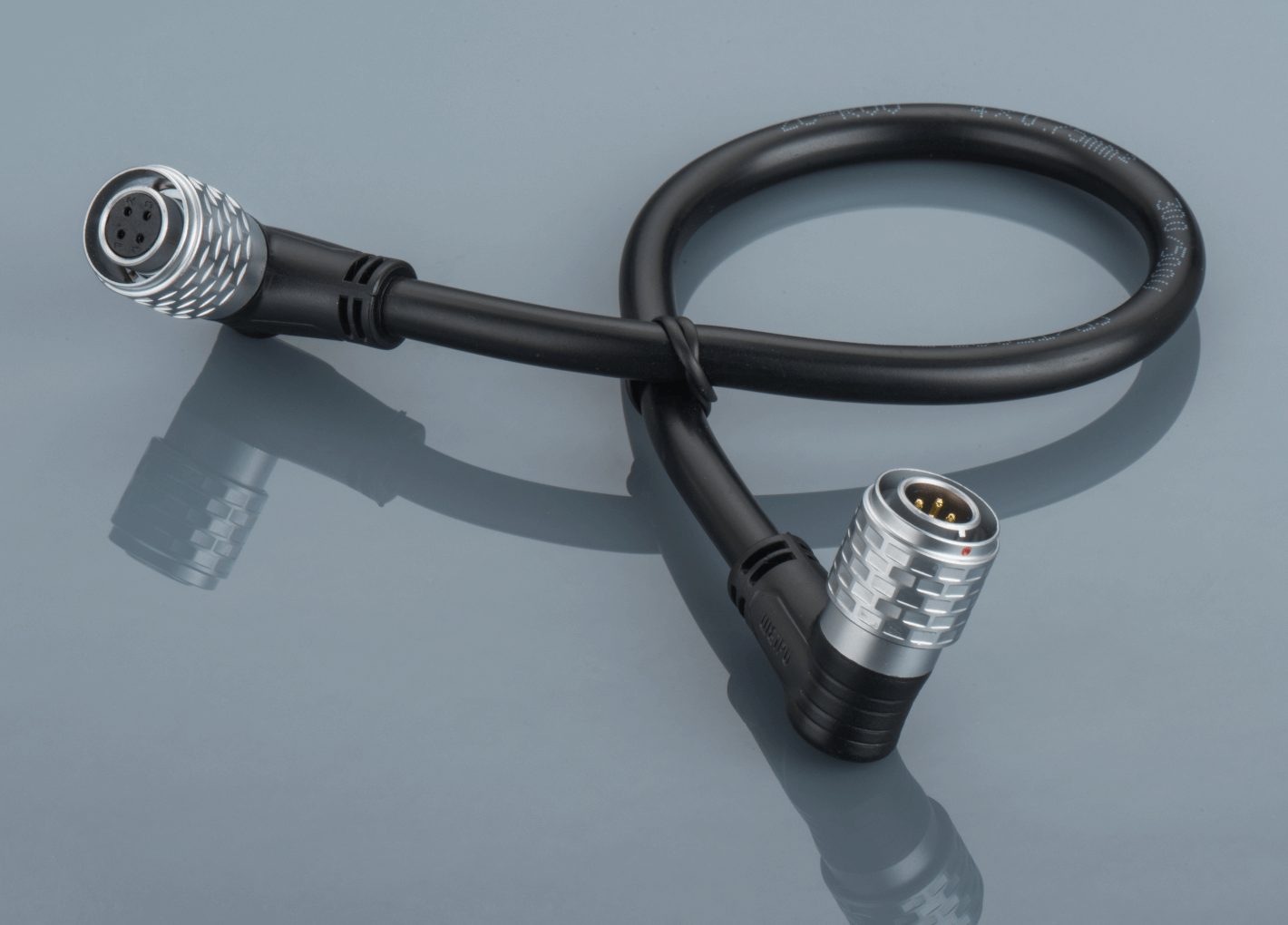

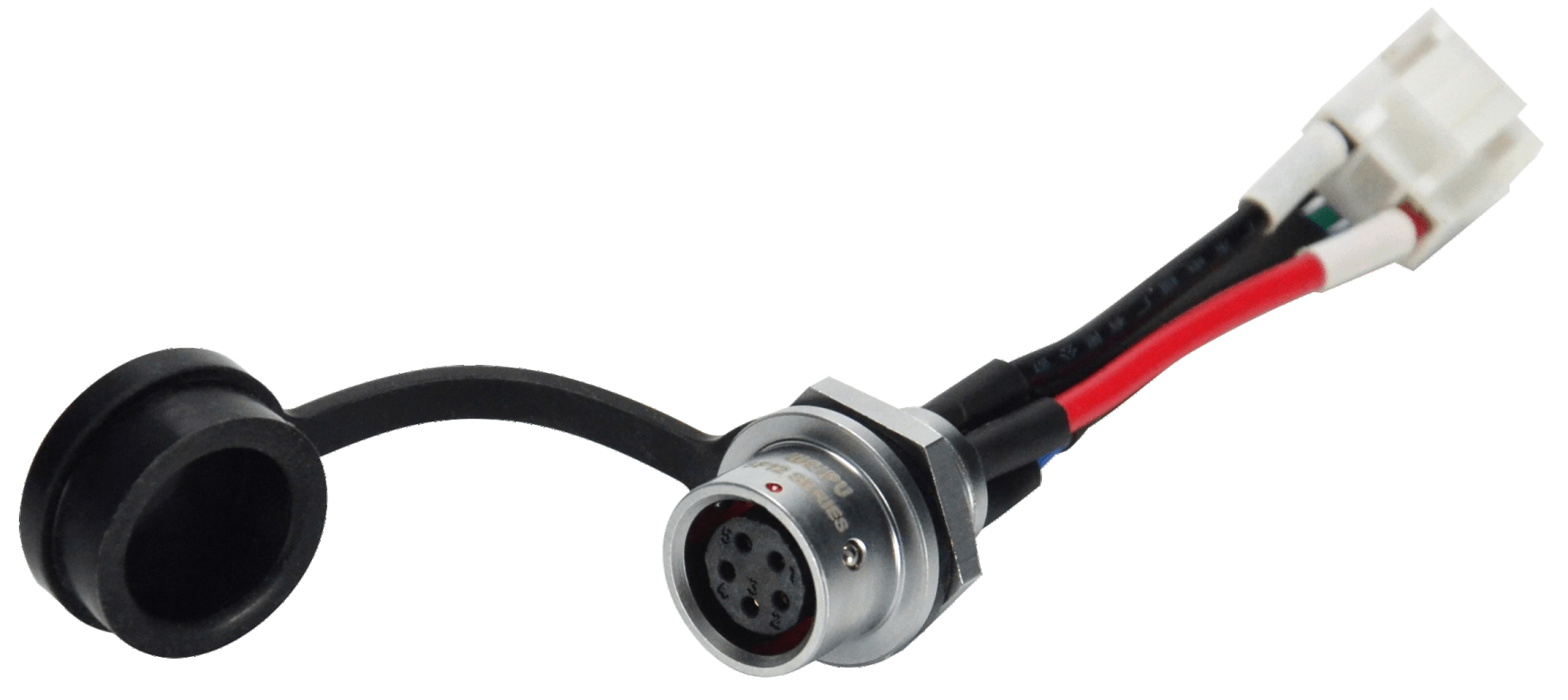

WEIPU’s SF10 Cable Assembly solutions combine our compact IP67-rated SF10 connectors with high-quality prewired cables, delivering a plug-and-play system that saves installation time and ensures seamless compatibility. Designed for applications requiring tight space, waterproof protection, and reliable signal or power transmission, the SF10 cable assemblies offer excellent sealing performance and long-term durability.

Available in various pin configurations and cable lengths, these assemblies eliminate guesswork on-site and provide a smart, flexible solution for industries like instrumentation, automation, medical devices, and LED systems.

Key Benefits:

Compact & Sealed Design: SF10 connector with IP67 protection – ideal for space-constrained, outdoor, or rugged environments.
Push-pull Coupling: easy & quick connection
Seamless Connector + Cable Integration: Factory-assembled for optimal fit, sealing, and long-term performance.
Flexible Cable Options: Cable length, wire gauge, jacket type, overmold design, and color options
Quick & Easy Installation: Pre-wired assemblies reduce on-site labor and wiring errors.
Overmolding Available: For additional strain relief and a polished appearance

Download Catalogue

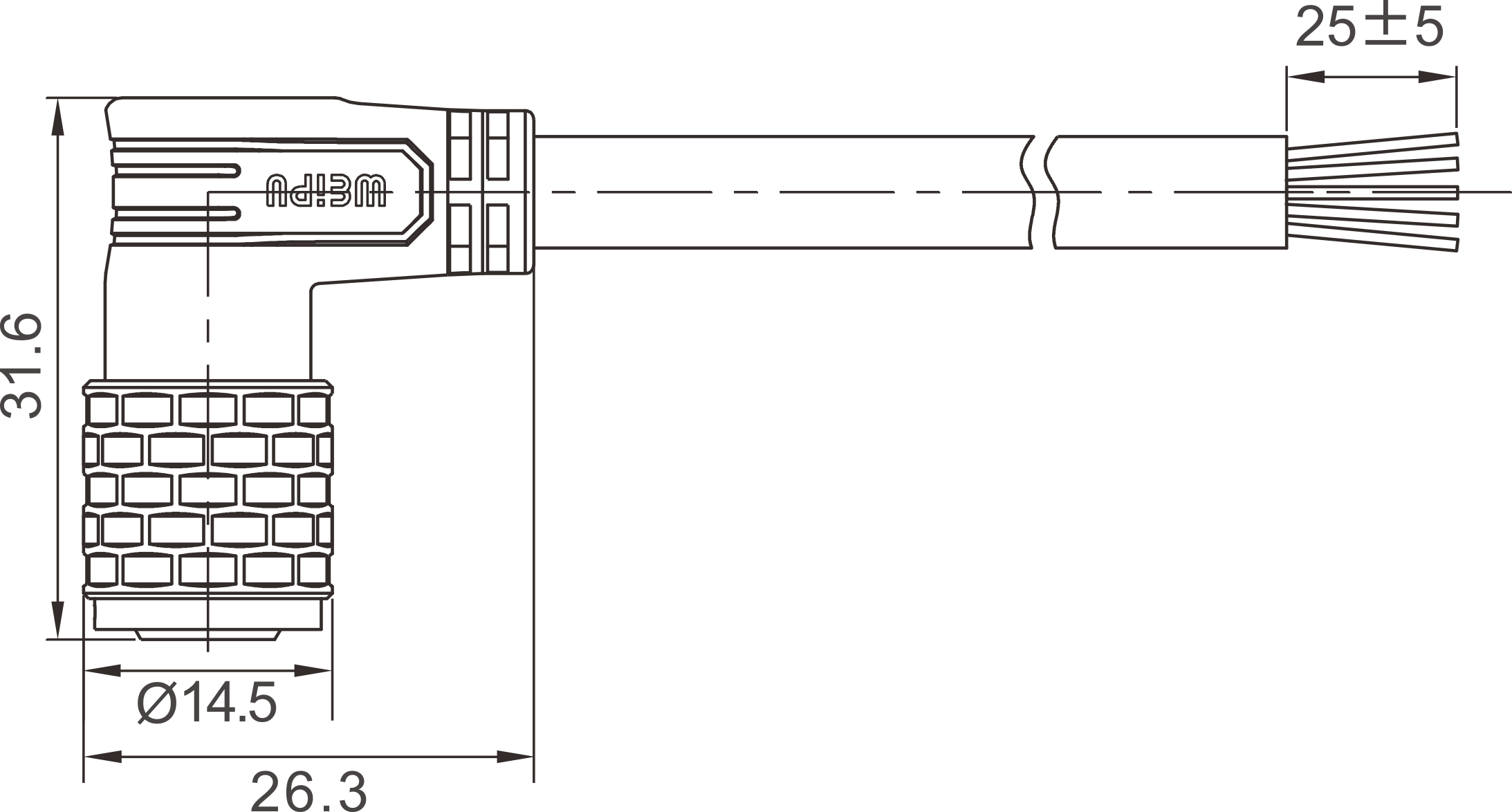

Mating Diagram

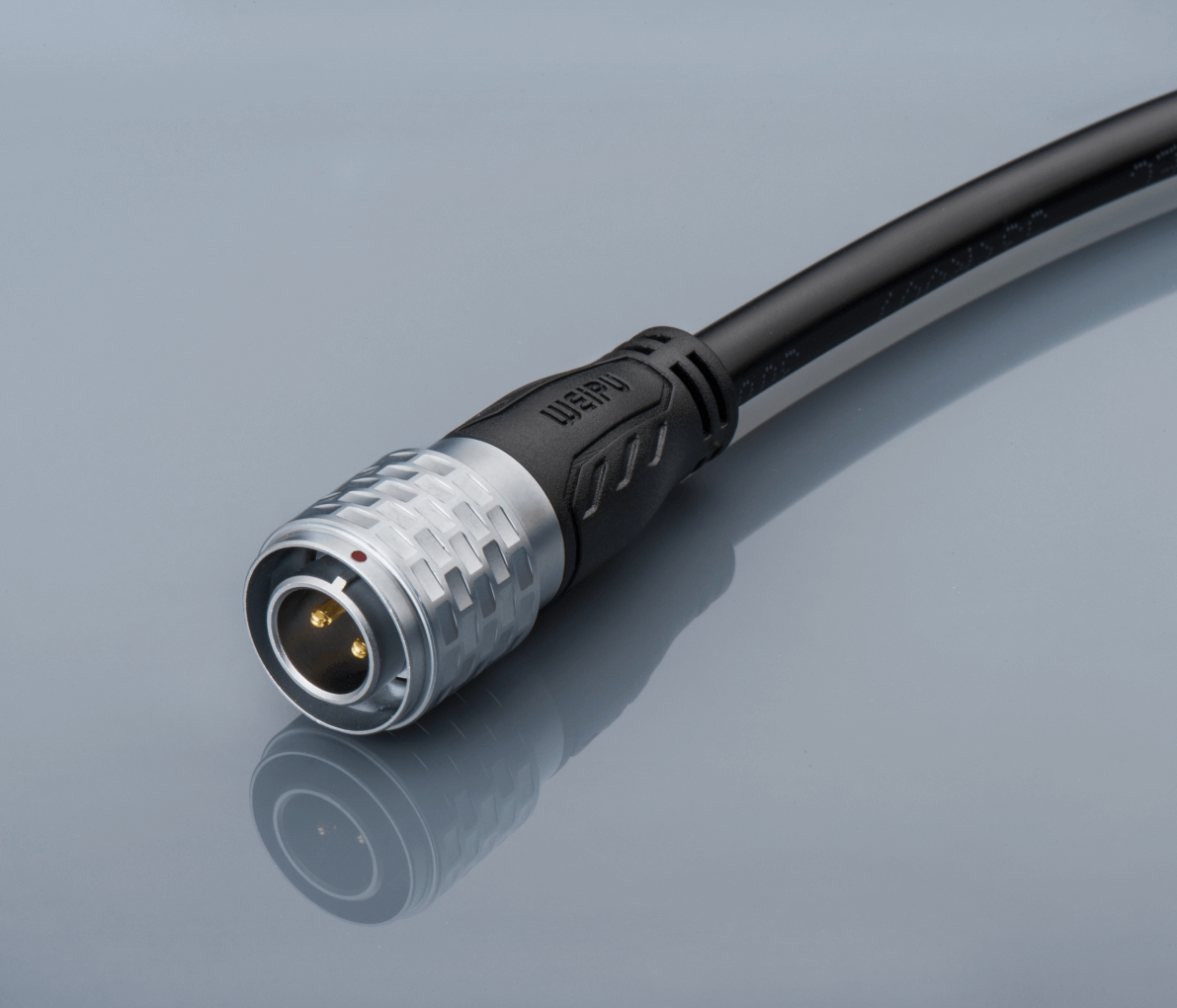

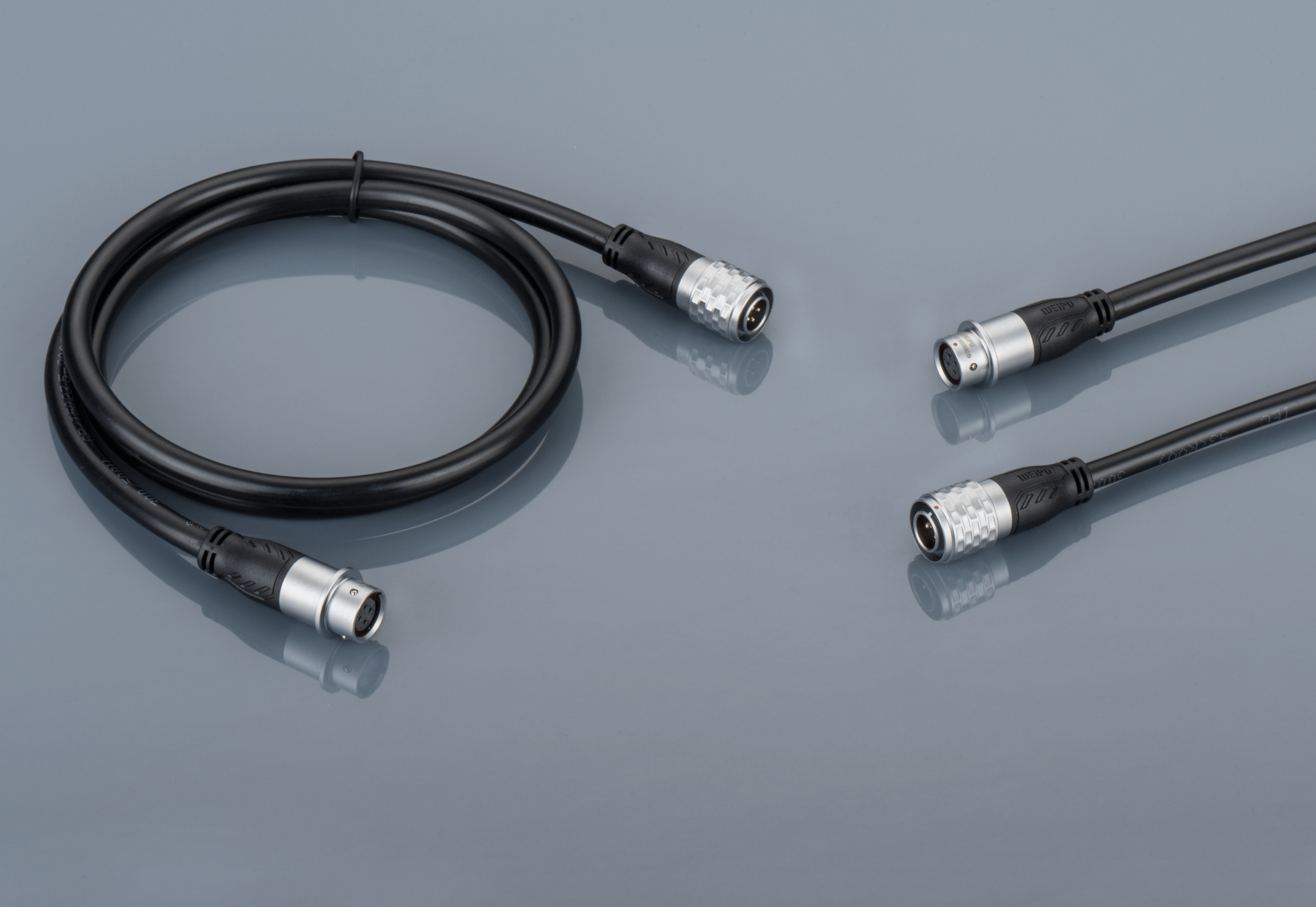

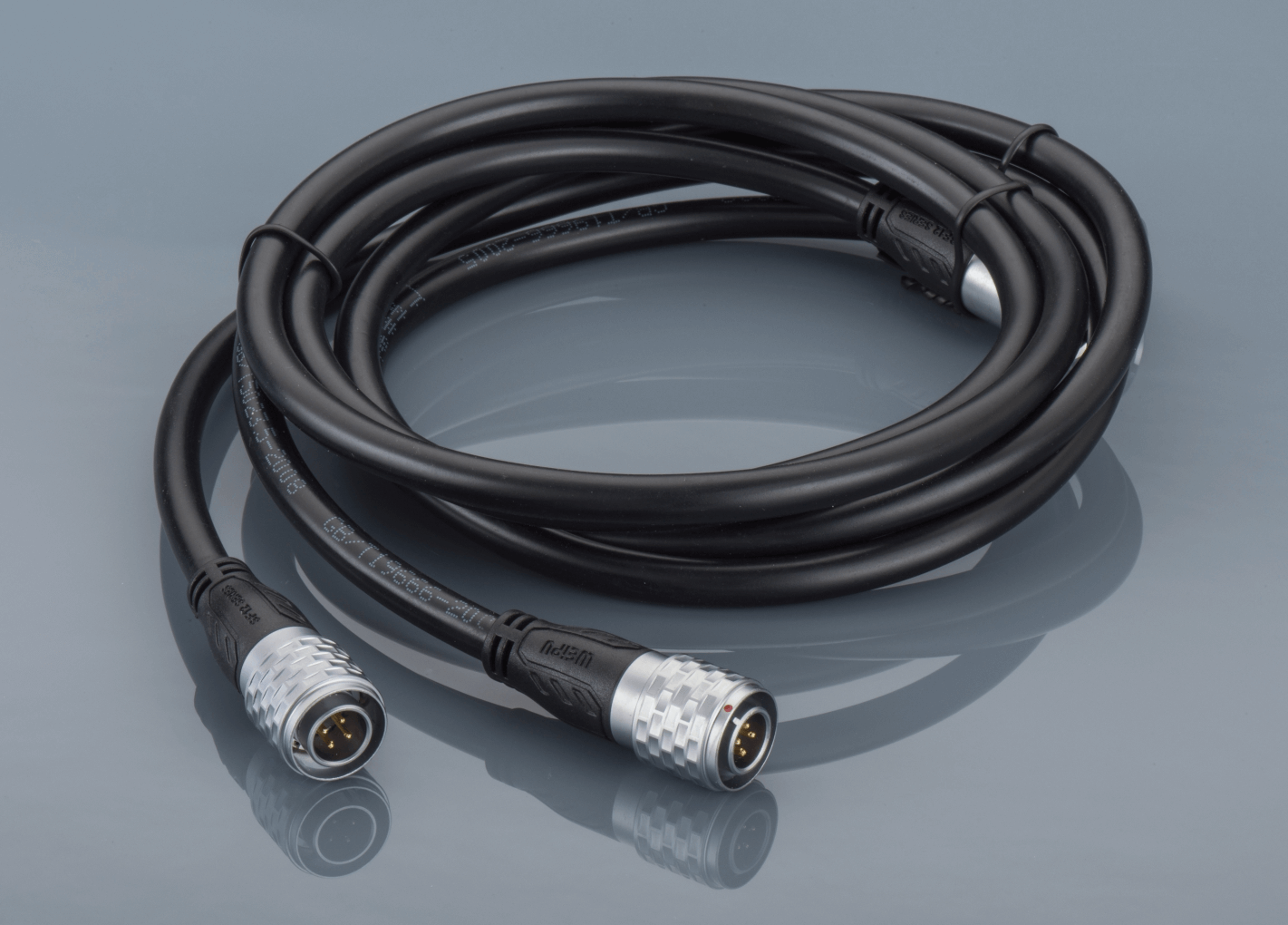

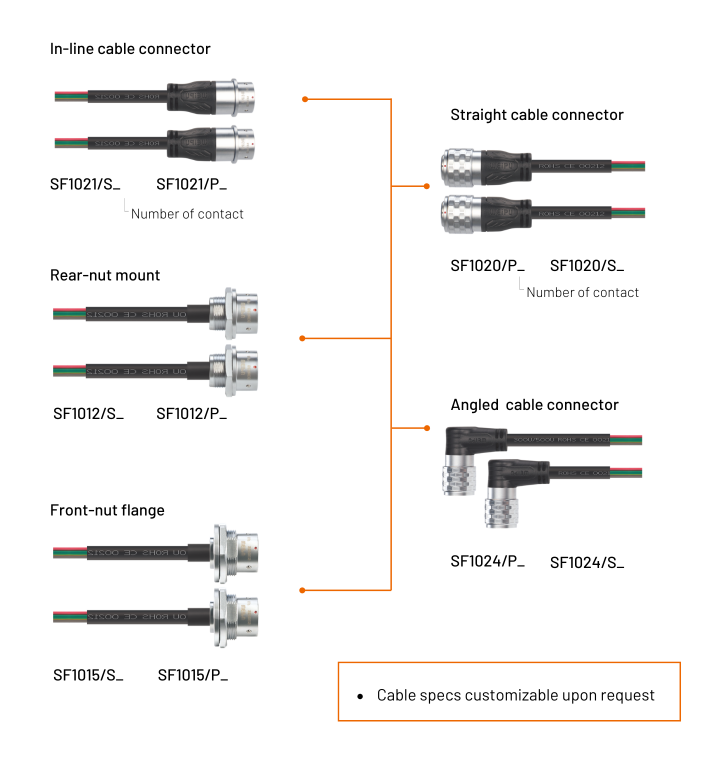

Different connector types

Available in both male and female.

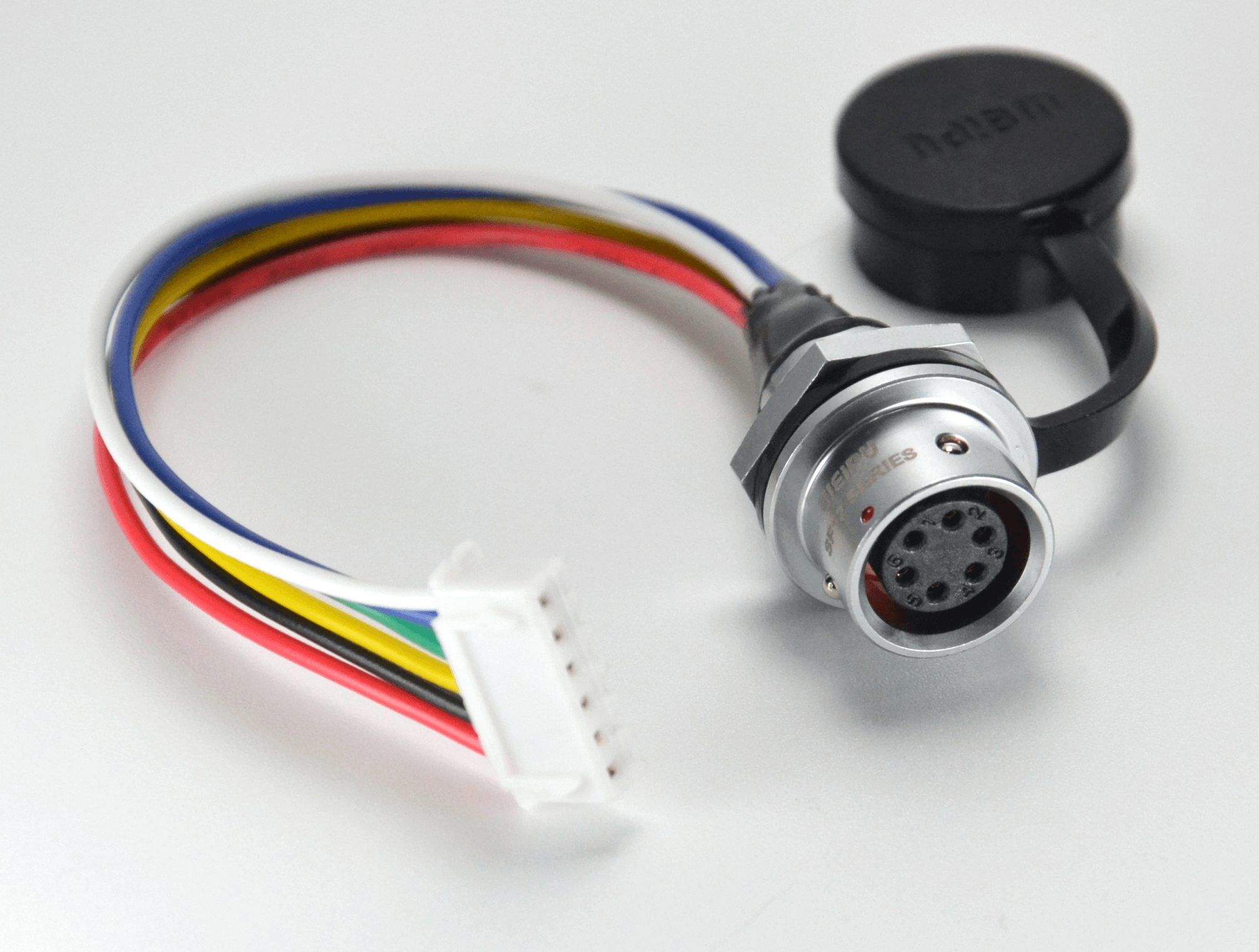

Have options for plug, inline cable connector, panel socket

Successsful Case-SF series on Rail Adapter Design

For the application of rail adapter, ensuring the correct and secure connection is the priority. Thus, it is important to choose a solid, high-quality connector to keep a stable connection. Meanwhile, a connector with a push-pull design can also make it easier to use when switching the mode between plugging and unplugging.
