WEIPU SP25 Cable Assemblies Waterproof Large Size Connectors Overmolding & Cable Assembly

IP68 Highly Sealed
Custom Cable Termination
Seamless Connector Integration

The WEIPU SP25 Cable Assembly & Overmolding solution is designed to provide a fully integrated, ready-to-use waterproof connection for demanding industrial environments. With its rugged IP68 waterproof design, threaded locking system, and custom overmolded assembly, SP25 ensures lasting performance in extreme industrial and marine settings.

Whether you require custom cable lengths, overmolded strain-relief, specific wire gauges, special jacket materials, or multi-pin power & signal combinations, the SP25 overmolded solution ensures a reliable plug-and-play connection for your application.

Key Benefits:

IP68 Waterproof Protection – Fully sealed against dust and water, ensuring continuous operation in harsh outdoor or industrial conditions.

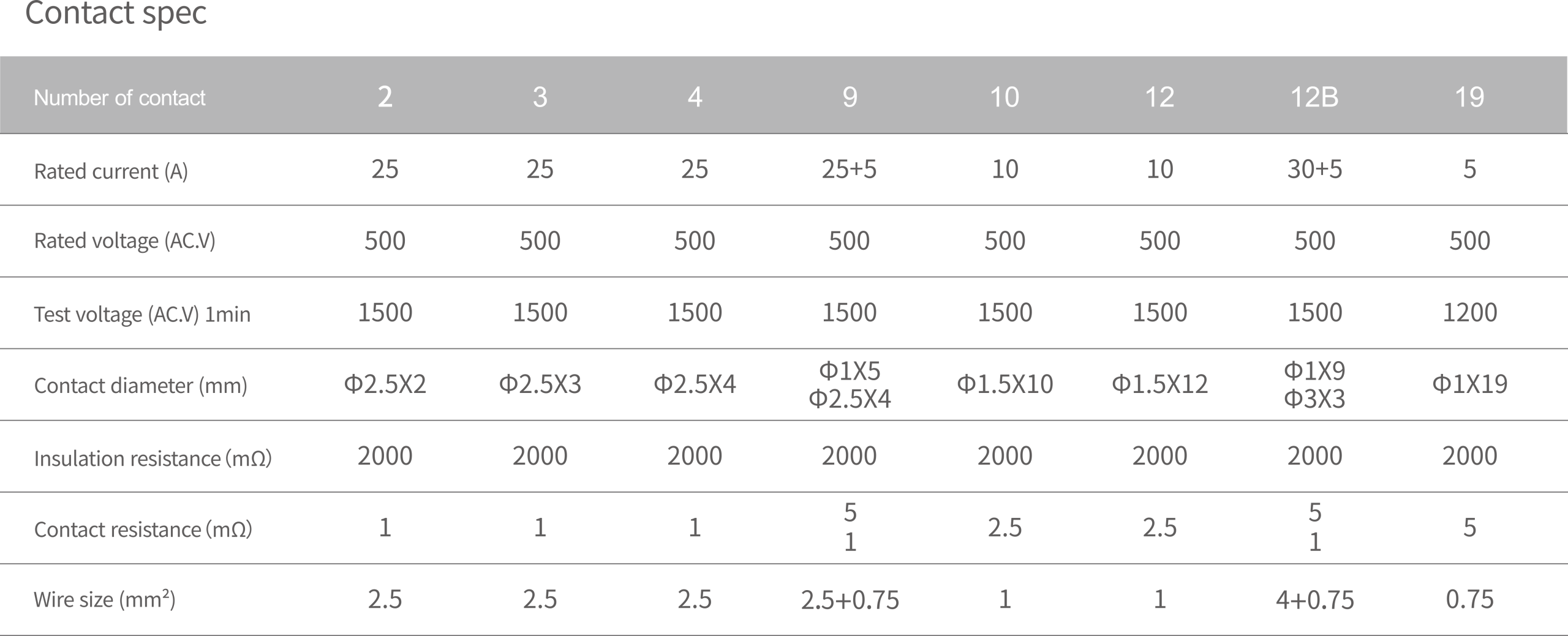

Power & Signal Compatibility – Configurations (2–19 pins), supporting mixed-signal or medium-power delivery.
Threaded Coupling Mechanism – Locks securely under vibration or mechanical stress.
Perfect Compatibility: Connector and cable designed, tested, and assembled by engineers
Custom Overmolding & Strain Relief – Protects cables from bending and impact for an extended lifespan.

Applications:

Ideal for outdoor equipment, battery systems, chargers, automation machinery, test instruments, and any device exposed to water, dust, vibration, or mechanical stress.

Download Catalogue

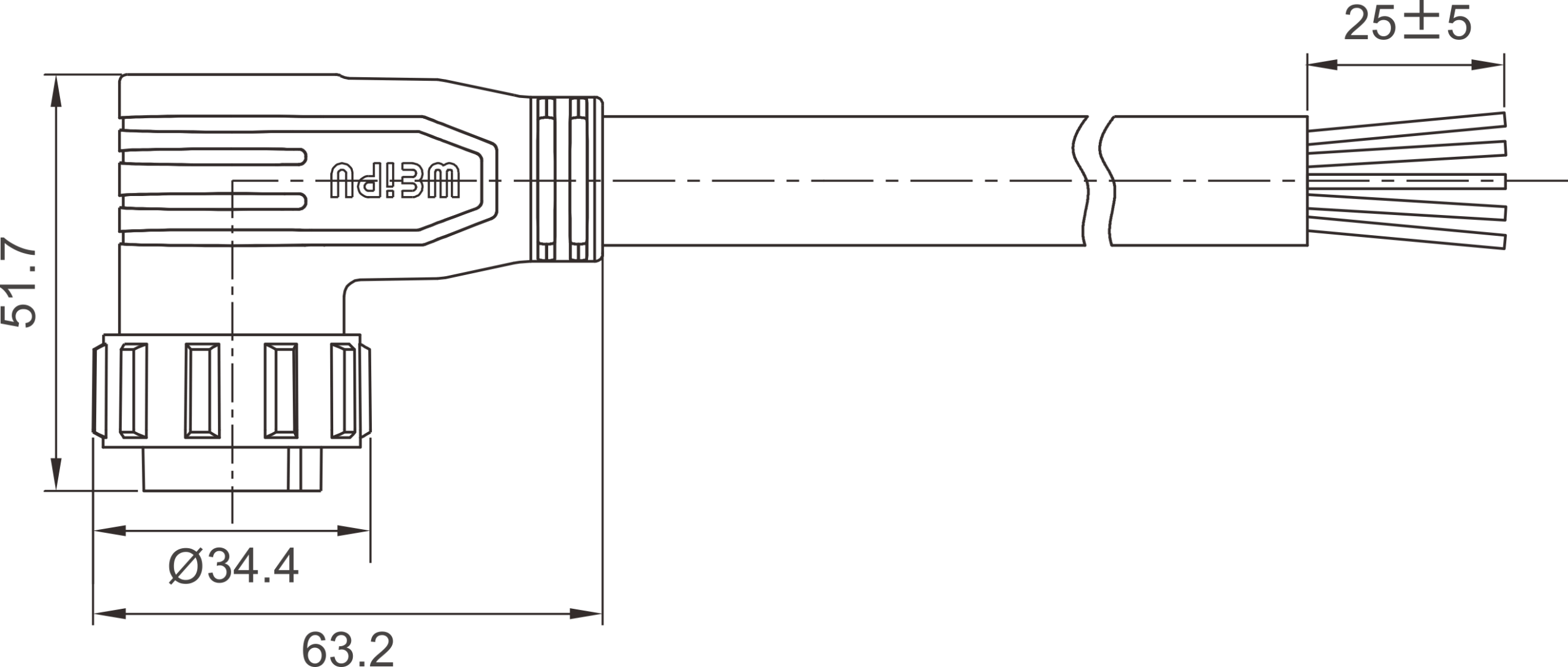

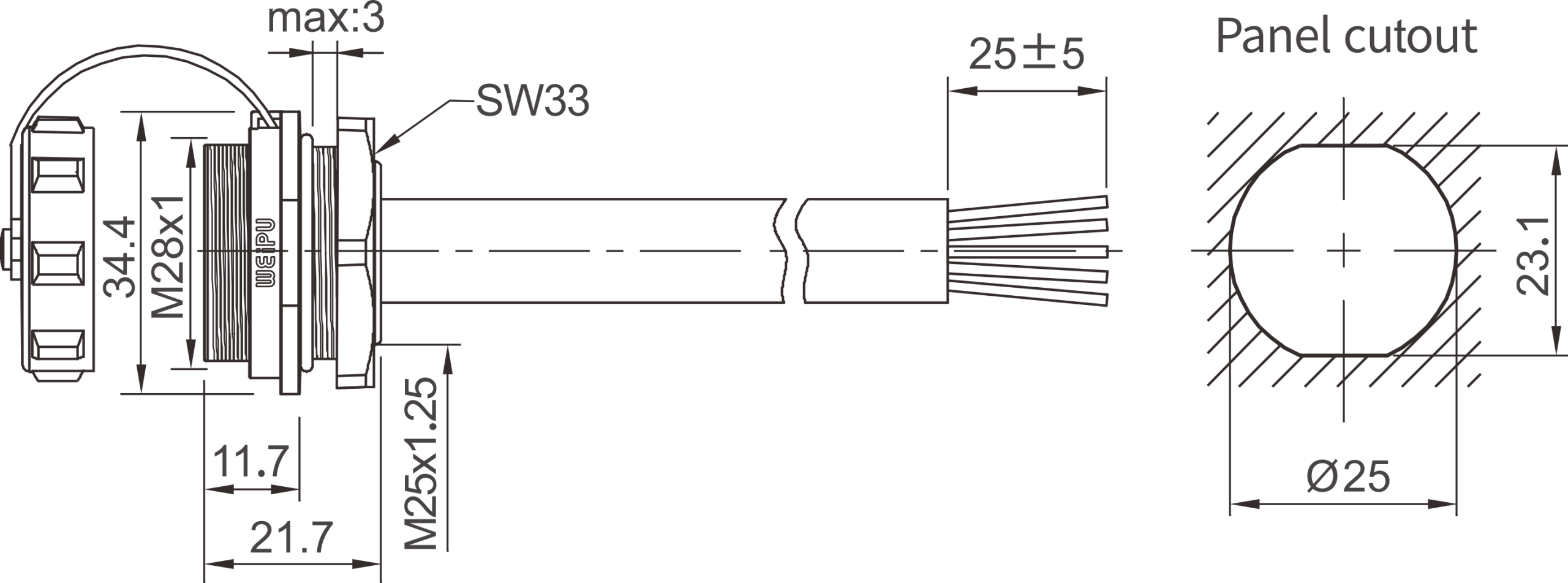

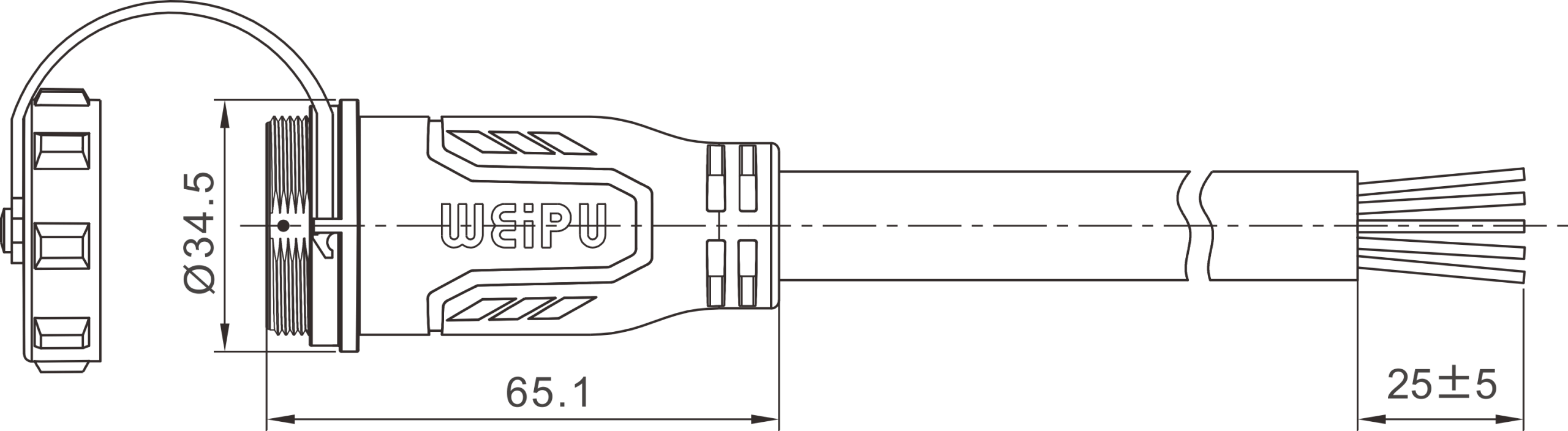

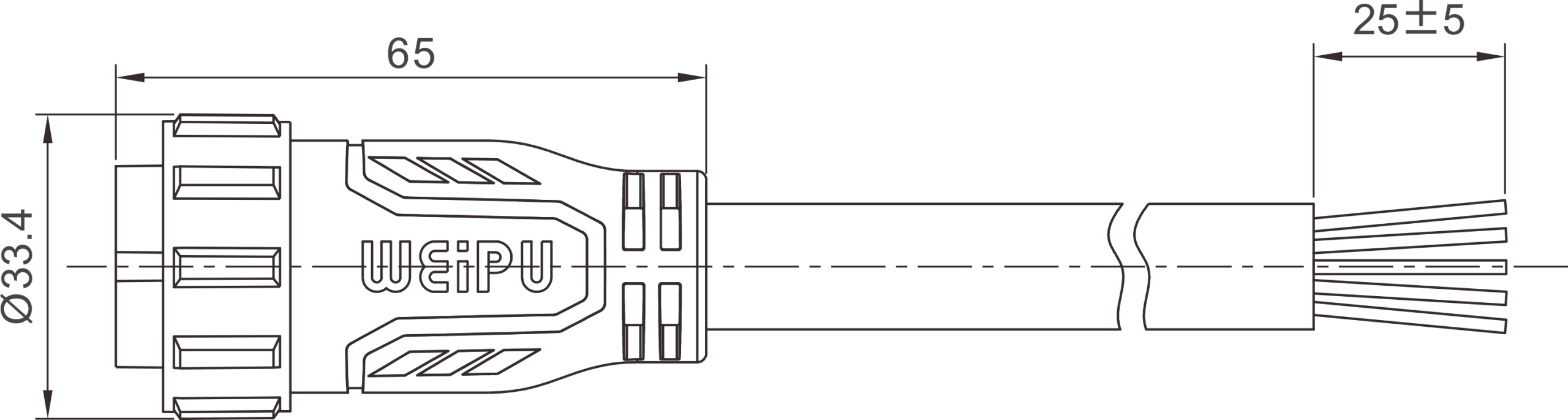

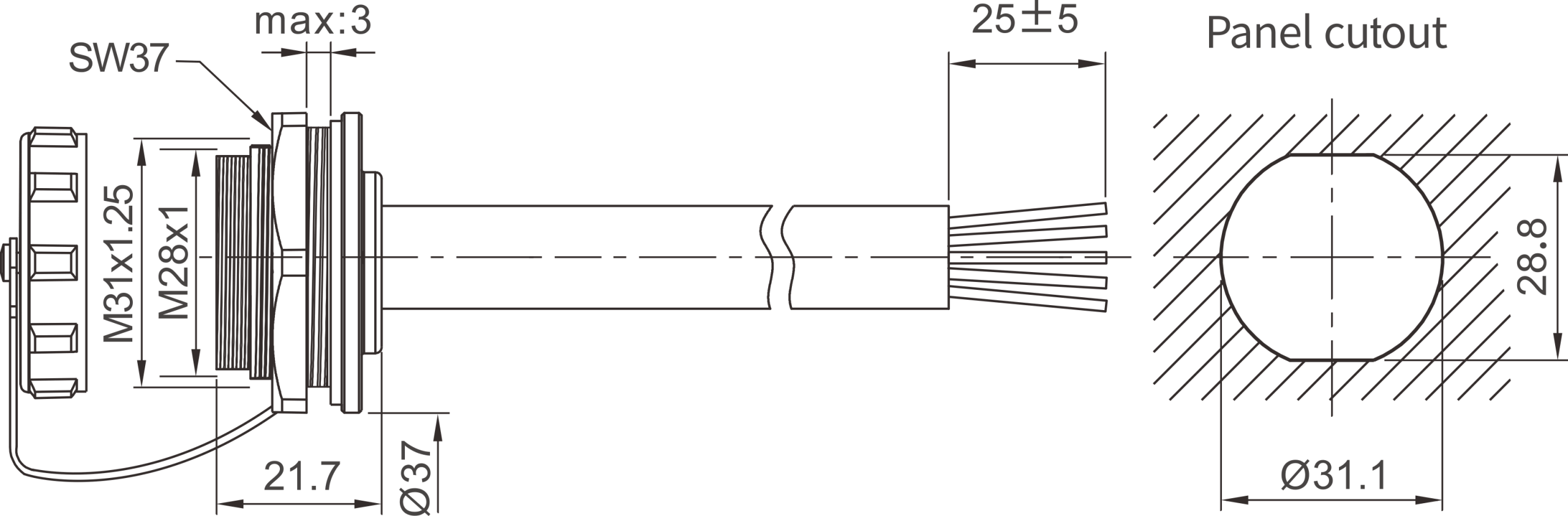

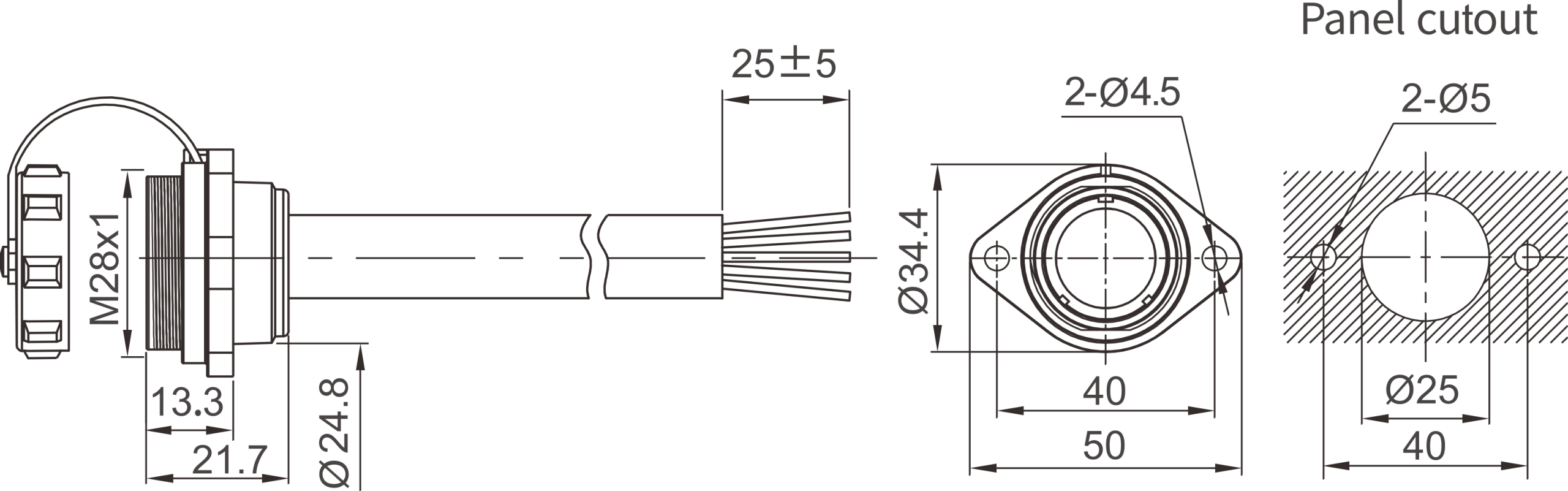

Mating Diagram

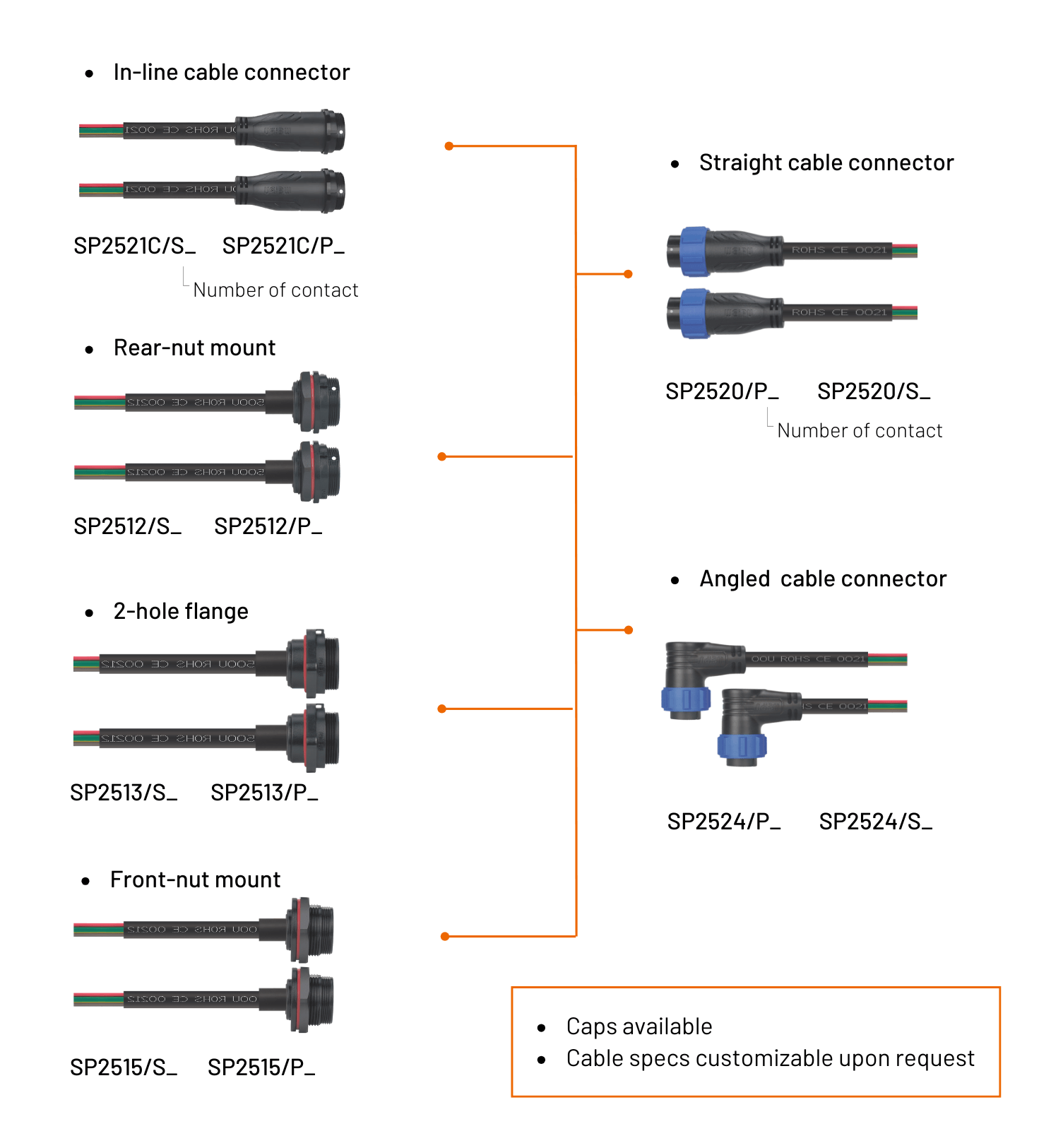

Different connector types

Available in both male and female.
Have options for plug, inline cable connector, panel socket

Case Study – SP Series Connectors for Outdoor Monitor

ApiCo integrated WEIPU SP Series waterproof connectors into their outdoor beehive monitoring systems to ensure stable and weatherproof performance. The IP68-rated SP connectors provide long-term protection against moisture, dust, and harsh environmental conditions, keeping monitoring devices reliable in the field.
