WEIPU IP68-MEDIUM SP21 NYLON SERIES WITH THREADED COUPLING
Solder, screw, crimp termination
UL available for 2-5pin
SP21 series is a medium size IP68 waterproof connector, specially designed for robust application and requests high water resistance.
1) medium size
2) 1-15 contacts
3) rated current: 5-100A
4) gold plating pin
5) IP68 after mated
6) assembly available
7) threaded coupling
8) UL certificated (2-5 pin)
Applications: This connector is designed with both power and signal arrangement and is good for harsh environments. It is widely used in many areas, such as outdoor testing or measuring equipment, communications field, motor, outdoor lighting, etc. Its strong industrial design enables it to support a lot of harsh and humid environments. It is available in solder, screw, and crimp termination for different contact of arrangement.
Download SP21 Catalogue
SP21 Mating Diagram

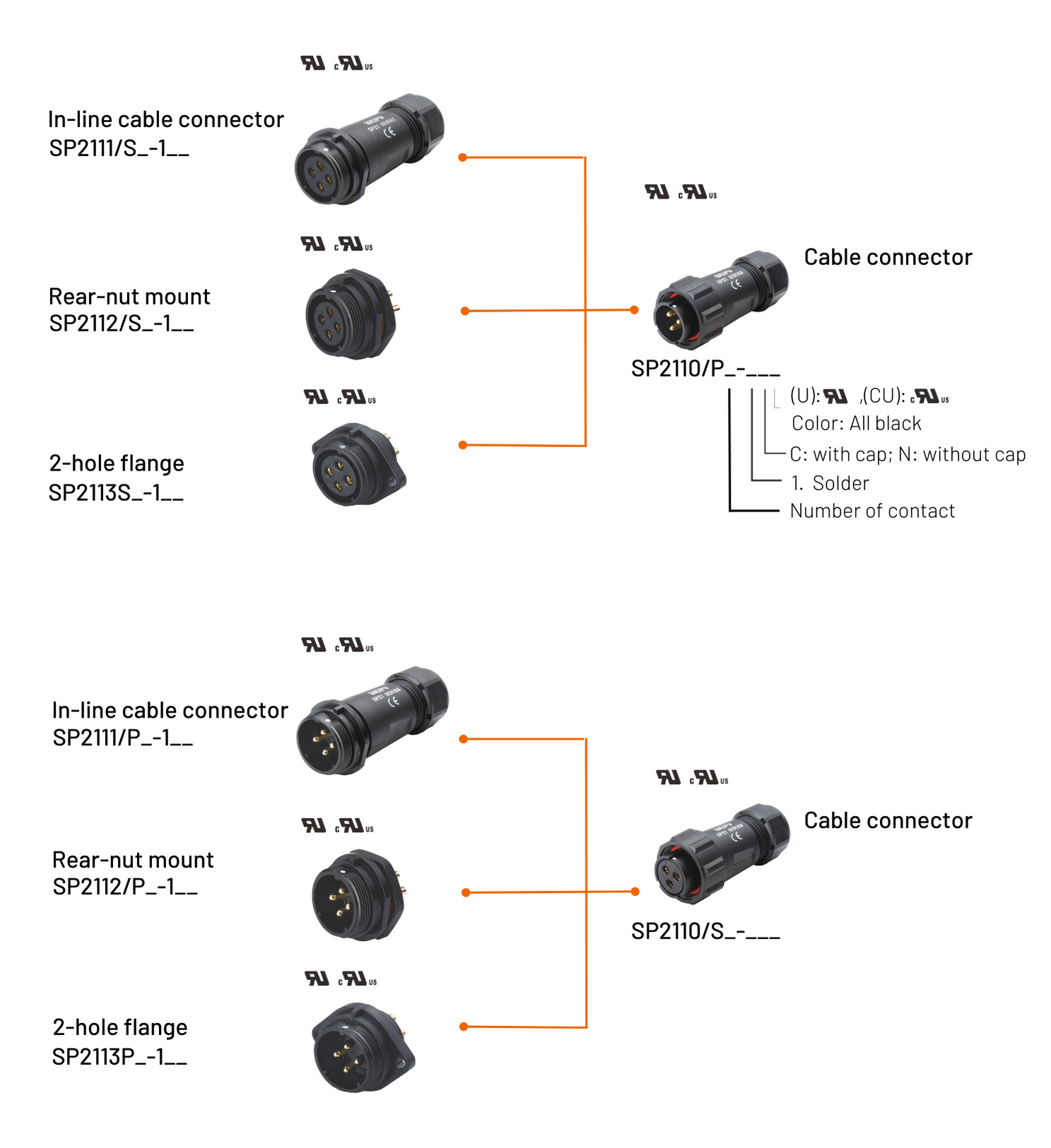

SP21-UL Mating Diagram
Available in both male and female
Have options for plug, inline cable connector, panel socket
SP All-black Series Case-Outdoor Audio Project
IP68 all-black SP series well fits for outdoor loudspeaker projects as its high protection with IP68 and anti-UV ability which can make a stable connection even in outdoor environments.READ MORE
Having questions for SP21?
Connect with WEIPU

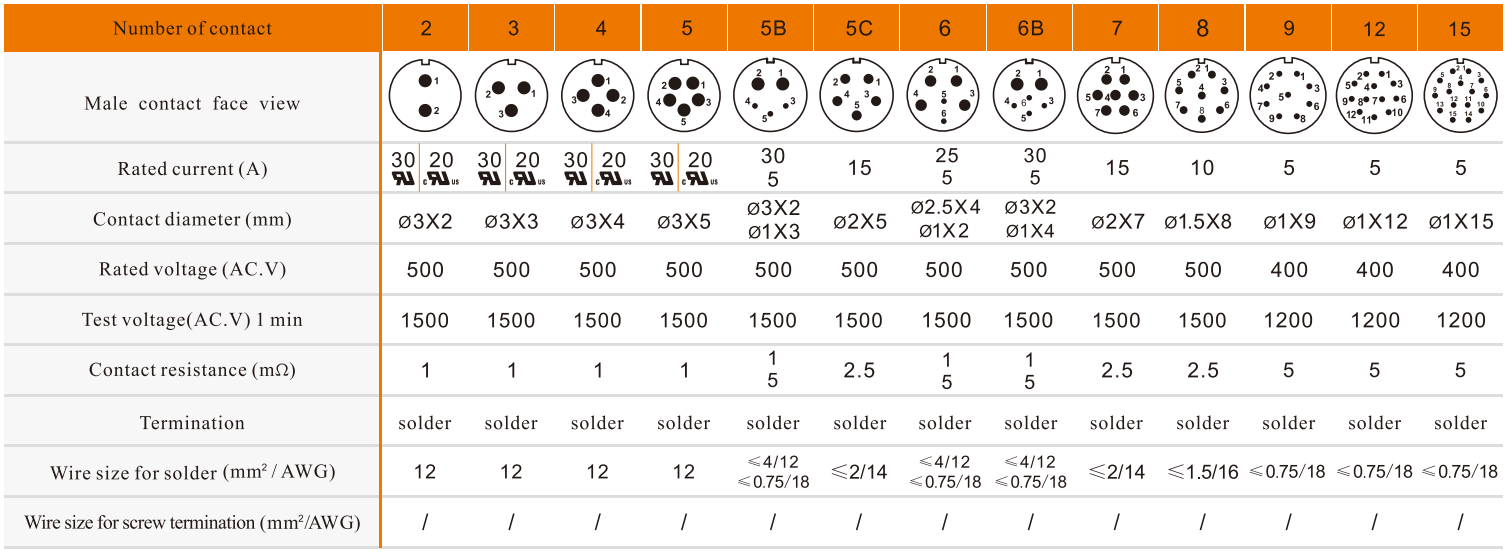

Solder Spec with UL

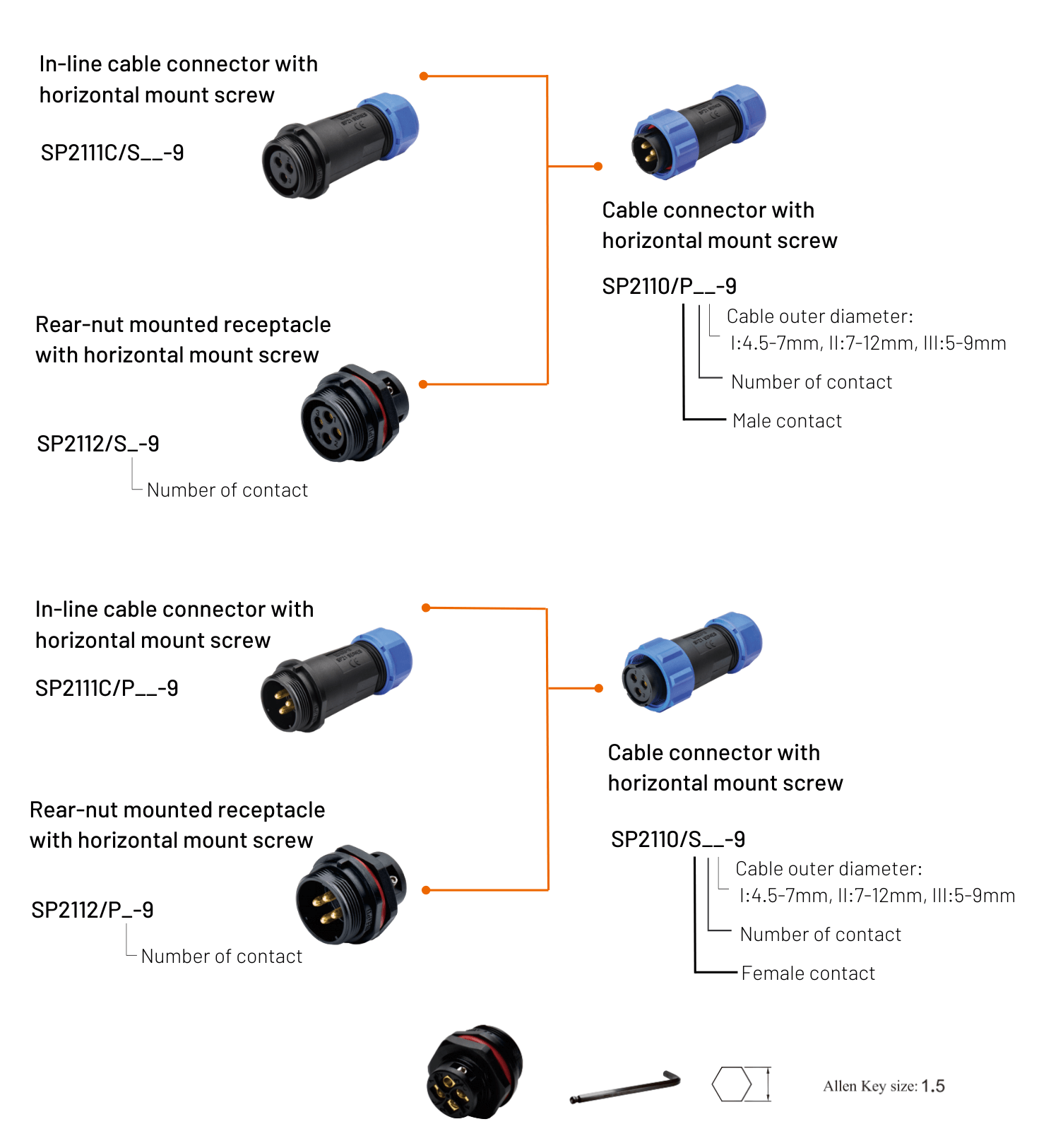

Horizontal Mount Screw Spec
