WEIPU SP13 Cable Assemblies Waterproof Small Size Connectors Overmolding & Cable Assembly

IP68 Highly Sealed
Custom Cable Termination
Seamless Connector Integration

Engineered for compact installations, the WEIPU SP13 Series combines a small-size footprint with IP68-level waterproof protection. Our cable assembly and overmolding services enhance connector performance with tailored cable lengths, sealing options, and precision-built strain relief to protect cables in harsh environments. Each assembly is factory-tested for stability, making SP13 a preferred solution for LED lighting, outdoor testing devices, automation systems, and space-limited applications.

Key Benefits:

Small-Size IP68 Waterproof Design — reliable sealing for compact devices and harsh outdoor environments.

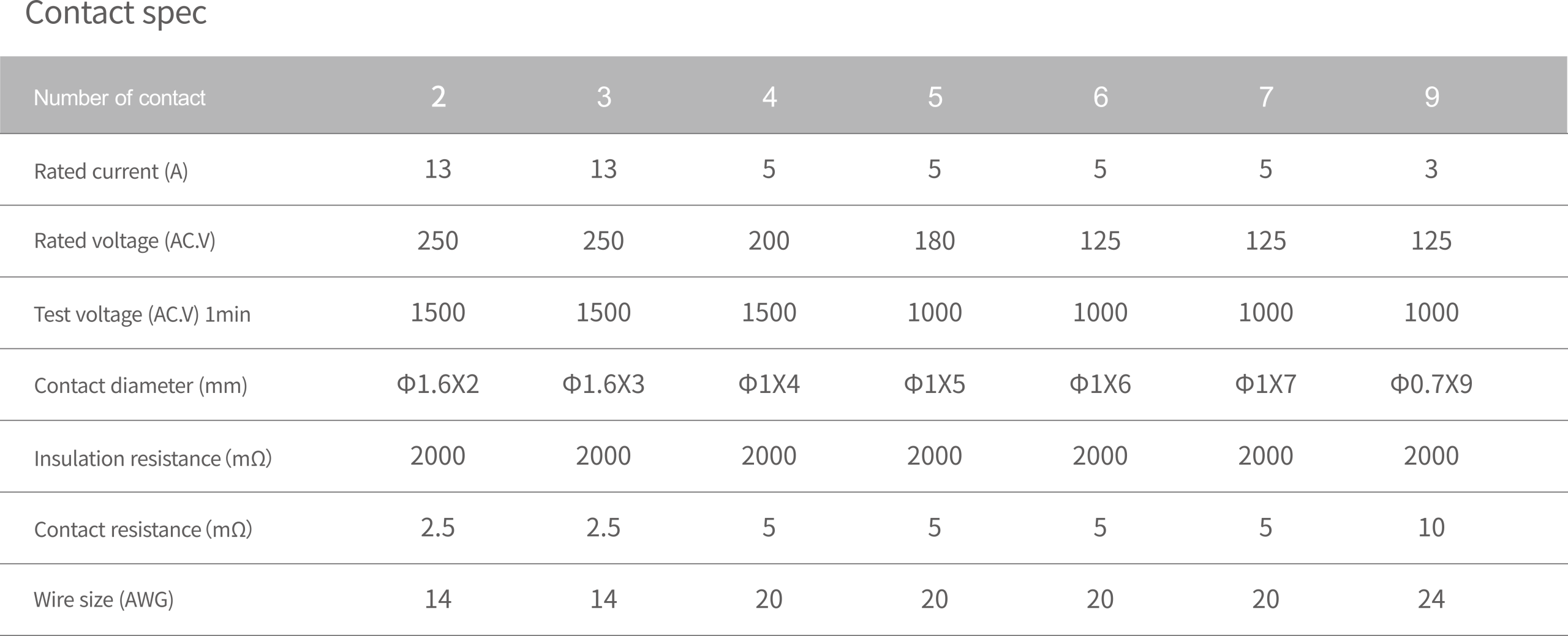

Wide Contact Range (2–9 pins) — supports flexible wiring for power and signal applications.
Custom Cable Length & OD Options — engineered to fit your installation needs.
Overmolded Strain Relief — enhances durability, waterproofing, and cable protection.
Threaded Coupling Structure — ensures secure locking and vibration-proof performance.
Perfect Connector–Cable Integration — cable and connector designed, tested, and assembled by the engineering team.
Full Assembly Customization — choose cable type, jacket material, sealing rings, and termination options.
100% Factory Tested — every assembly is verified for waterproofing, electrical safety, and long-term reliability.

Download Catalogue

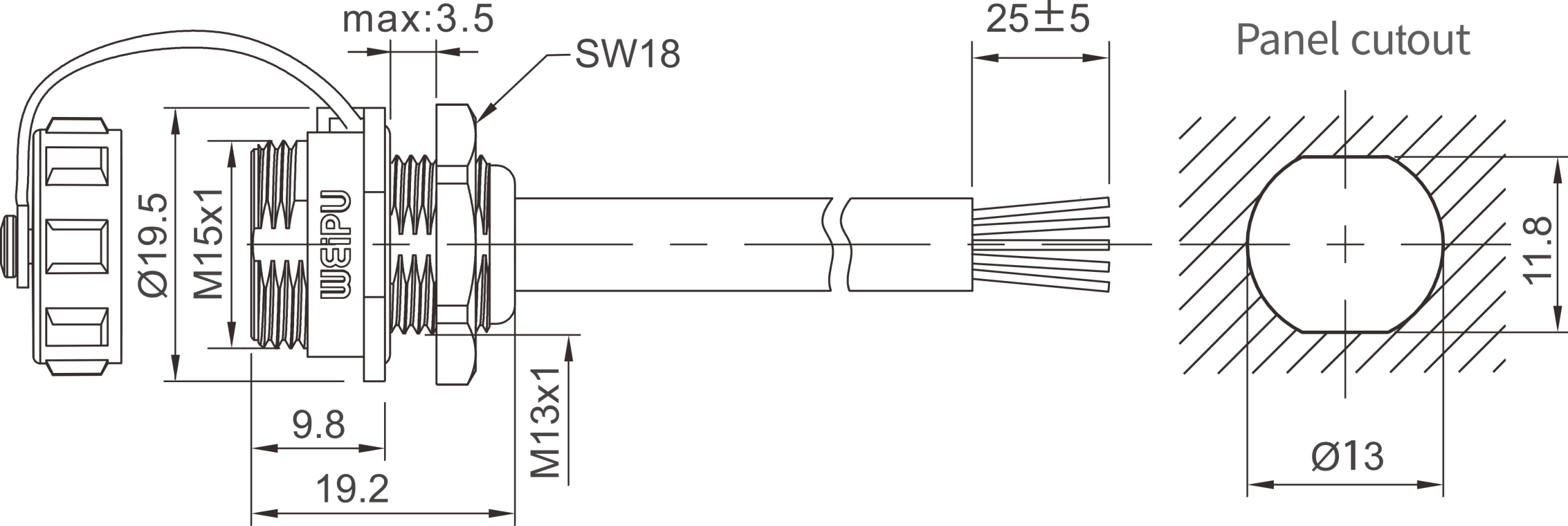

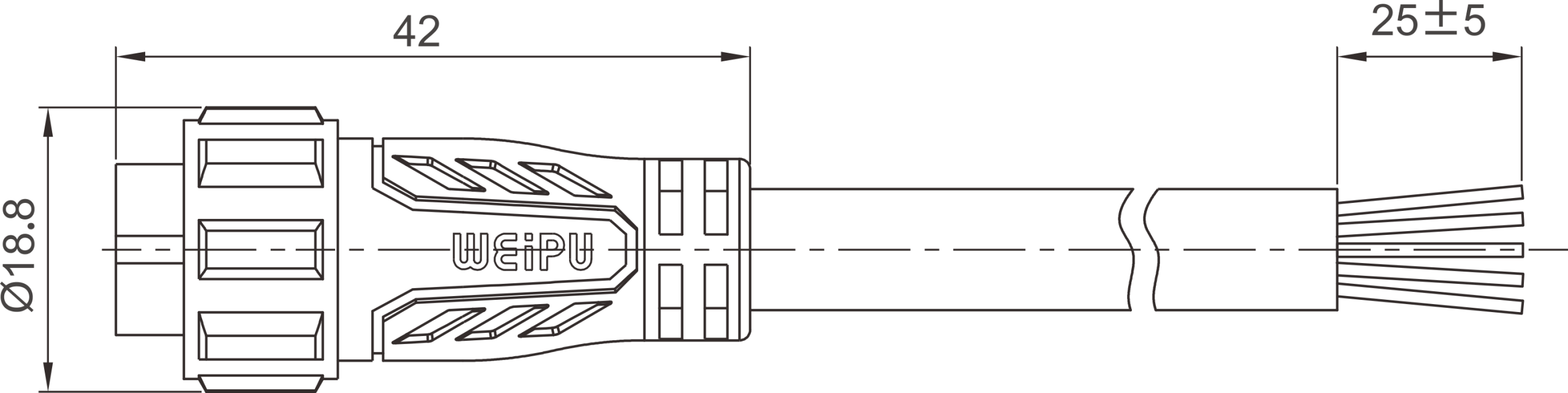

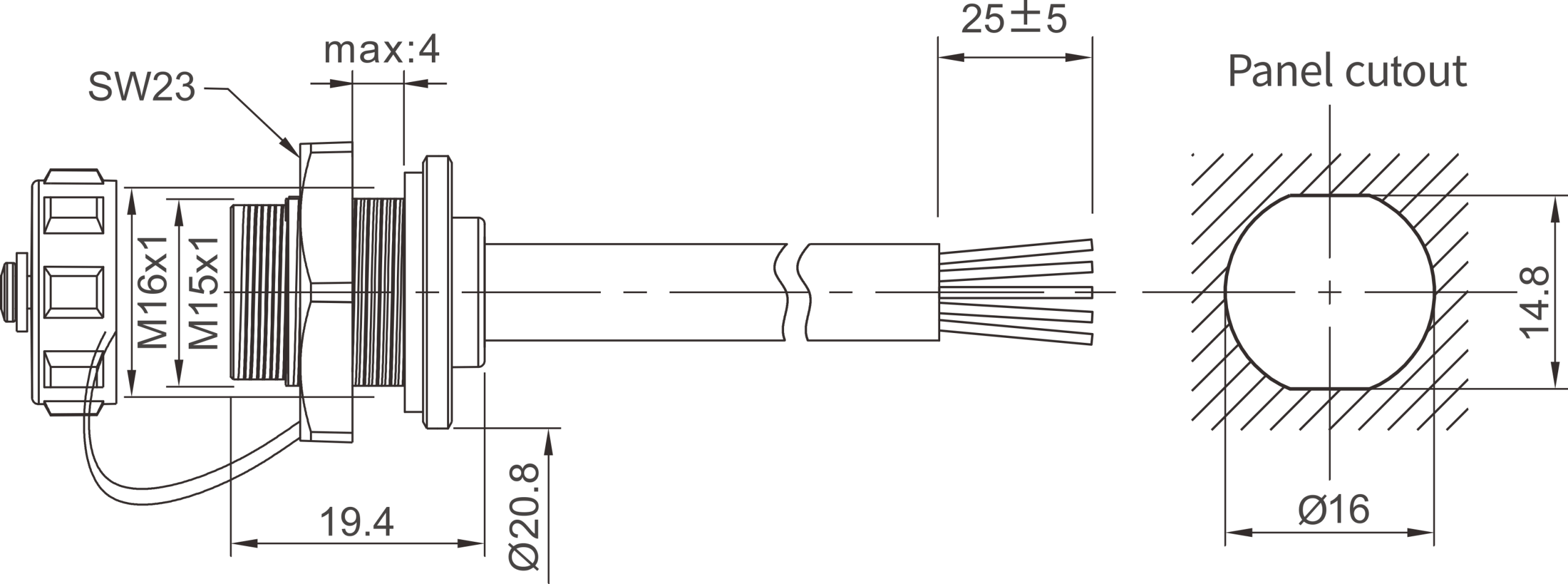

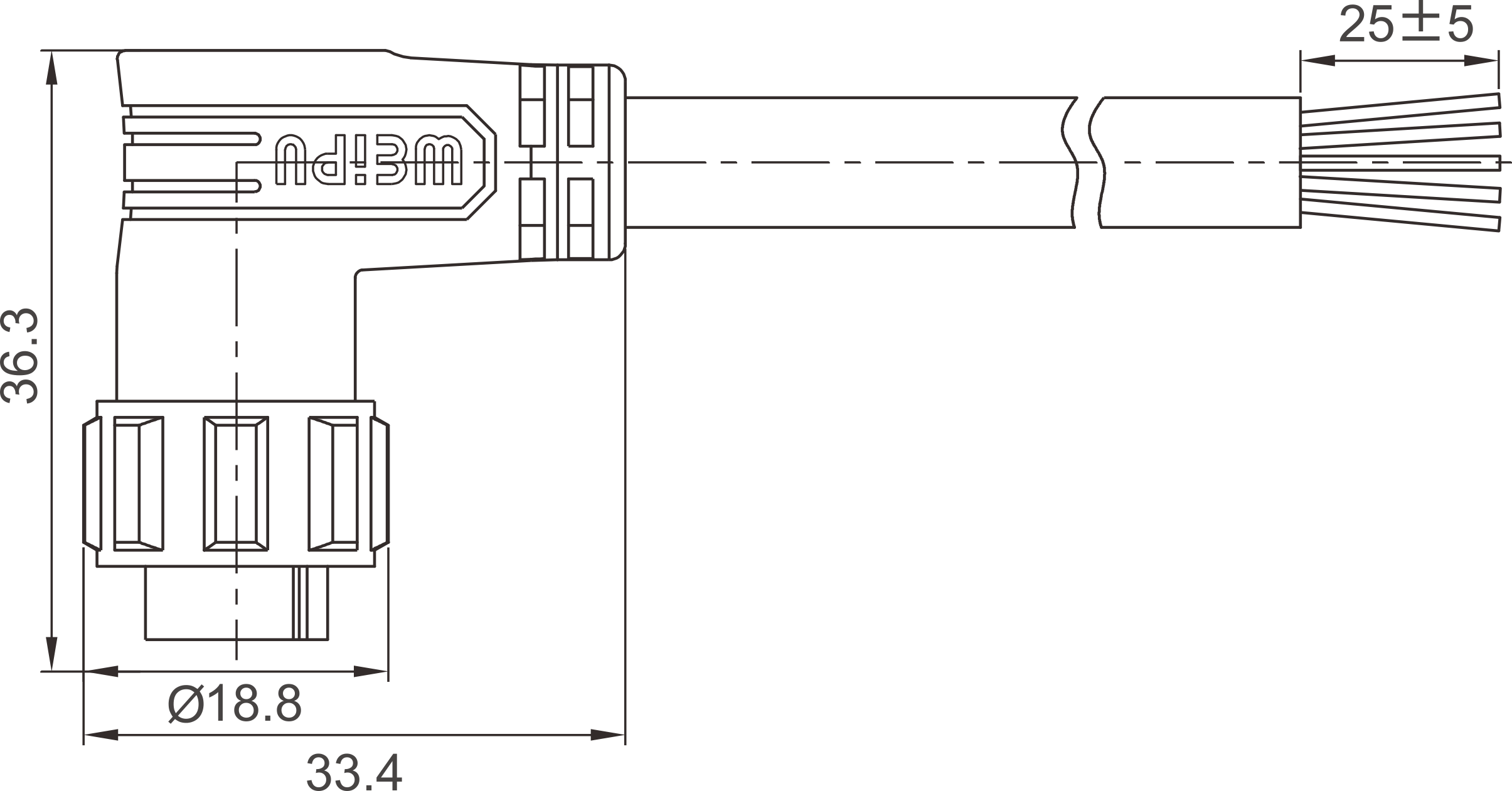

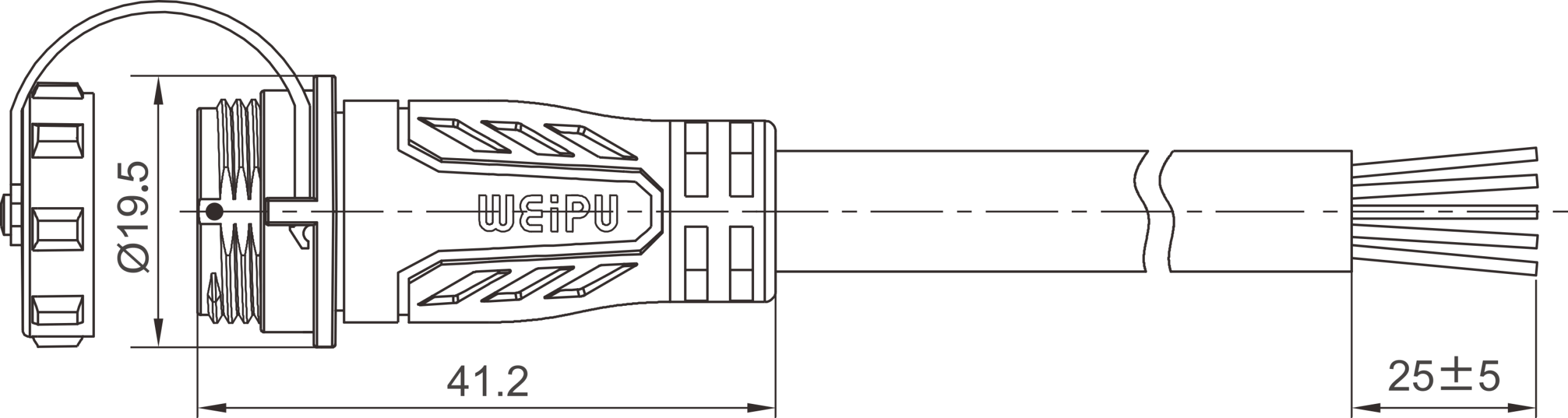

Mating Diagram

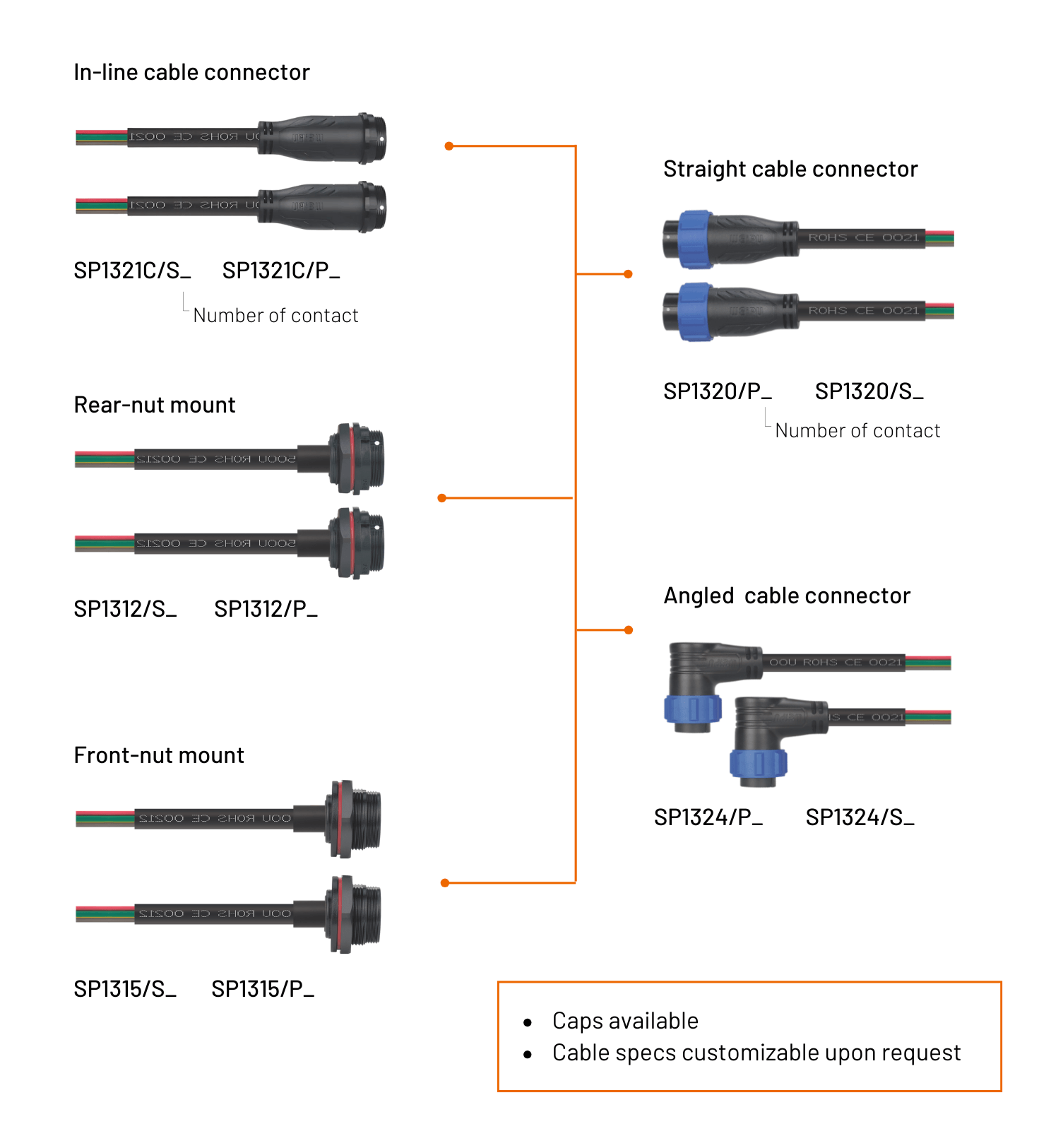

Different connector types

Available in both male and female.
Have options for plug, inline cable connector, panel socket

Case Study – SP Series Connectors for LED Lighting

Karpas Engineering integrated WEIPU SP Series connectors into their latest LED lighting designs, ensuring secure, waterproof connections with IP68 protection. The SP Series delivers dependable performance in demanding lighting environments where durability and reliability are critical.
