WEIPU SF8B Cable Assemblies Waterproof Mini Connectors Overmolding & Cable Assembly

IP67 Highly Sealed
Flexible Options
Full Compatibility: connector + cable integration

WEIPU now offers custom cable assemblies for the SF8B Series, delivering a complete plug-and-play solution for space-constrained devices. By pairing SF8B’s compact circular connectors with fully integrated cables, we ensure reliable performance, easy installation, and consistent waterproof sealing – all in one package.

Whether you’re building compact instruments, handheld devices, or precision measurement systems, our connector + cable assembly is the smartest and most reliable way to go.

Key Benefits:

Ultra-Compact Design: Tailored for tight spaces, ideal for portable or handheld devices
Push-pull Coupling: easy & quick connection
Perfect Connector-Cable Match: Connector and cable designed, tested, and assembled by engineers
Waterproof & Dustproof: IP67 protection (when mated), maintained throughout the assembly
Flexible Customization: Cable length, wire gauge, jacket type, overmold design, and color options
Quick, Error-Free Installation: Plug-and-play solution reduces on-site wiring and risk of failure
Overmolding Available: For additional strain relief and a polished appearance

Download Catalogue

Mating Diagram

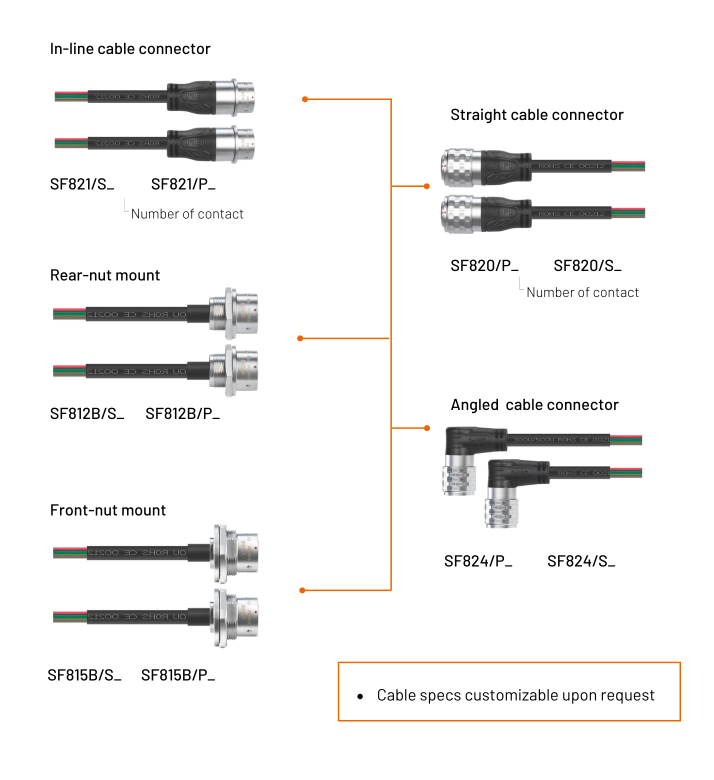

Different connector types

Available in both male and female.
Have options for plug, inline cable connector, panel socket

Successsful Case-SF series on Rail Adapter Design

For the application of rail adapter, ensuring the correct and secure connection is the priority. Thus, it is important to choose a solid, high-quality connector to keep a stable connection. Meanwhile, a connector with a push-pull design can also make it easier to use when switching the mode between plugging and unplugging.
