WEIPU SF6B Cable Assemblies Waterproof Mini Connectors Overmolding & Cable Assembly

IP67 Highly Sealed
Flexible Options
Full Compatibility: connector + cable integration

WEIPU now offers ready-to-use cable assemblies for our miniature connector series SF6B. These factory-assembled solutions combine compact connectors with precisely matched cables, ensuring optimal performance, waterproof integrity, and fast installation in space-limited applications.

Key Benefits:

Compact Design: Miniature form factor, ideal for space-constrained environments
Push-pull Coupling: easy & quick connection
Perfect Compatibility: Connector and cable designed, tested, and assembled by engineers
Waterproof & Dustproof: IP67 protection (when mated), maintained throughout the assembly
Flexible Customization: Cable length, wire gauge, jacket type, overmold design, and color options
Faster Installation: Plug-and-play solution reduces on-site wiring and risk of failure
Seamless Overmolding Available: Improve anti-bending, waterproofing, and visual design

Whether you’re building compact instruments, handheld devices, or precision measurement systems, our connector + cable assembly is the smartest and most reliable way to go.

Download Catalogue

Mating Diagram

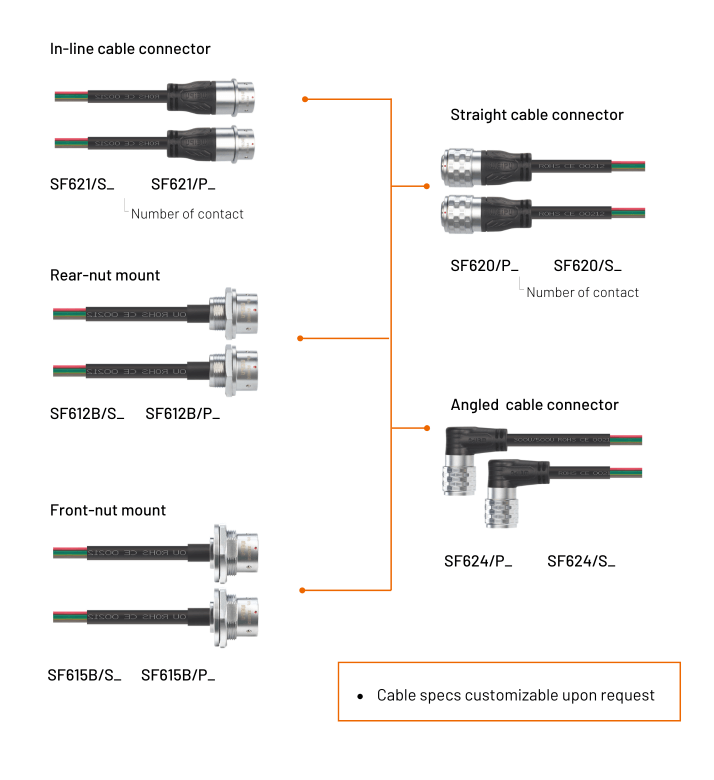

Different connector types

Available in both male and female.
Have options for plug, inline cable connector, panel socket

Successsful Case-SF series on Rail Adapter Design

For the application of rail adapter, ensuring the correct and secure connection is the priority. Thus, it is important to choose a solid, high-quality connector to keep a stable connection. Meanwhile, a connector with a push-pull design can also make it easier to use when switching the mode between plugging and unplugging.
