WEIPU SF24 Cable Assemblies Waterproof Large Size Connectors Overmolding & Cable Assembly

IP67 Highly Sealed
Flexible Options
Full Compatibility: connector + cable integration

The WEIPU SF24 Cable Assembly integrates the rugged, chrome-plated brass SF24 Series connector with pre-terminated cabling—offering a time-saving, secure, and waterproof solution for high-power and signal applications. With push-pull locking and up to 19 contacts, this cable assembly ensures both mechanical durability and electrical reliability in industrial environments.

Key Benefits:

Push-pull Coupling: easy & quick connection
Seamless Connector + Cable Integration: Improved mechanical fit, enhanced sealing integrity, and no on-site modifications required.
Flexible Cable Options: Cable length, wire gauge, jacket type, overmold design, and color options
Quick & Easy Installation: Pre-wired assemblies reduce on-site labor and wiring errors.
Overmolded & Custom Cable Options: For additional strain relief and a polished appearance.
Assembly tested by WEIPU – Verified sealing, wiring, and performance

The SF24 with cable assembly is engineered for high-power and signal transmission in: Industrial automation systems, robotics & servo drives, lighting & stage equipment, test & measurement devices, and outdoor control panels, etc.

Download Catalogue

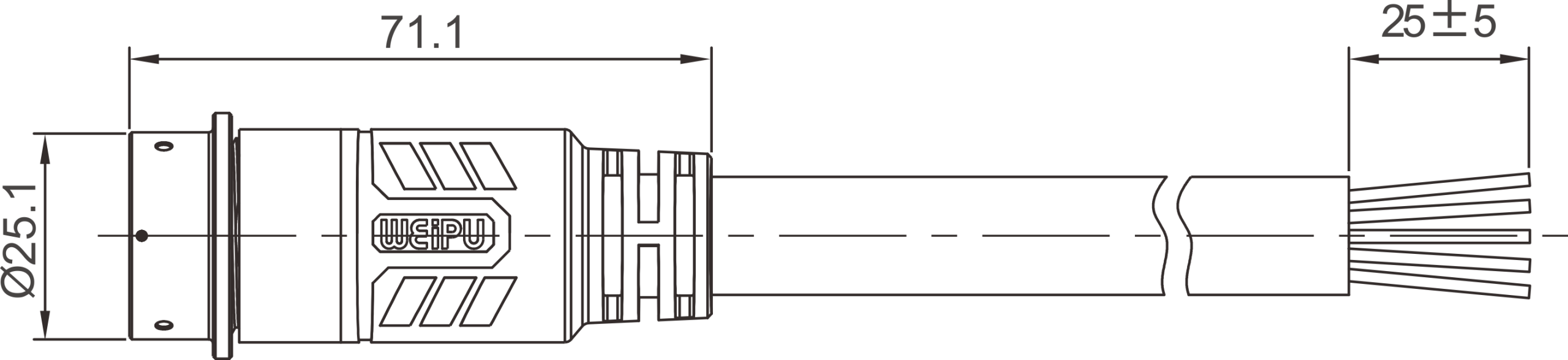

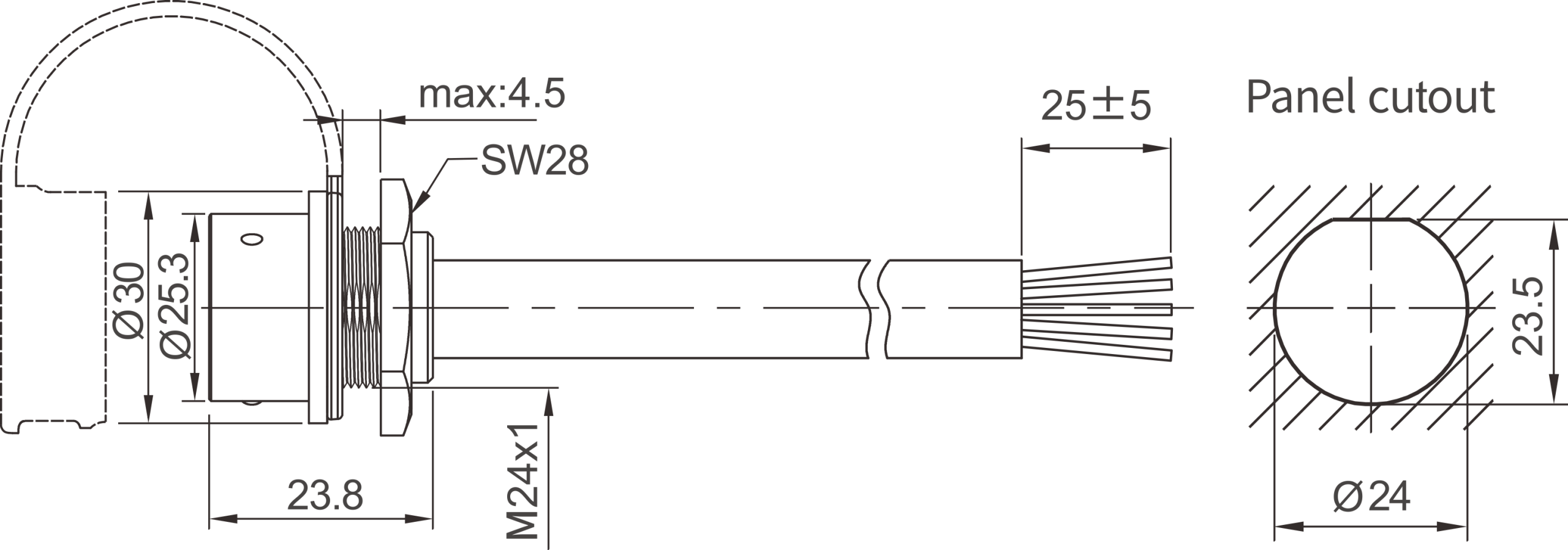

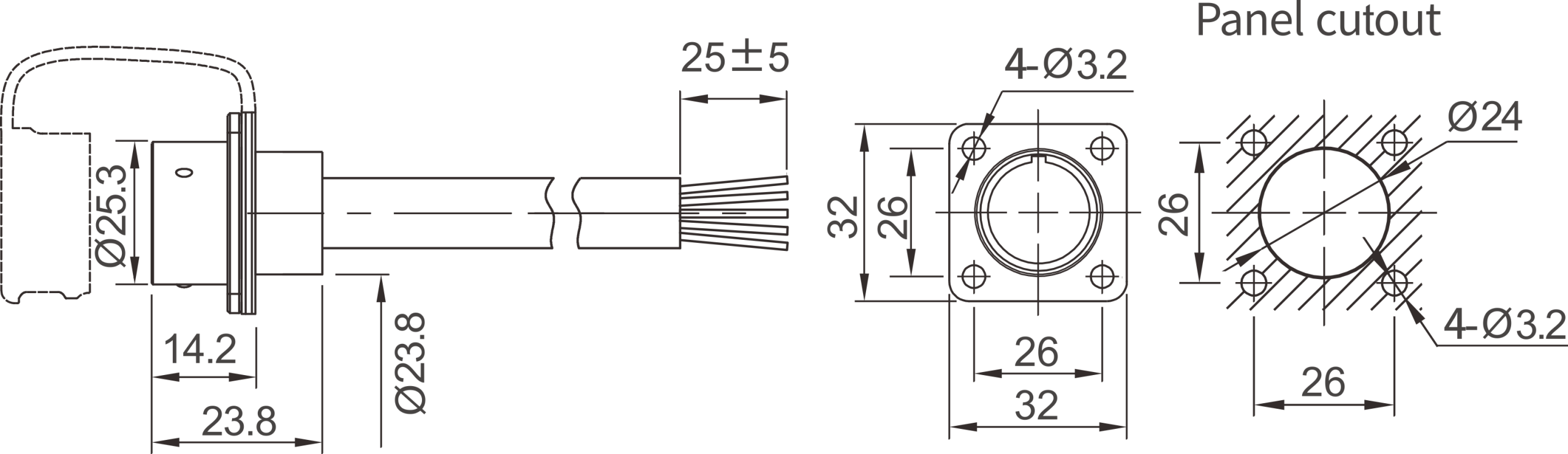

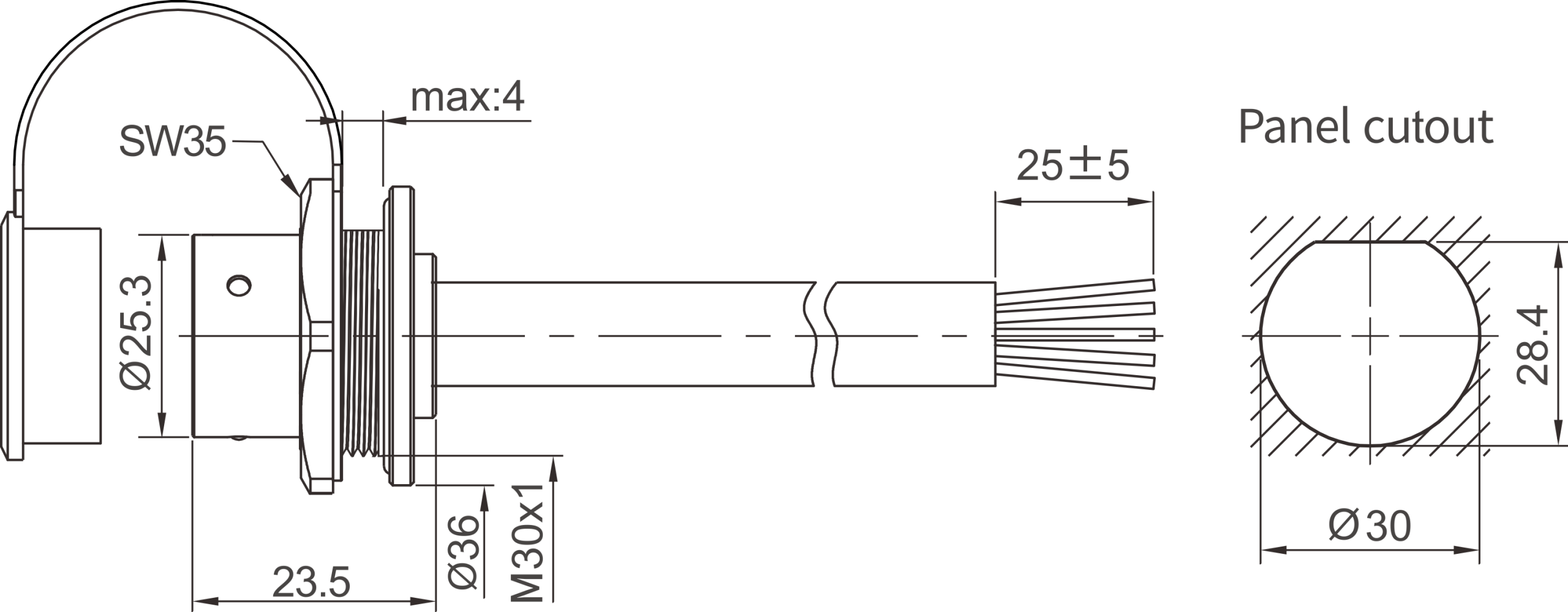

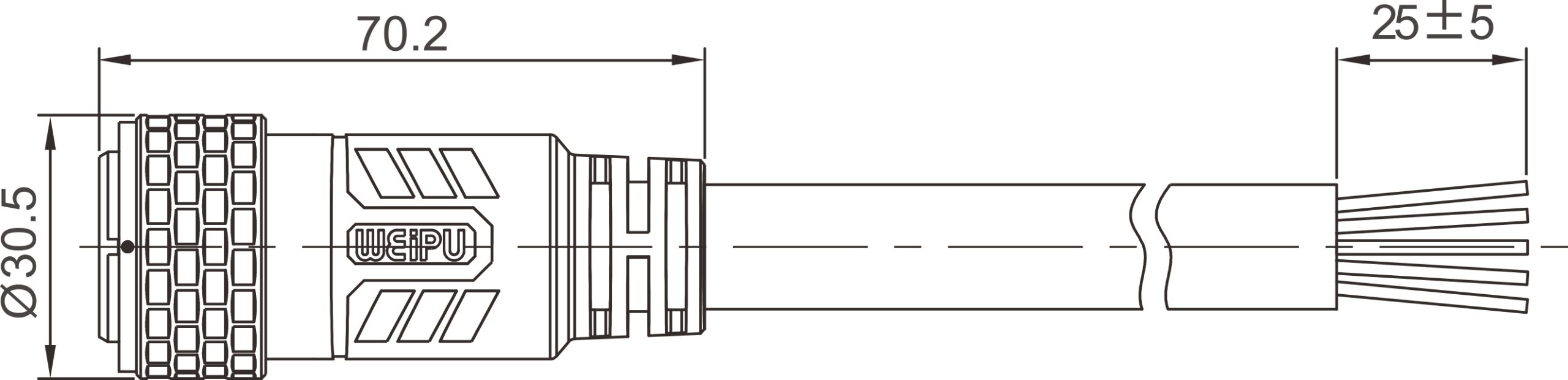

Mating Diagram

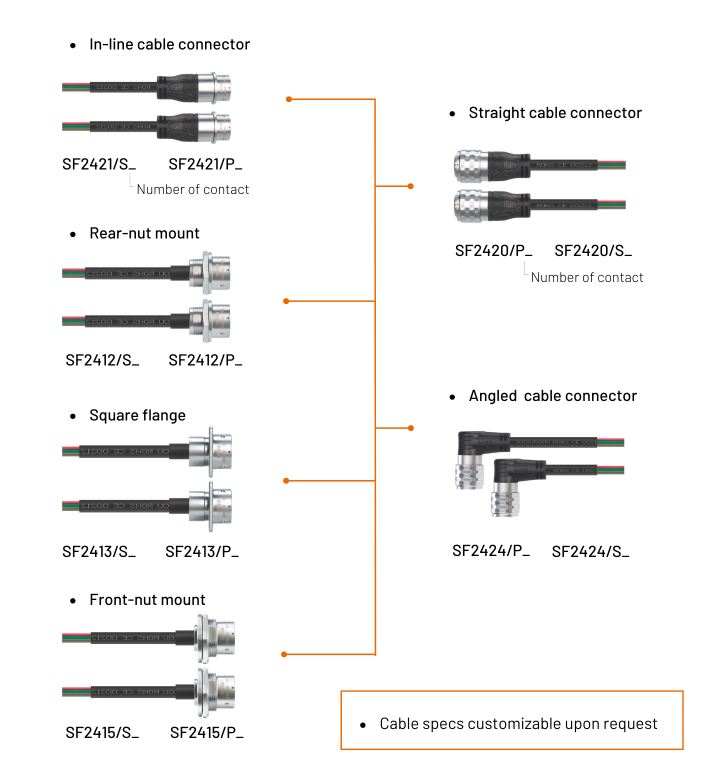

Different connector types

Available in both male and female.
Have options for plug, inline cable connector, panel socket

Successsful Case-SF series on Rail Adapter Design

For the application of rail adapter, ensuring the correct and secure connection is the priority. Thus, it is important to choose a solid, high-quality connector to keep a stable connection. Meanwhile, a connector with a push-pull design can also make it easier to use when switching the mode between plugging and unplugging.
