WEIPU SF20 Cable Assemblies Medium-Sized Brass Connector + Waterproof Prewired Cable

IP67 Highly Sealed
Flexible Options
Full Compatibility: connector + cable integration

The WEIPU SF20 Cable Assembly integrates the medium-sized, chrome-plated brass SF20 Series connector with customized pre-assembled cabling—designed for applications that demand fast connections, high current capacity, and strong durability.

Key Benefits:

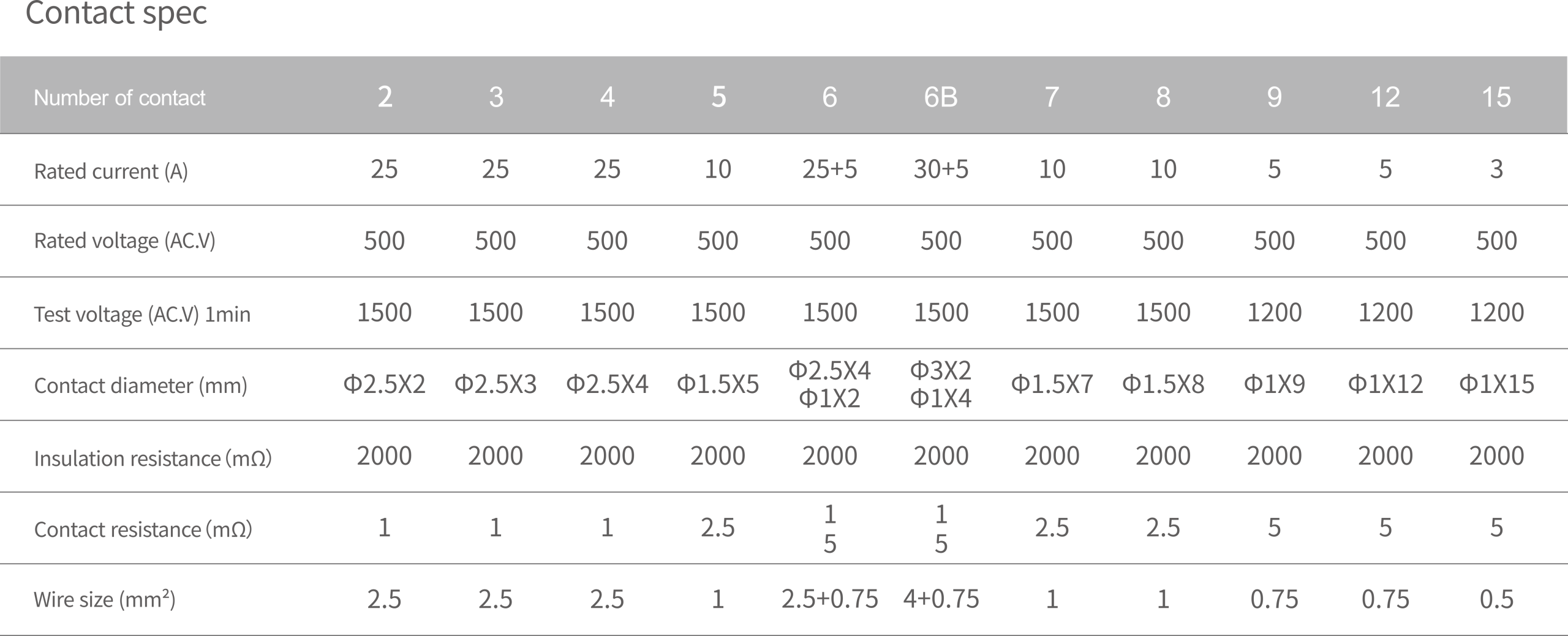

2 to 15 Contact Options – Supports both signal and high-power transmission
Push-pull Coupling- easy & quick connection
IP67 Waterproof (when mated) – Built for outdoor and rugged environments
Seamless Connector + Cable Integration: Improved mechanical fit, enhanced sealing integrity, and no on-site modifications required.
Flexible Cable Options: Cable length, wire gauge, jacket type, overmold design, and color options
Overmolded & Custom Cable Options: For additional strain relief and a polished appearance.
Assembly tested by WEIPU – Verified sealing, wiring, and performance

The SF20 cable assembly is widely used in fields that require reliable mid-sized connectors for signal and power transmission, such as entertainment & lighting systems, communication & signal control systems, test & measurement instrumentation, and equipment for mobility and automation.

Download Catalogue

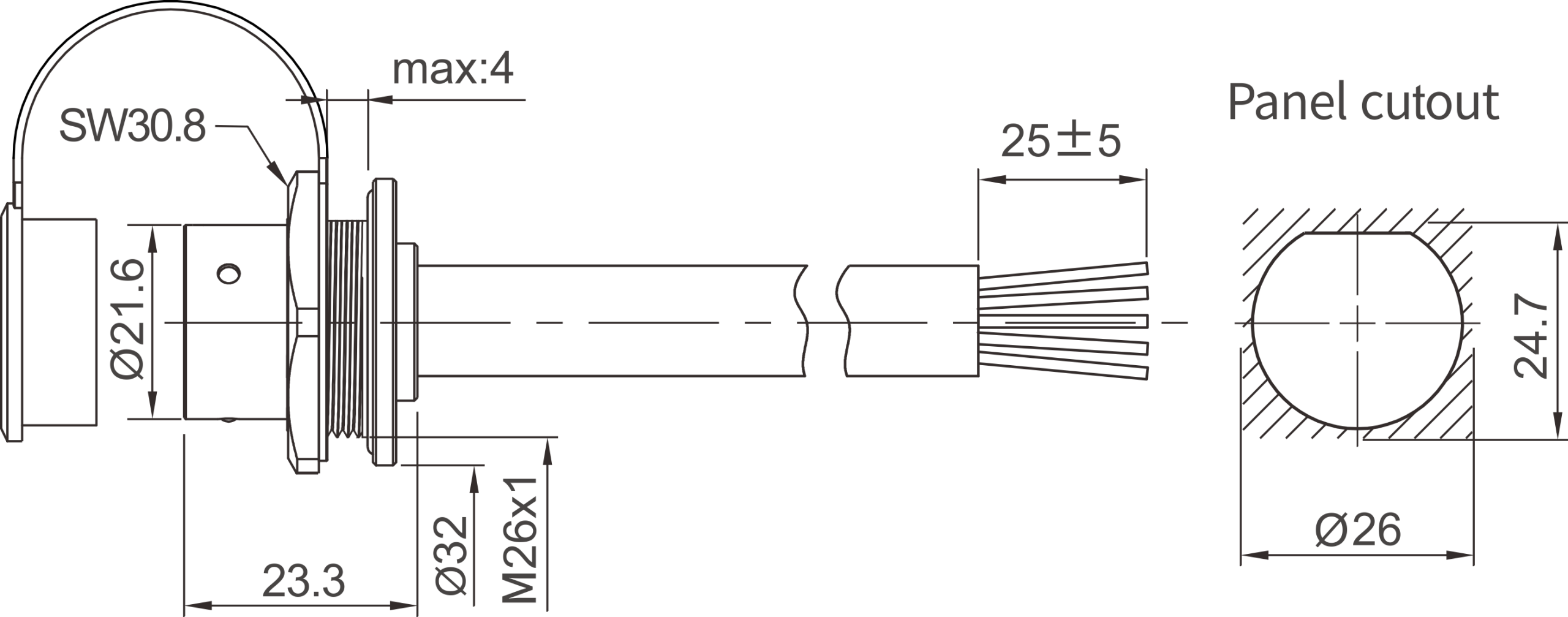

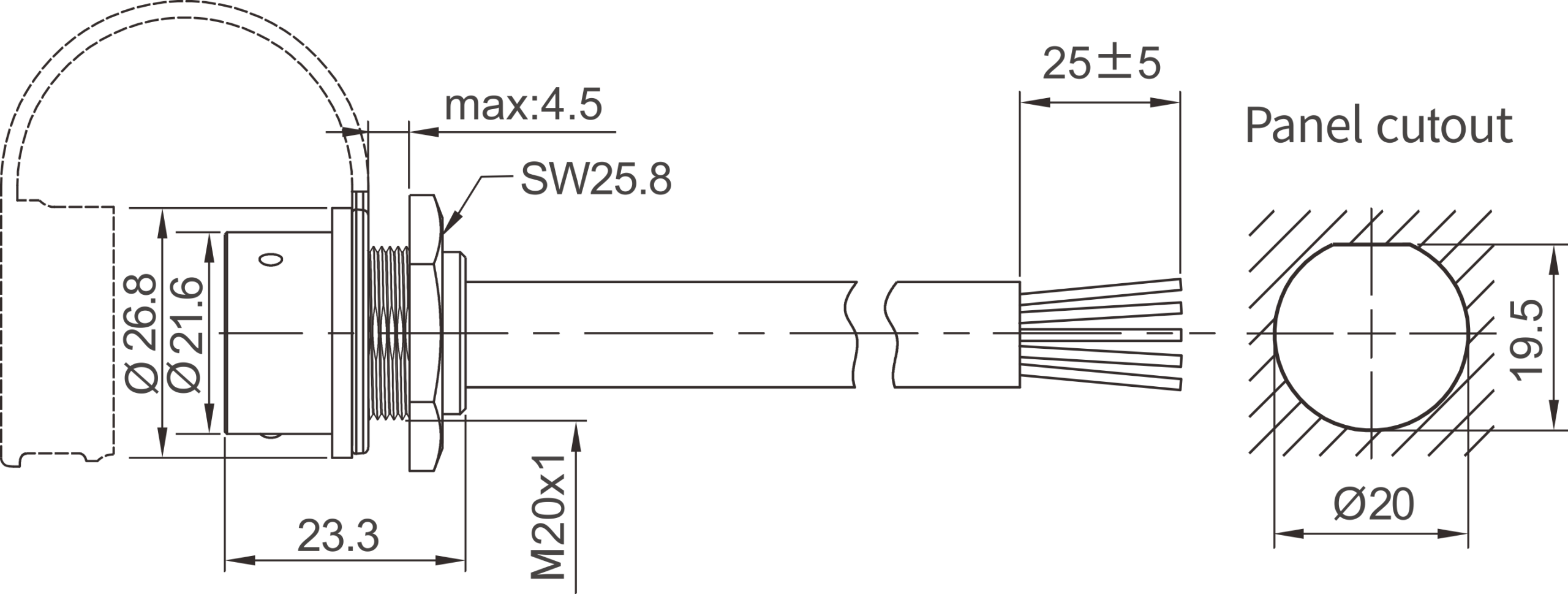

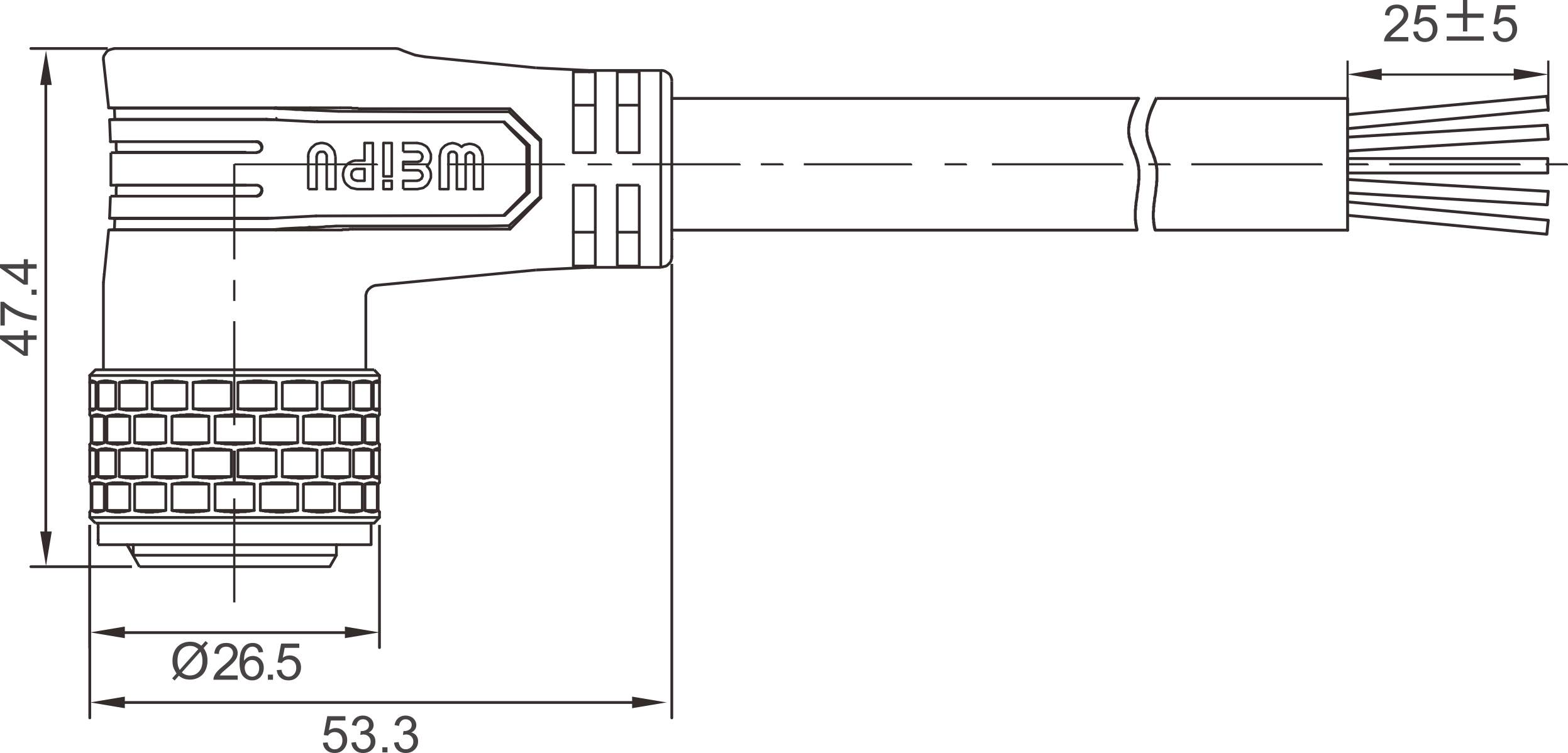

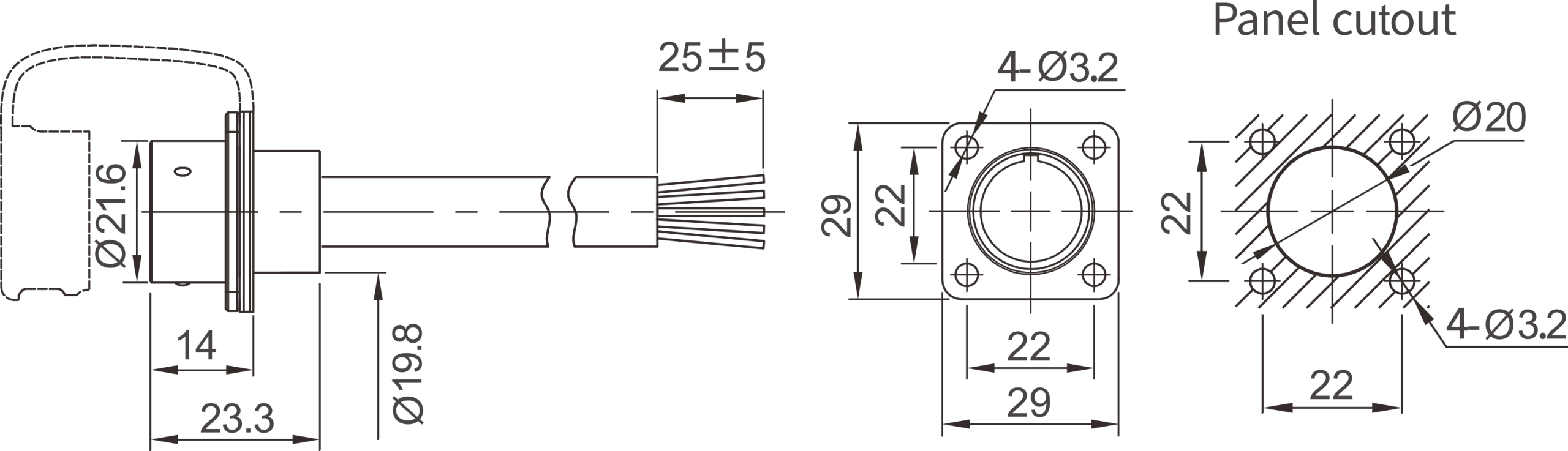

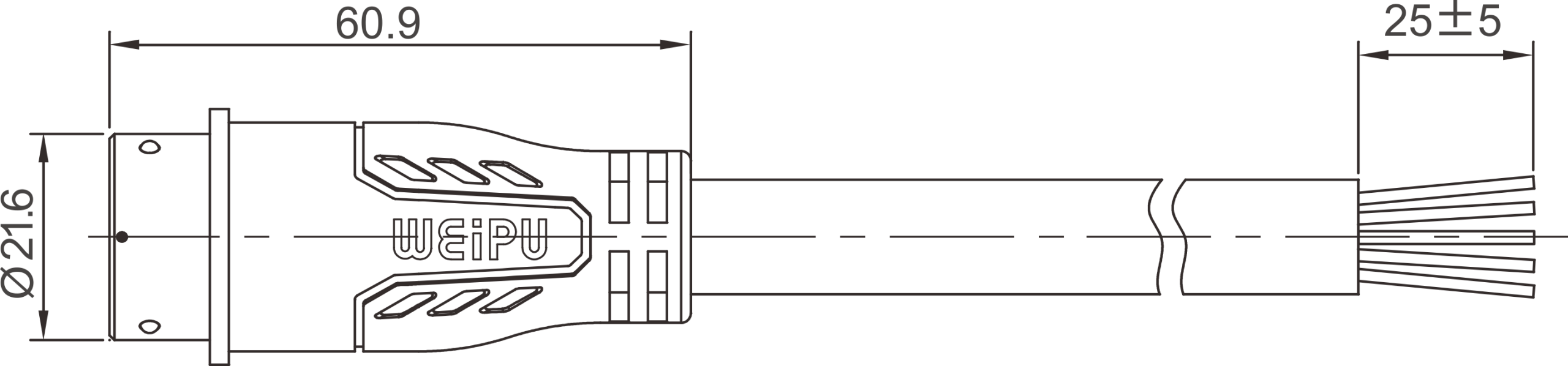

Mating Diagram

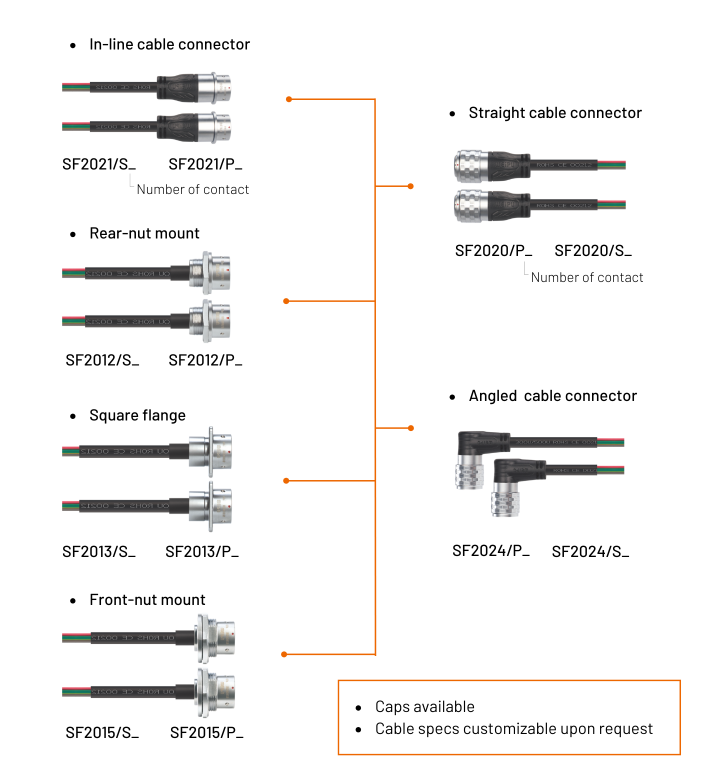

Different connector types

Available in both male and female.
Have options for plug, inline cable connector, panel socket

Successsful Case-SF series on Rail Adapter Design

For the application of rail adapter, ensuring the correct and secure connection is the priority. Thus, it is important to choose a solid, high-quality connector to keep a stable connection. Meanwhile, a connector with a push-pull design can also make it easier to use when switching the mode between plugging and unplugging.
