WEIPU SF16 Cable Assemblies Waterproof Mid-Size Connectors Overmolding & Cable Assembly

IP67 Highly Sealed
Flexible Options
Full Compatibility: connector + cable integration

WEIPU SF16 cable assemblies offer a complete solution by combining our trusted SF16 brass connectors with professionally pre-assembled cables. Designed for compact devices and harsh environments, this plug-and-play package reduces installation effort and improves long-term performance.

Whether for robotics, communication, or industrial test equipment, the SF16 assembly brings flexibility, reliability, and a polished finish to your project.

Key Benefits:

Medium Size – Balanced for both compact design and handling ease
Push-pull Coupling: easy & quick connection
Seamless Connector + Cable Integration: Improved mechanical fit, enhanced sealing integrity, and no on-site modifications required.
Flexible Cable Options: Cable length, wire gauge, jacket type, overmold design, and color options
Quick & Easy Installation: Pre-wired assemblies reduce on-site labor and wiring errors.
Overmolding Available: For additional strain relief and a polished appearance

Download Catalogue

Mating Diagram

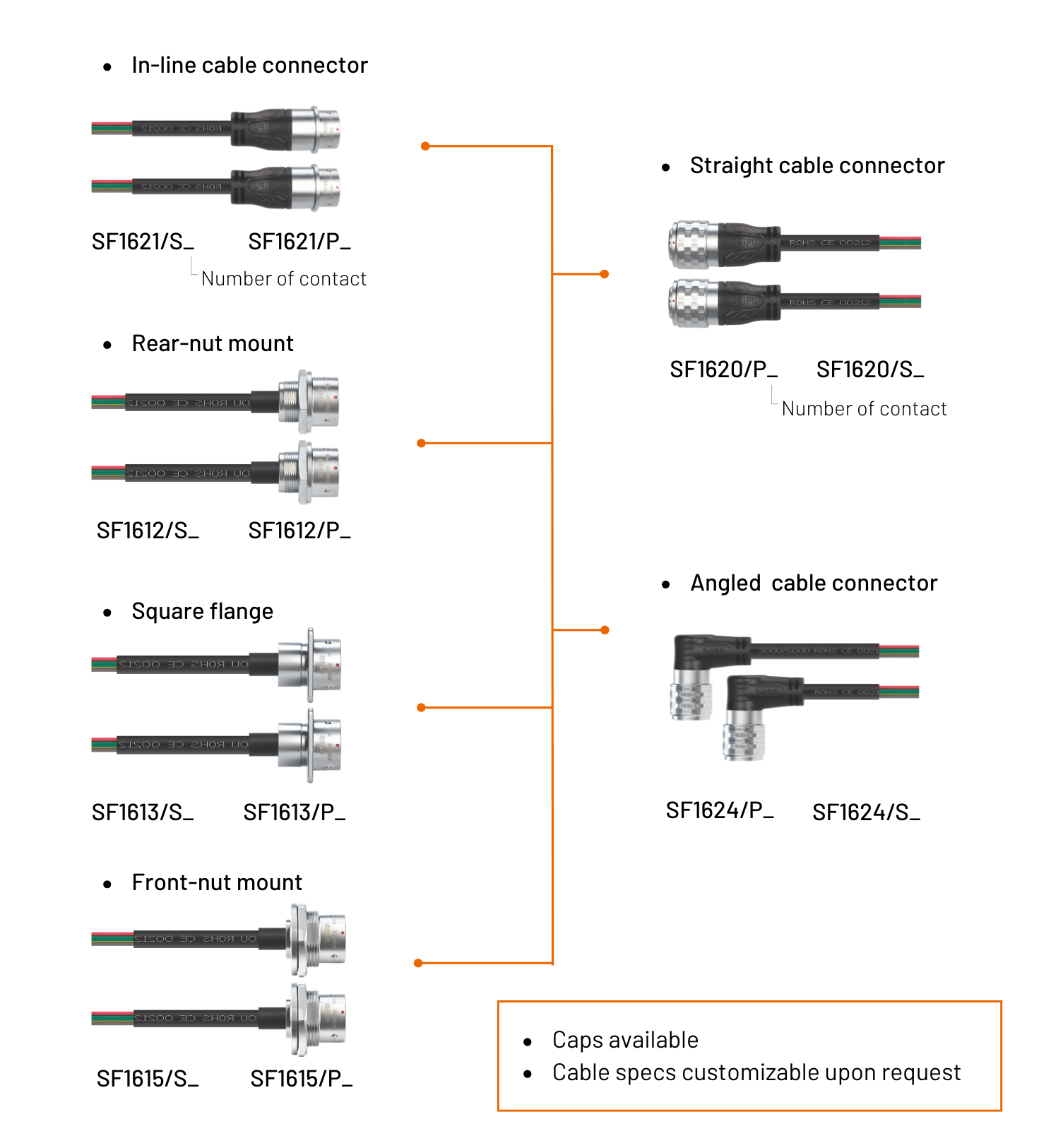

Different connector types

Available in both male and female.

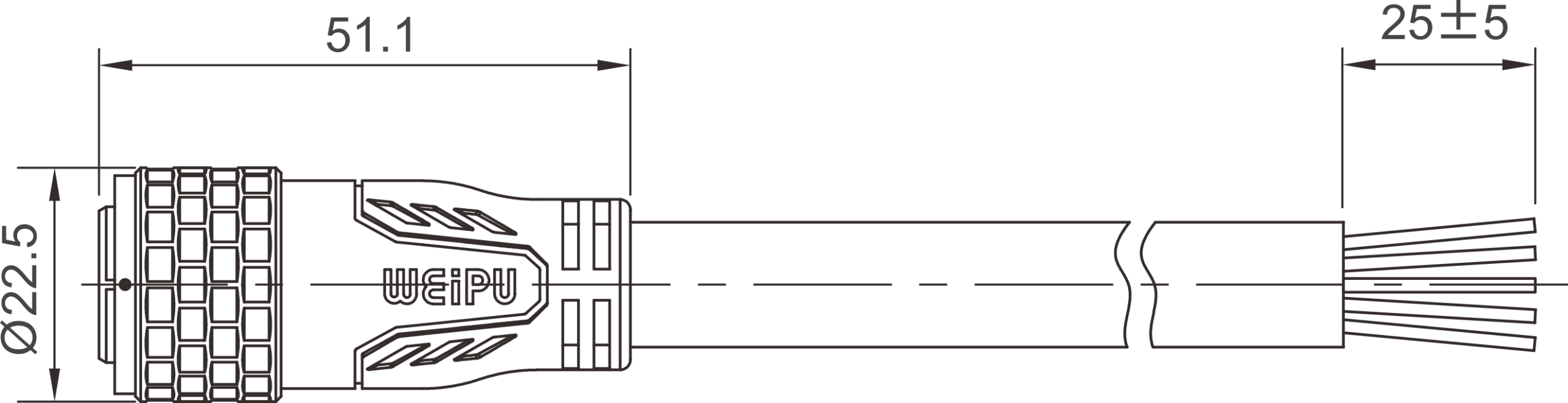

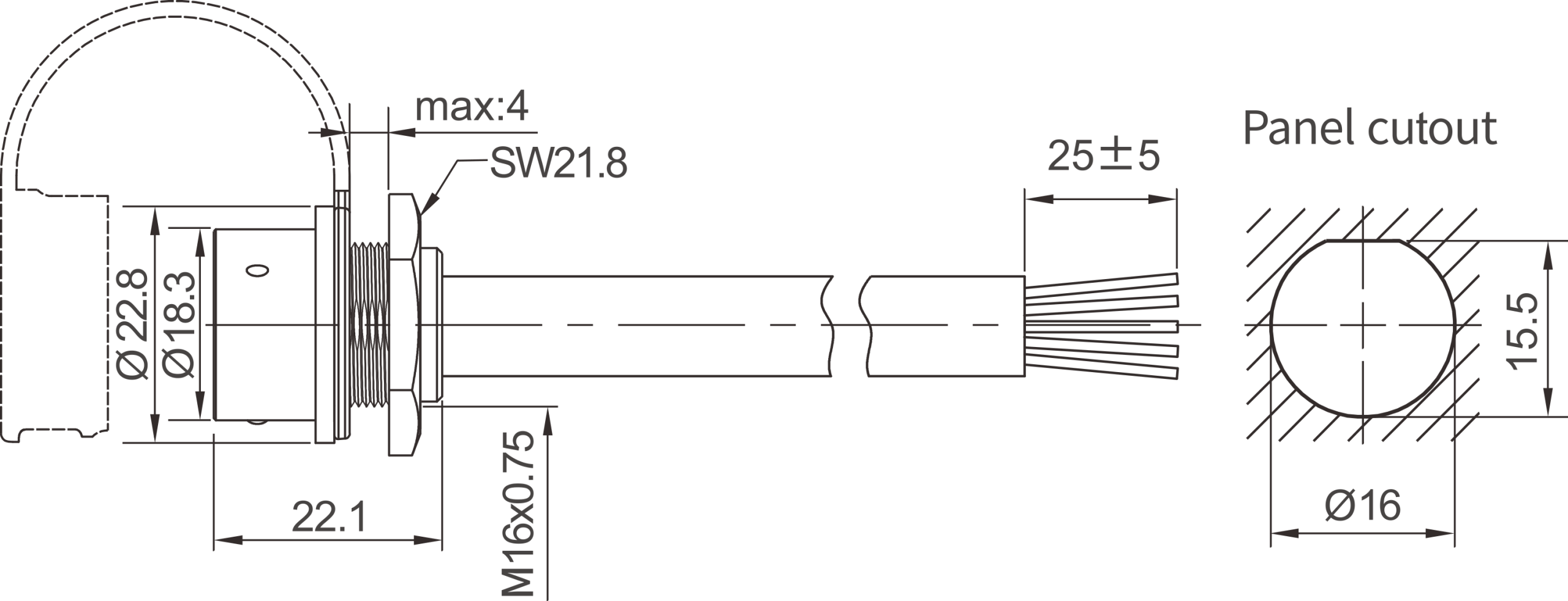

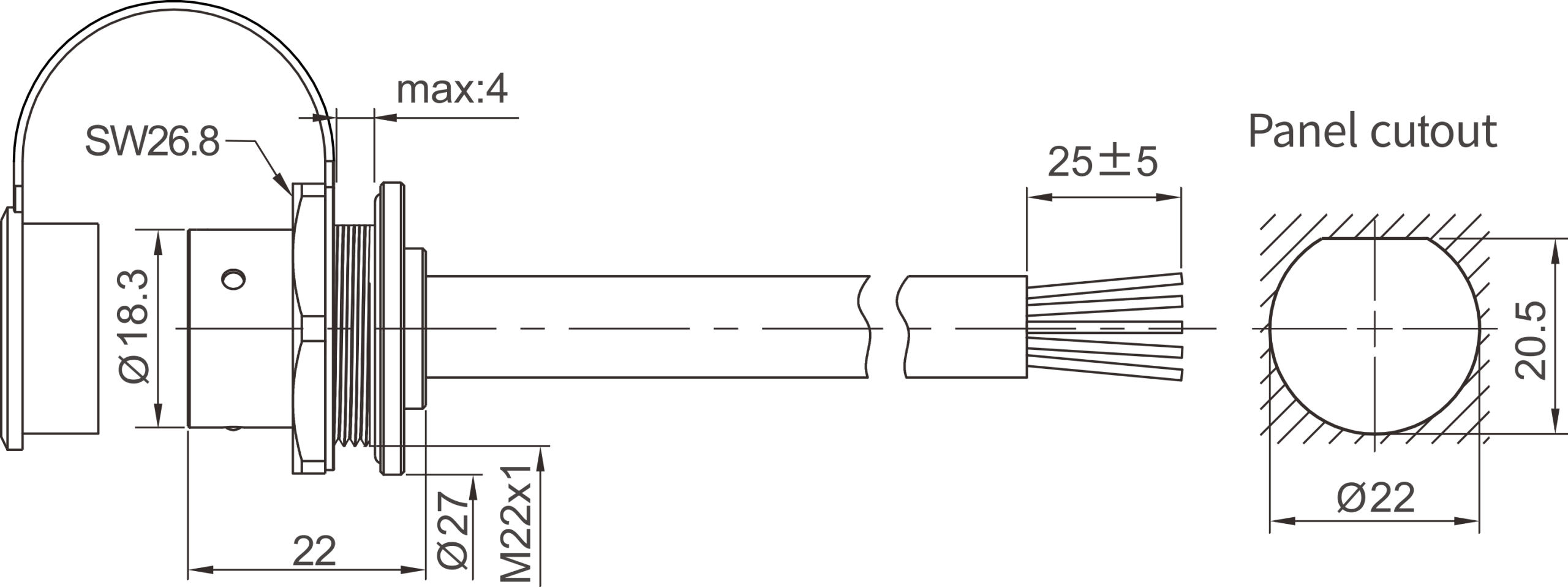

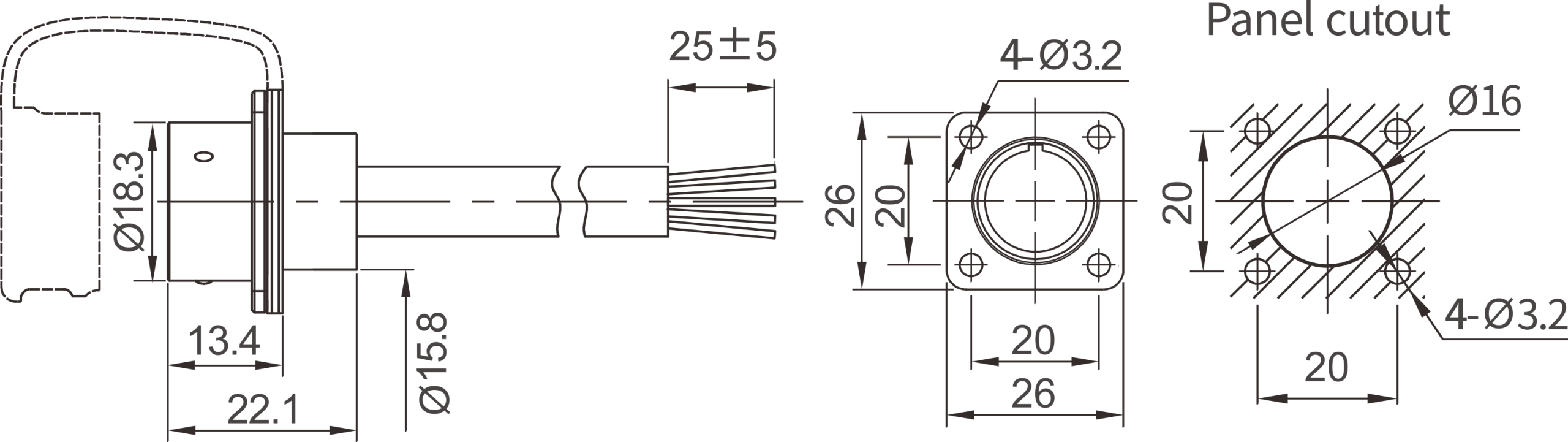

Have options for plug, inline cable connector, panel socket

Successsful Case-SF series on Rail Adapter Design

For the application of rail adapter, ensuring the correct and secure connection is the priority. Thus, it is important to choose a solid, high-quality connector to keep a stable connection. Meanwhile, a connector with a push-pull design can also make it easier to use when switching the mode between plugging and unplugging.
