WEIPU SA8 Cable Assemblies Waterproof Small Size Connectors Overmolding & Cable Assembly

IP67 Highly Sealed
Flexible Options
Full Compatibility: connector + cable integration

The WEIPU SA8 Series combines compact IP67 aluminum connectors with custom cable assembly and overmolding services, creating a complete miniature interconnect solution for low-power and precision systems.

Built for environments where space, durability, and performance matter most, SA8 assemblies are fully sealed, strain-relieved, and tested to ensure long-term waterproof reliability.

Key Benefits:

Mini-size design ideal for compact and portable equipment
IP67 waterproof protection for harsh or medical environments
Precision overmolding ensures strain relief and durability
Anodized aluminum housing for strength and corrosion resistance
Custom cable lengths available
100% factory-tested for electrical and sealing integrity

The SA8 connector with cable assembly is highly popular due to its compact size, high reliability, and versatile design. It is especially favored in applications such as medical devices, entertainment devices, beauty equipment, sensors, and test instrumentation.

Download Catalogue

Mating Diagram

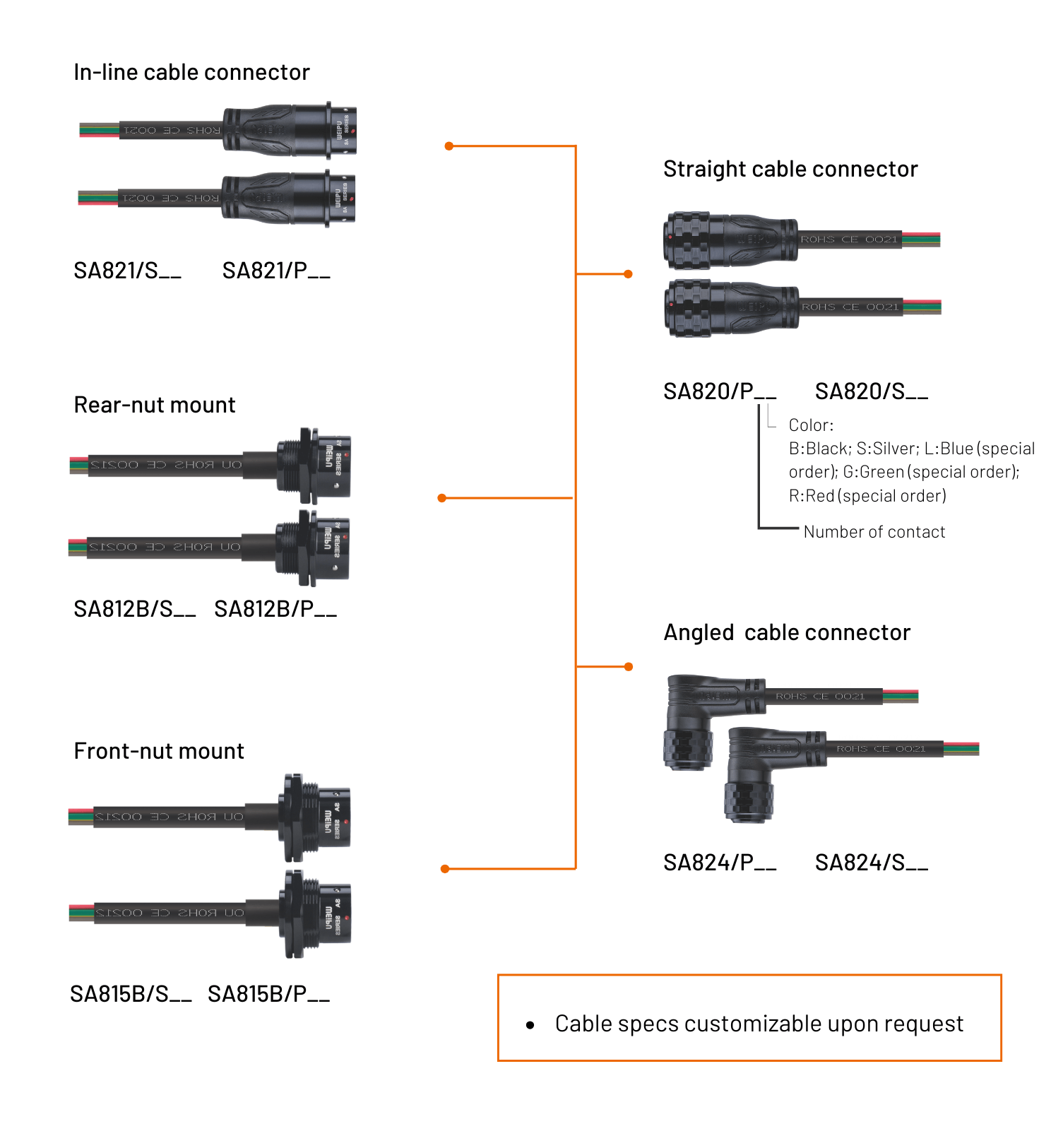

Different connector types

Available in both male and female.
Have options for plug, inline cable connector, panel socket

Successsful Case-SA series Case for Outdoor Bird Alert

As these devices are installed outdoors in cold, wet, and harsh weather conditions, the WEIPU SA metal waterproof series provides a secure and stable connection, ensuring long-term reliability and uninterrupted operation of the bird alert system.
