WEIPU SA6 Cable Assemblies Waterproof Mini Size Connectors Overmolding & Cable Assembly

IP67 Highly Sealed
Flexible Options
Full Compatibility: connector + cable integration

The WEIPU SA6 Series combines ultra-compact anodized aluminum connectors with custom cable assembly and overmolding services to deliver high-performance interconnects in tight-space environments.

Rated IP67 waterproof, SA6 assemblies ensure long-term stability and protection against moisture, dust, and vibration — even in challenging industrial or medical applications.

Key Benefits:

Miniature, space-efficient IP67 connector design
Precision overmolding for strain relief and extended cable life
Anodized aluminum housing for superior strength and corrosion resistance
Fully tested waterproof assemblies for maximum reliability
Custom cable lengths, wiring options, and color finishes available

Applications:

Perfect for medical instruments, portable analyzers, sensors, lab devices, and micro-automation systems

Download Catalogue

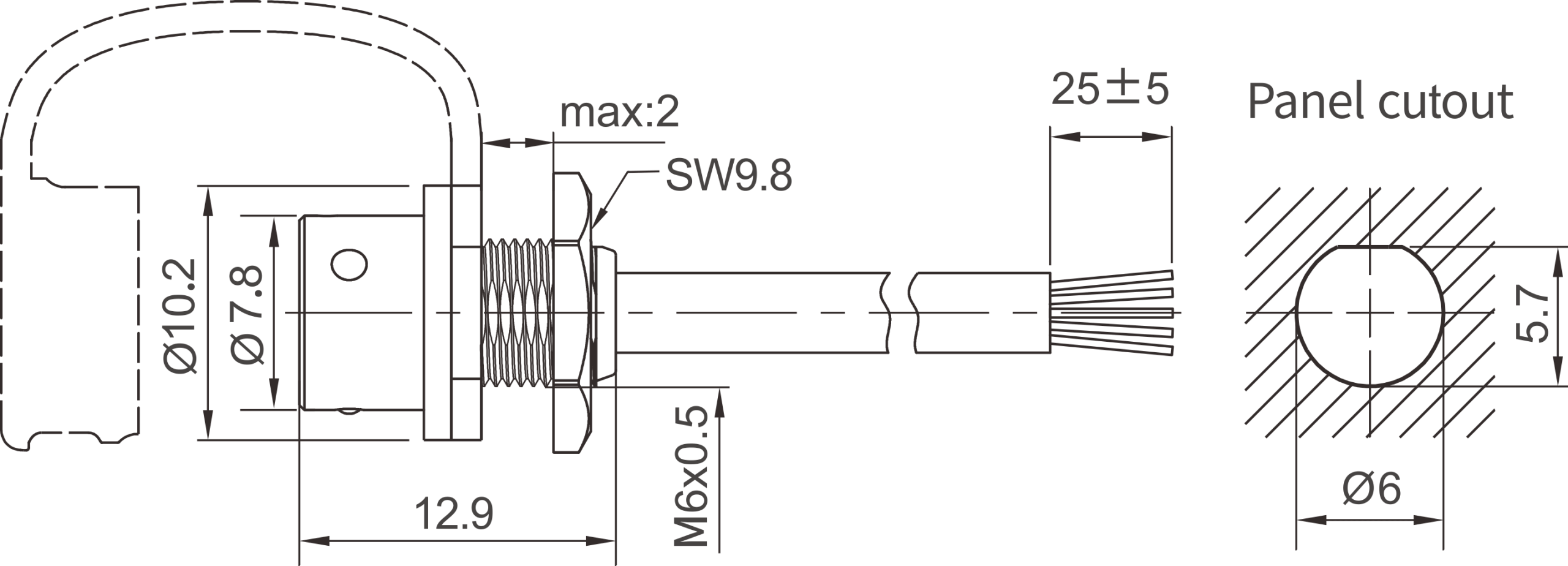

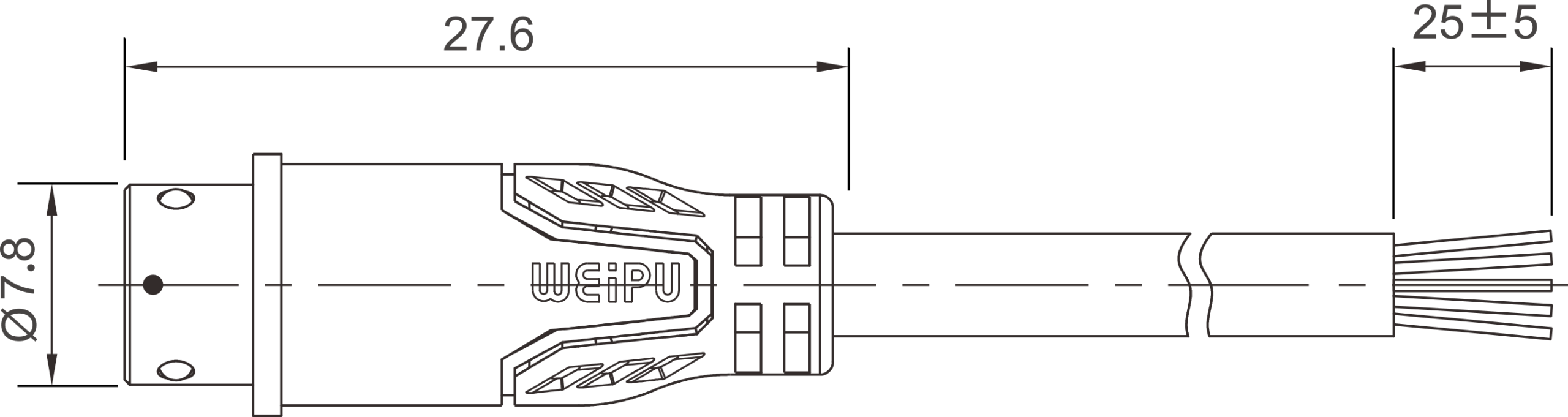

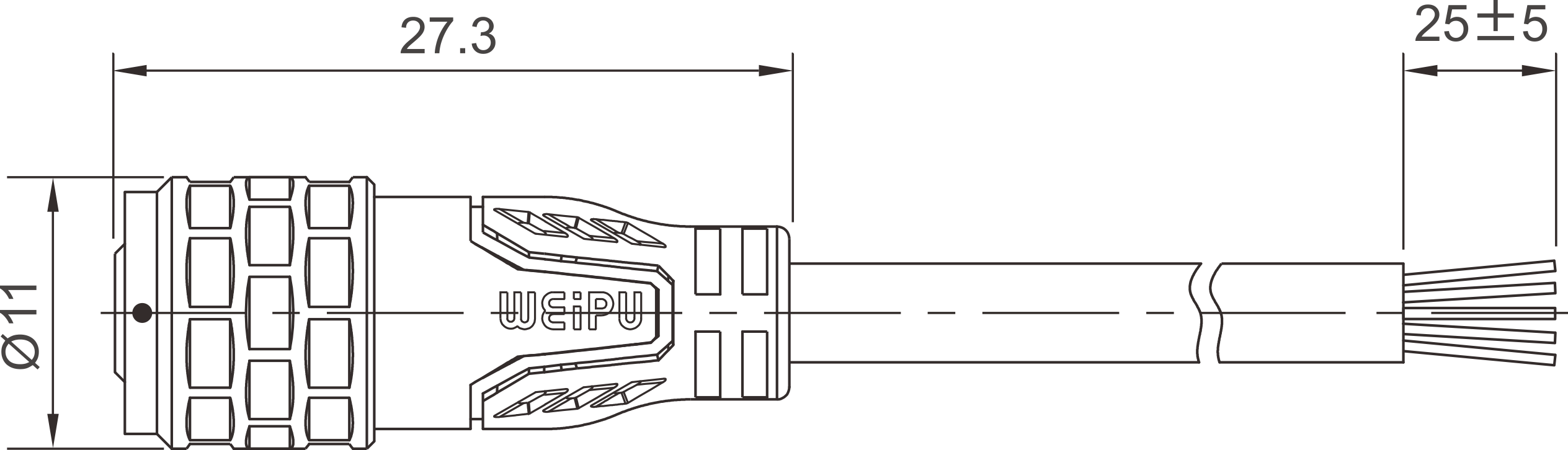

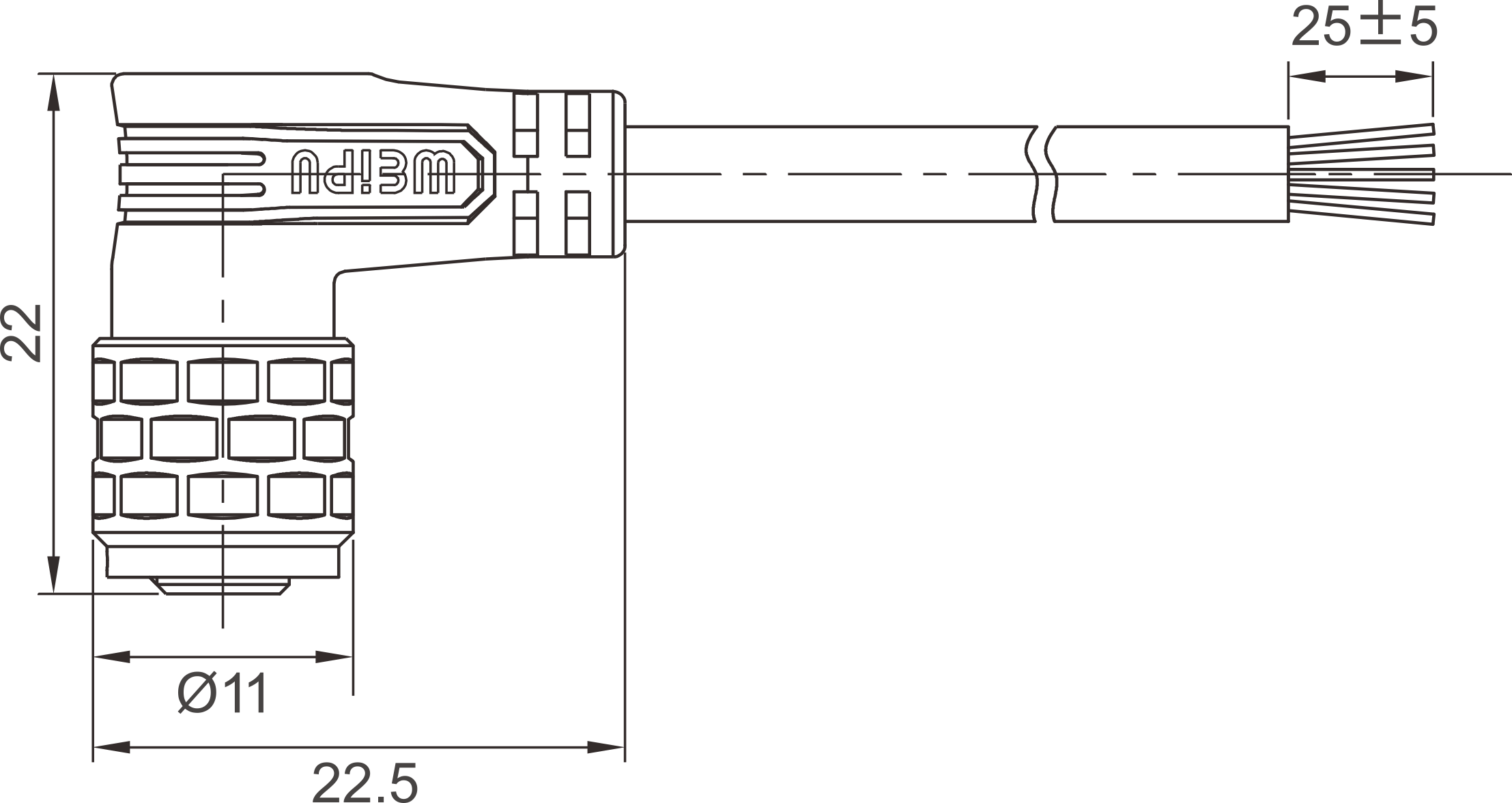

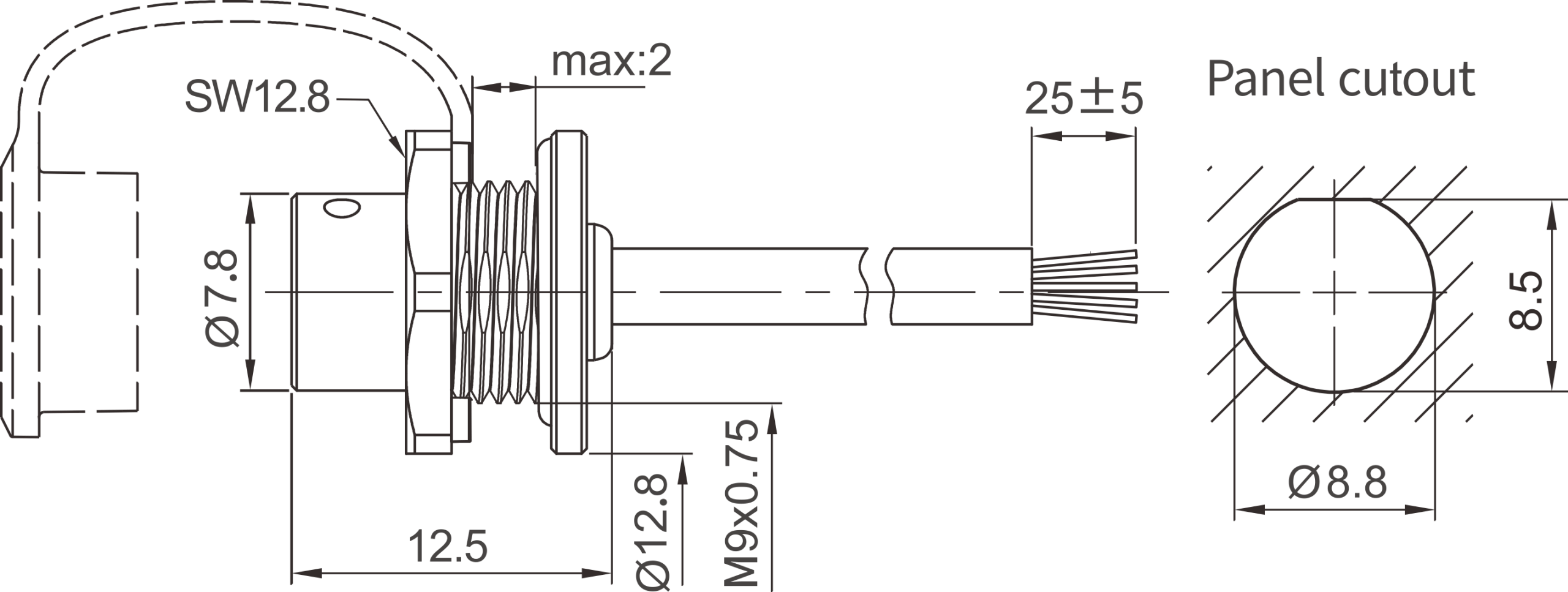

Mating Diagram

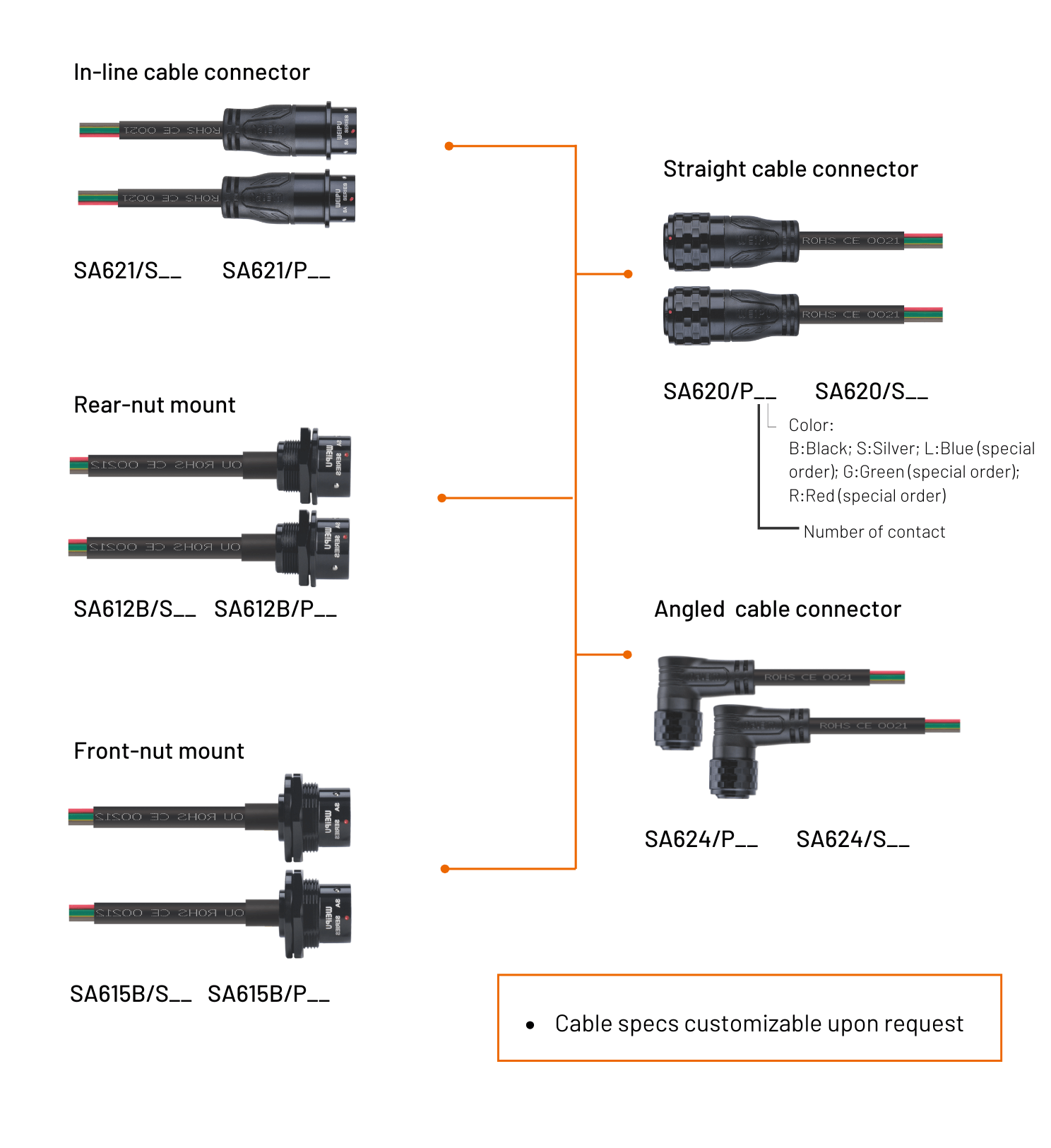

Different connector types

Available in both male and female.
Have options for plug, inline cable connector, panel socket

Successsful Case-SA series Case for Outdoor Bird Alert

As these devices are installed outdoors in cold, wet, and harsh weather conditions, the WEIPU SA metal waterproof series provides a secure and stable connection, ensuring long-term reliability and uninterrupted operation of the bird alert system.
