WEIPU SA24 Cable Assemblies Waterproof Large Size Connectors Overmolding & Cable Assembly

IP67 Highly Sealed
Flexible Options
Full Compatibility: connector + cable integration

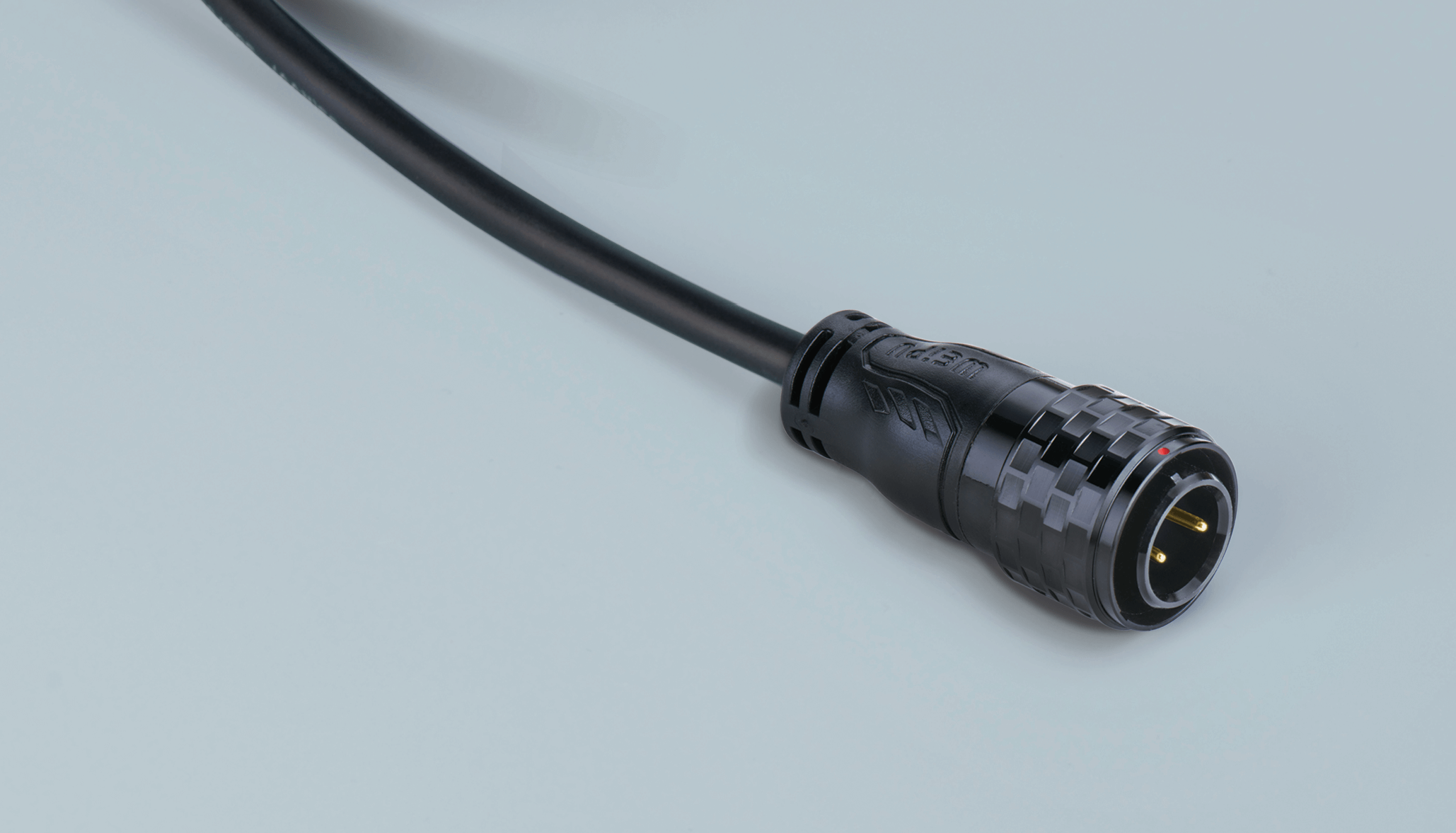

The WEIPU SA24 Series now offers custom cable assembly and overmolding services, providing a complete, plug-and-play interconnect solution for high-performance power and signal transmission.

Made from anodized aluminum and rated to IP67 waterproof standards, the SA24 series ensures durability, strength, and long-term stability in harsh industrial and outdoor conditions.

By integrating cable assembly and overmolding at the source, WEIPU delivers pre-terminated, sealed, and tested assemblies that reduce on-site installation time, minimize wiring errors, and maintain optimal waterproof performance.

Key Benefits:

Seamless integration: Connector + cable built and tested as one system
Push-pull coupling: Fast and easy use
IP67 waterproof sealing maintained under assembly conditions

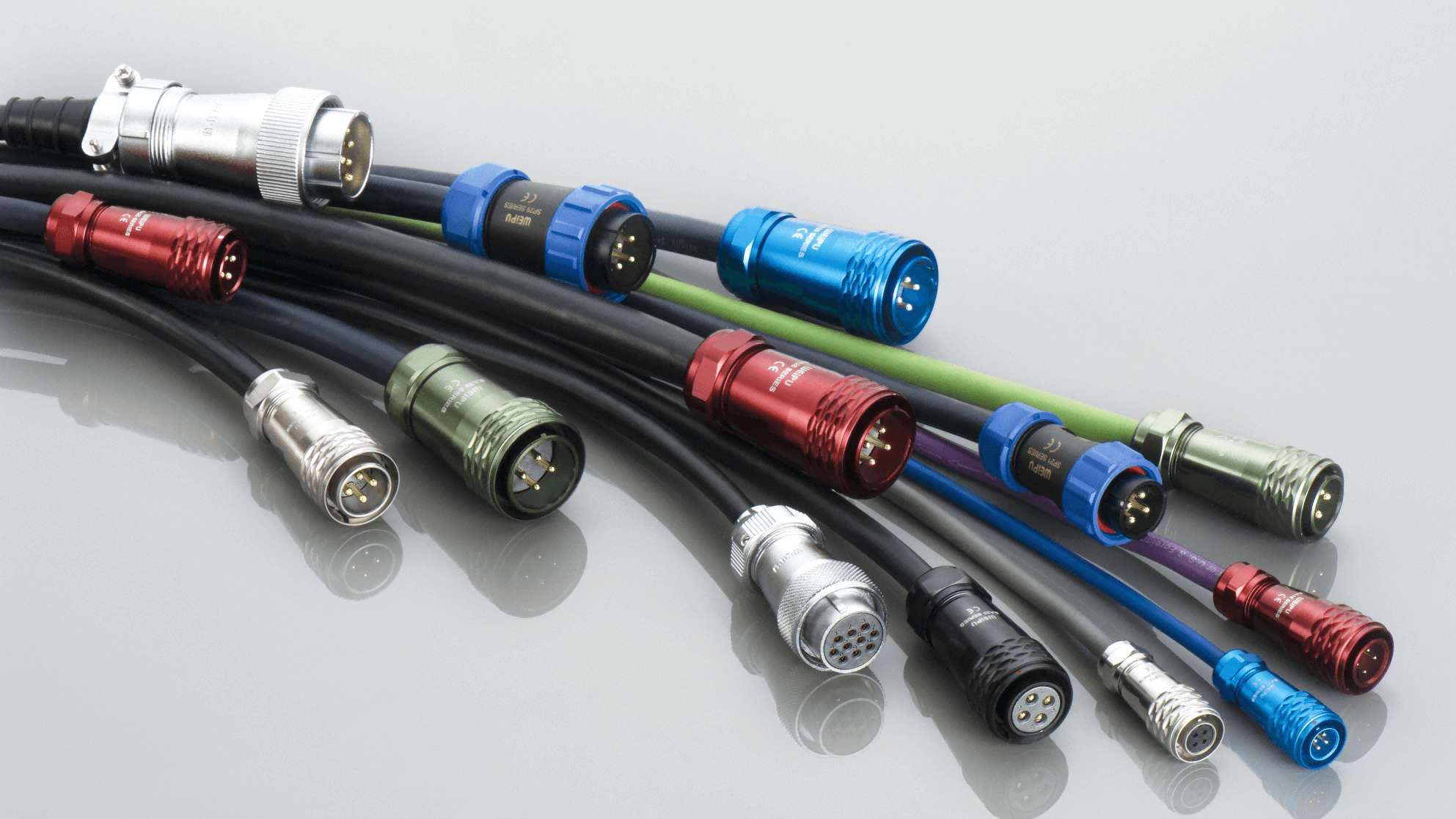

Flexible Cable Options: Cable length, wire gauge, jacket type, overmold design, and color options
Quick & Easy Installation: Pre-wired assemblies reduce on-site labor and wiring errors.

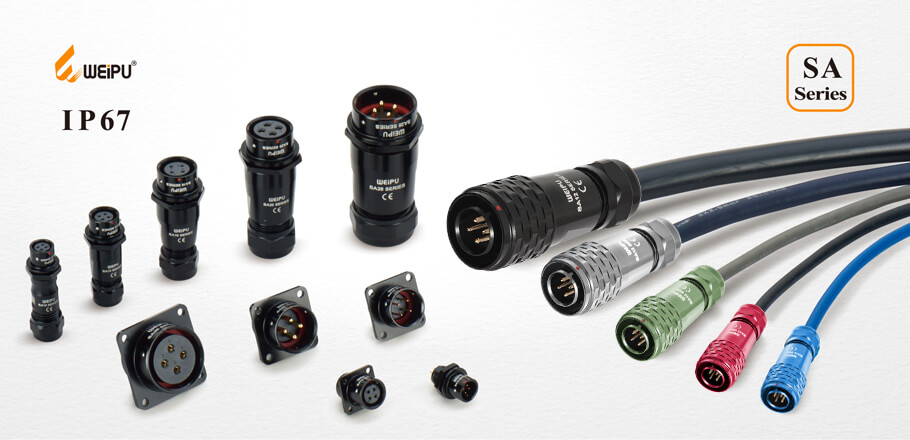

Color Options: Connectors available in Black, Silver, Red, Blue, and Green options
100% Tested – Each assembly is electrically and mechanically tested to ensure consistent quality.

Typical Use Cases: LED displays and outdoor lighting, Security camera and monitoring systems, Industrial control and automation equipment, Communication and signal systems, etc.

Download Catalogue

Mating Diagram

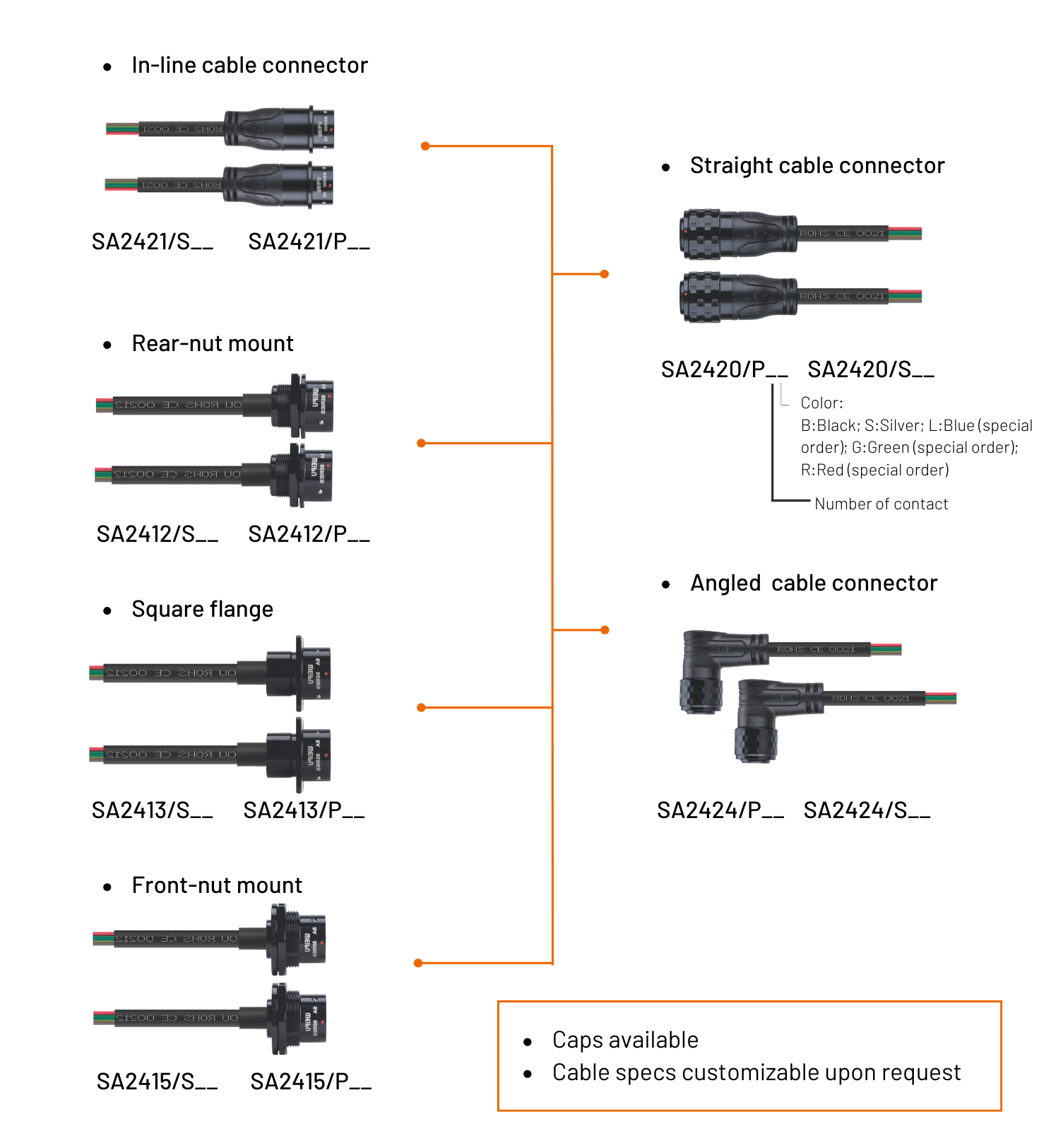

Different connector types

Available in both male and female.

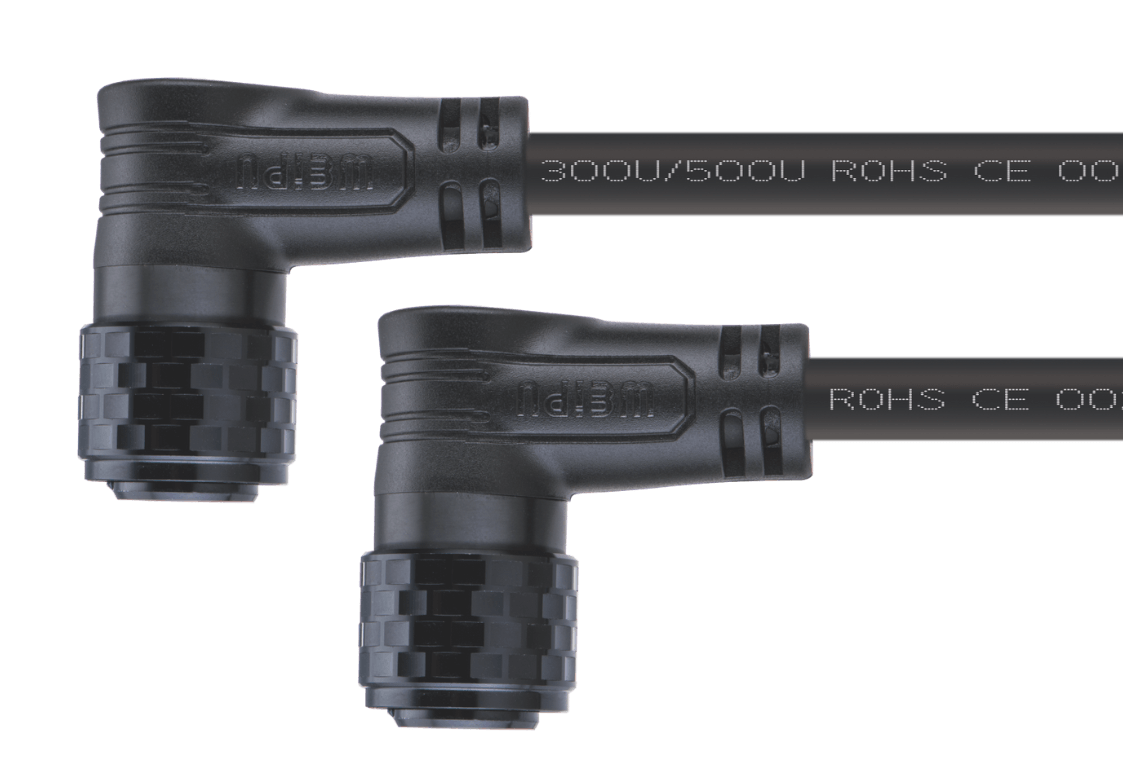

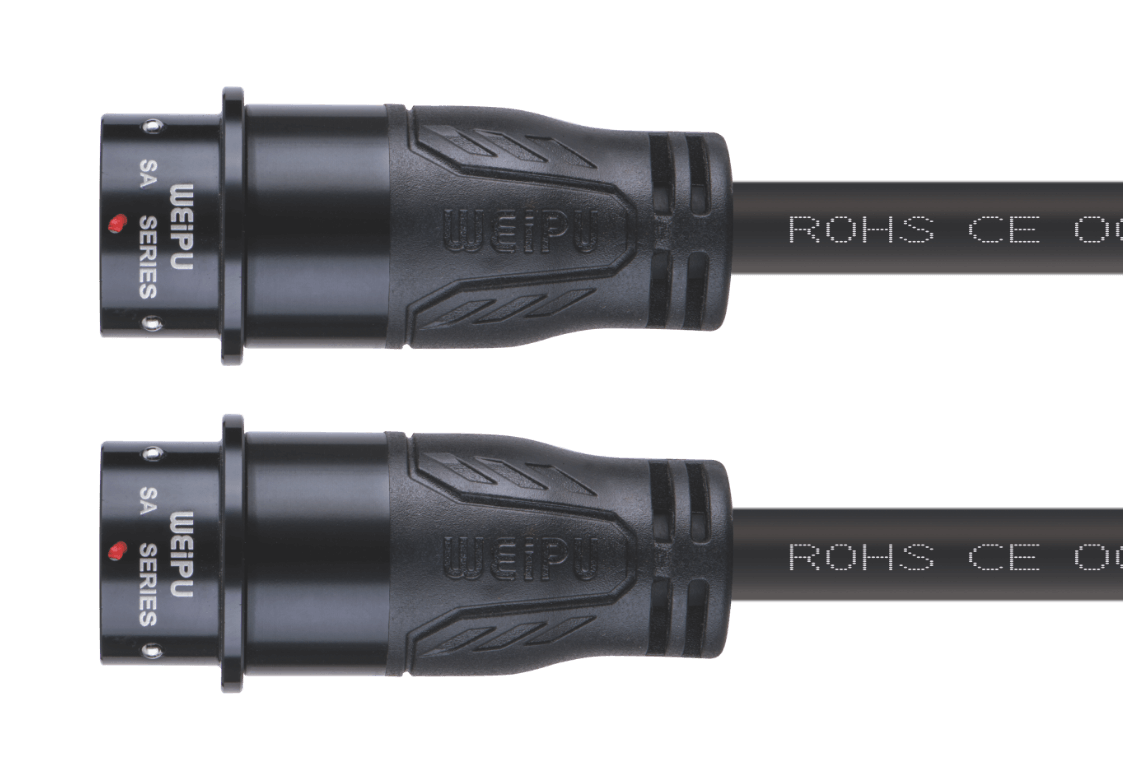

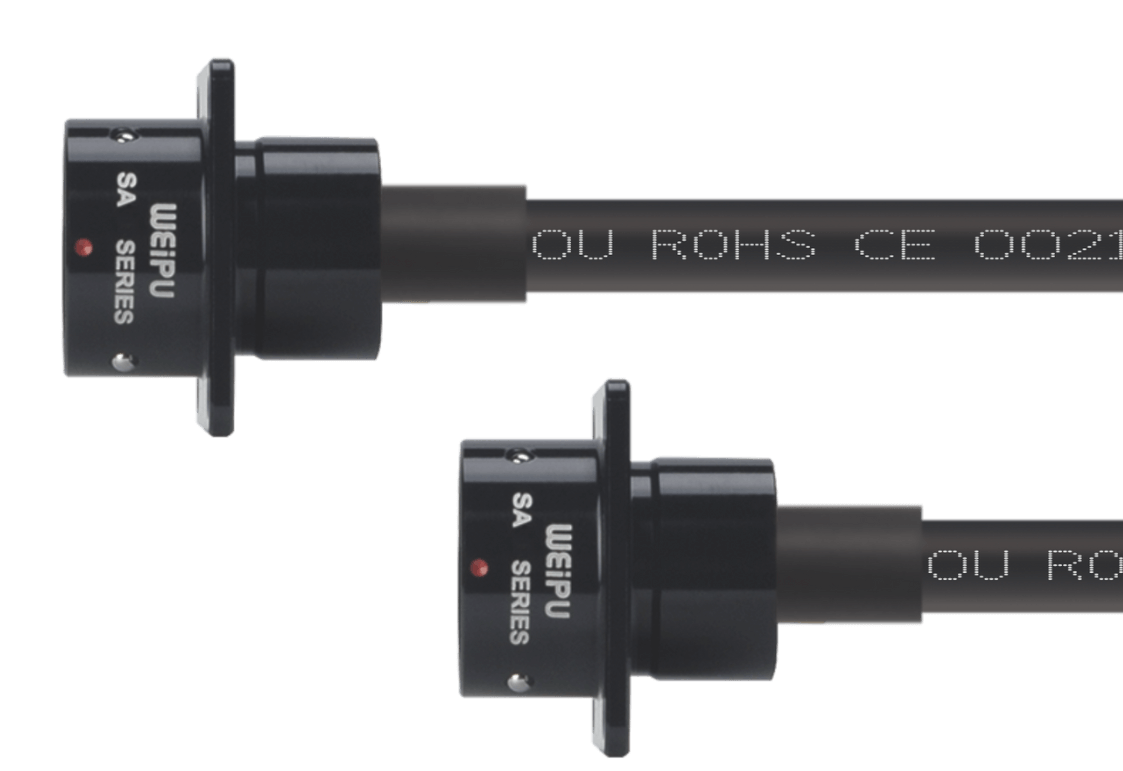

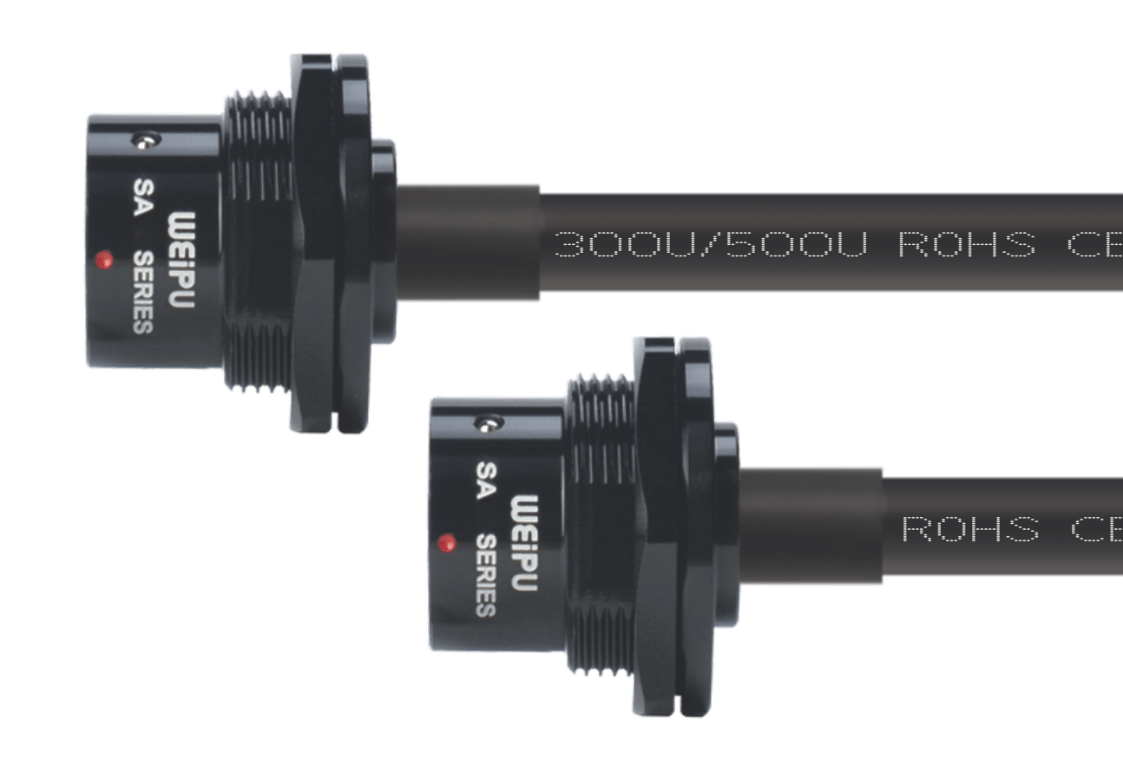

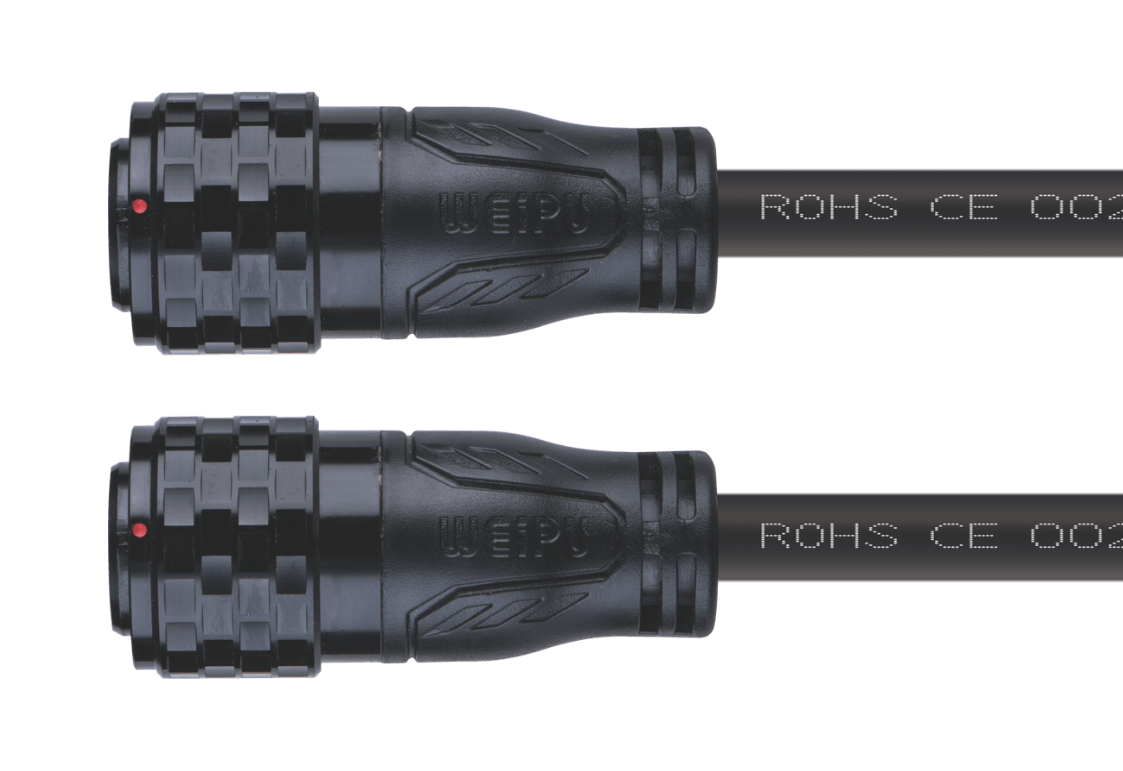

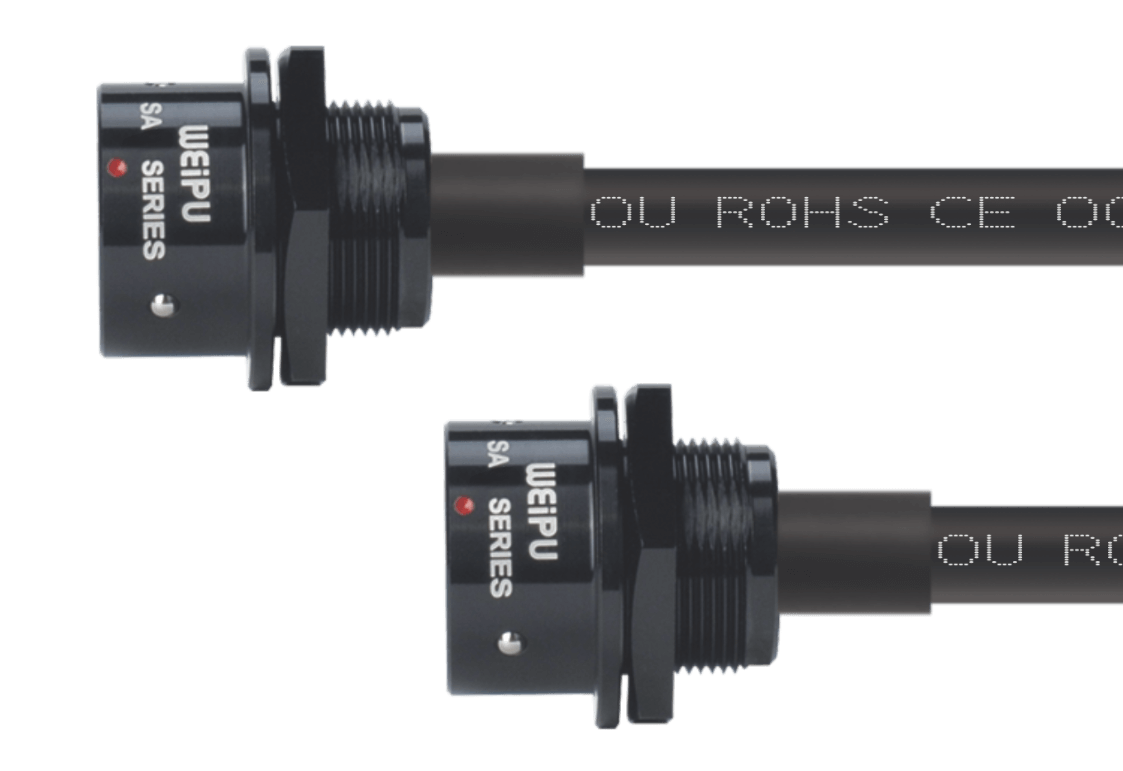

Have options for plug, inline cable connector, panel socket

Successsful Case-SA series Case for Outdoor Bird Alert

As these devices are installed outdoors in cold, wet, and harsh weather conditions, the WEIPU SA metal waterproof series provides a secure and stable connection, ensuring long-term reliability and uninterrupted operation of the bird alert system.
