WEIPU SA16 Cable Assemblies Waterproof Medium Size Connectors Overmolding & Cable Assembly

IP67 Highly Sealed
Flexible Options
Full Compatibility: connector + cable integration

The WEIPU SA16 Series now offers factory cable assembly and overmolding services, providing a reliable, plug-and-play waterproof solution for compact industrial and outdoor applications. Featuring a push-pull coupling design and IP67-rated protection, the SA16 ensures fast connection, strong sealing, and long-term durability even in challenging environments.

By combining connector production and cable assembly into a single process, WEIPU delivers ready-to-install interconnect solutions that reduce wiring time, improve consistency, and enhance mechanical reliability.

Key Benefits:

Compact IP67 Waterproof Design — Sealed against dust and water for stable operation in harsh or outdoor conditions.
Push-Pull Coupling – Enables quick connection and disconnection.
Color Options: Connectors available in Black, Silver, Red, Blue, and Green.
Overmolded Strain Relief – Protects against mechanical stress and vibration, extending service life.
Custom Cable Lengths & Configurations – Tailored to meet specific project and installation needs.
Electrical & Sealing Tested – Each assembly is validated to ensure long-term reliability.

Applications:

It is ideal for environments demanding compact yet powerful waterproof solutions, including:

LED and architectural lighting systems
Solar power and renewable energy applications
Agricultural and outdoor automation devices
Test and measurement instruments
Industrial controllers and sensors

Download Catalogue

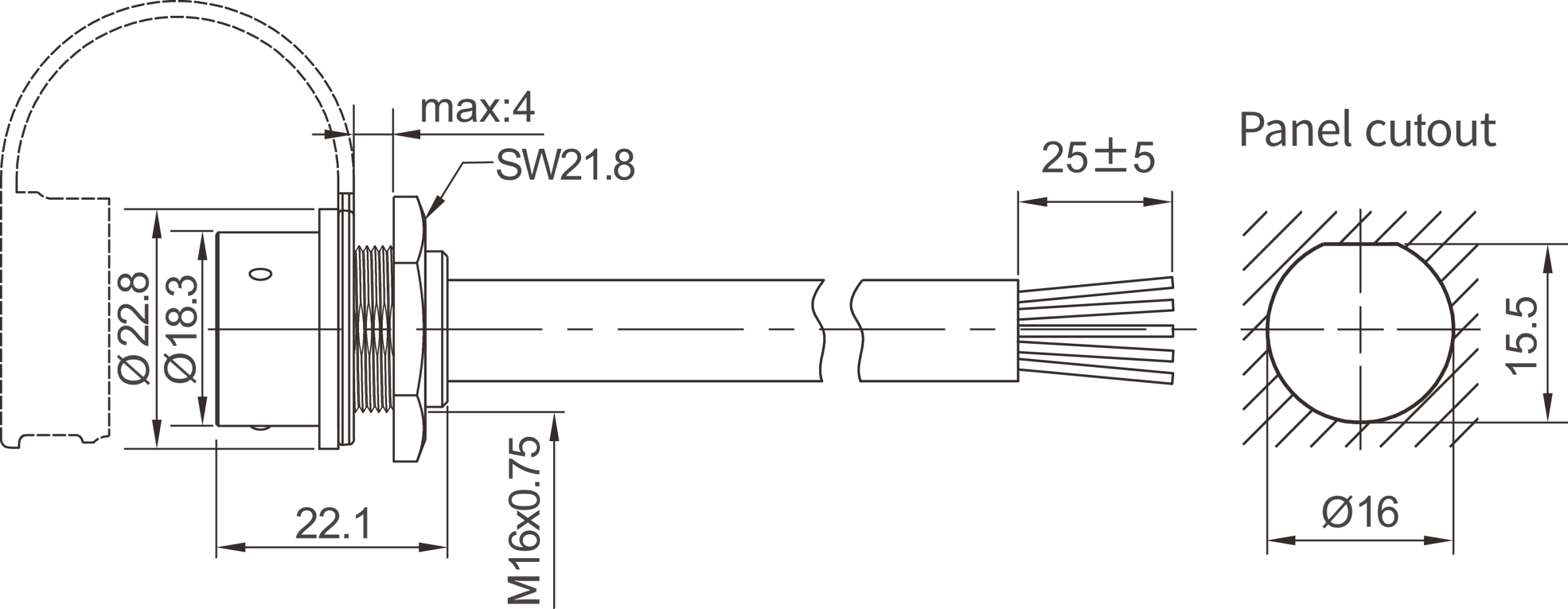

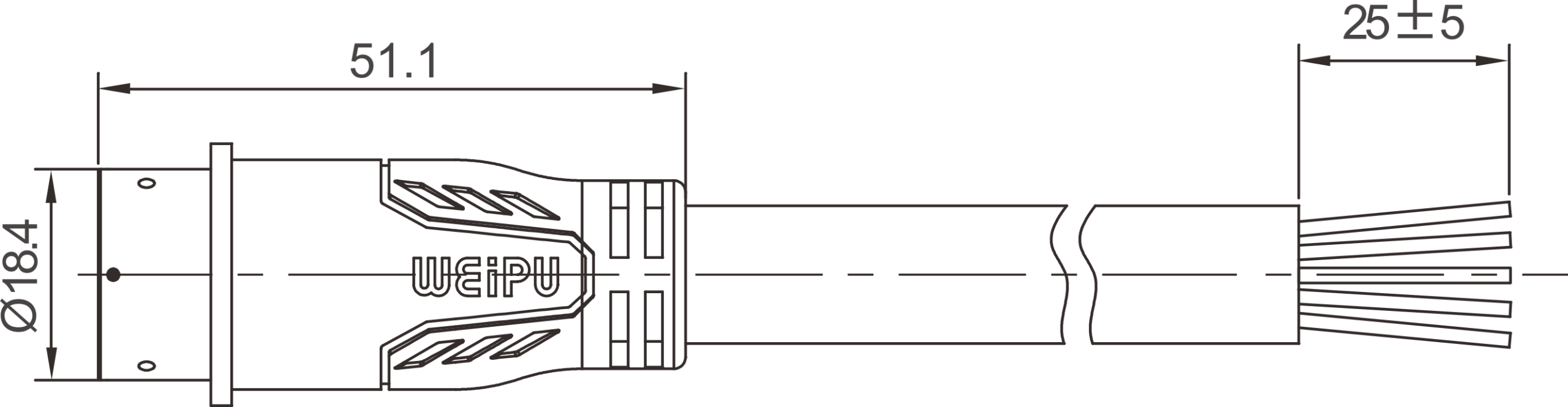

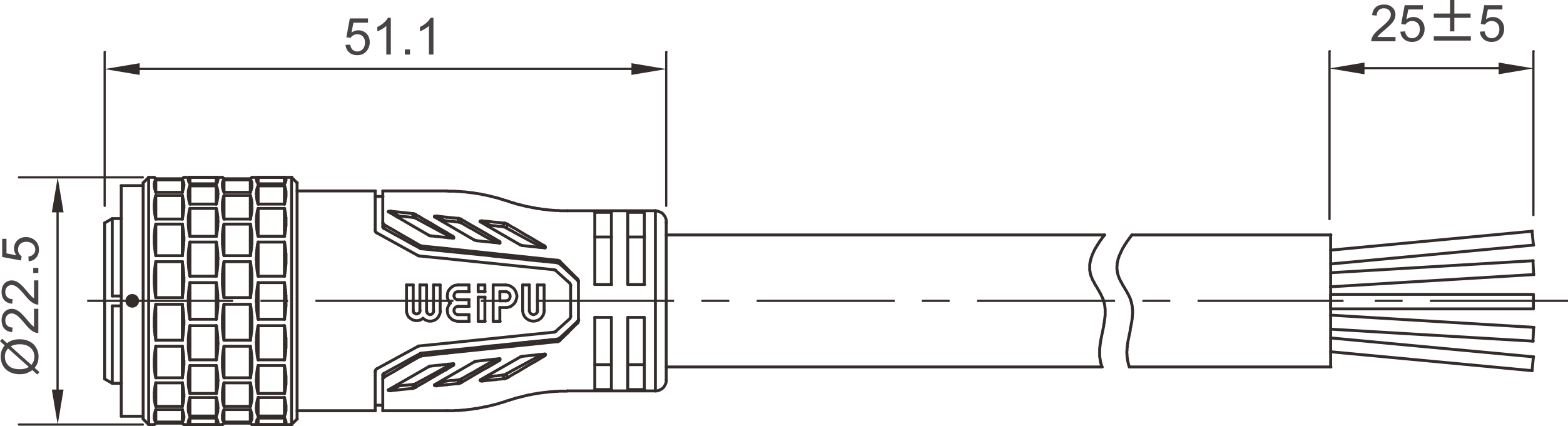

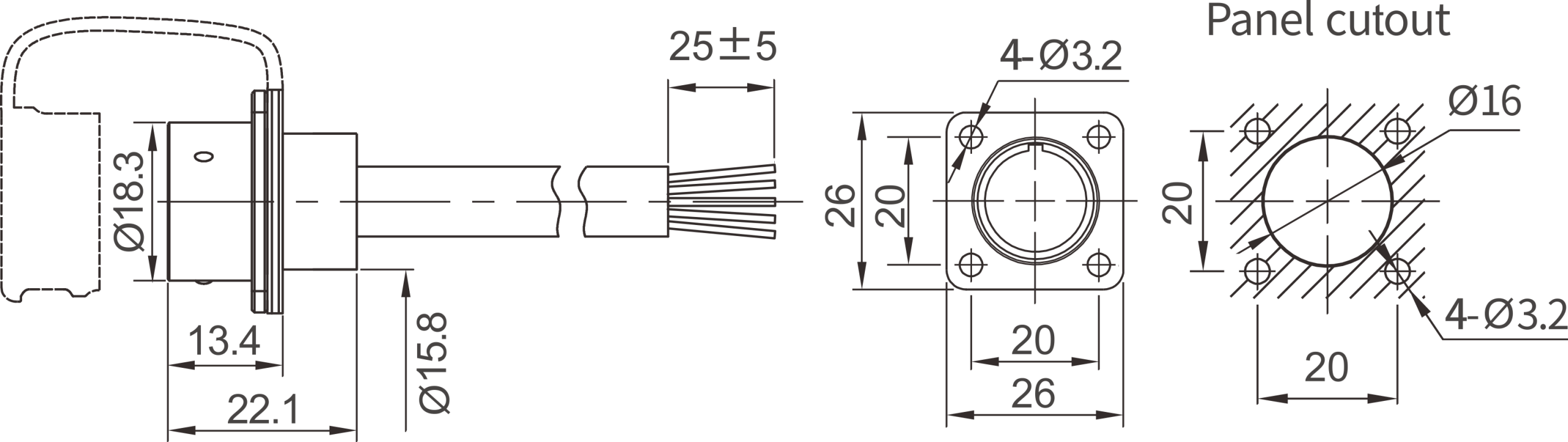

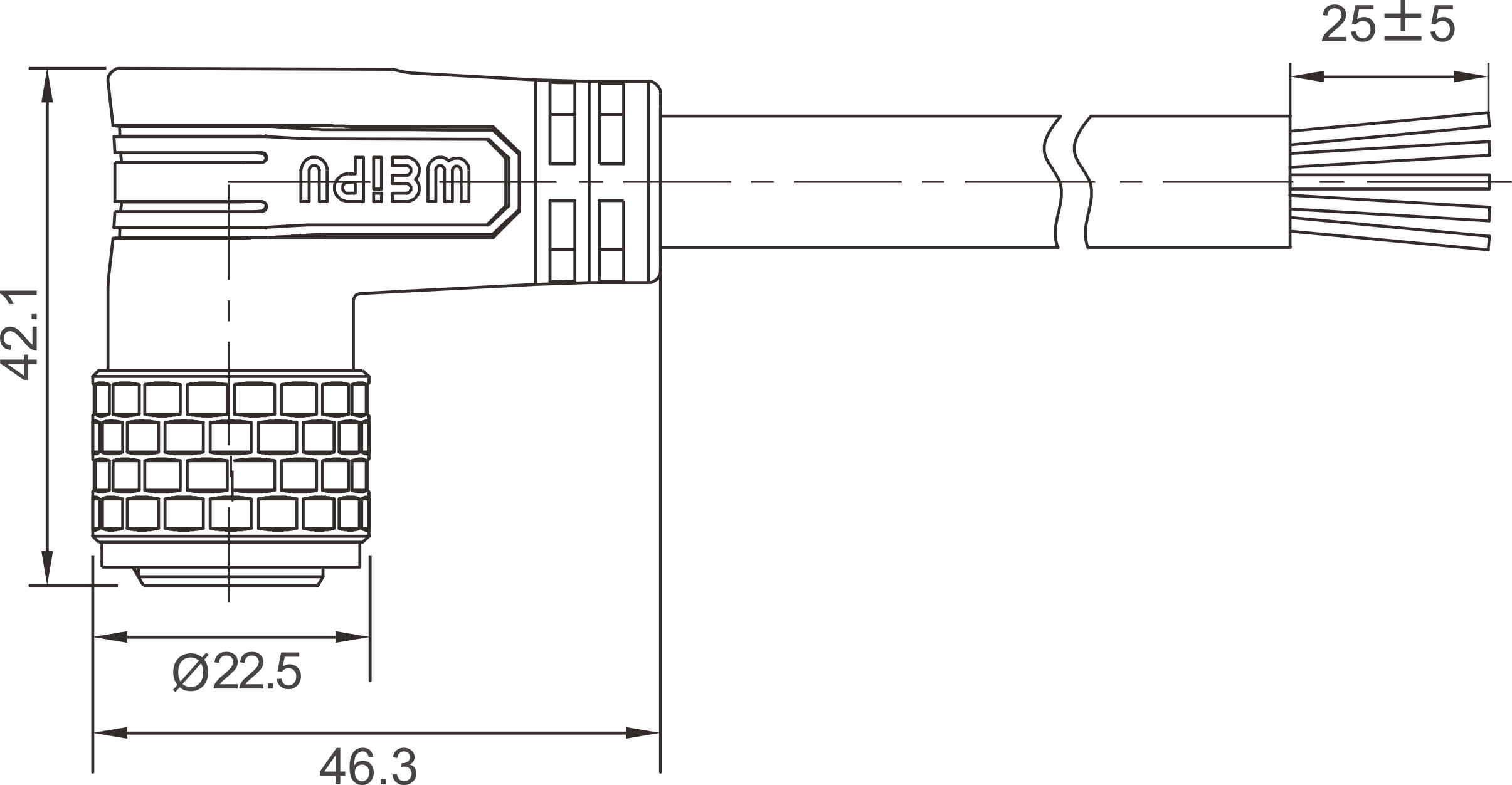

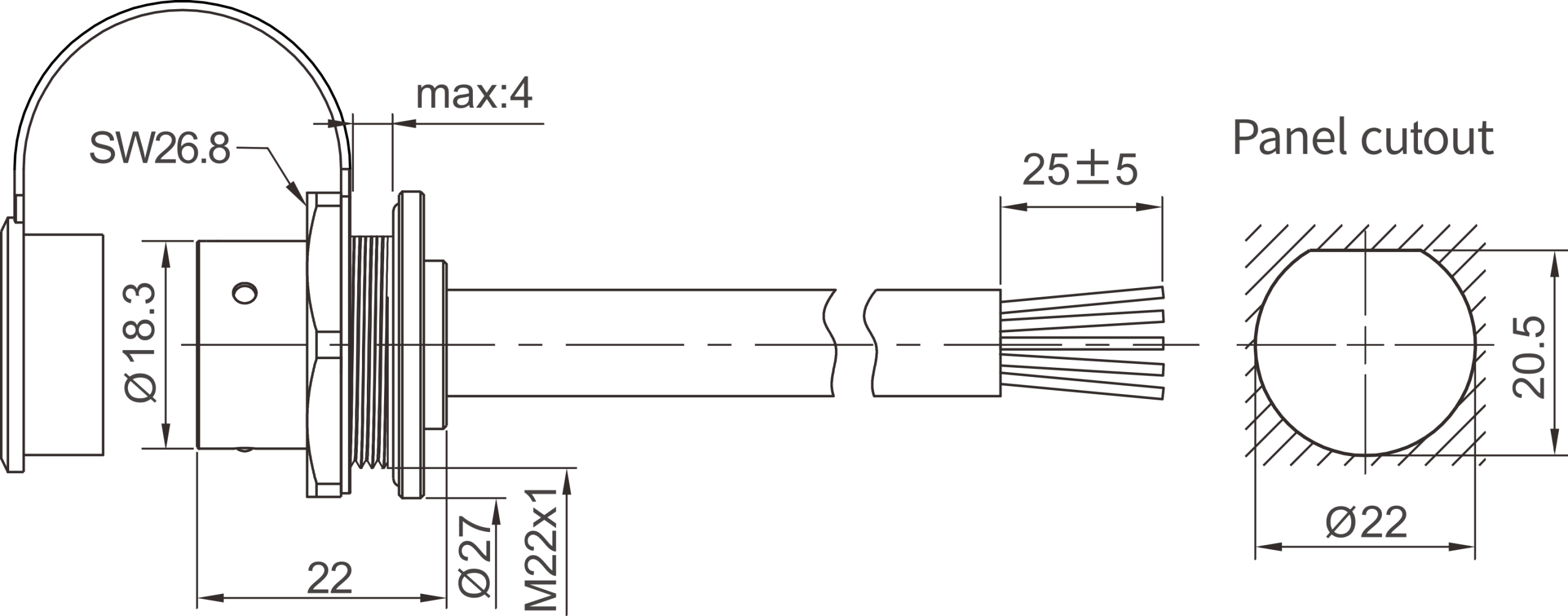

Mating Diagram

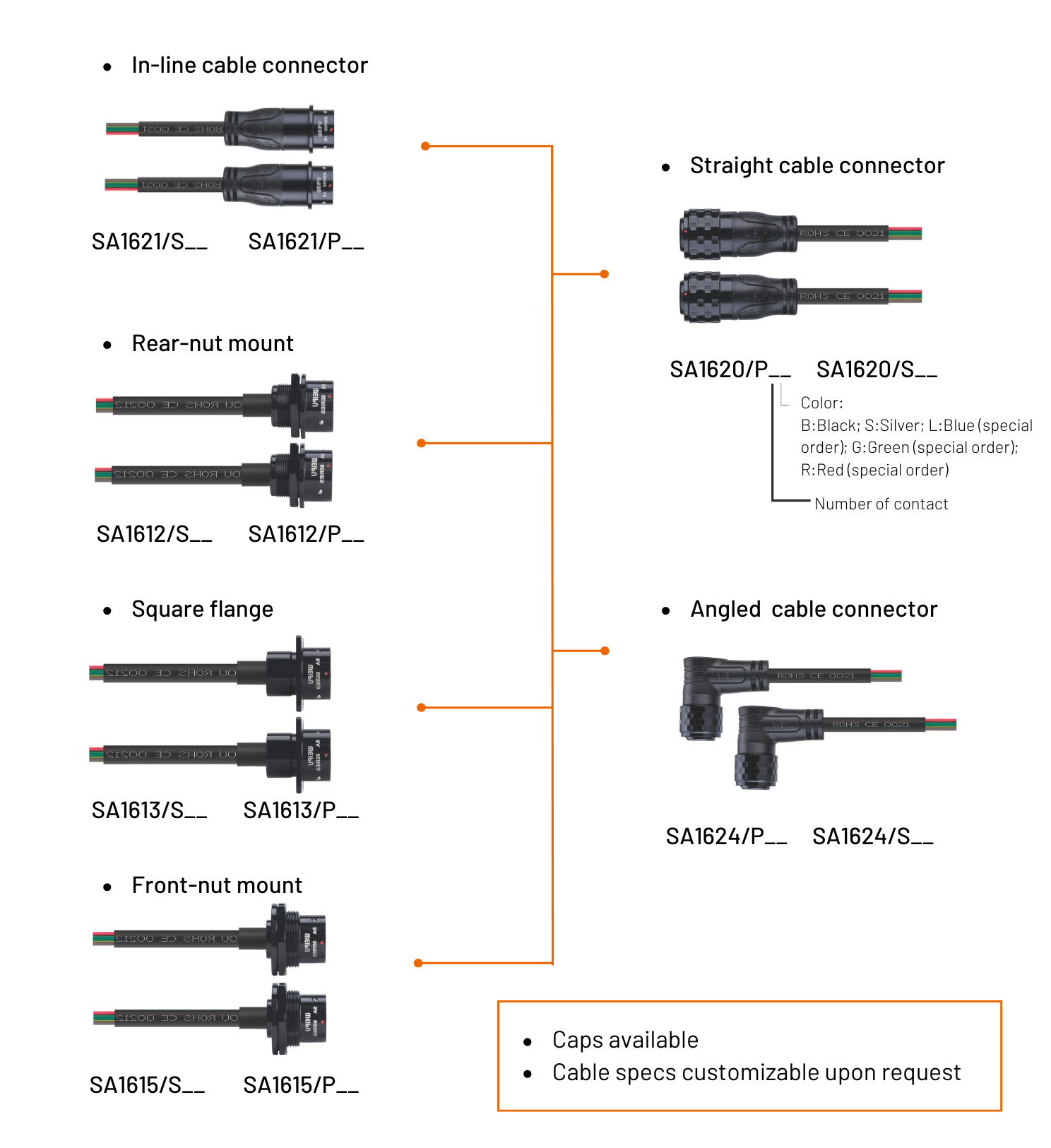

Different connector types

Available in both male and female.
Have options for plug, inline cable connector, panel socket

Successsful Case-SA series Case for Outdoor Bird Alert

As these devices are installed outdoors in cold, wet, and harsh weather conditions, the WEIPU SA metal waterproof series provides a secure and stable connection, ensuring long-term reliability and uninterrupted operation of the bird alert system.
