WEIPU SA12 Cable Assemblies Waterproof Small Size Connectors Overmolding & Cable Assembly

IP67 Highly Sealed
Flexible Options
Full Compatibility: connector + cable integration

The WEIPU SA12 Series now offers factory cable assembly and overmolding services, providing a complete, compact, and waterproof interconnect solution for small to medium power and signal applications. Constructed from anodized aluminum and rated to IP67, the SA12 ensures excellent sealing, mechanical durability, and long-term stability in outdoor or harsh industrial environments.

By combining connector production and cable assembly in one process, WEIPU delivers ready-to-use, pre-tested cable assemblies that simplify installation, enhance reliability, and minimize wiring time on-site.

Key Benefits:

Compact IP67 Waterproof Design — Sealed against dust and water for stable operation in harsh or outdoor conditions.
Push-Pull Coupling – Enables quick connection and disconnection.
Color Options: Connectors available in Black, Silver, Red, Blue, and Green.
Precision Overmolding – Provides excellent strain relief and vibration resistance for extended cable life.
Custom Cable Lengths & Configurations – Tailored to meet specific project and installation needs.
Electrical & Sealing Tested – Each assembly is validated to ensure long-term reliability.

The SA12 connector with cable assembly is highly popular due to its compact size, high reliability, and versatile design. It is especially favored in applications such as LED lighting, solar applications, controllers, agricultural devices, test and measurement equipment, etc.

Download Catalogue

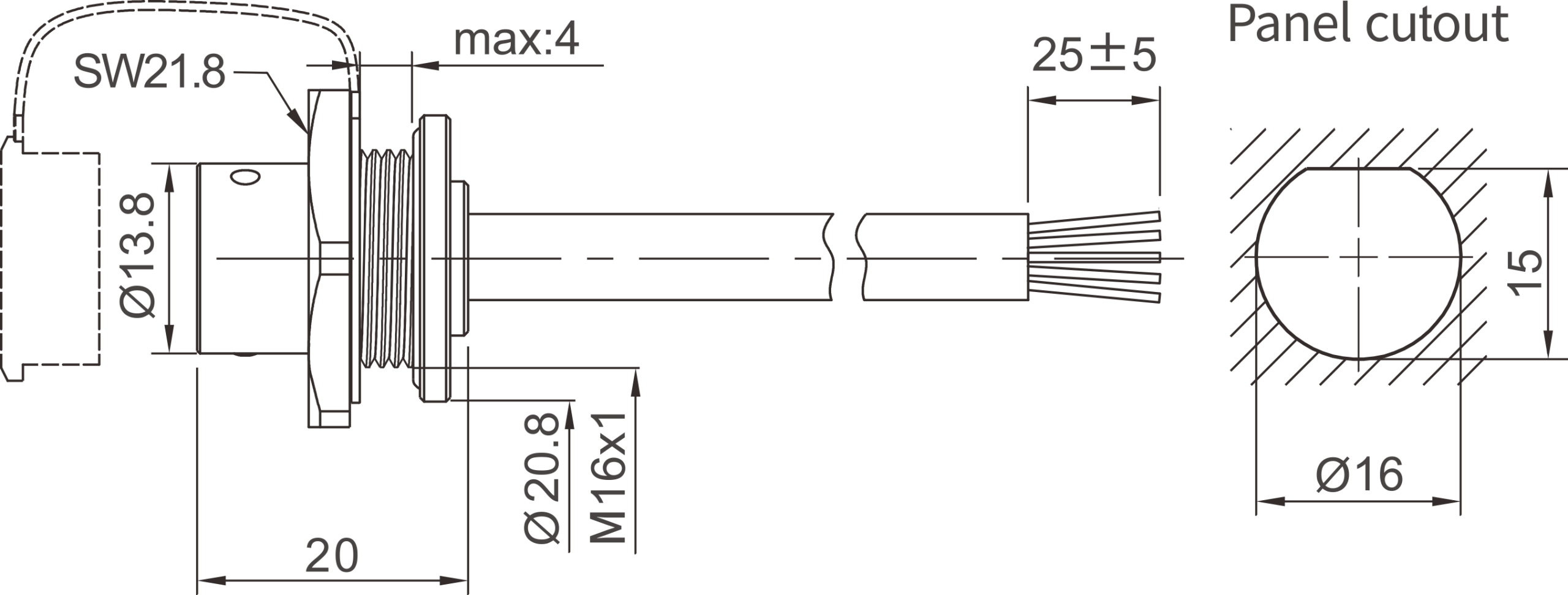

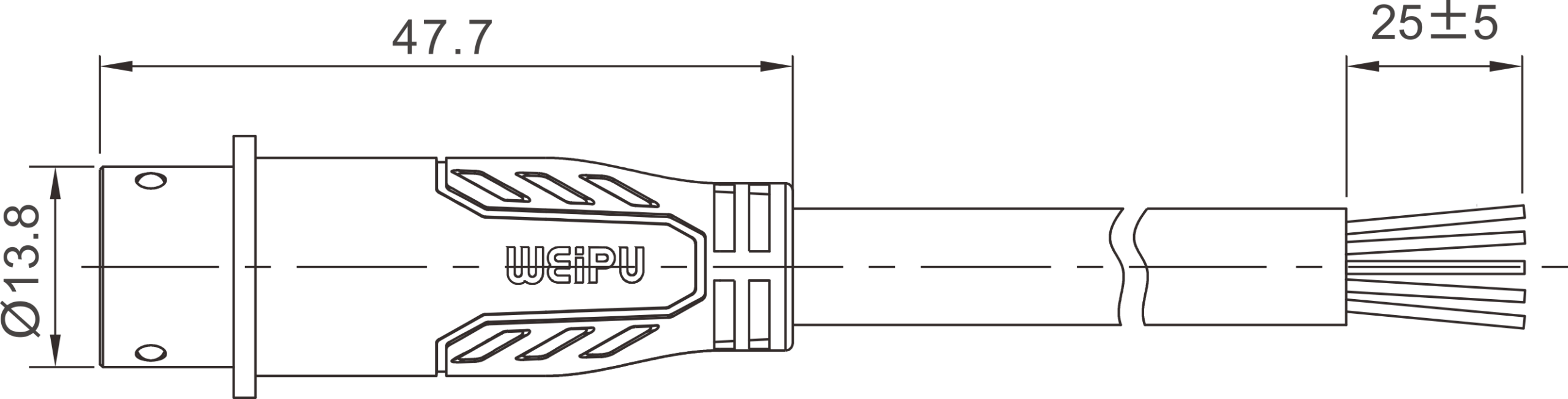

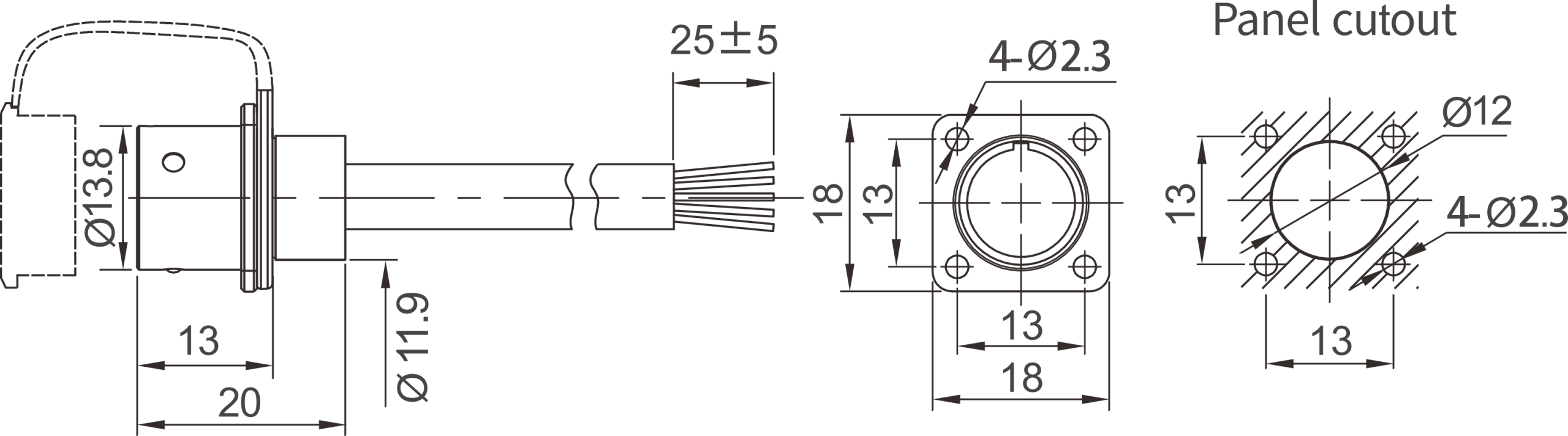

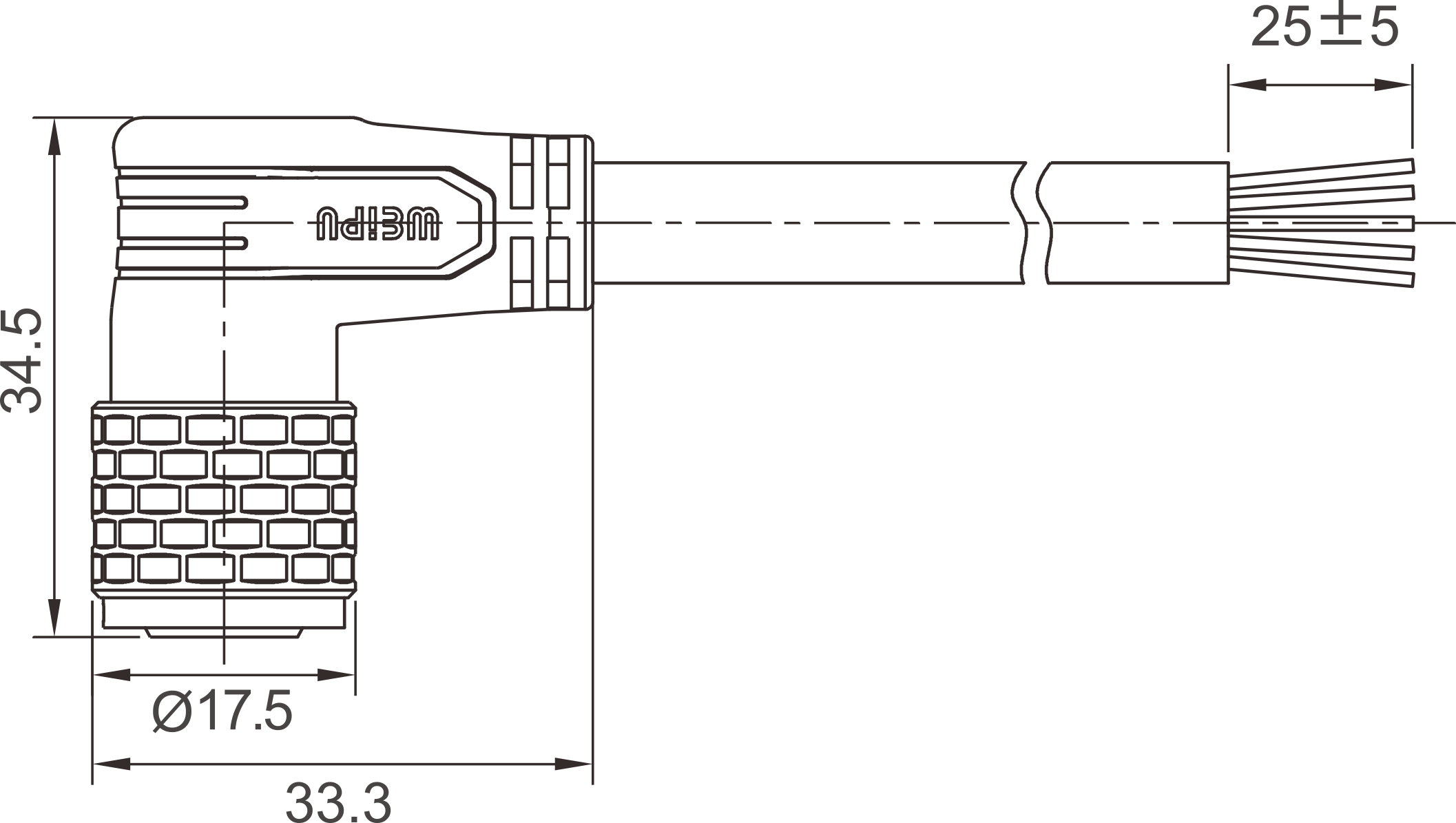

Mating Diagram

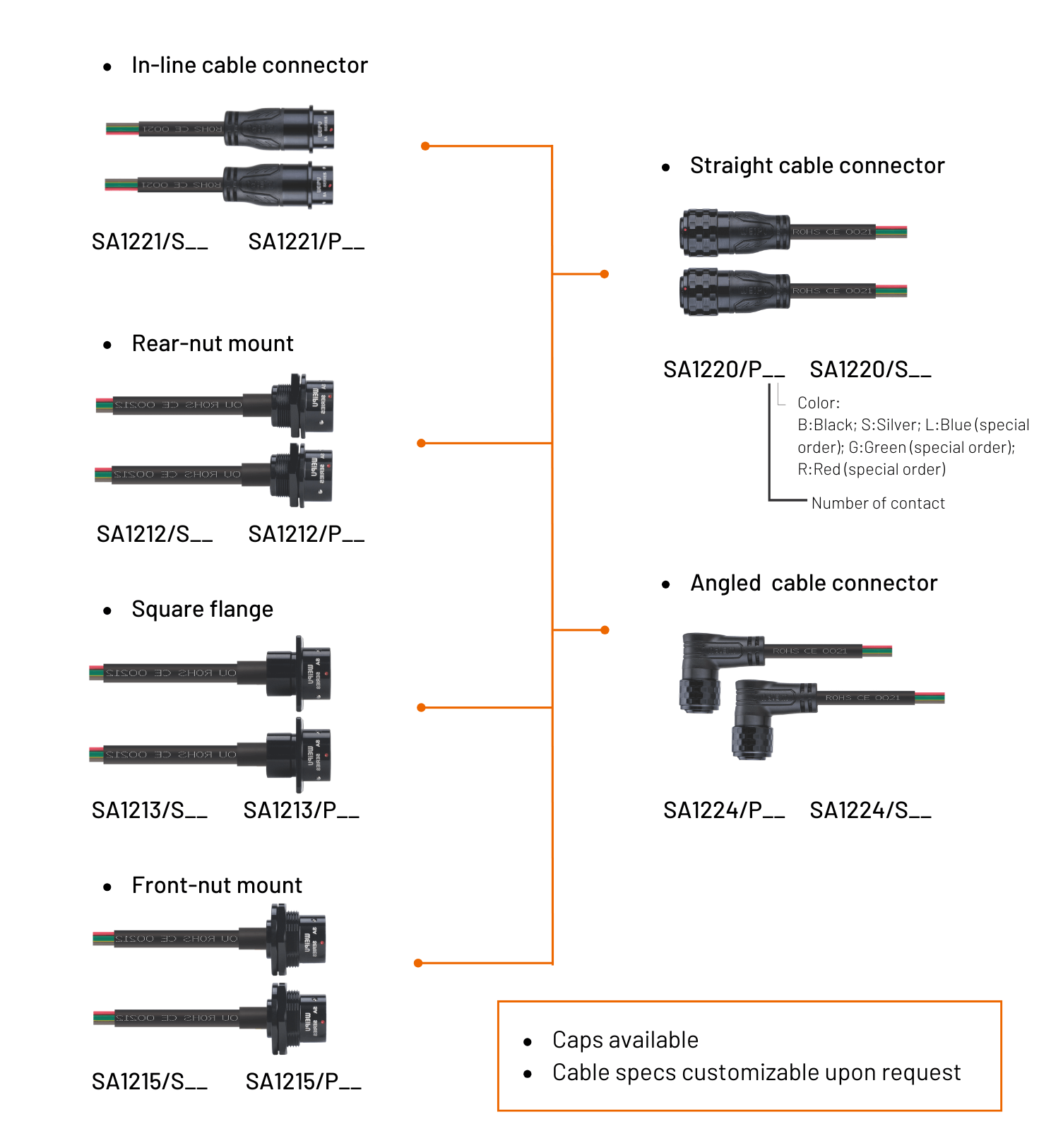

Different connector types

Available in both male and female.

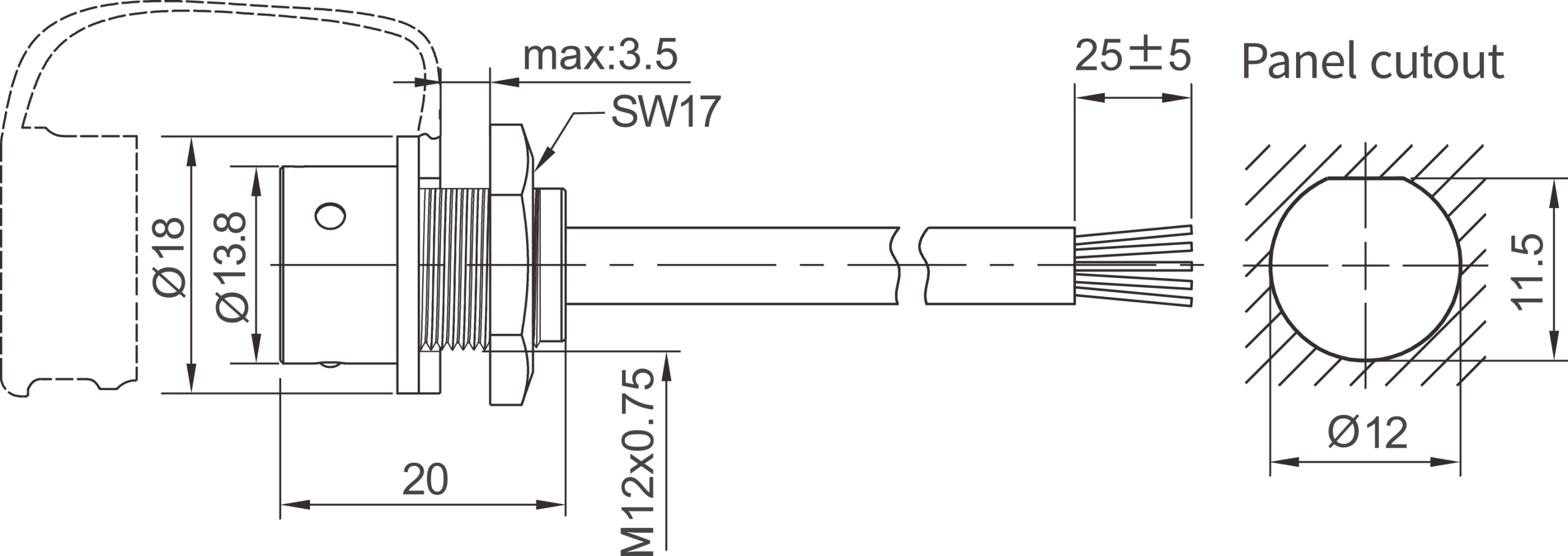

Have options for plug, inline cable connector, panel socket

Successsful Case-SA series Case for Outdoor Bird Alert

As these devices are installed outdoors in cold, wet, and harsh weather conditions, the WEIPU SA metal waterproof series provides a secure and stable connection, ensuring long-term reliability and uninterrupted operation of the bird alert system.
