WEIPU SA10 Cable Assemblies Waterproof Small Size Connectors Overmolding & Cable Assembly

IP67 Highly Sealed
Flexible Options
Full Compatibility: connector + cable integration

The WEIPU SA10 Series now features custom cable assembly and overmolding services, providing a complete miniature interconnect solution for low-voltage and data applications.

By integrating cable assembly directly into the production process, WEIPU delivers ready-to-install, pre-tested cable assemblies that reduce installation time, prevent wiring errors, and ensure long-term waterproof protection.

Key Benefits:

Compact IP67 Waterproof Design — Sealed against dust and water for stable operation in harsh or outdoor conditions.
Push-Pull Coupling – Enables quick connection and disconnection.
Anodized Aluminum Housing – Provides strength, corrosion resistance, and a sleek finish for industrial and aesthetic applications.
Color Options: Connectors available in Black, Silver, Red, Blue, and Green.
Precision Overmolding – Provides excellent strain relief and vibration resistance for extended cable life.
Custom Cable Lengths & Configurations – Tailored to meet specific project and installation needs.
100% Factory-Tested Assemblies – Ensures electrical reliability and waterproof integrity before delivery.

The SA10 connector with cable assembly is highly popular due to its compact size, high reliability, and versatile design. It is especially favored in applications such as LED lighting, security cameras & surveillance systems, controllers, agricultural devices, test and measurement equipment, etc.

Download Catalogue

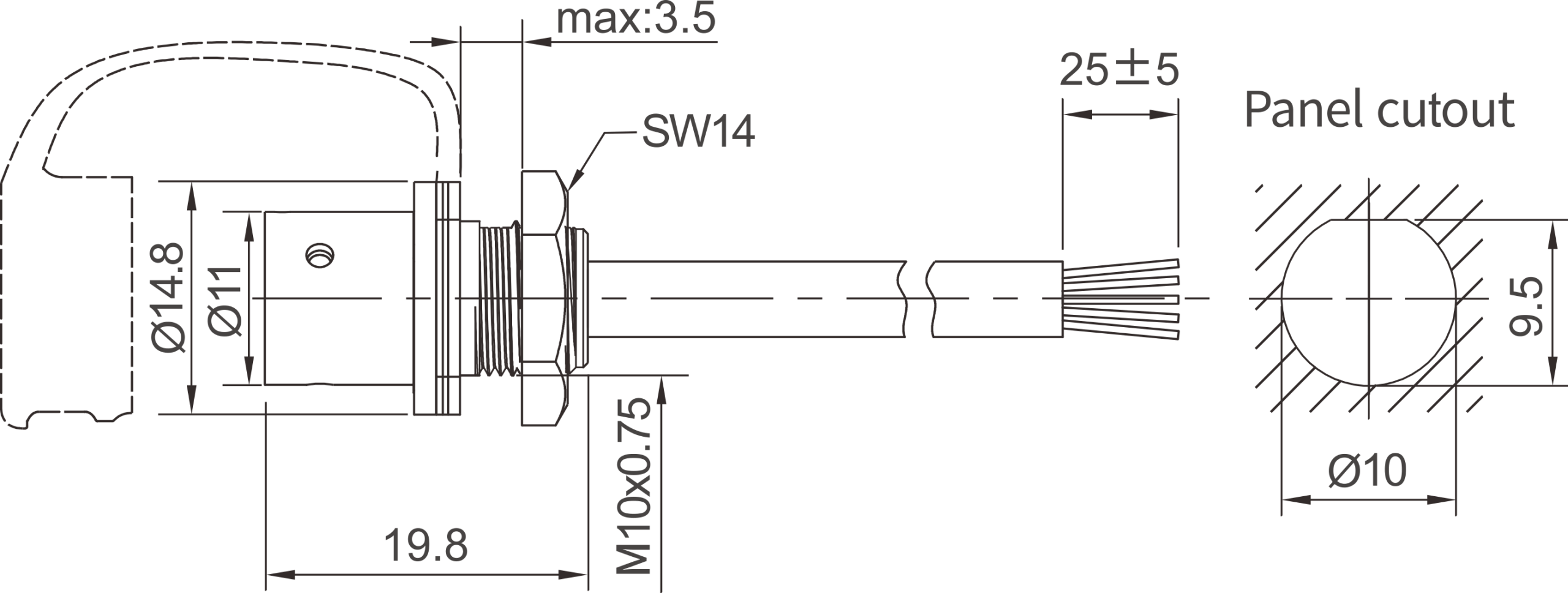

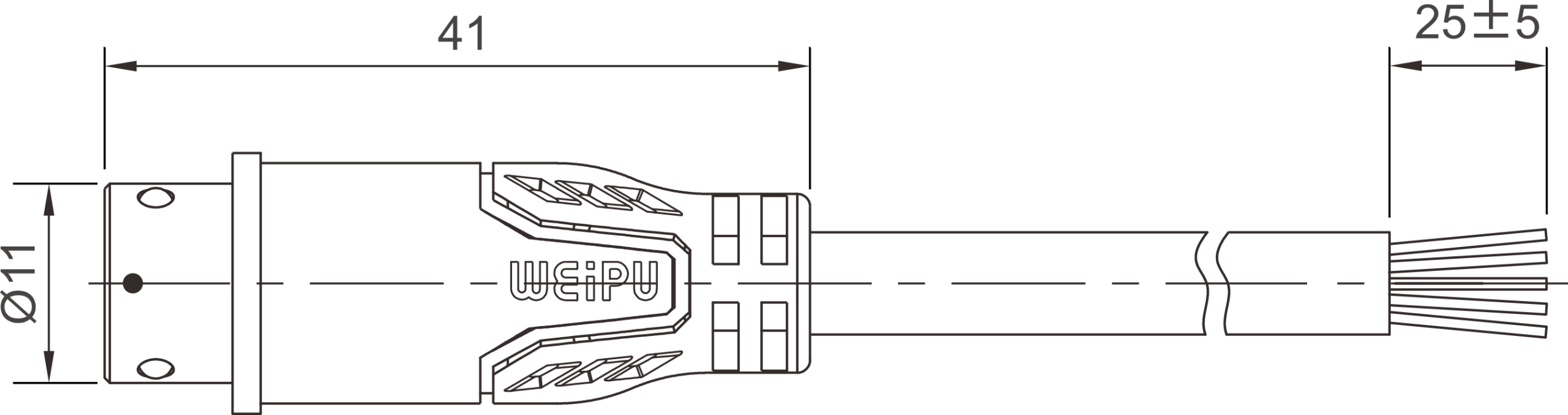

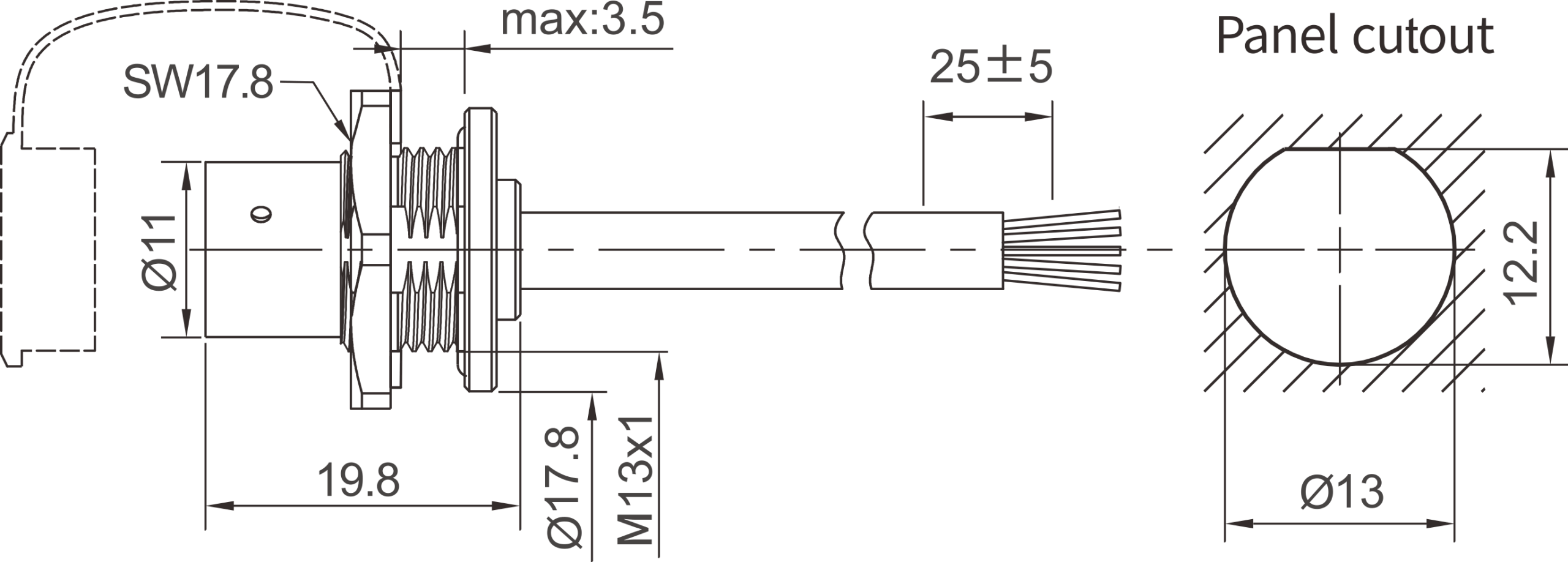

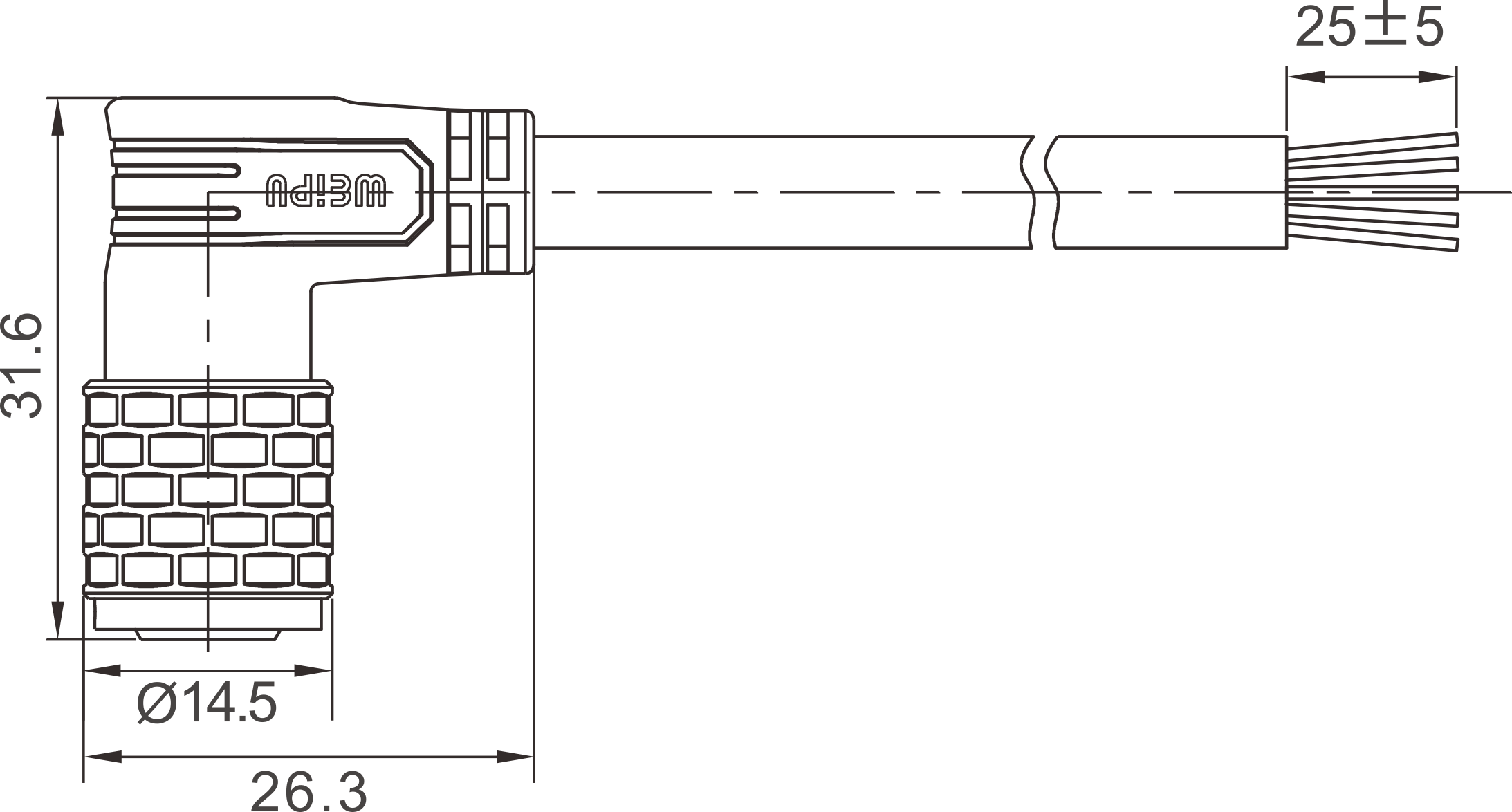

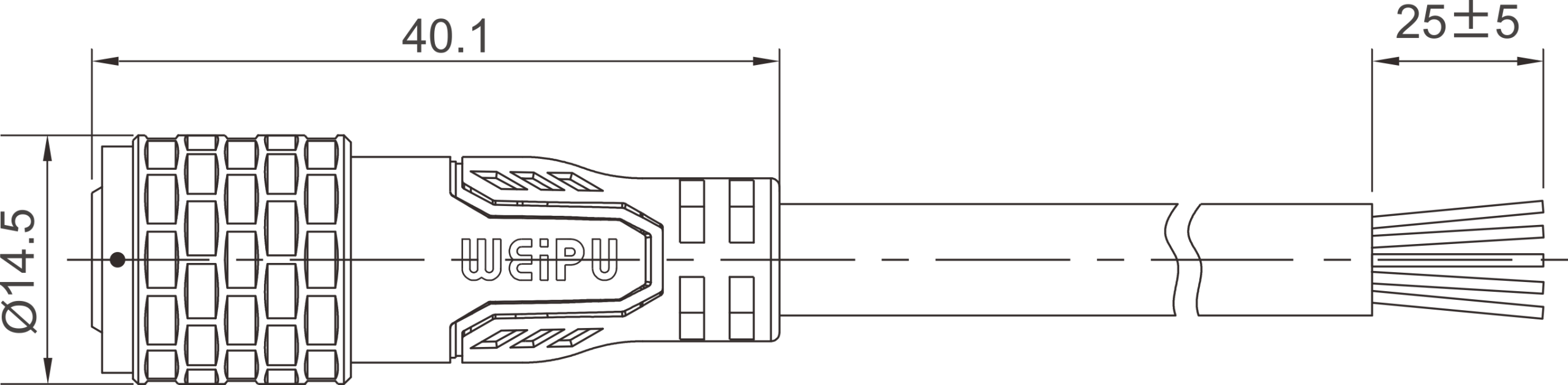

Mating Diagram

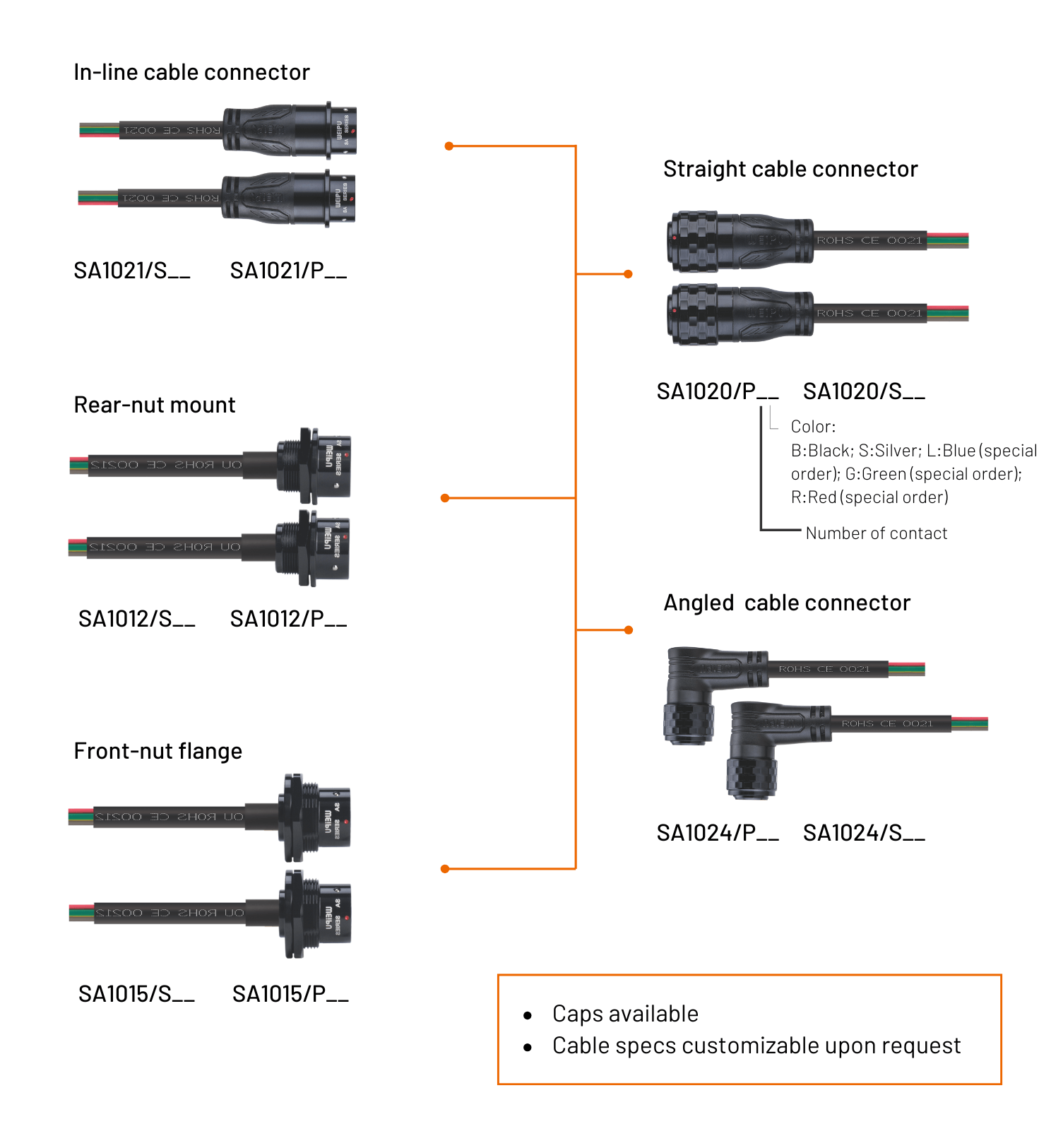

Different connector types

Available in both male and female.
Have options for plug, inline cable connector, panel socket

Successsful Case-SA series Case for Outdoor Bird Alert

As these devices are installed outdoors in cold, wet, and harsh weather conditions, the WEIPU SA metal waterproof series provides a secure and stable connection, ensuring long-term reliability and uninterrupted operation of the bird alert system.
