WEIPU M23Q Signal - IP67 METAL CONNECTOR M23 Standard connectors for signal with bayonet connection

Water-proof
High performance materials
Bayonet coupling for anti-vibration

The WEIPU M23Q signal connector is designed for reliable signal transmission in industrial environments, featuring a bayonet coupling mechanism for fast and secure connection. The quick-lock design enables efficient installation while maintaining stable performance in high-vibration applications. With IP67 protection against dust and water ingress, and a shielded structure for enhanced EMI protection, it ensures stable signal integrity in harsh and electrically noisy environments such as robotics, automation systems, and encoder feedback applications.

Key Features:

*Bayonet Coupling: Fast and secure connection with improved vibration resistance
*IP67 Protection: Reliable sealing against dust and water (mated)
*Shielded Design: Enhanced EMI protection for stable signal transmission
*Quick Installation: Reduces assembly time and improves efficiency
*Rotatable Angle: Flexible connection options with a rotatable design for various installation needs.

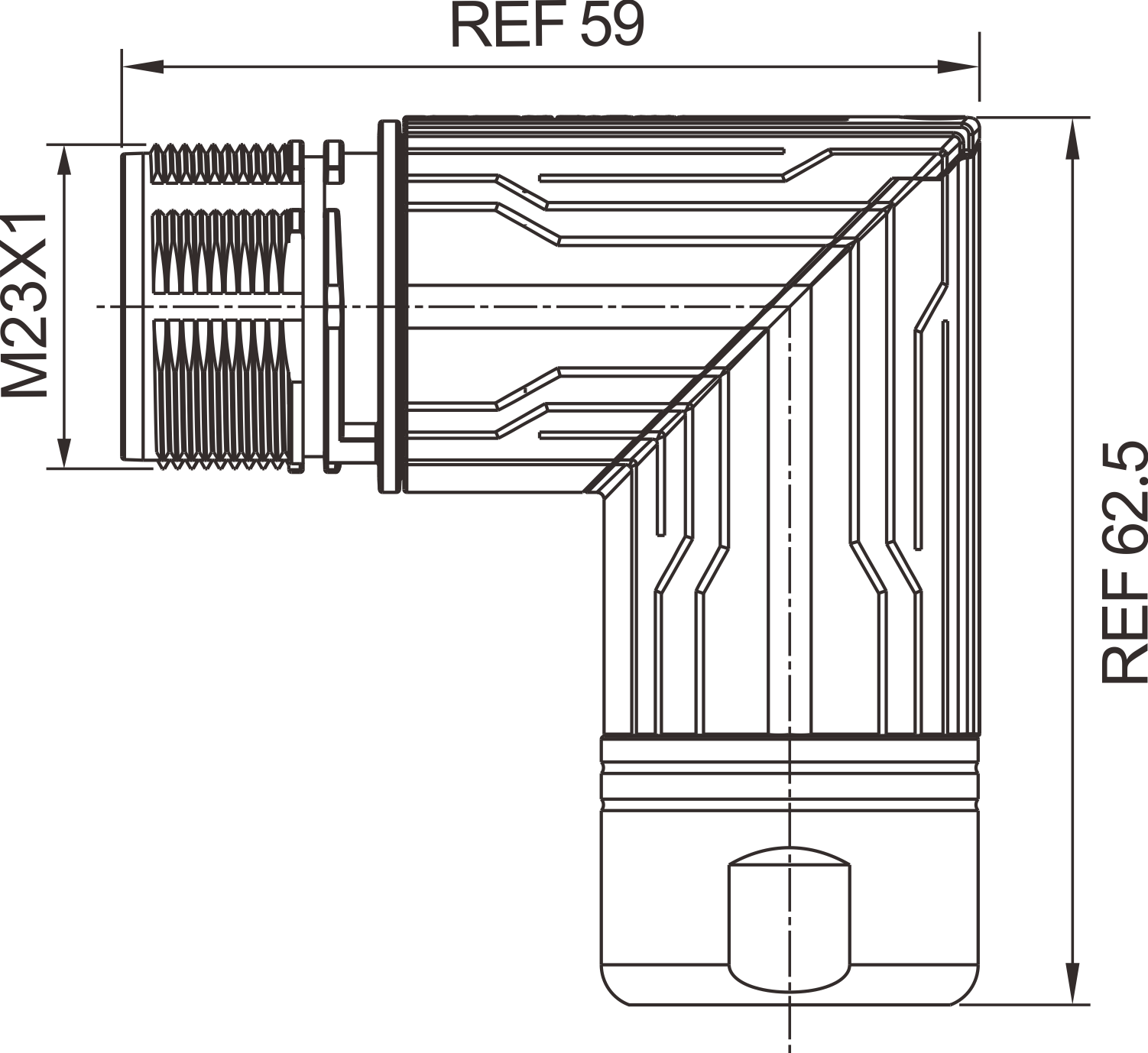

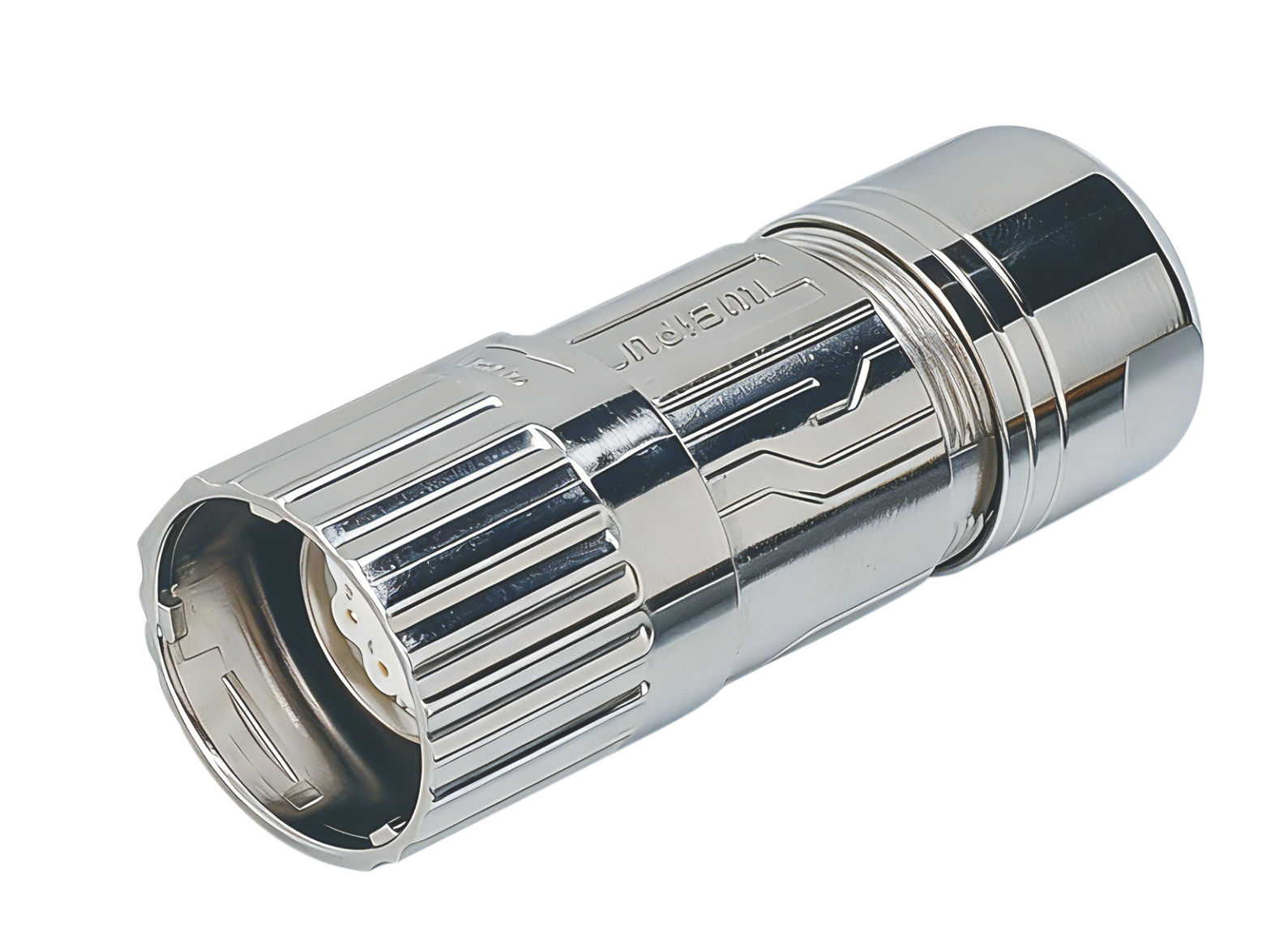

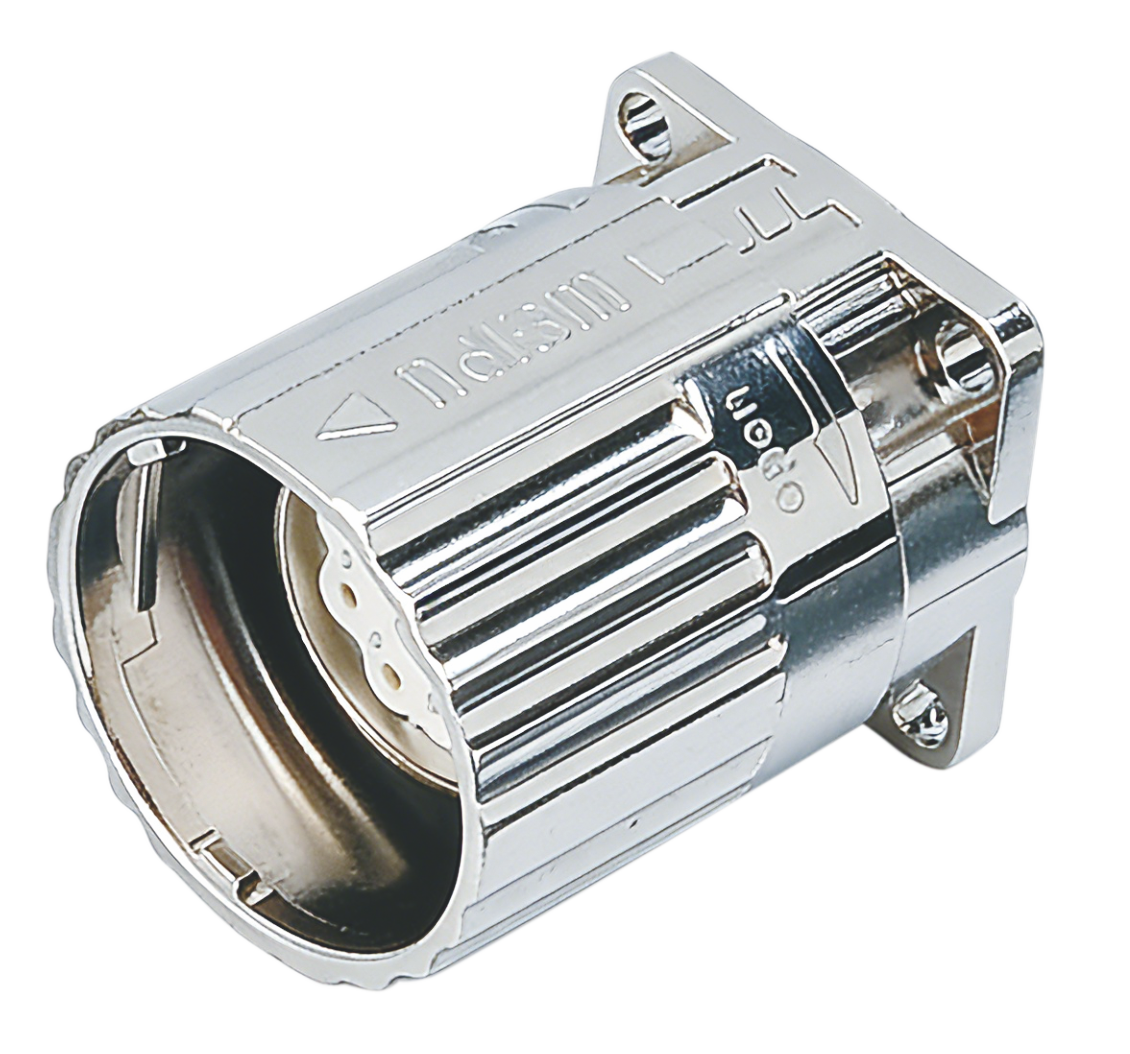

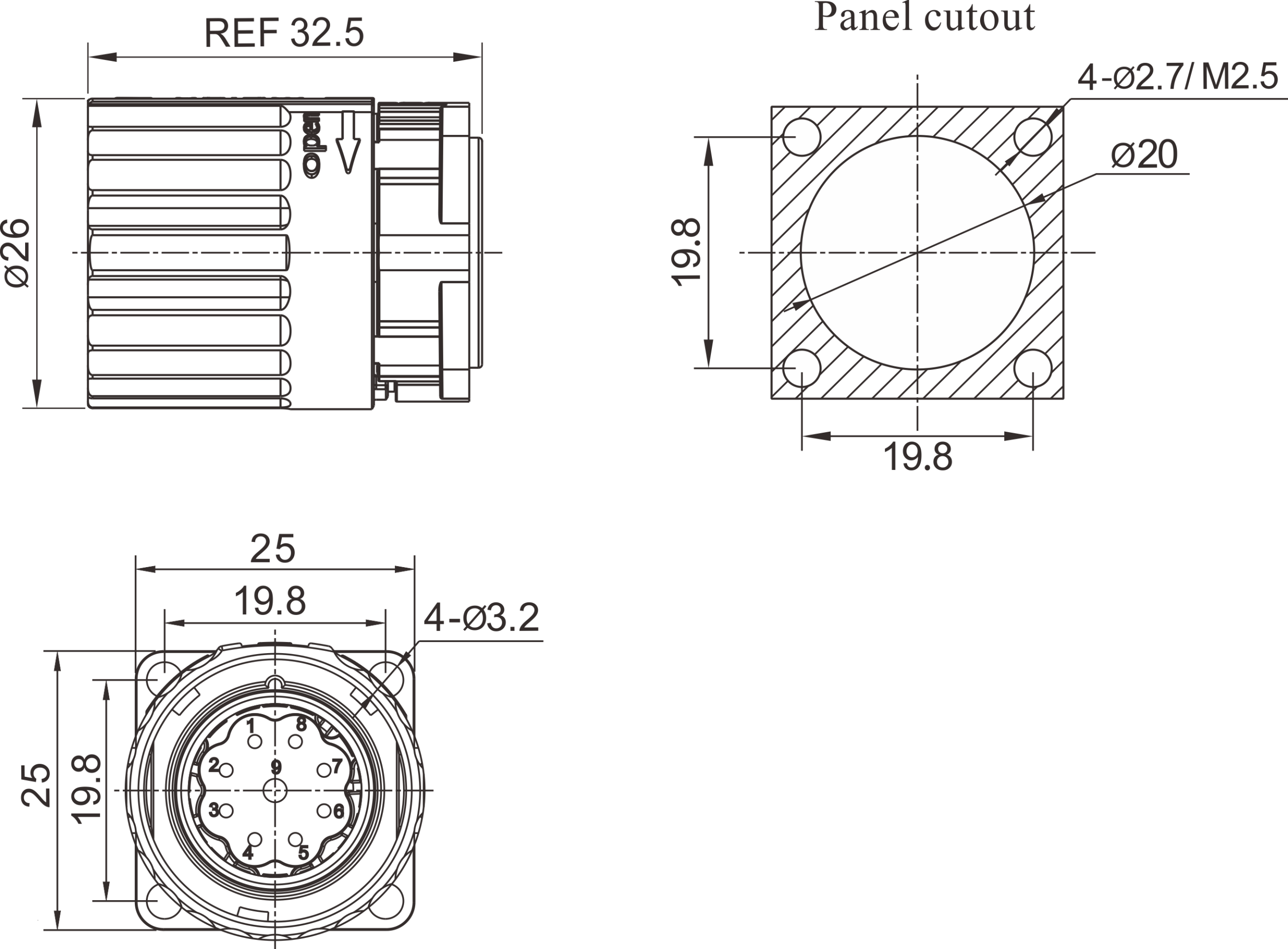

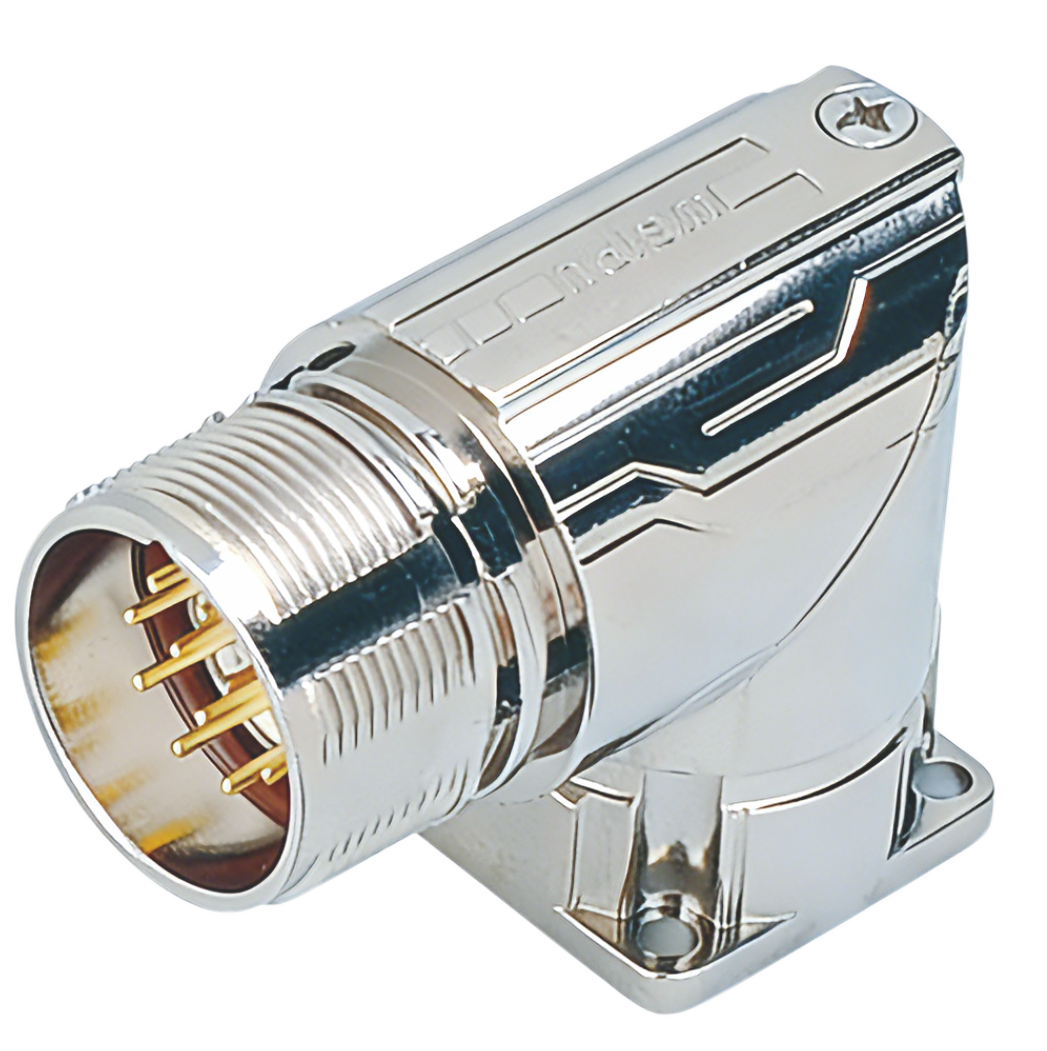

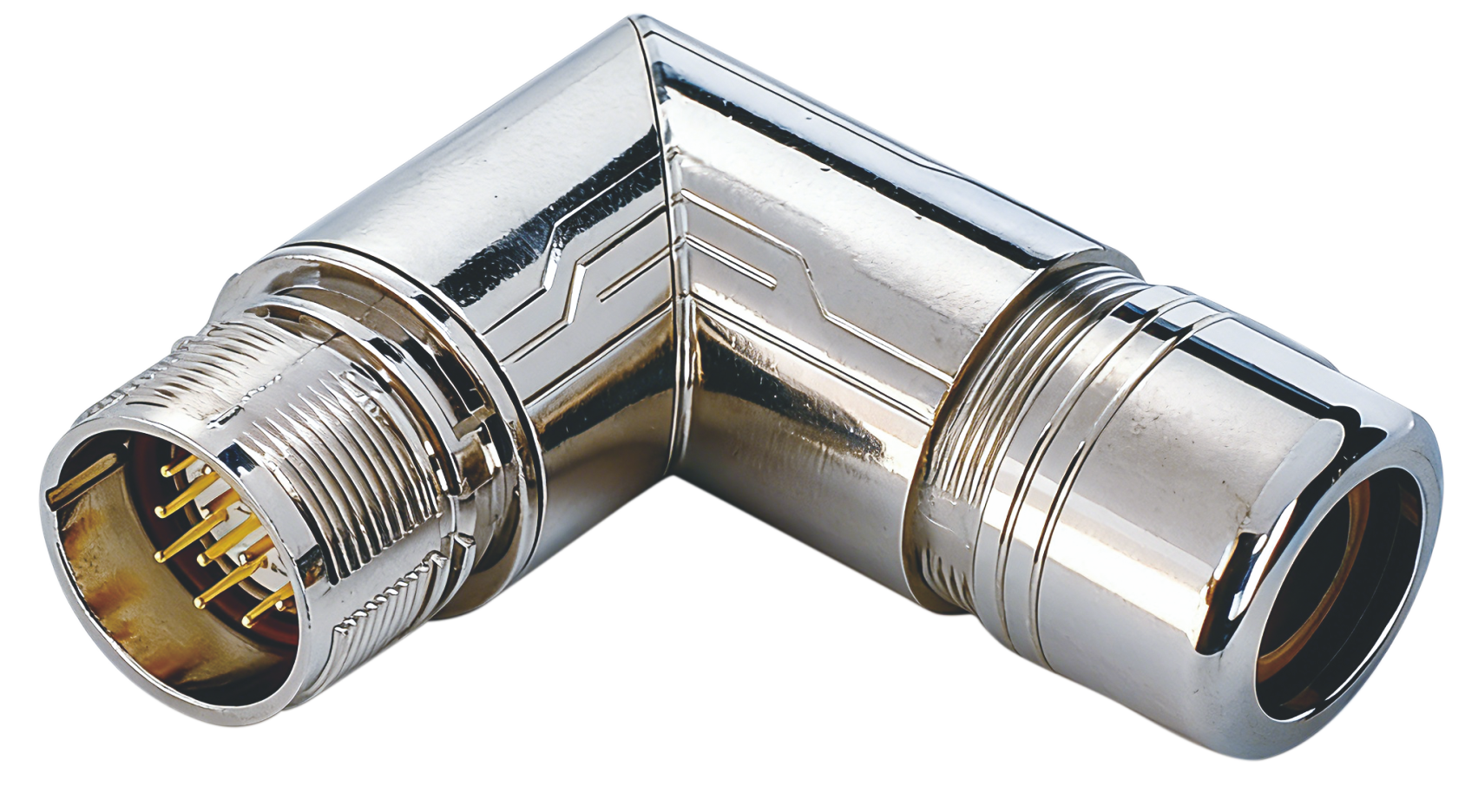

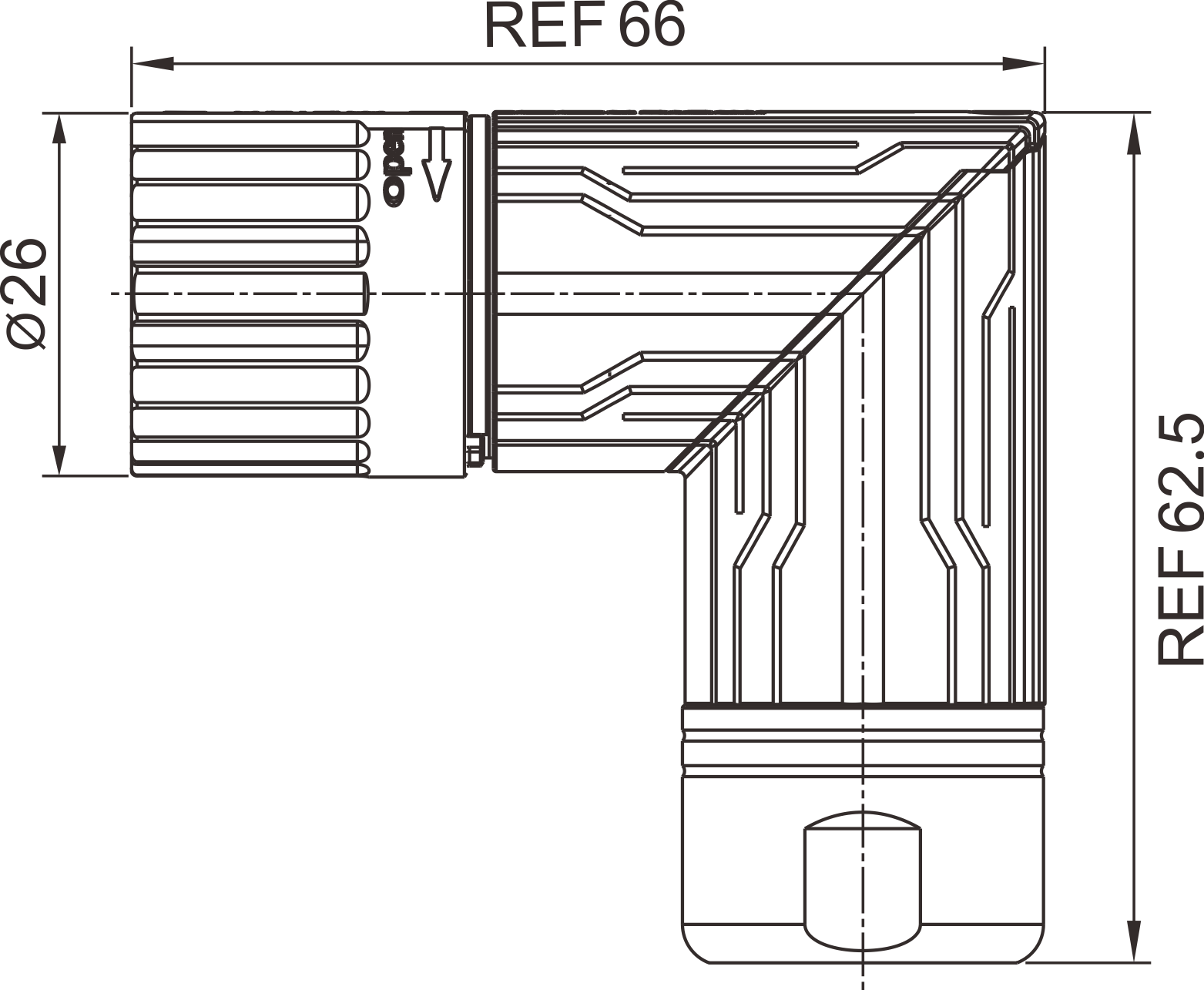

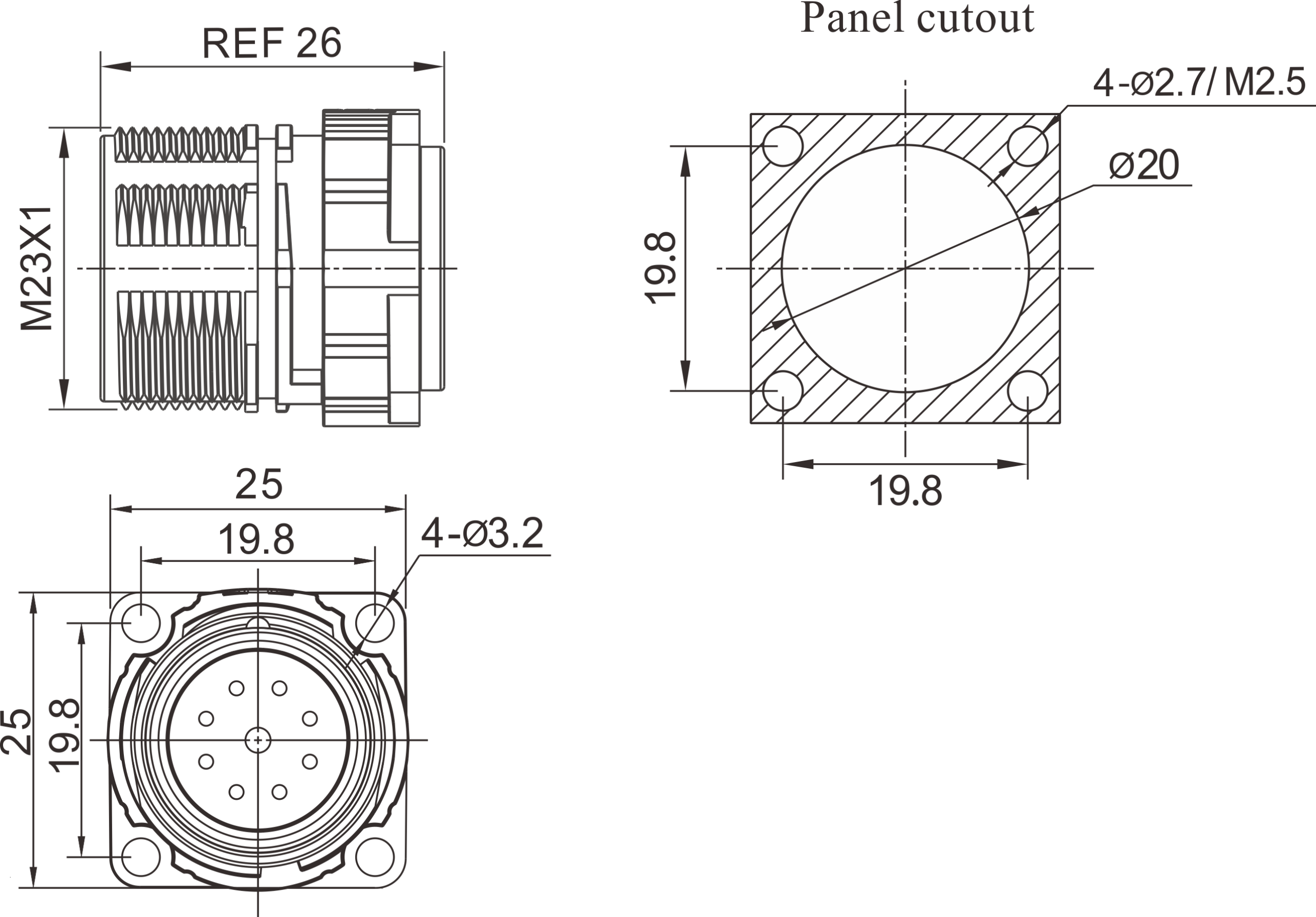

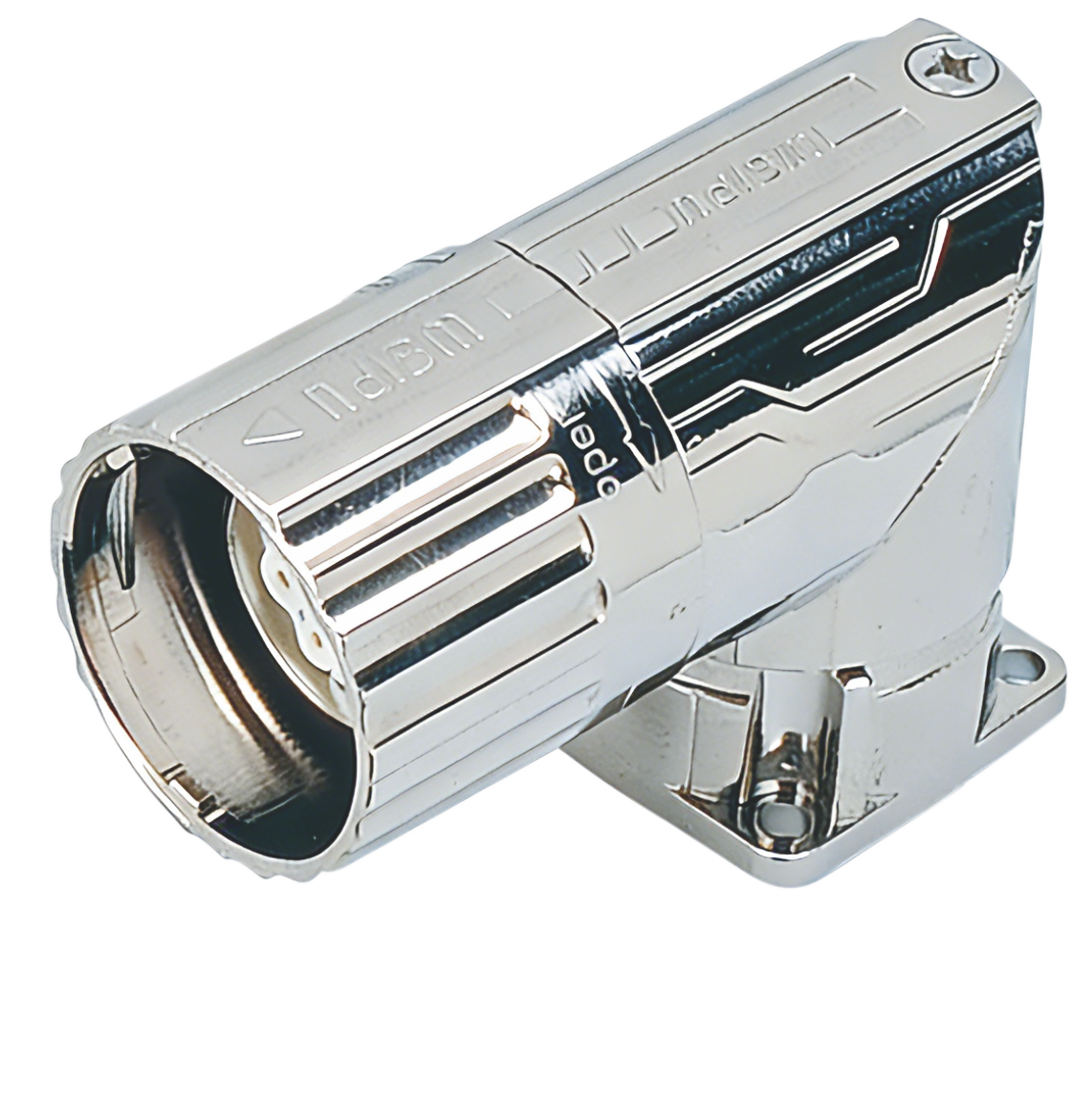

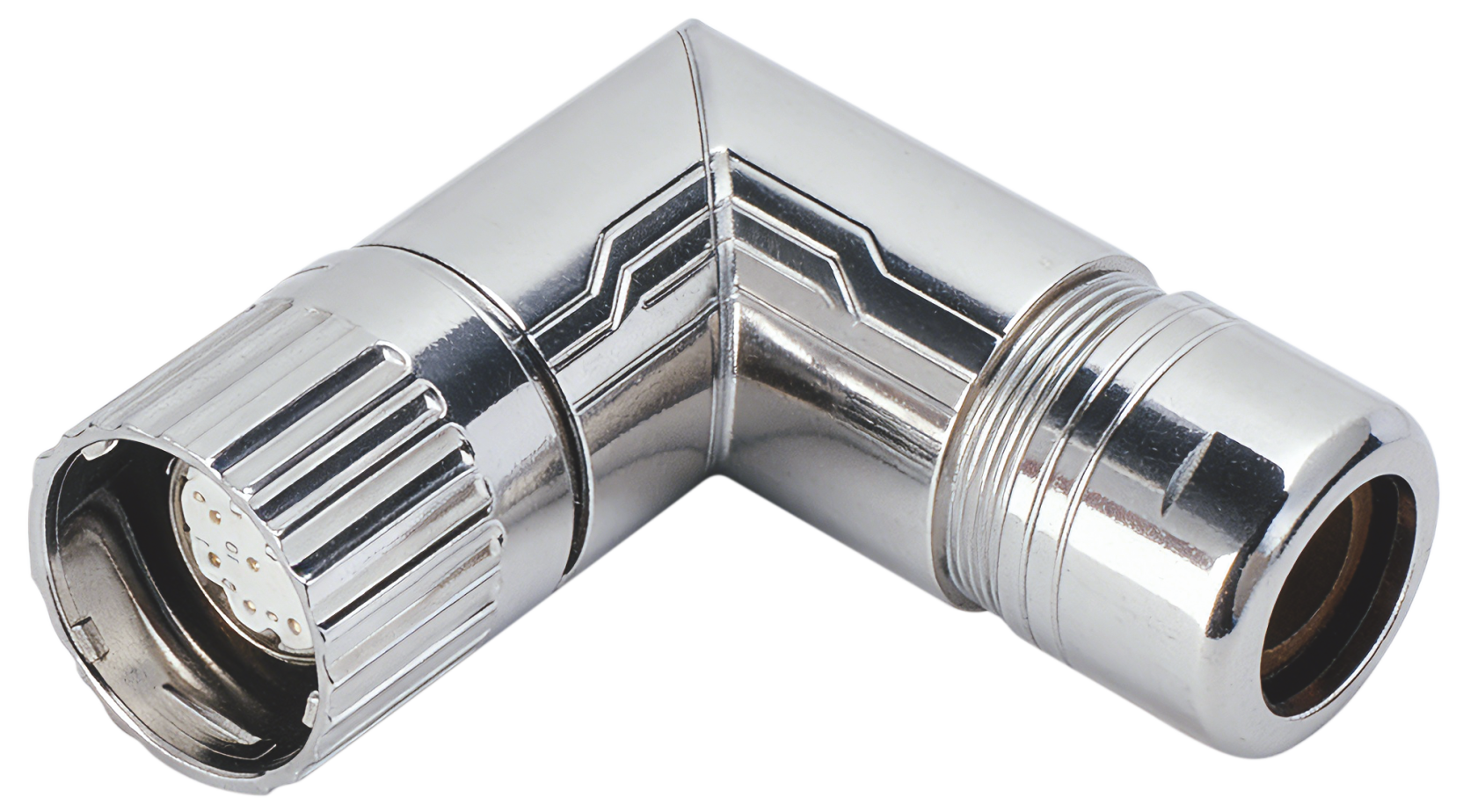

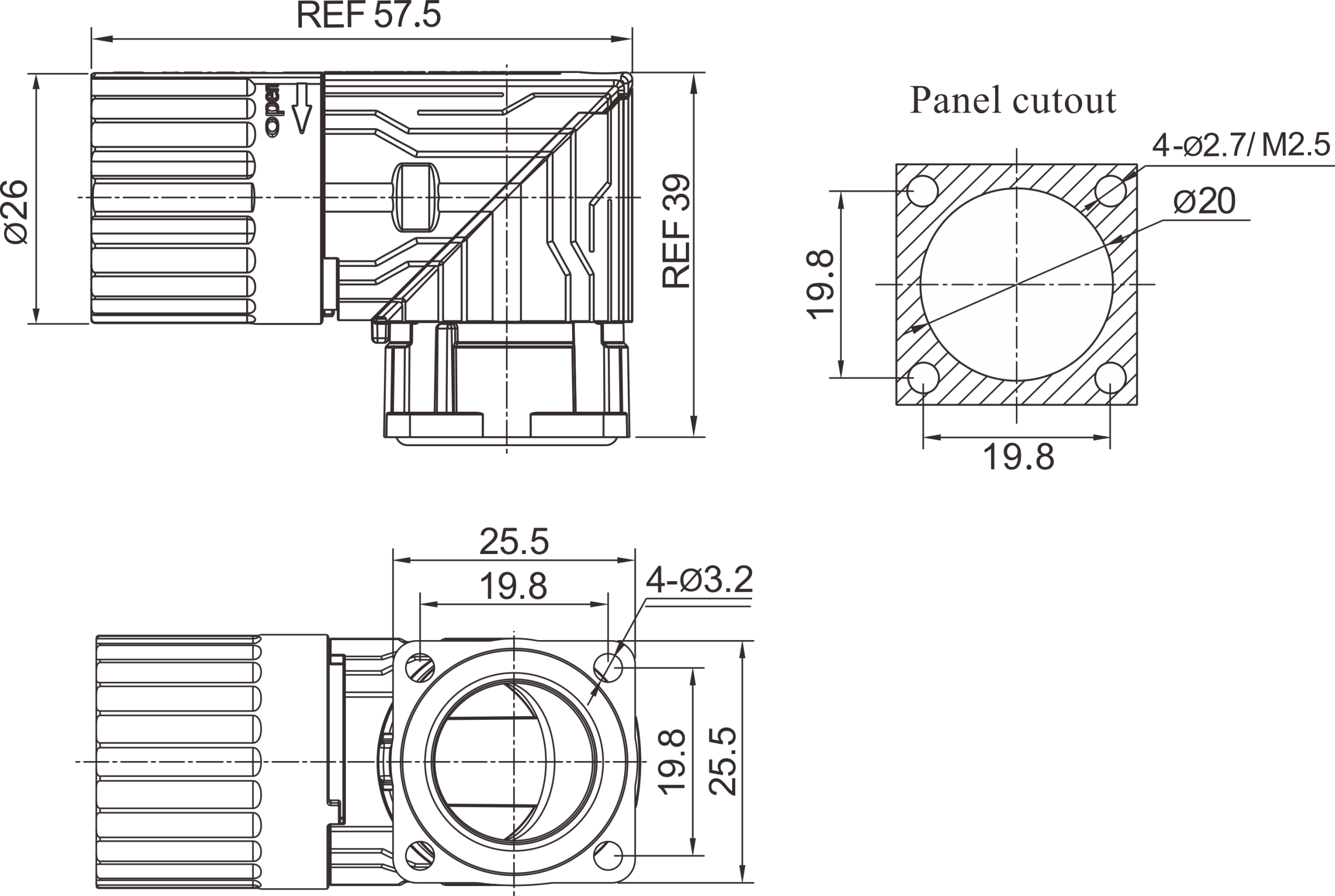

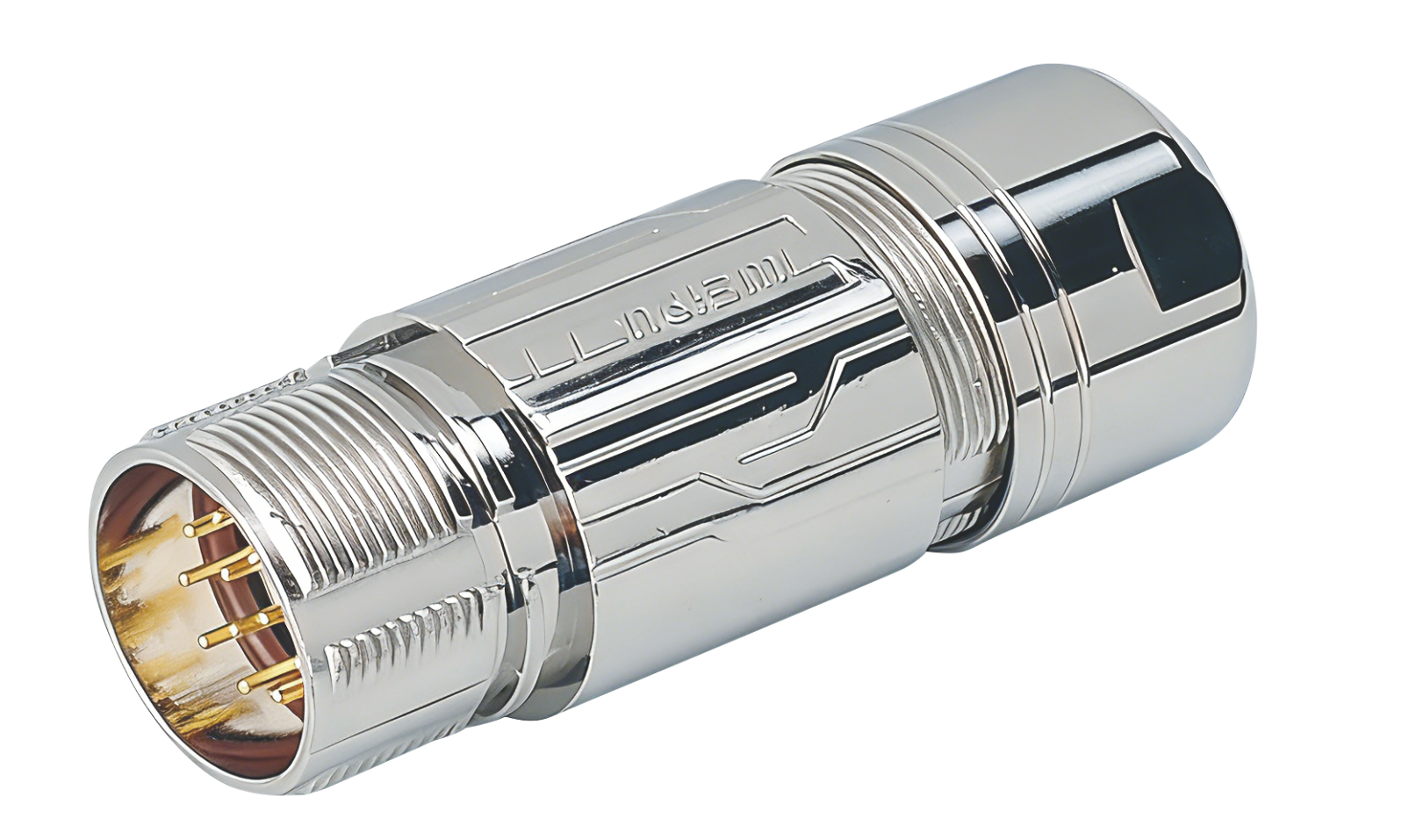

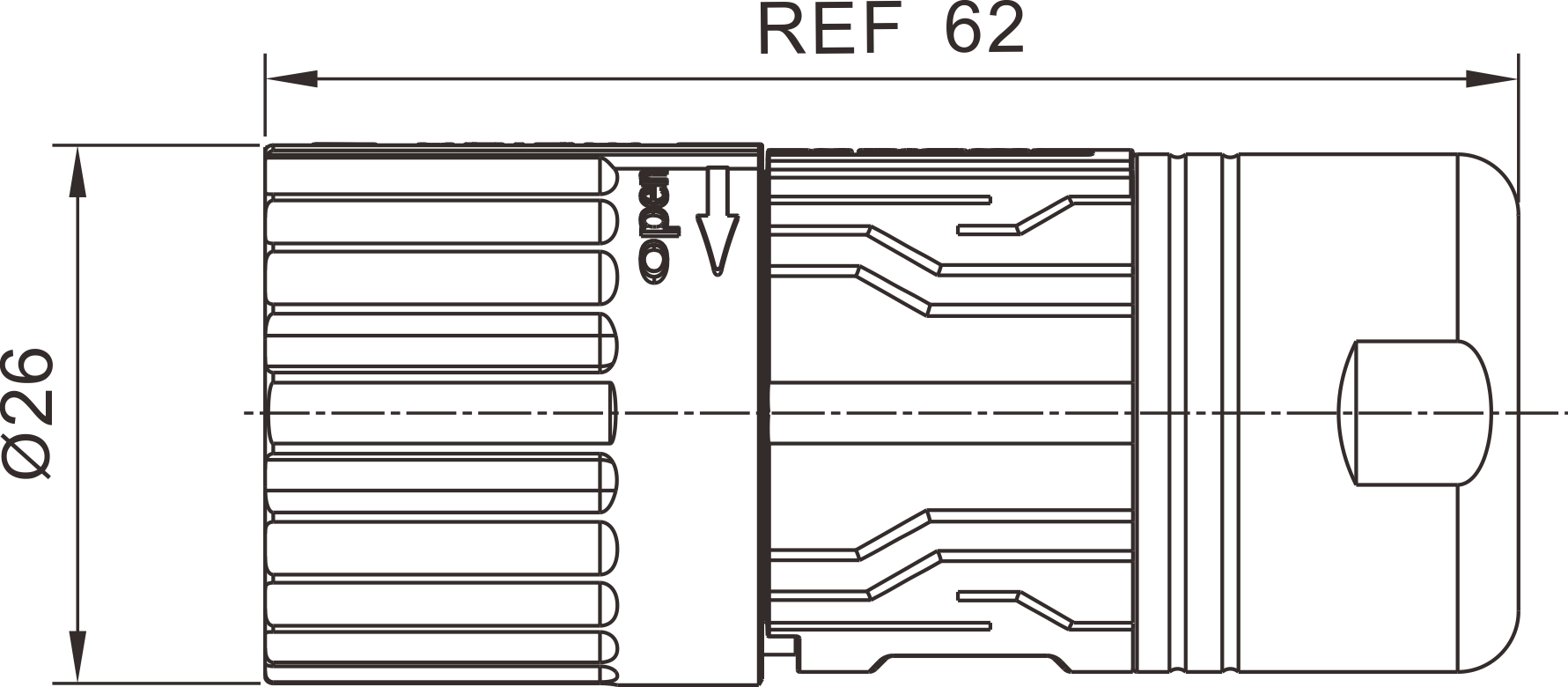

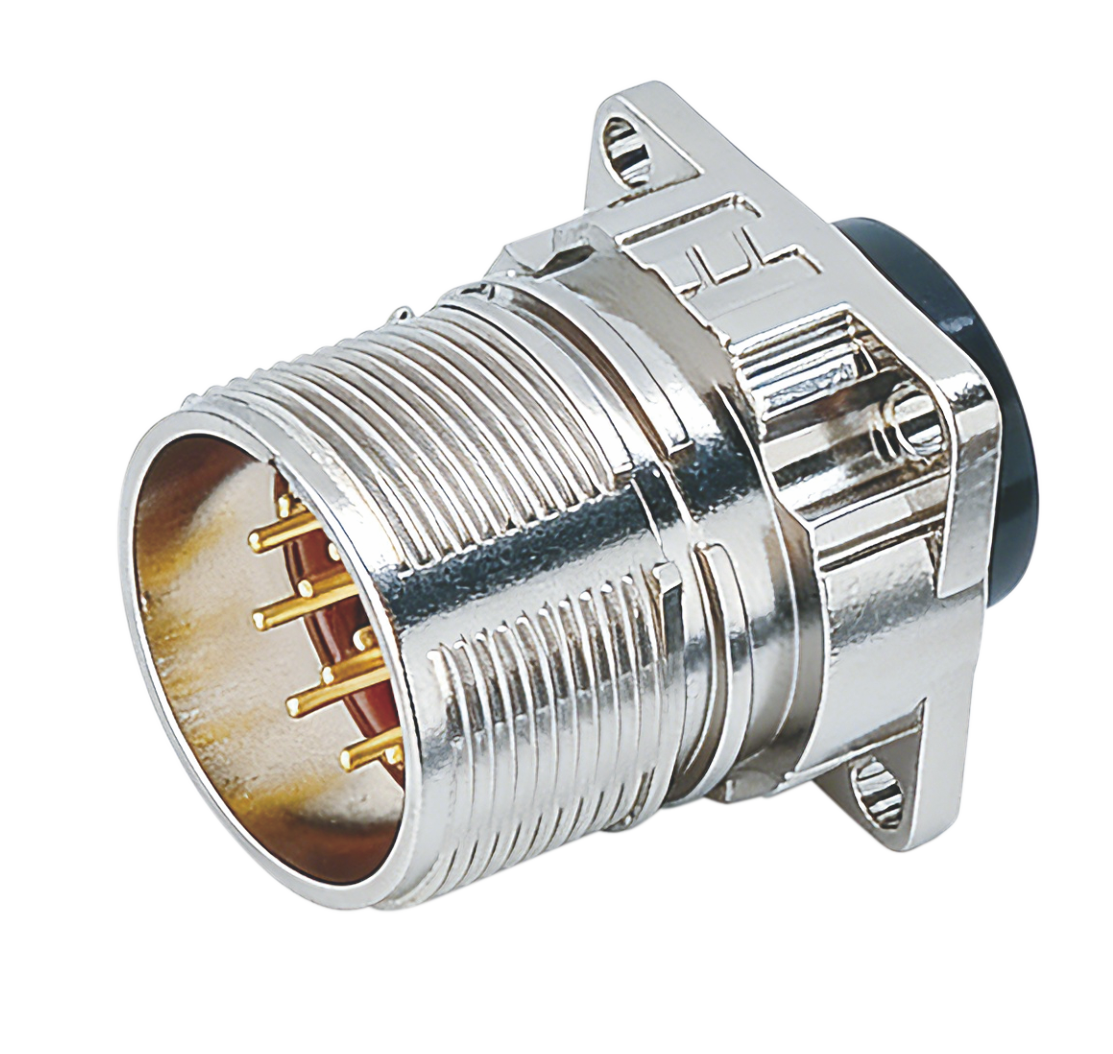

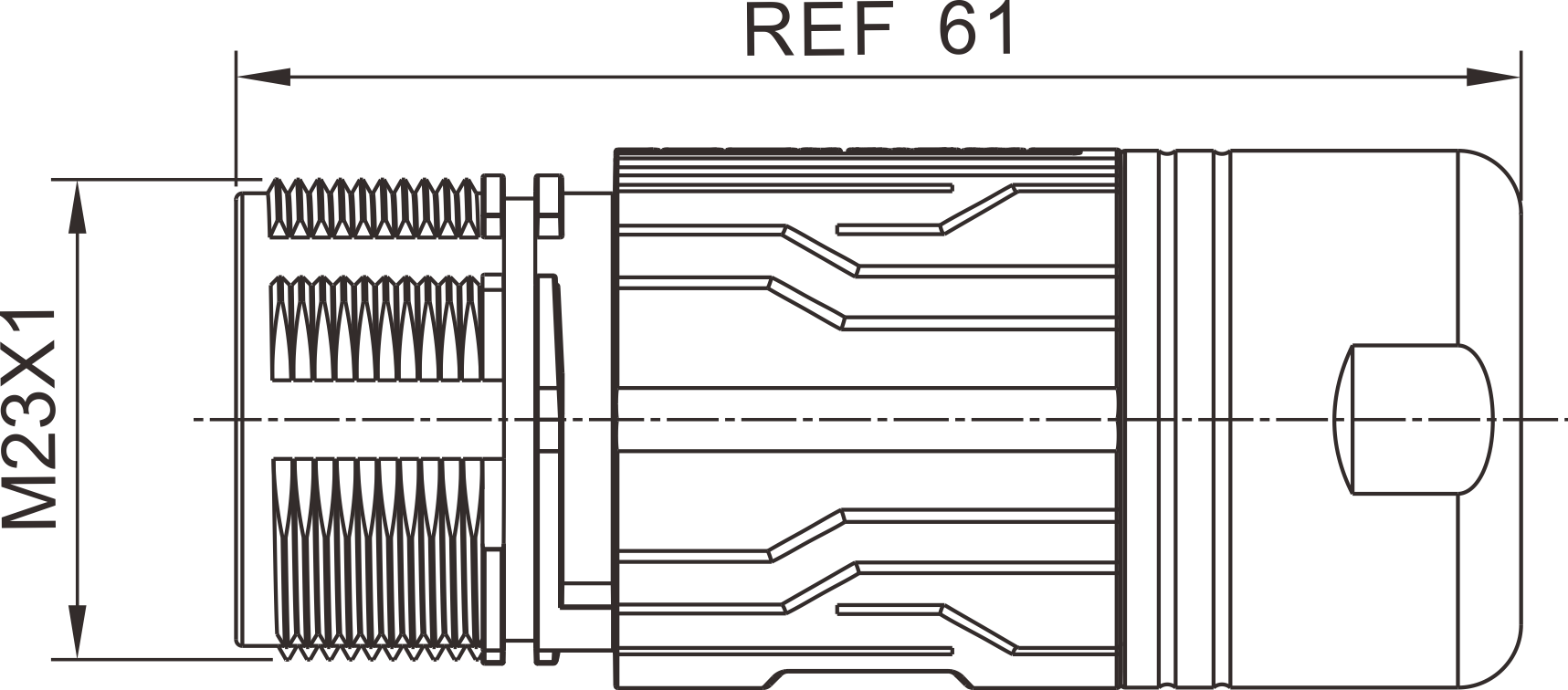

Part number: WEIPU M23Q-TK, M23Q-TL, M23Q-Z, M23Q-ZL

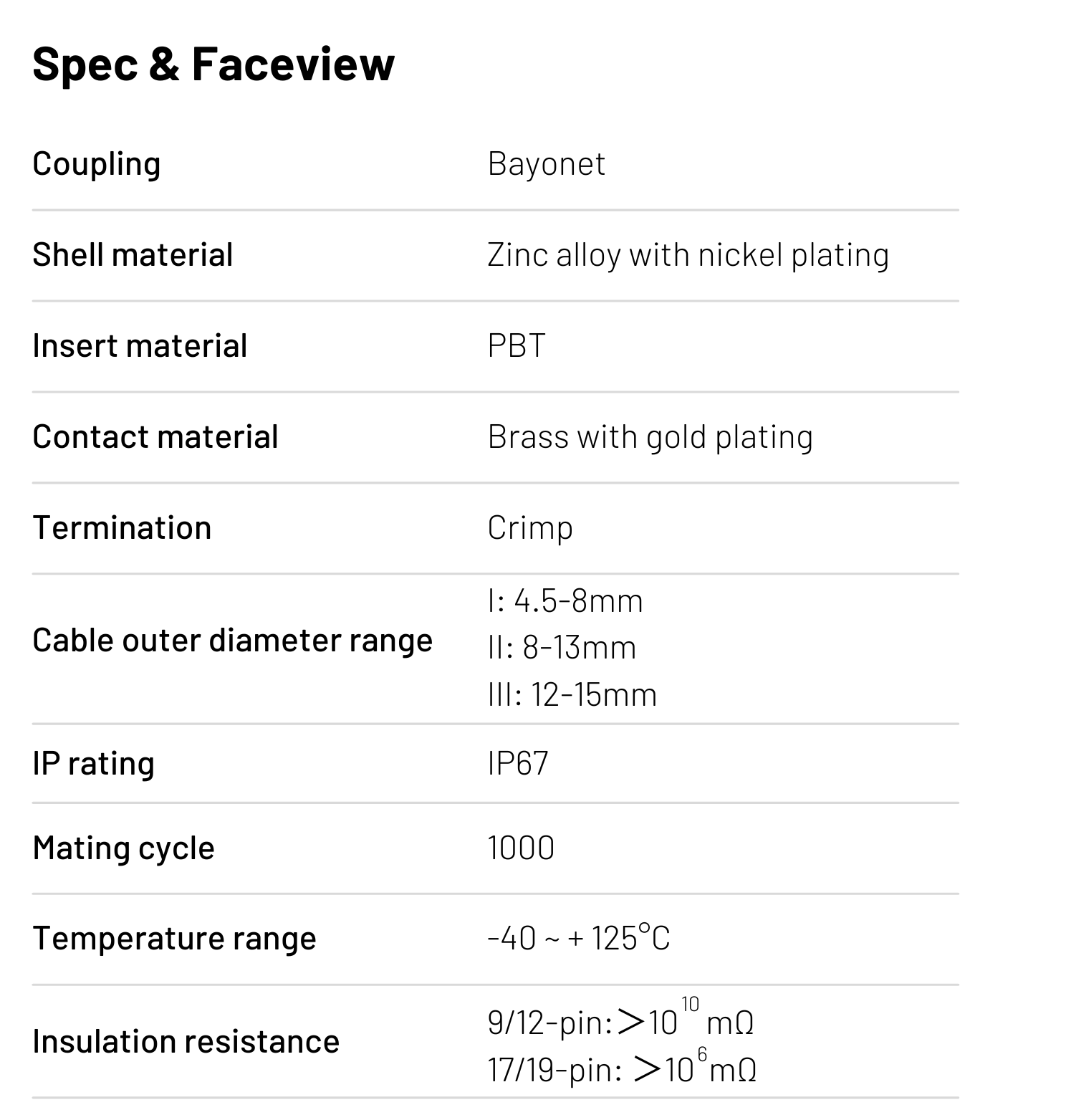

Key Specs: IP67 | Bayonet | -40~125°C | 1000 mating cycles
