WEIPU IP67 - METAL CONNECTOR M23 Standard connectors for signal with threaded connection

  • waterproof

    Water-proof

  • International standard_European configuration _Various configuration options

    High performance materials

  • High mating cycles

    Mis-plug resistance with colorful bands

WEIPU M23X series connector is designed to meet the demands of power and signal connections in industrial environments, offering robust and secure performance. It features a threaded coupling mechanism that ensures reliable connections even in high-vibration applications. This connector is built with an IP67 waterproof rating, making it ideal for outdoor and harsh environments, as it can effectively prevent dust and water ingress. Additionally, the connector offers easy and fast assembly, along with a shielded structure for better electromagnetic interference (EMI) protection.



Key Features:

*Threaded Coupling: Secure and reliable connection in high-vibration environments.
*IP67 Waterproof Protection: Ensures durability and performance in harsh outdoor environments.
*Shielded Structure: Provides superior protection against EMI.
*Quick and Easy Assembly: Designed for efficient installation.
*Rotatable Angle: Flexible connection options with a rotatable design for various installation needs.



Download M23X Catalogue

M23XSJ ZL
  • 1. M23X Signal mating
    M23X Signal Mating Diagram

Having questions for M23X Signal Series?

INFO@WEIPUCONNECTOR.COM

+0086 021-56631111

Connect with WEIPU

  • M23XSJ TK 2D

    M23XSJ TK 2D

  • M23XSK TK 2D

    M23XSK TK 2D

  • M23XSK TL 2D

    M23XSK TL 2D

  • M2XSJ TL 2D

    M2XSJ TL 2D

  • M23XSK Z 2D

    M23XSK Z 2D

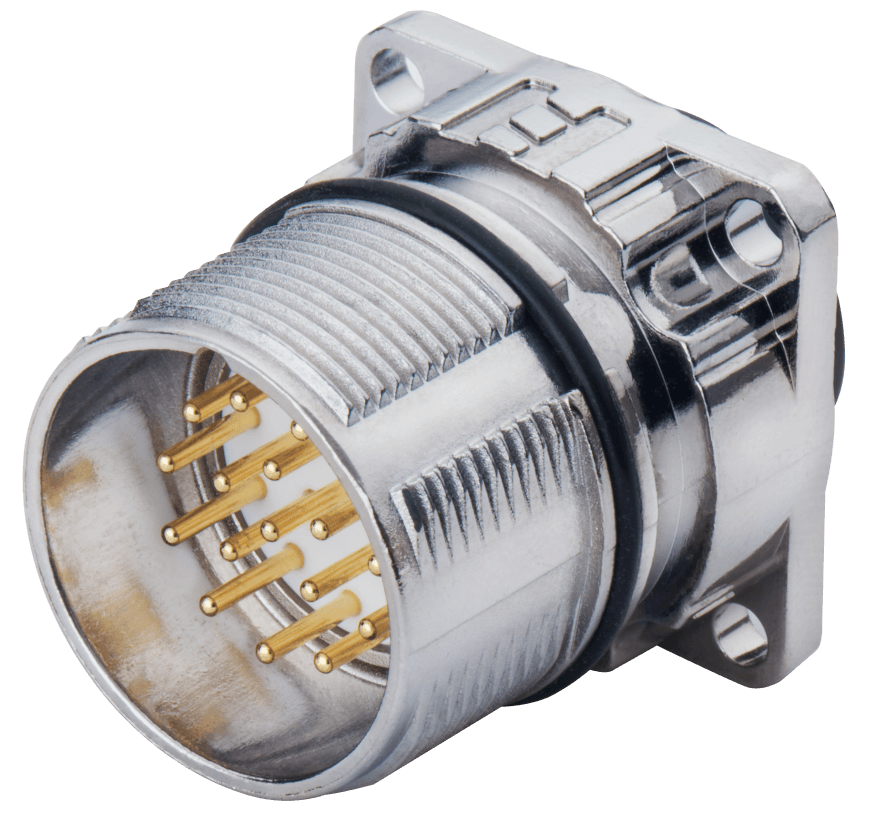

  • M23XSJ Z 2D

    M23XSJ Z 2D

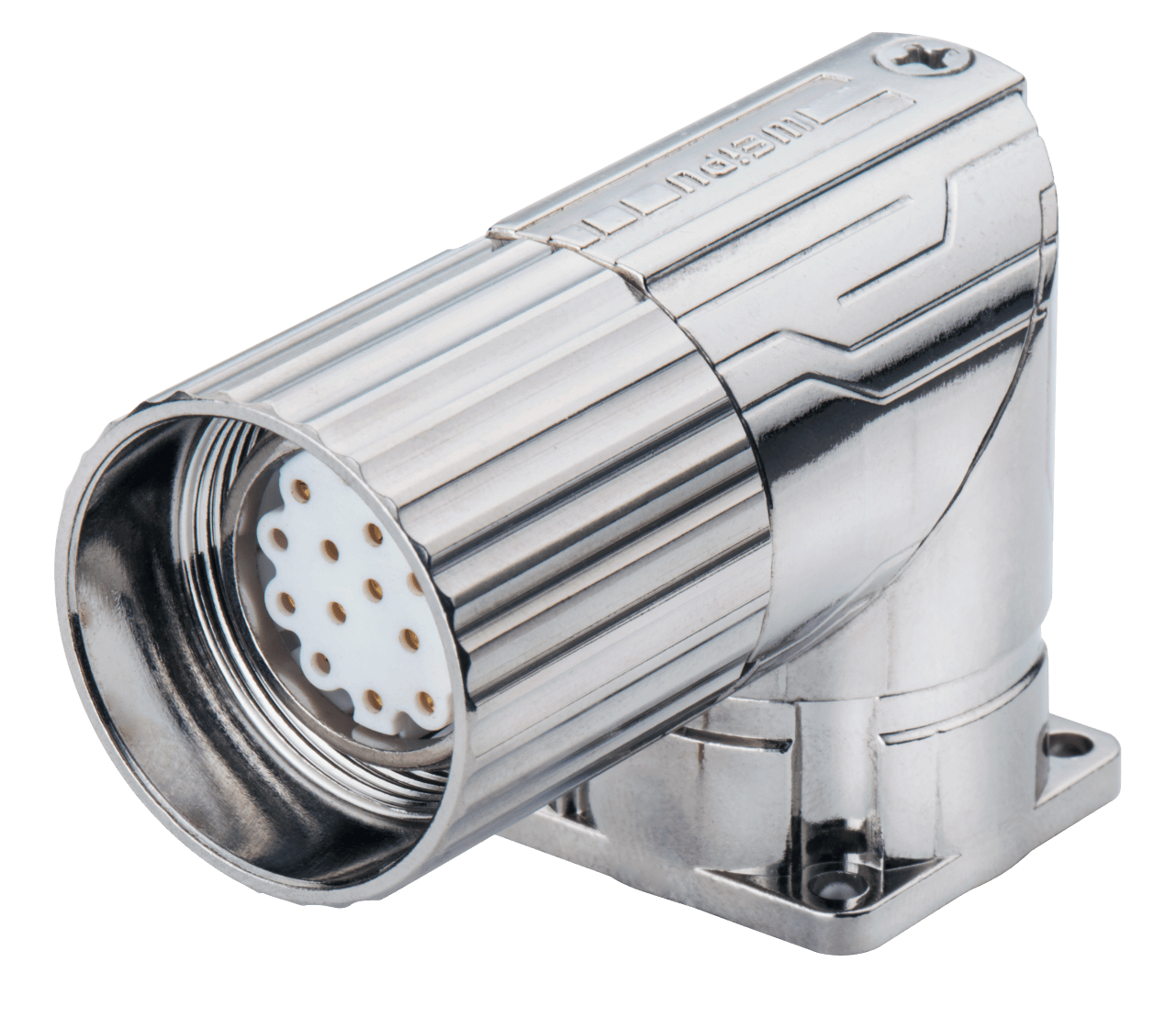

  • M23XSK ZL 2D

    M23XSK ZL 2D

  • M23XSJ ZL 2D

    M23XSJ ZL 2D

  • Crimp Spec

    • S__59932689
    • P32-002
    • P32-004
    • P32-006
  • Crimp Tool

    • M23 power (1)
