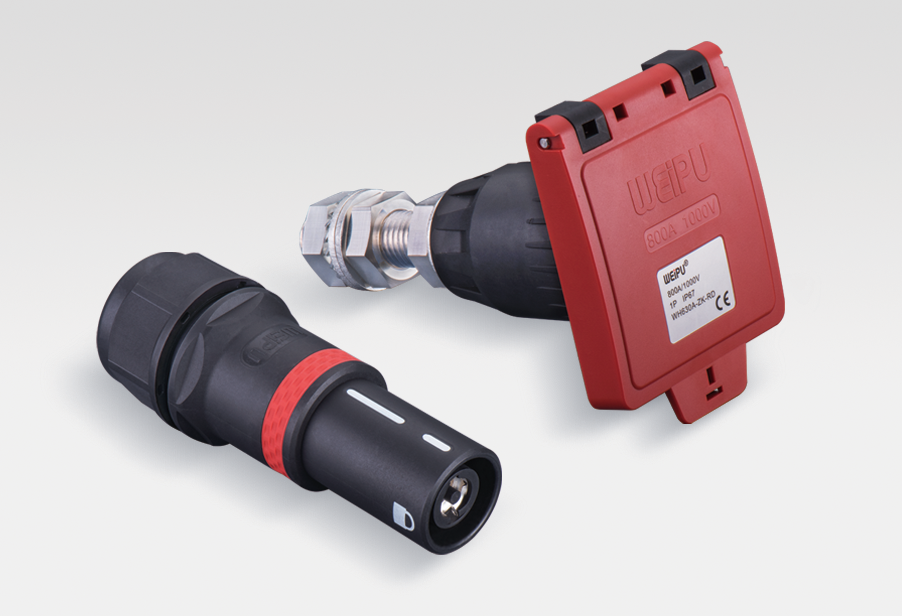

WEIPU IP67 WH800A Single-Pole Power Connector Plastic waterproof single-pole connectors with bayonet locking

Ｗater tight
Bayonet locking
Design standard GB/T 11918.1

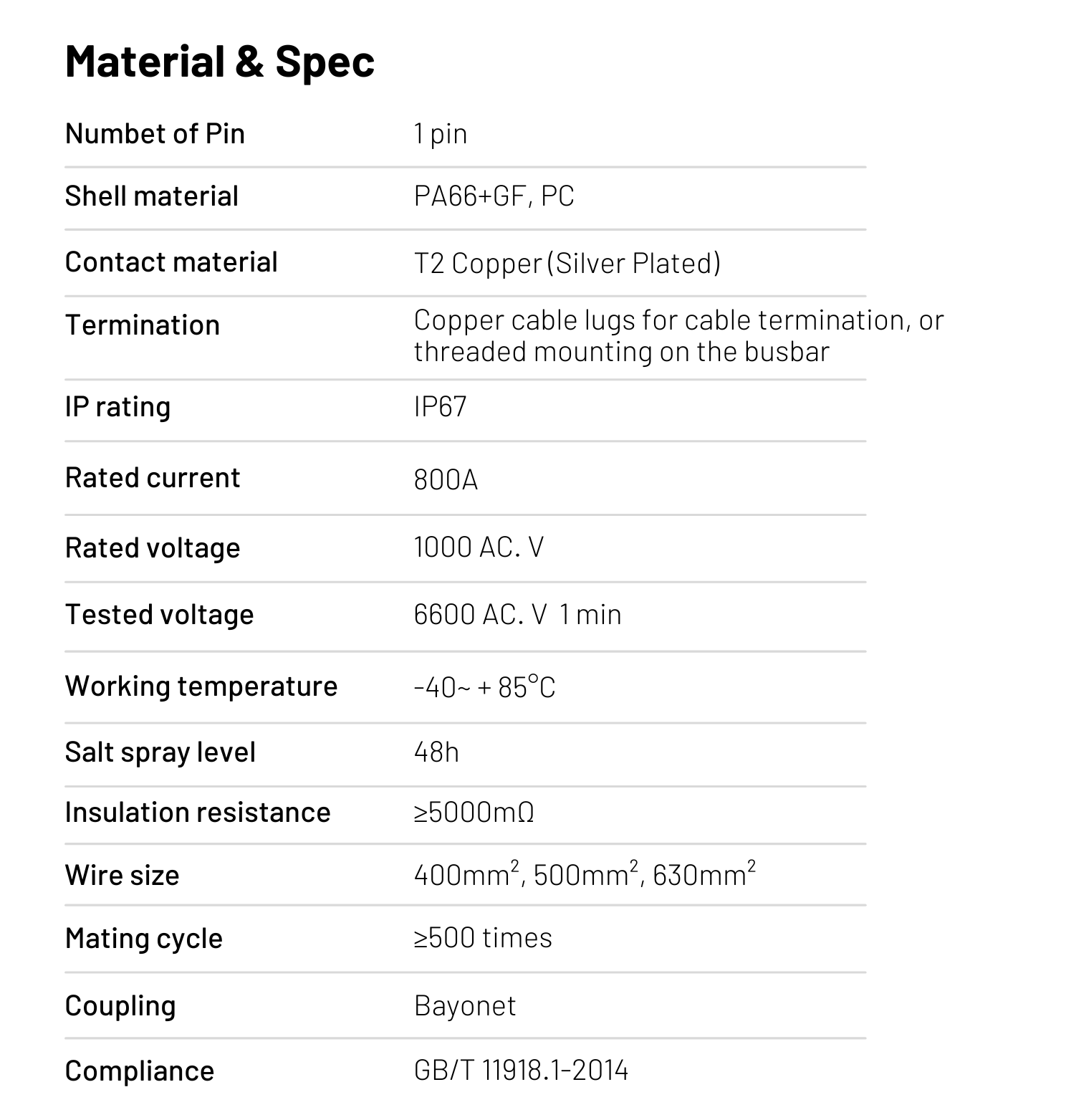

WEIPU WH800A is an IP67 waterproof high-current power connector built for stable single-pole power transmission in harsh outdoor and industrial environments. Rated up to 800A and 1000V AC, it delivers reliable performance for demanding power distribution systems where safety and long-term durability matter.

Featuring bayonet locking and a PA66+GF reinforced housing, WH800A maintains secure mating and stable conductivity under vibration, moisture, and temperature variation—ideal for high-current installations that require a long service life.

Supports up to 800A rated current (high-current single-pole power connection)
IP67 waterproof protection for outdoor and harsh environments
Bayonet coupling for secure, anti-vibration locking
Silver-plated brass contacts for low resistance and long service life
Operating temperature: −40°C to +85°C
UL94-V0 flame-retardant housing
Compliance: GB/T 11918.1 ( technically equivalent to IEC 60309-1）

Applications:

This connector is widely used in high-current industrial power distribution, temporary power systems, EV charging infrastructure, renewable energy and energy storage, ports and shipyards, and other harsh-environment applications where IP67 sealing, anti-corrosion performance, and stable high-current transmission are essential.

Download Catalogue

Mating Diagram

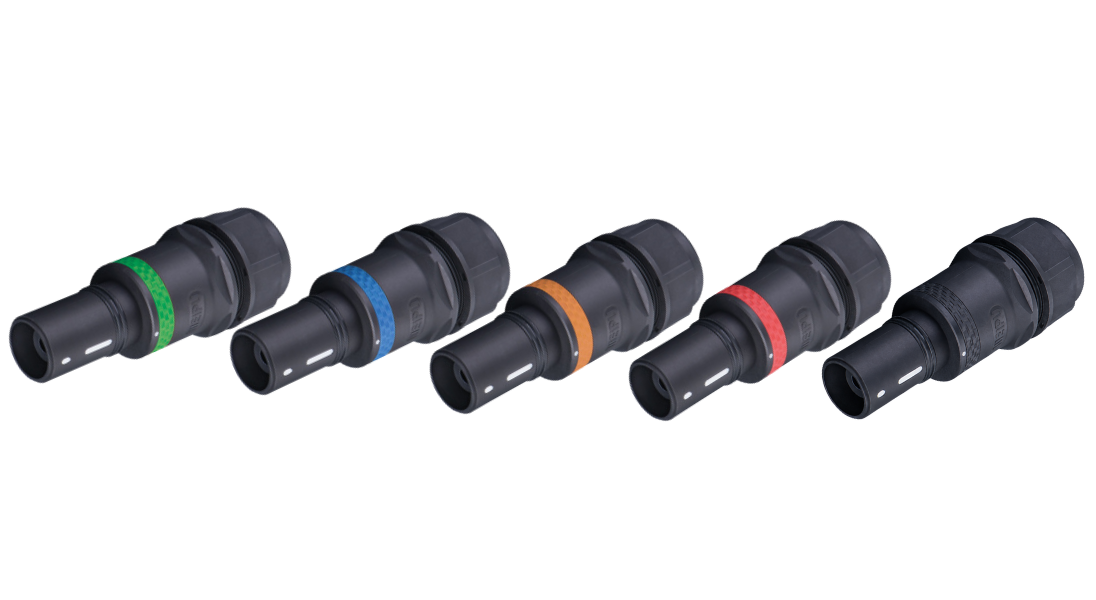

Different types available

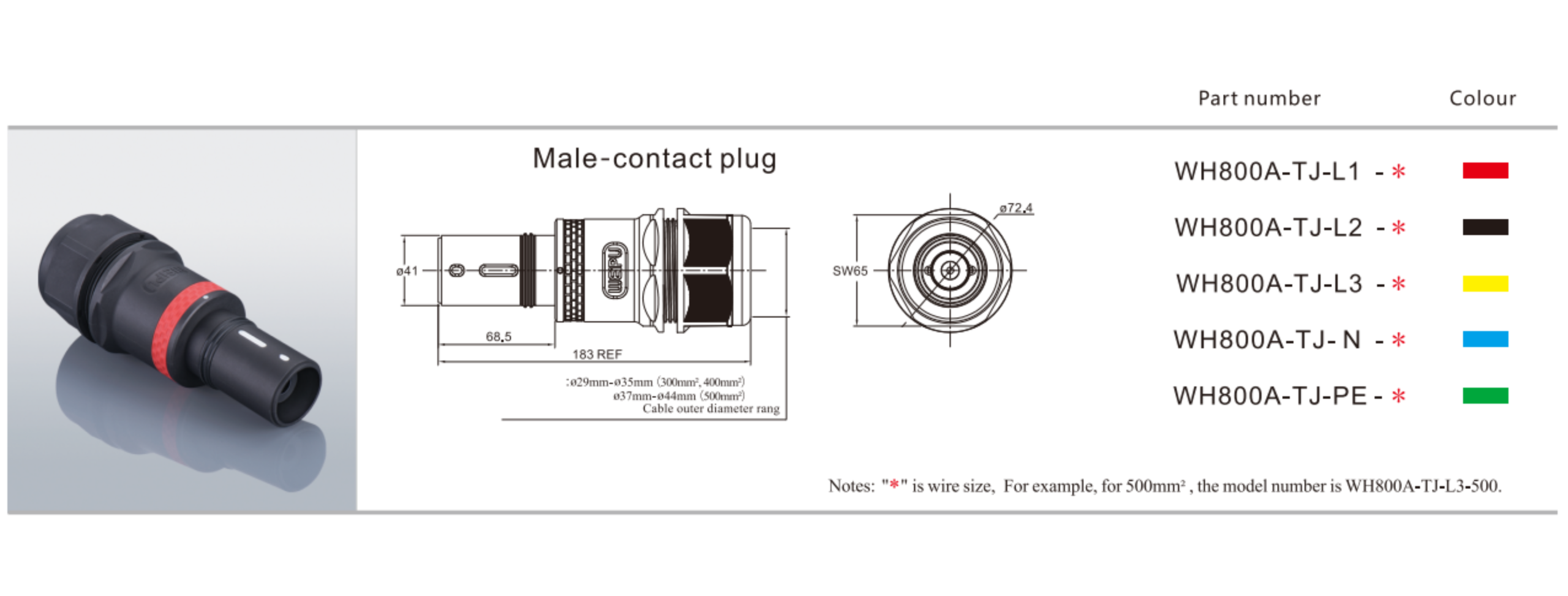

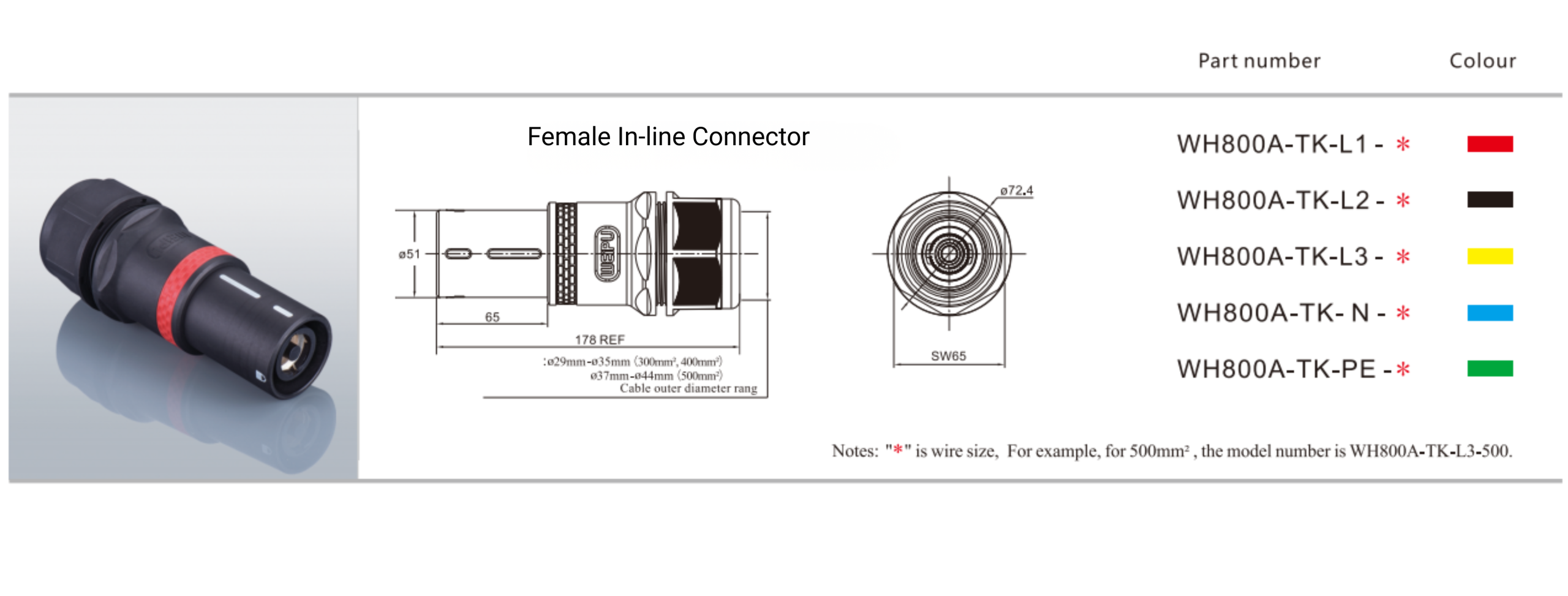

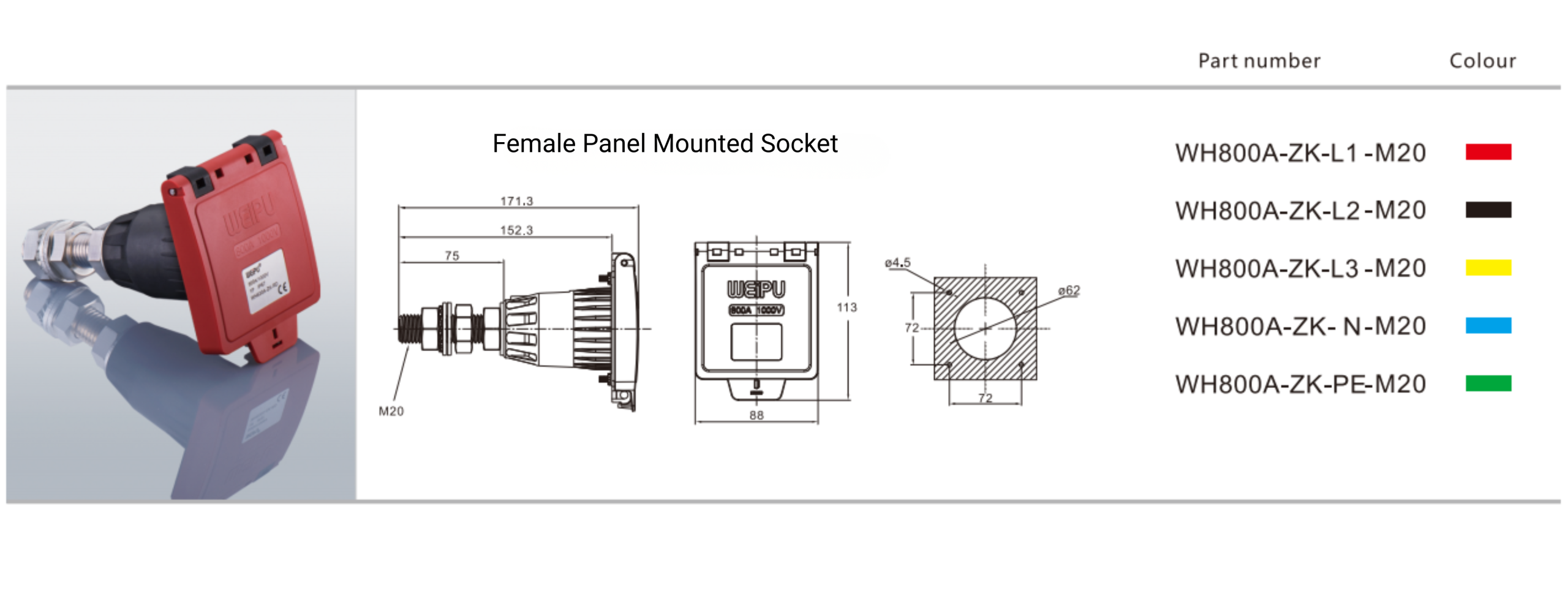

Reliable and robust solutions for high-current power connections in industrial, commercial, and outdoor applications. Types: WH800A-TJ, WH800A-TK, WH800A-ZK
