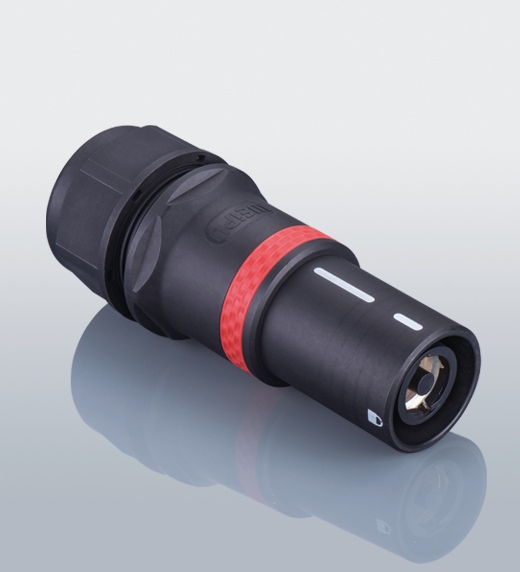

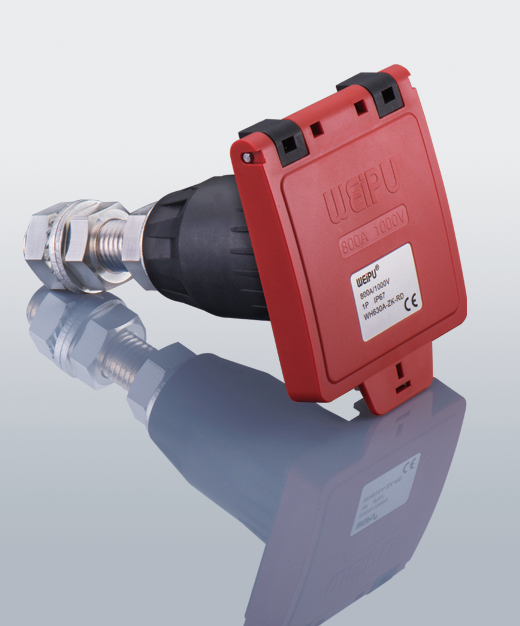

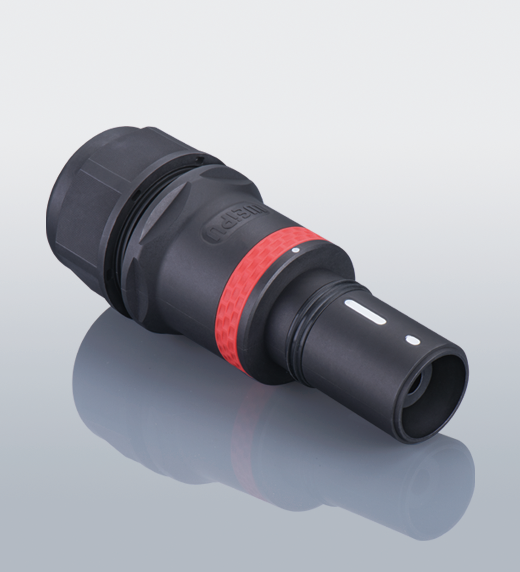

WEIPU IP67 WH630A Single-Pole Power Connector Plastic waterproof single-pole connectors with bayonet locking

Ｗater tight
Bayonet locking
Design standard GB/T 11918.1

The WEIPU WH630A is an IP67 waterproof, single-pole high-current power connector designed for reliable energy transmission in harsh outdoor and industrial environments. Built to handle 630A rated current and 1000V AC, it supports large conductor sizes (240 / 300 / 400 mm²) for demanding power distribution applications where secure mating and long-term durability matter.

With bayonet locking and a PA66+GF reinforced housing, it delivers stable performance under vibration, moisture, and temperature changes—ideal for high-current power distribution systems that require secure mating and a long service life.

Supports up to 630A rated current (high-current single-pole power connection)
IP67 waterproof protection for outdoor and harsh environments
Bayonet coupling for secure, anti-vibration locking
Silver-plated brass contacts for low resistance and long service life
Operating temperature: −40°C to +85°C
UL94-V0 flame-retardant housing
Compliance: GB/T 11918.1 ( technically equivalent to IEC 60309-1）

Applications:

This connector is widely used in outdoor and harsh-environment power distribution—such as EV charging cabinets, solar/BESS systems, shore power and port equipment, and mobile generators—where IP67 sealing, vibration resistance, and safe high-current transmission are essential.

Download Catalogue

Mating Diagram

Different types available

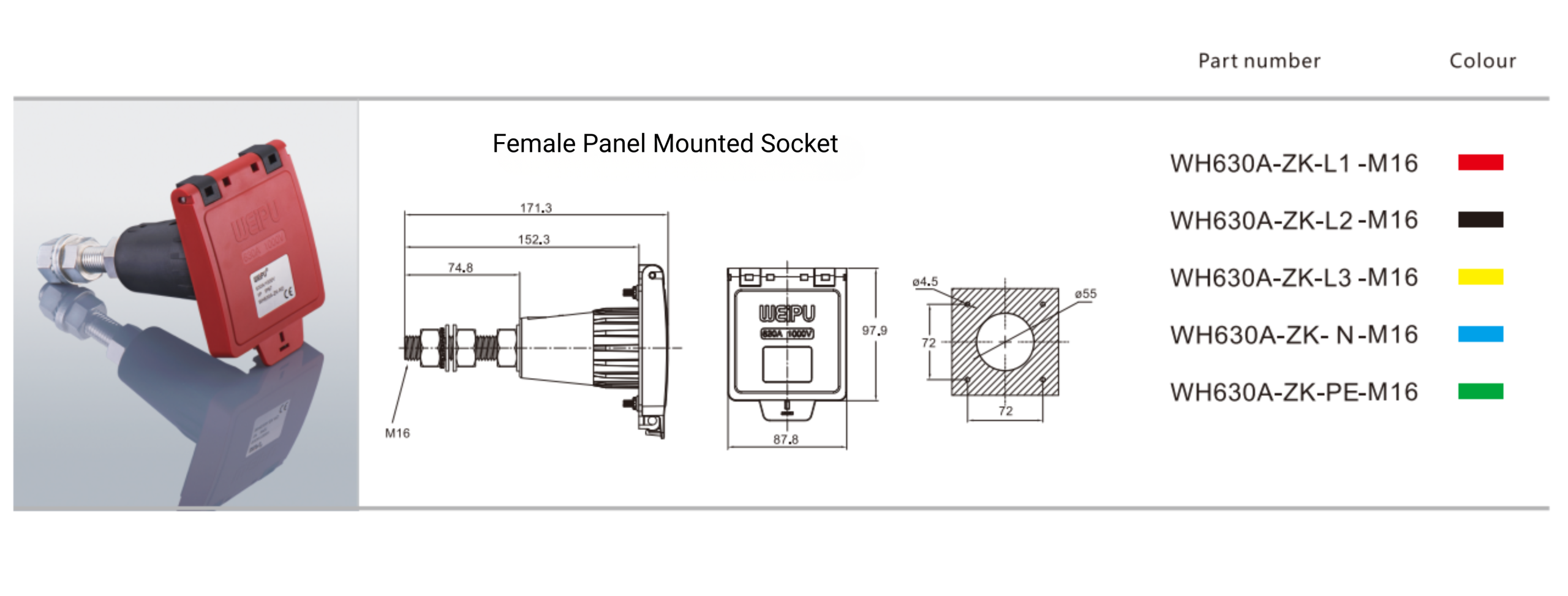

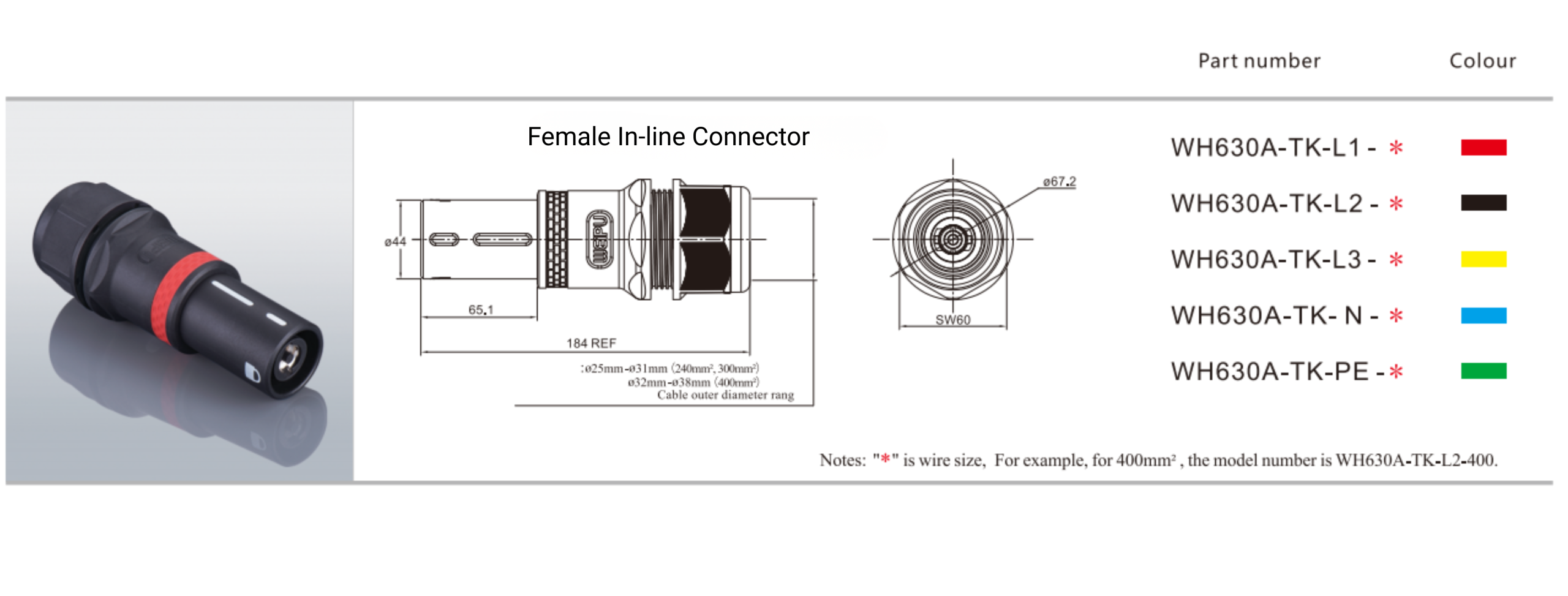

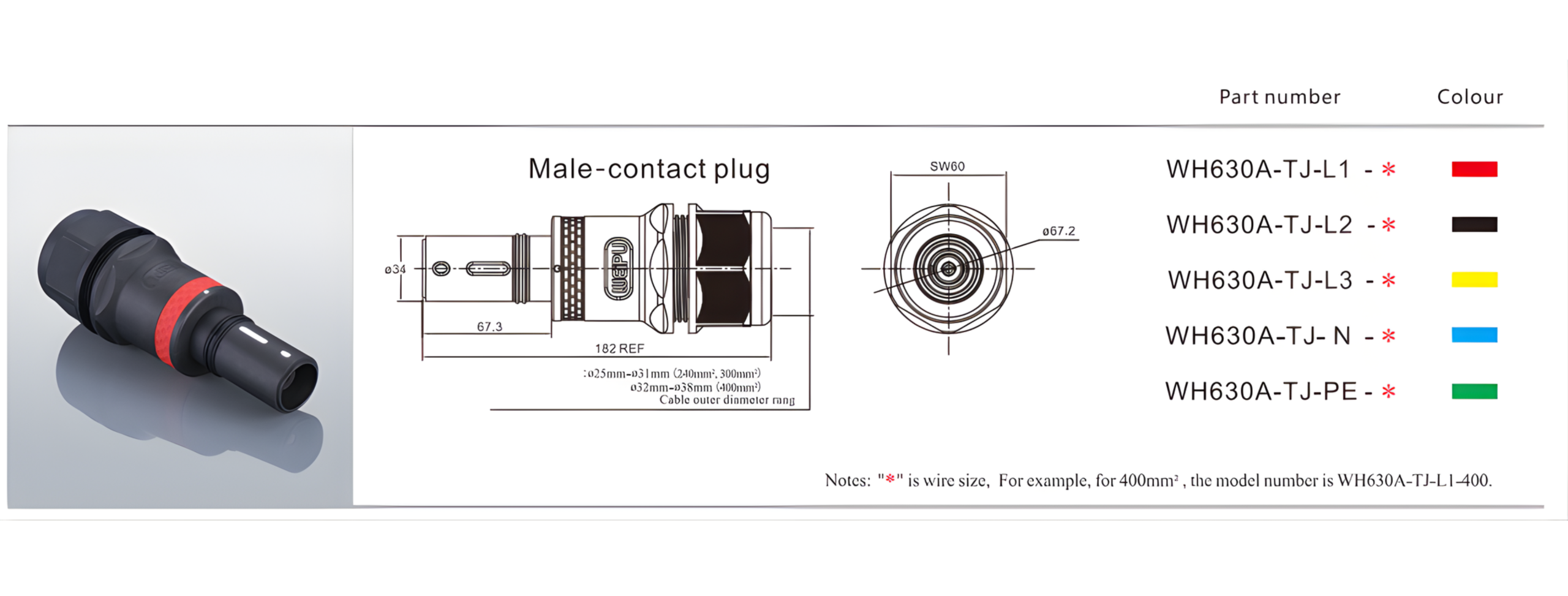

Reliable and robust solutions for high-current power connections in industrial, commercial, and outdoor applications. Types: WH630A-TJ, WH630A-TK, WH630A-ZK
