WEIPU IP67 - 200A HIGH CURRENT CONNECTOR Metal/Plastic waterproof connectors with push-in locking

  • ic_01-1

    Water tight

  • ic_01-4

    Robust housing

  • International standard_European configuration _Various configuration options

    International standard IEC60309

WEIPU 200A high-current connectors are made of durable, high performance materials, which are used widely for different industrial applications and harsh environments. With a special locking system, these connectors are vibration resistant, which ensures secure and stable connections.

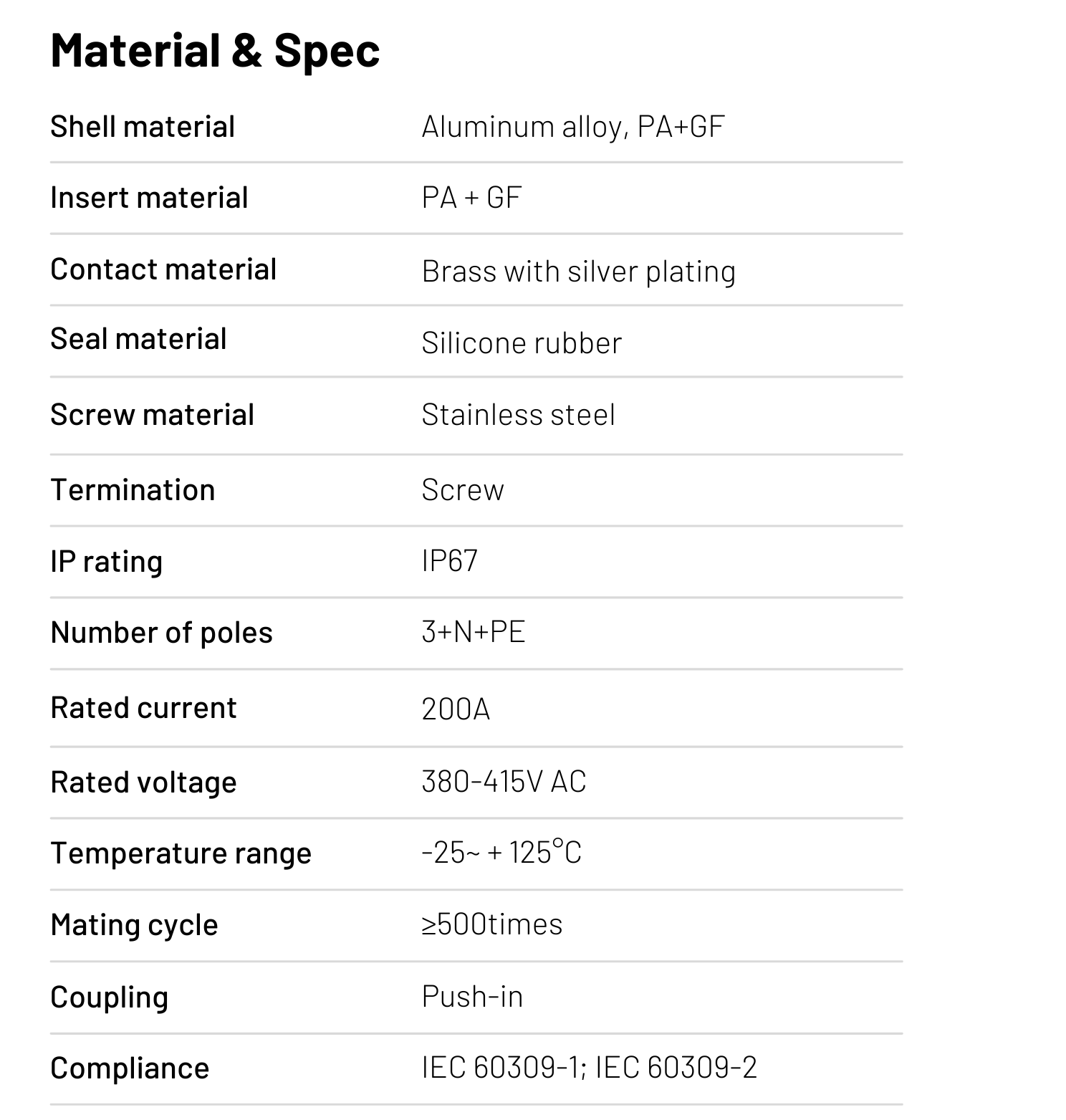

* IP67 watertight protection
* Working current 200A
* 5 Poles
* Screw termination
* Corrosion resistance materials
* Silver Plated Brass contacts
* Temperature ranges from –25°C to +125°C
* Wide variety of connector options: Plug, Socket, In-line connector, and Inlet
* Designed for high temperatures, high current, and high reliability
* International standards



Download Catalogue

1. CEE_Connector_IP67_200A_752156_R1
  • 5. IP67 200A Connector

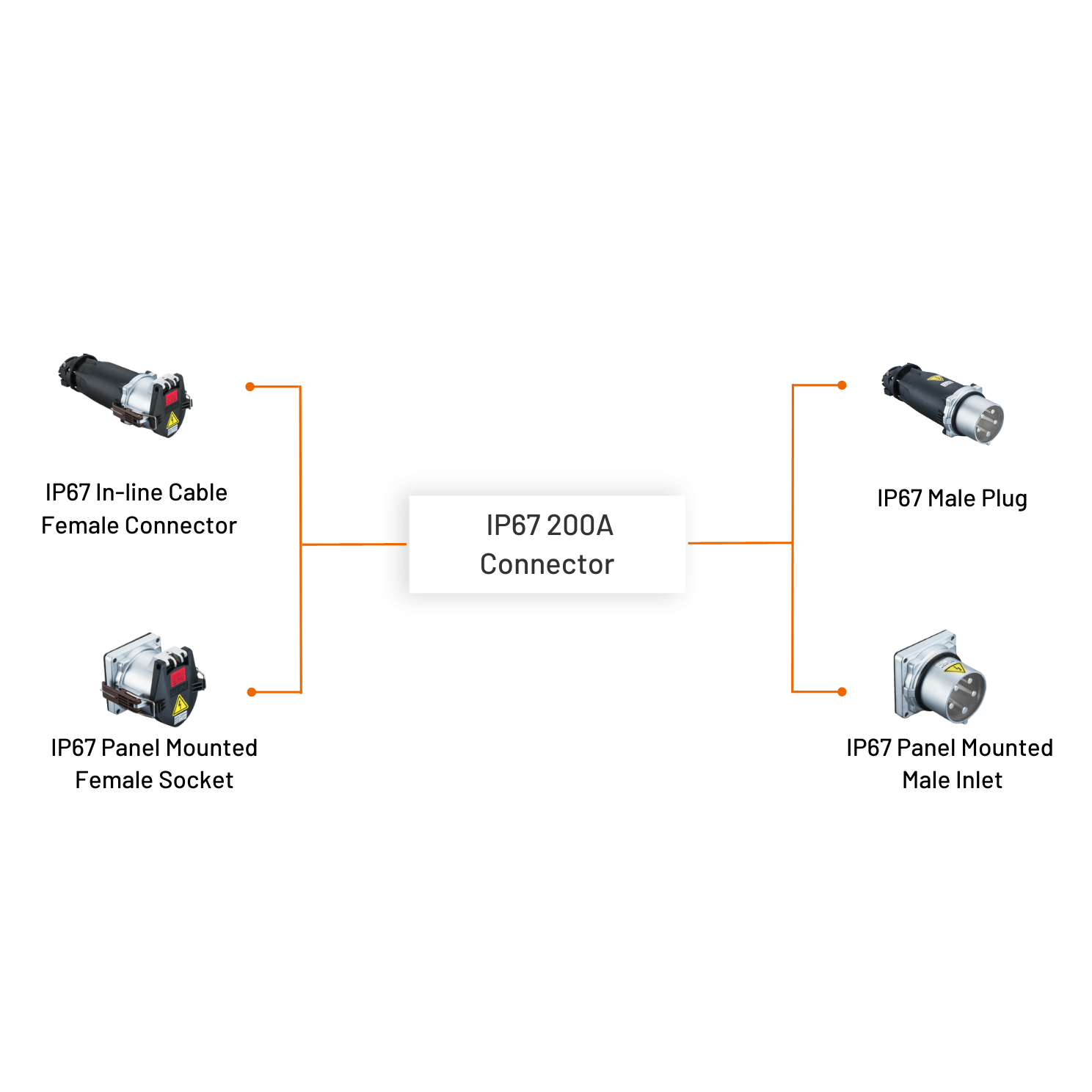

    Mating Diagram

Different types available

Reliable and robust solutions for high-current power connections in industrial, commercial, and outdoor applications

CEE Connector Case-Beijing National Stadium

WEIPU CEE connectors have been applied in the Beijing National Stadium since the 2008 Summer Olympics. The connectors were able to withstand the high demands of the project, including high voltages and currents, and harsh environmental conditions.

READ MORE

Having questions for IP67 200A Connector?

INFO@WEIPUCONNECTOR.COM

+0086 021-56631111

Connect with WEIPU

  • Plug

    • 1. Plug

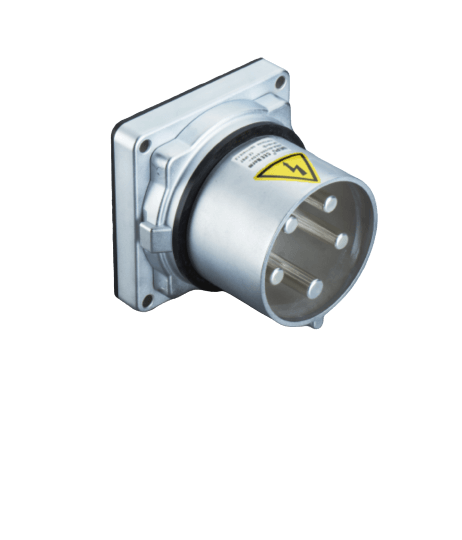

  • Panel Mounted Inlet

    • 2. Panel Mounted Inlet
  • In-line Cable Connector

    • 3. In-line Cable Connector

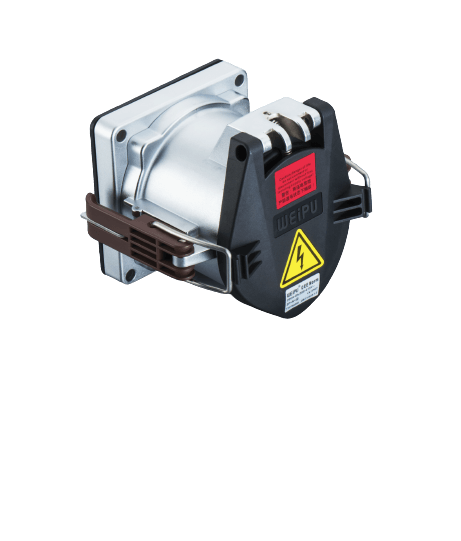

  • Panel Mounted Socket

    • 4. Panel Mounted Socket
