WEIPU IP44 - CEE CONNECTOR Plastic connectors with push-in locking

  • Solid design_Robust materials_ Loosening prevention_High quality material


  • Free combination

    Robust materials

  • International standard_European configuration _Various configuration options

    International standard IEC60309

WEIPU IP44 industrial connectors are high-quality products designed for durable and safe connections, which are used widely in different harsh environments. The CEE connectors generally are keyed and color-coded according to the voltage range and frequency used.


* IP44 Splash-proof protection
* Working current ranges from 16A-63A
* Number of contact: 3 poles, 4 poles and 5 poles
* Screw termination
* Corrosion resistance materials
* Nickel Plated Brass contacts
* Temperature ranges from –25°C to +85°C
* Wide variety of connector options: Plugs, Sockets, In-line connectors, and Inlets
* International standards in accordance with IEC60309


Download Catalogue

img02 (4)

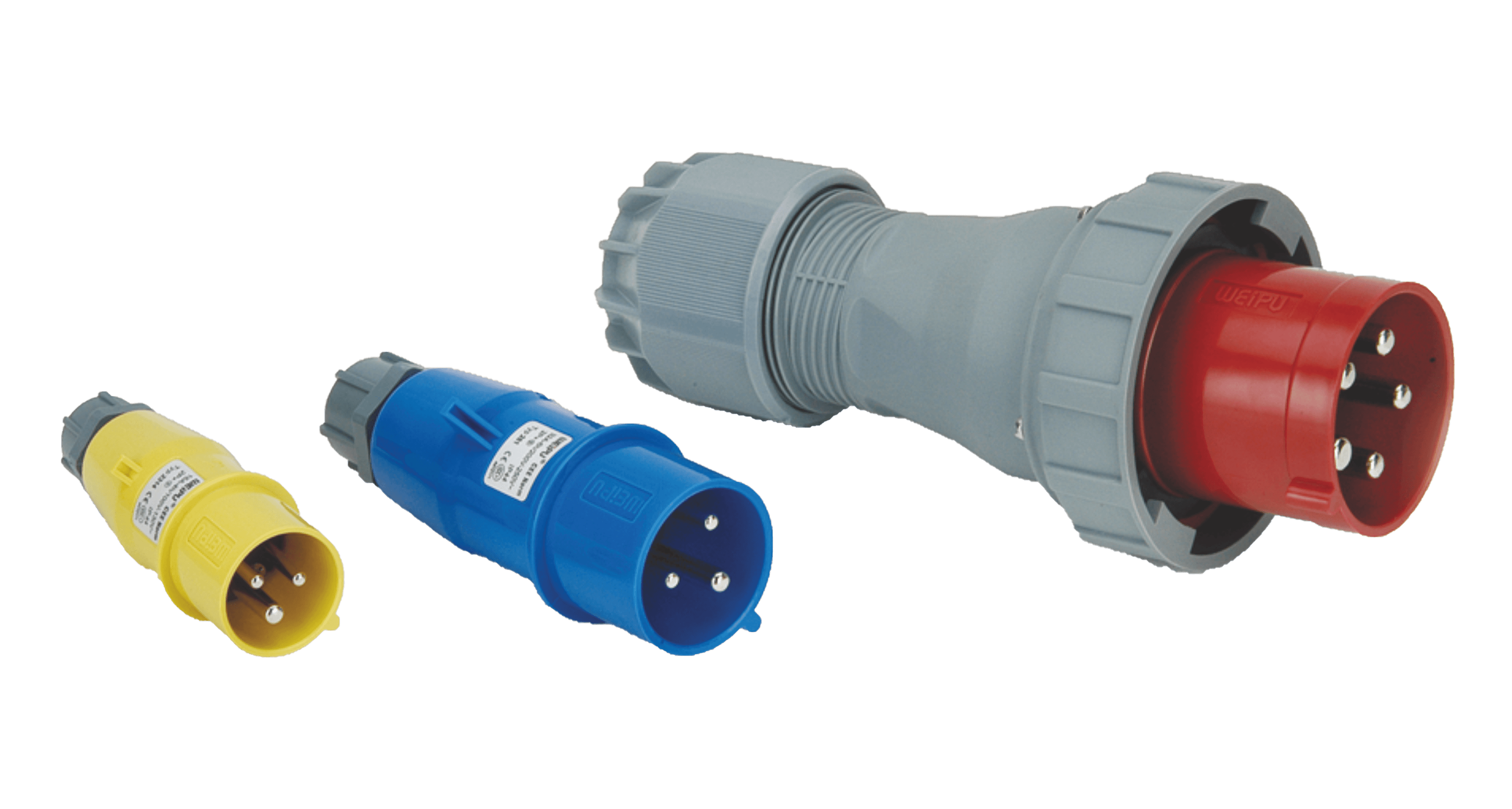

  • 1. IP44 CEE Connector
    Mating Diagram

Different connector types

Reliable and robust solutions for high-current power connections in industrial, commercial, and outdoor applications

CEE Connector Case-Beijing National Stadium

WEIPU CEE connectors have been applied in the Beijing National Stadium since the 2008 Summer Olympics. The connectors were able to withstand the high demands of the project, including high voltages and currents, and harsh environmental conditions.


Having questions for IP44 CEE Connector?


+0086 021-56631111

  • Plug

    • 1. Plug-1
    • 1. Plug-2
  • Panel Mounted Inlet

    • 2. Panel Mounted Inlet-1
    • 2. Panel Mounted Inlet-2
  • Wall Mounted Inlet

    • 3. Wall Mounted Inlet-1
    • 3. Wall Mounted Inlet-2
  • Panel Mounted Socket

    • 4. Panel Mounted Socket-1
    • 4. Panel Mounted Socket-2
    • 4. Panel Mounted Socket-3
    • 4. Panel Mounted Socket-4
  • Angled Panel Mounted Socket

    • 5. Angled Panel Mounted Socket-1

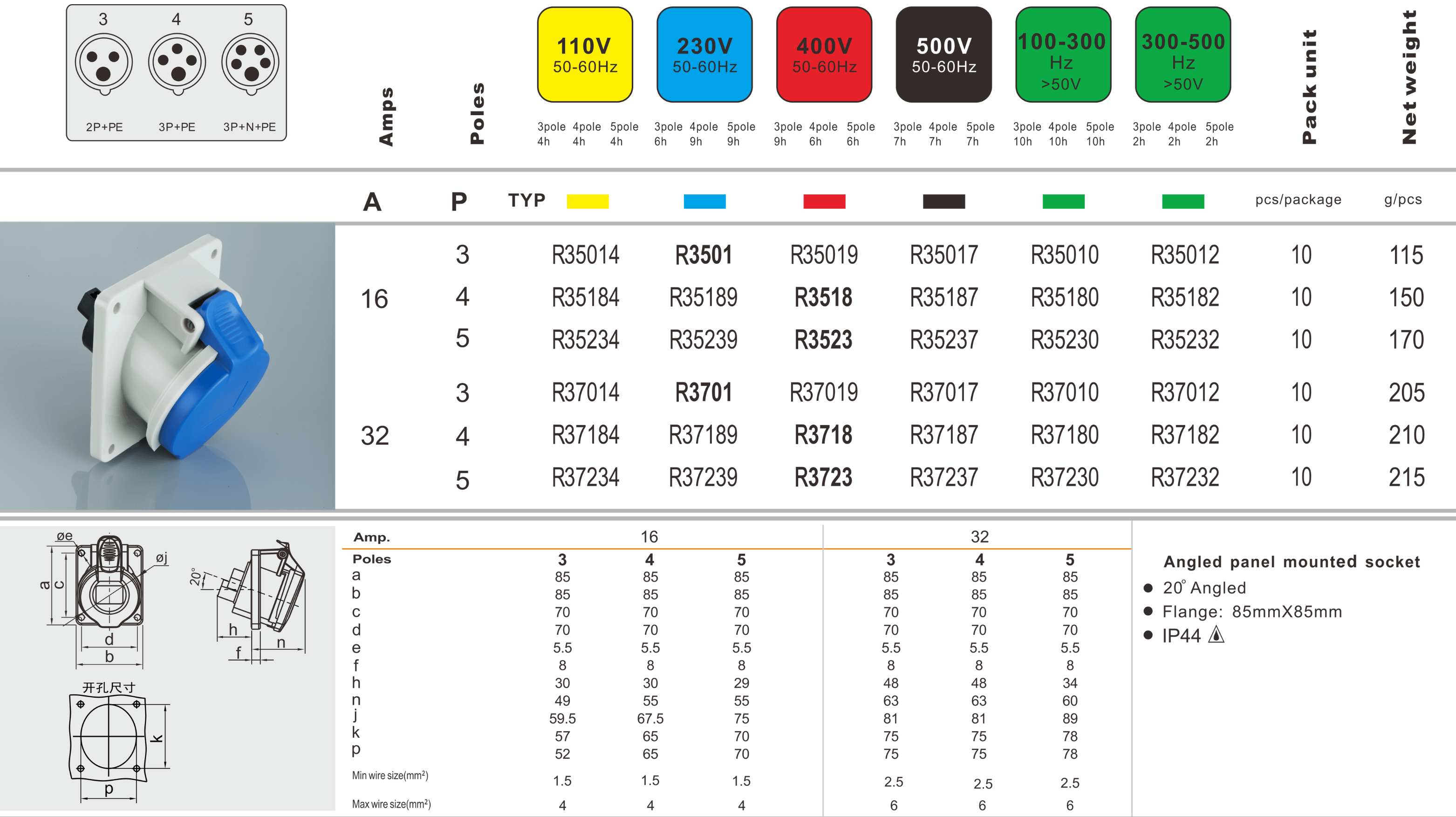

    • 07-4 ip44 socket
    • 5. Angled Panel Mounted Socket-2
    • 5. Angled Panel Mounted Socket-3
  • Surface Mounted Socket

    • 6. Surface Mounted Socket-1
    • 6. Surface Mounted Socket-2
  • In-line Cable Connector

    • 7. In-line Cable Connector-1
    • 7. In-line Cable Connector-2
