WEIPU IP67 - SMALL WY12 METAL SERIES WITH BAYONET LOCKING

  • ic_01-1

    Water tight-IP67

  • ic_01-2

    Dust proof

  • High mating cycles

    Quick connection

  • Anti-vibration

    Anti-vibration

WY12 series is made of zinc alloy with chrome plating, specially designed for applications that require fast connection and anti-vibration.
1) small size
2) 2-9 contacts
3) rated current: 3-13A
4) gold plating pin
5) IP67 after mated
6) bayonet coupling
7) assembly available



Applications: This connector is designed with a fantastic appearance. The stunning brass-made shell made it widely used in many areas, such as medical devices, beauty equipment, testing or measuring equipment, communications field, etc.



Download WY12 Catalogue

44. WY12 Series (Bayonet) (waterproof)
  • 44. WY12
    WY12 Mating Diagram

Having questions for WY12?

INFO@WEIPUCONNECTOR.COM

+0086 021-56631111

Connect with WEIPU

assembly logo Cable assembly service

  • WY12TE 2D

    WY12TE 2D

  • WY12Z 2D

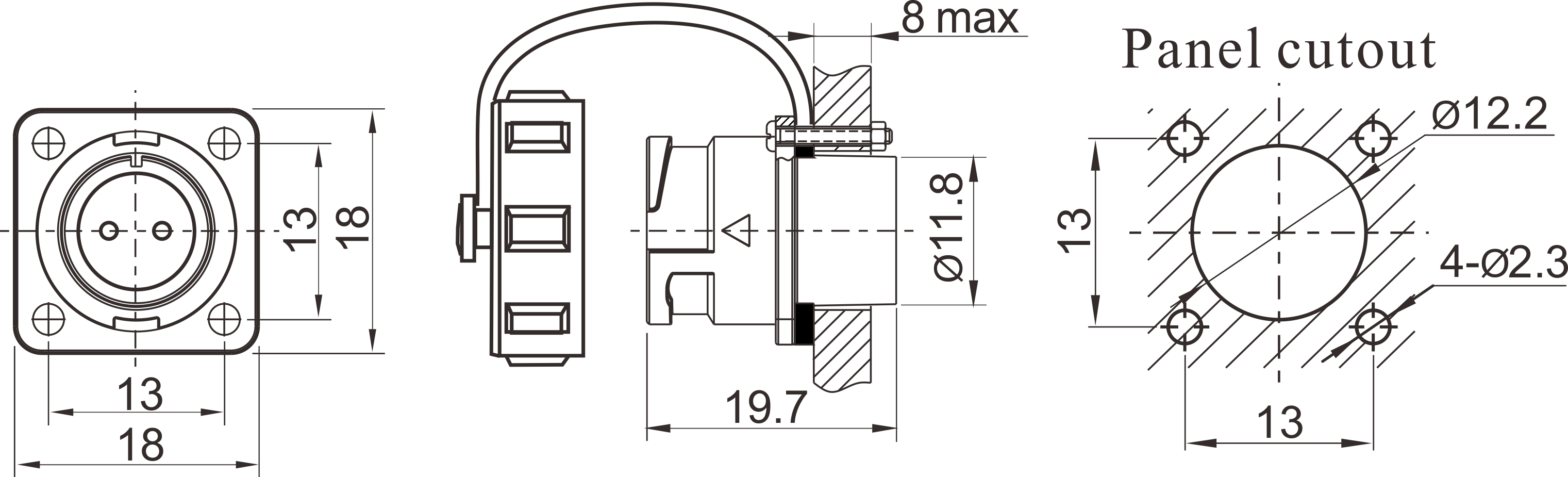

    WY12Z 2D

  • WY12ZE 2D

    WY12ZE 2D

  • WY12ZM 2D

    WY12ZM 2D

  • WY12ZMQ 2D

    WY12ZMQ 2D

  • Solder Spec

    • WY12 Solder 1
