WEIPU INDUSTIAL METAL INDOOR WS SERIES ZINC ALLOY MULTI SIZE THREADED COLLECTION

  • International standard_European configuration _Various configuration options

    Robust design

  • ic_01-4

    Multi-size

  • Fast-lock

    Hybrid connection available

WS series is one of WEIPU’s signature metal connector families. Its zinc-alloy-made shell enables the series to be used in robust conditions. Multi dimensions and configurations are available to choose from. This series is mostly for indoor use only, without any waterproof level.
1) panel cutout dimension 16-55mm
2) 1-61 contacts
3) rated current: 5-150 A
4) gold plating pin
5) solder/screw/crimp terminal options
6) assembly available



Applications: This connector is designed with strong material for a robust environment. The various collection in the family made it widely used in all sorts of machines and equipment. It gets in both power and signal supply and a hybrid connection is available to choose from size to size.



Download WS Catalogue

41. WS Series (Threaded)
  • 41. WS
    WS Mating Diagram

Having questions for WS?

INFO@WEIPUCONNECTOR.COM

+0086 021-56631111

Connect with WEIPU

  • Plastic Receptacle Cover 2D

    Plastic Receptacle Cover 2D

  • Plastic Receptacle Cover-2 2D

    Plastic Receptacle Cover-2 2D

  • WS PVC Cable Protection Sleeve 2D

    WS PVC Cable Protection Sleeve 2D

  • WS TC 2D

    WS TC 2D

  • WS TD 2D

    WS TD 2D

  • WS TH 2D

    WS TH 2D

  • WS TP 2D

    WS TP 2D

  • WS TQ 2D

    WS TQ 2D

  • WS TR 2D

    WS TR 2D

  • WS TS 2D

    WS TS 2D

  • WS TX 2D

    WS TX 2D

  • WS Z 2D

    WS Z 2D

  • WS ZC 2D

    WS ZC 2D

  • WS ZD 2D

    WS ZD 2D

  • WS ZDB 2D

    WS ZDB 2D

  • WS ZG 2D

    WS ZG 2D

  • WS ZH 2D

    WS ZH 2D

  • WS ZHB 2D

    WS ZHB 2D

  • WS ZM 2D

    WS ZM 2D

  • WS ZMQ 2D

    WS ZMQ 2D

  • WS ZP 2D

    WS ZP 2D

  • WS ZPB 2D

    WS ZPB 2D

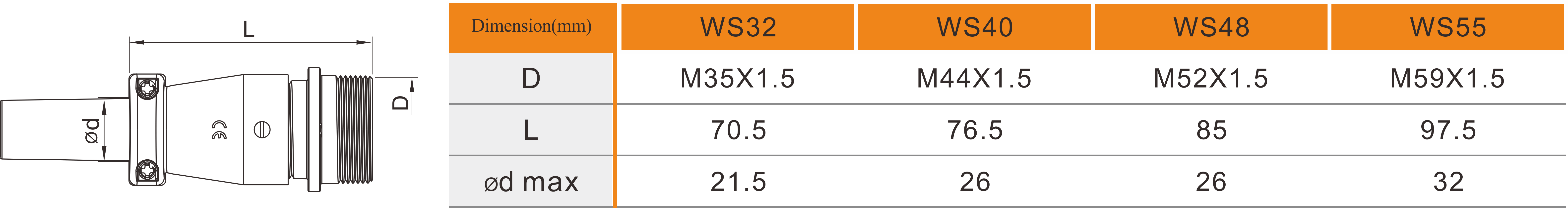

  • WS ZQ 2D

    WS ZQ 2D

  • WS ZQB 2D

    WS ZQB 2D

  • WS ZR 2D

    WS ZR 2D

  • WS ZS 2D

    WS ZS 2D

  • WS ZXB 2D

    WS ZXB 2D

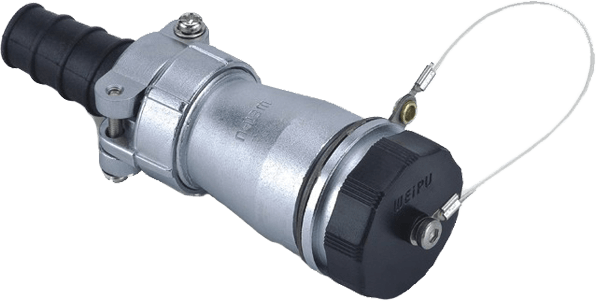

  • WS ZY 2D

    WS ZY 2D

  • WS ZYB 2D

    WS ZYB 2D

  • Solder Spec

    • Solder1
    • Solder2
    • Solder3
    • Solder4
    • Solder5
    • Solder6
    • Solder7
    • Solder8
  • Crimp Spec

    • Crimp1
    • Crimp2
    • Crimp3
    • Crimp4
    • Crimp5
    • Crimp6
    • Crimp7
    • Crimp8
    • 5A crimp contact (1)
    • 10A 16-28
    • 10A 32-55
    • 25A 16-28
    • 25A 32-55
    • Crimp contact (5)
    • 50A 28
    • 50A 32-55
    • Crimp contact (6)
  • Screw Spec

    • P21-01
    • P21-03
    • P21-04
    • P21-05
    • P21-06
    • P21-07
