WEIPU IP68-Push-lock WK28 Series Easy & Reliable Locking Mechanism

Water tight-IP68
Solder/Screw/Crimp termination
Shielding Option
Easy Installation

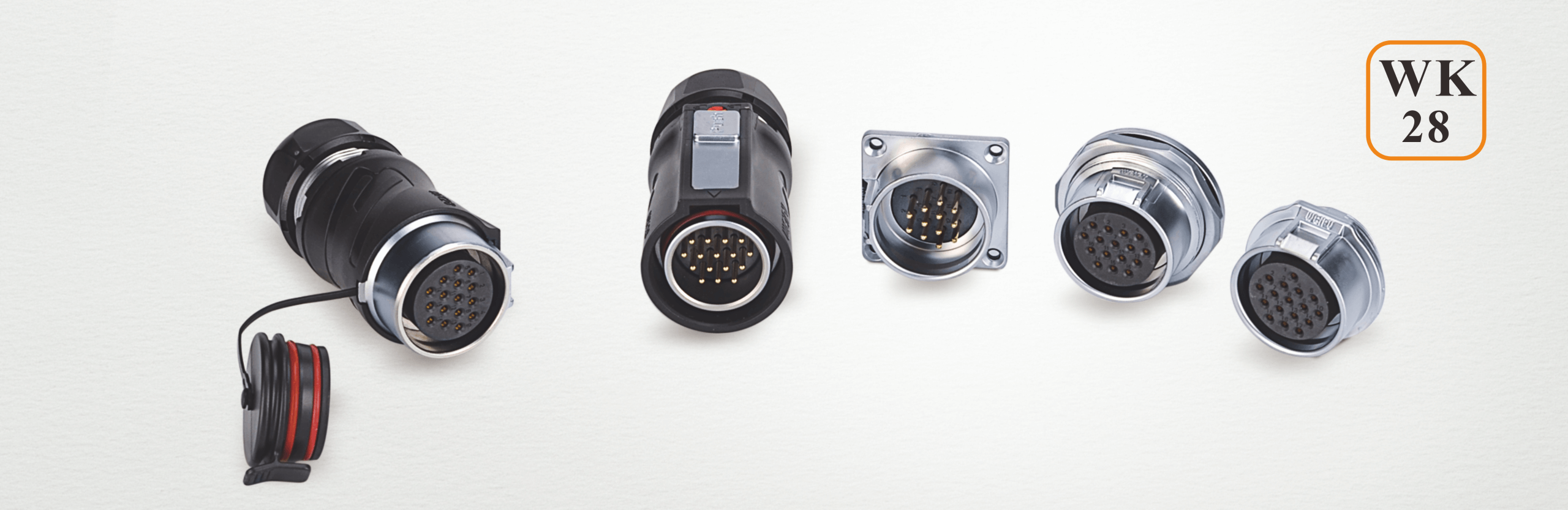

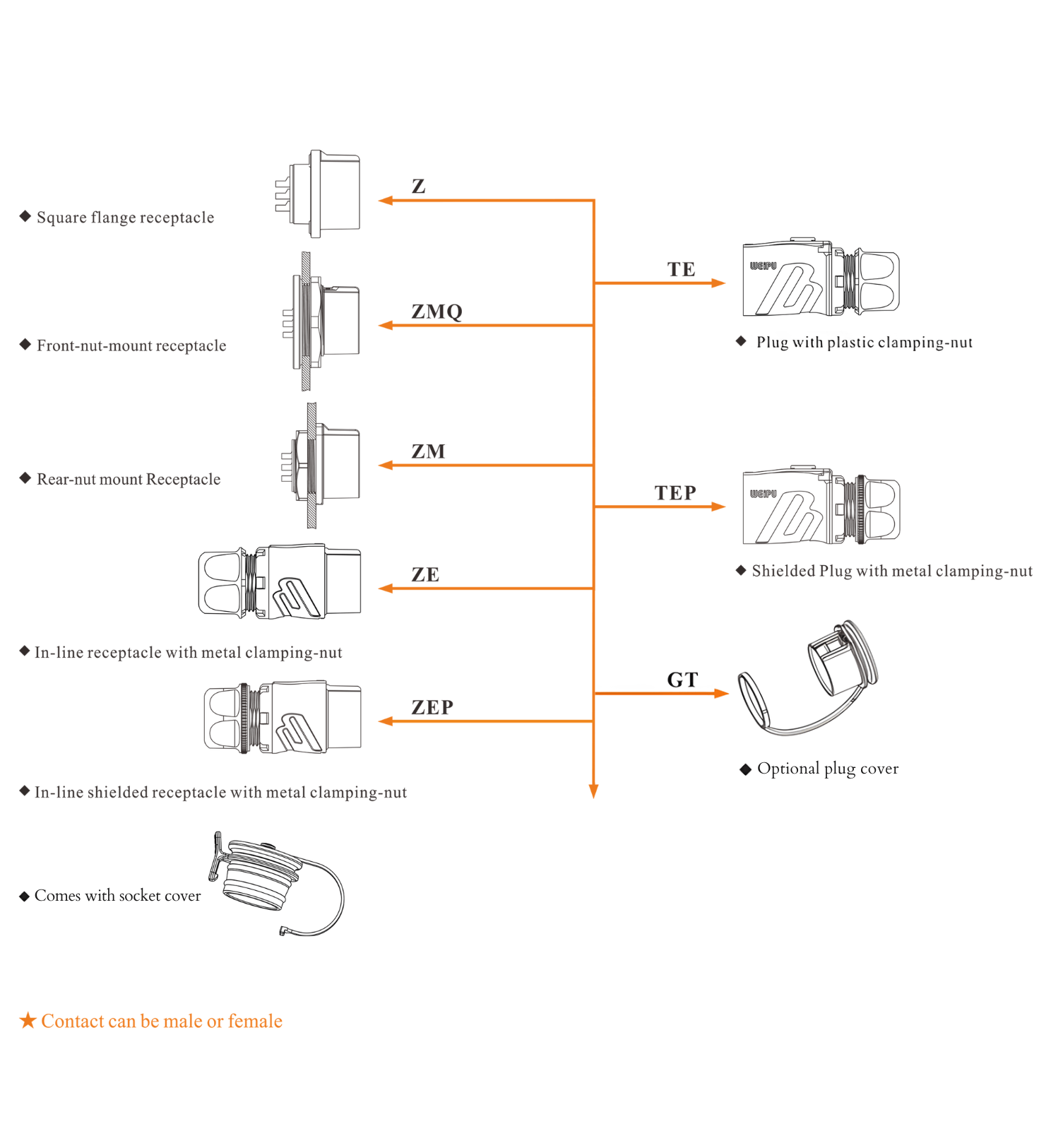

The WK Series offers a robust and versatile push-lock locking mechanism, ideal for industries that demand reliable and secure connections in challenging environments. These connectors are available in four sizes, WK16, WK20, WK24, and WK28. They deliver reliable and easy-to-use locking, perfect for battery systems, solar power installations, lighting, aquatic devices, and more.

WK28 Features:

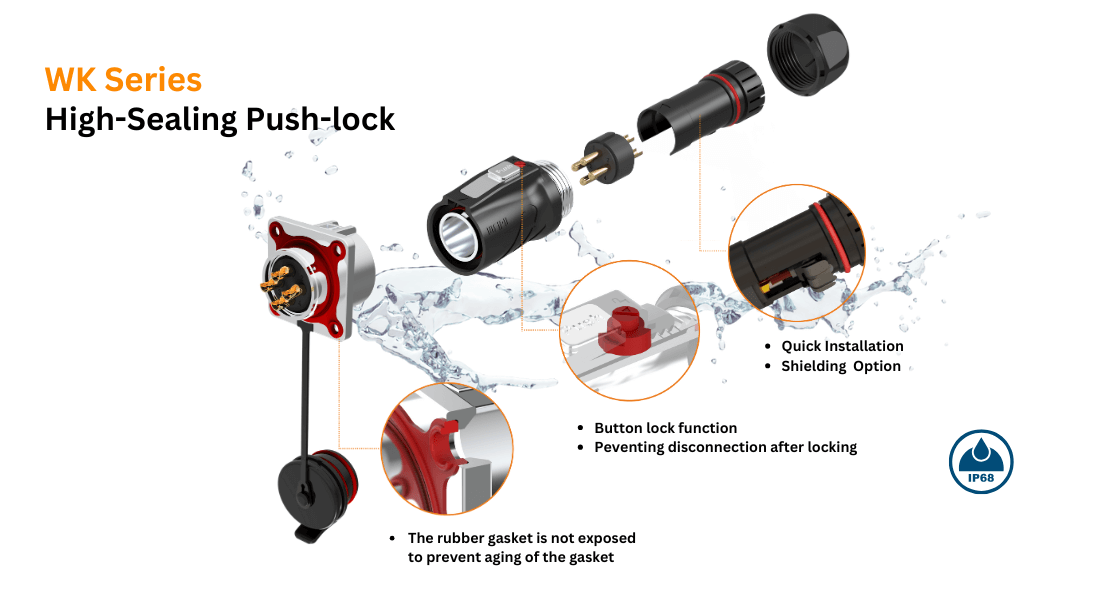

Push-Lock Mechanism: Ensures quick and secure connections, enhancing user convenience.
IP68 Protection: The IP68 rating protects the connectors from water and dust even in harsh environments.

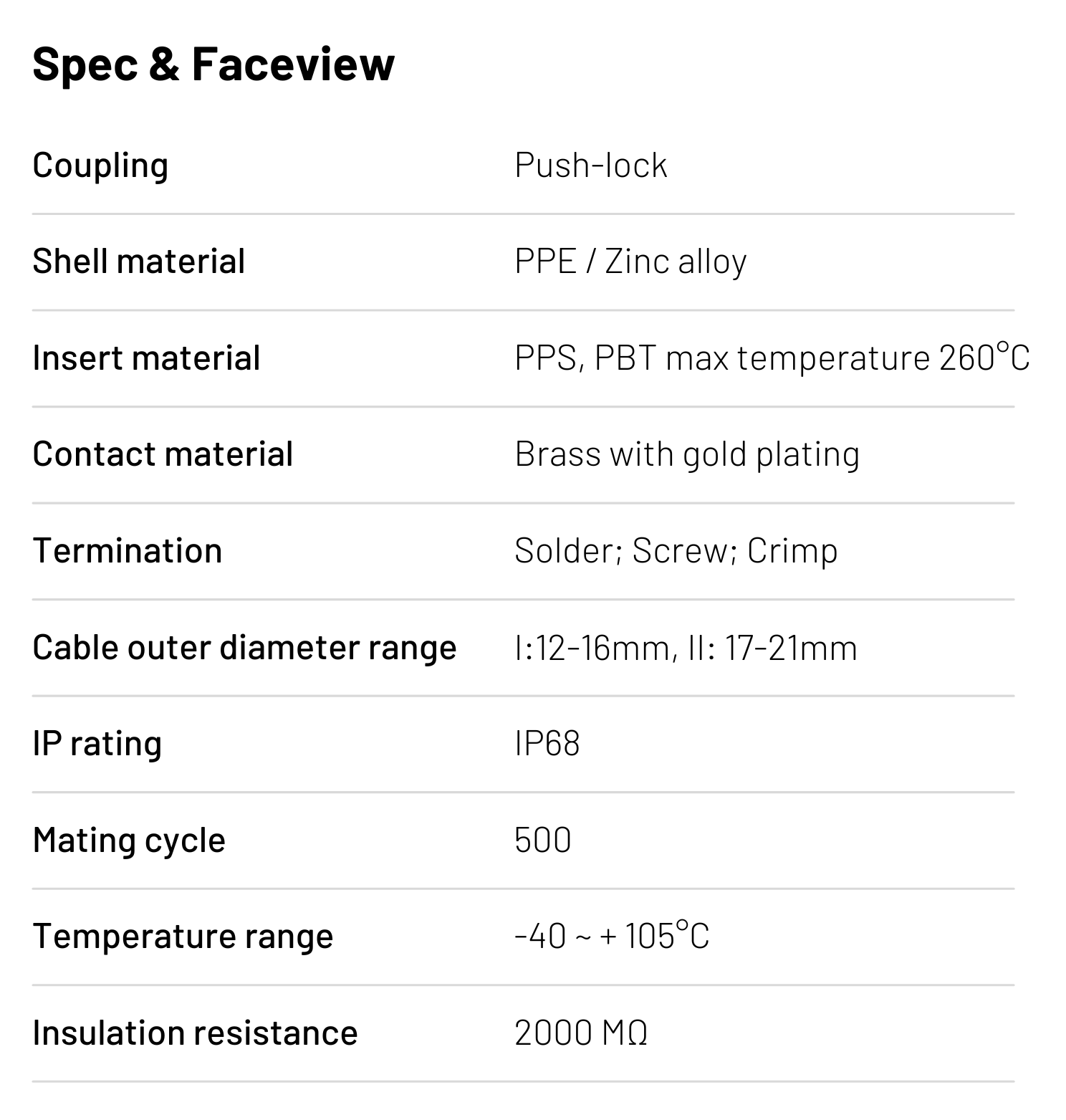

High Durability: Made from PPE & zinc alloy, suitable for rugged applications.

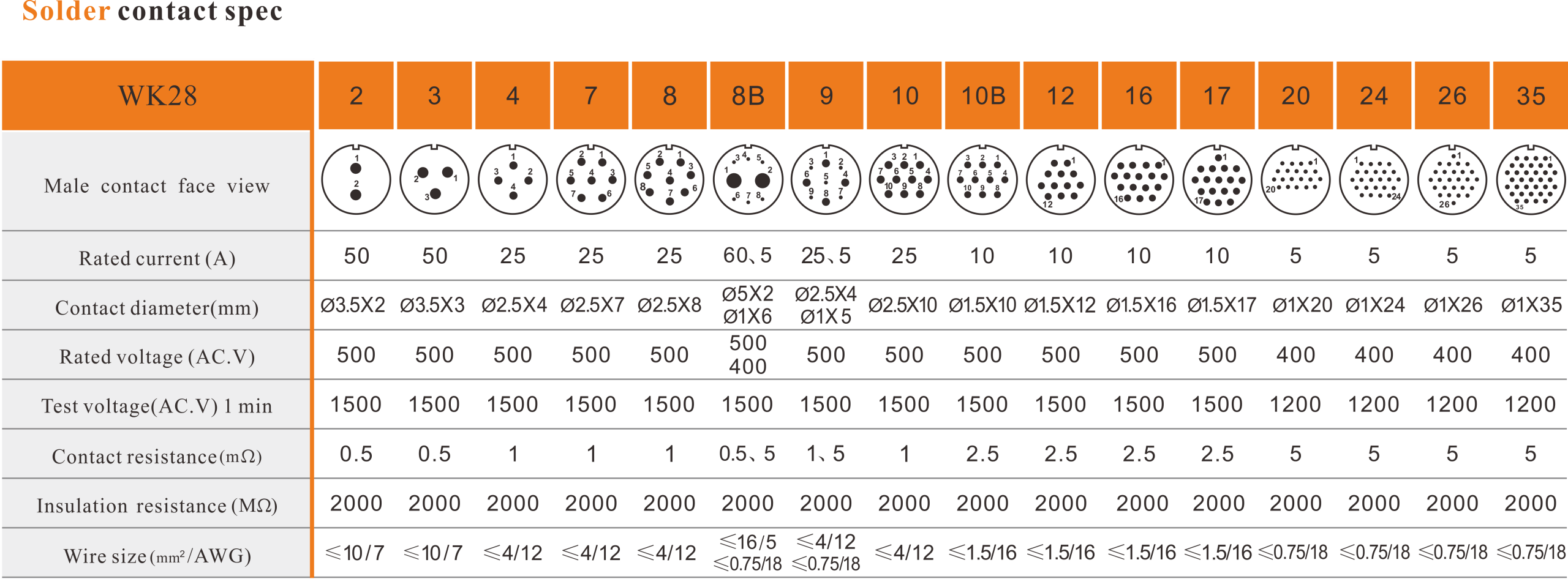

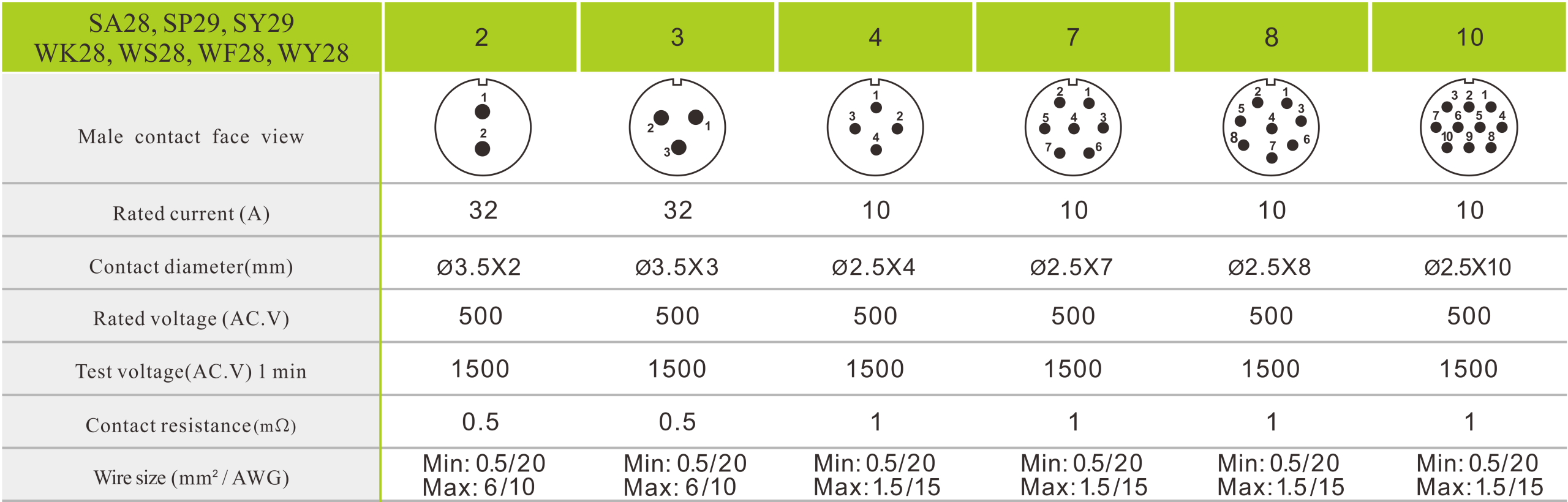

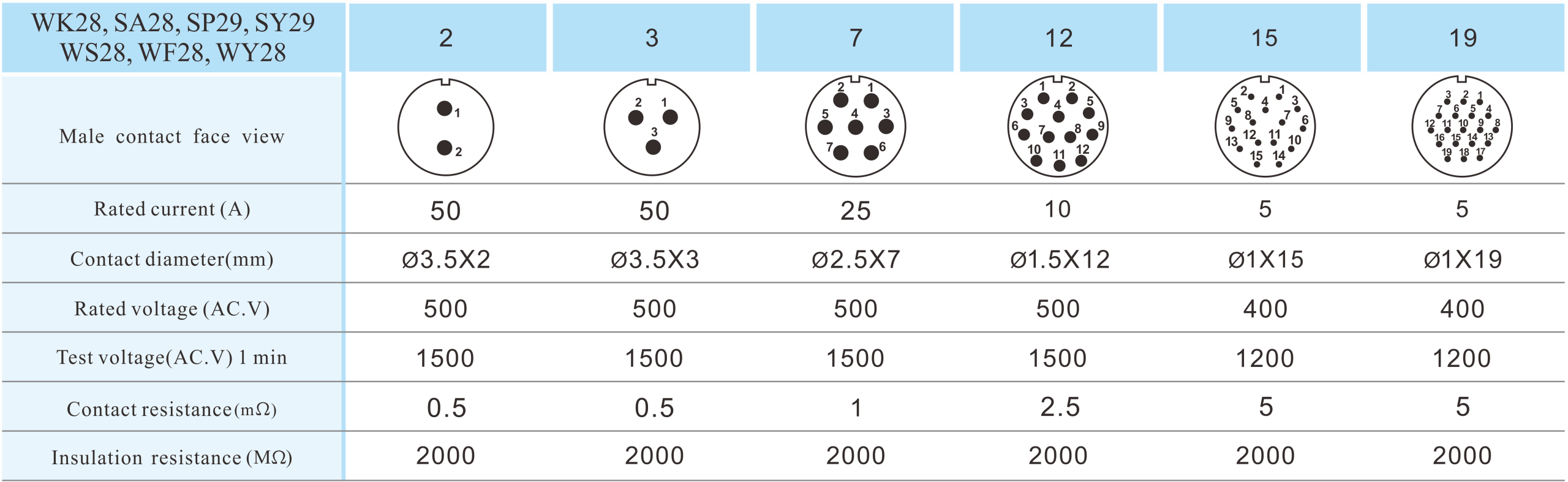

Versatile Pin Options: Available in 2-35 pin configurations to meet diverse electrical needs.
Wide Temperature Range: Operates reliably from -40°C to +105°C, suited for harsh environments.
Long Lifespan: 500 mating cycles ensure durability and reduced maintenance.
