WEIPU SY25 Cable Assemblies Waterproof Large Size Connectors Overmolding & Cable Assembly

IP67 Highly Sealed
Custom Cable Termination
Seamless Connector Integration

WEIPU SY25 series now offers professional cable assembly services, featuring overmolding solutions that ensure higher sealing performance and better durability for demanding outdoor or industrial environments. Designed for large-size waterproof applications, SY25 cable assemblies are ready-to-install and help reduce on-site labor and installation errors.

Key Benefits:

Durable overmolding for rugged use
IP67 protection when mated
Secure bayonet locking mechanism
Available contact count: 2–19
Designed for Power + Signal Integration
Perfect Compatibility: Connector and cable designed, tested, and assembled by engineers
Flexible Customization: Cable length, wire gauge, jacket type, overmold design, and color options
Seamless Overmolding Available: Improve anti-bending, waterproofing, and visual design

Ideal for use in power and signal transmission under harsh outdoor or industrial conditions. They are commonly used in: test & measurement equipment, outdoor lighting systems, industrial machinery, communication devices, and motor & power distribution.

Download Catalogue

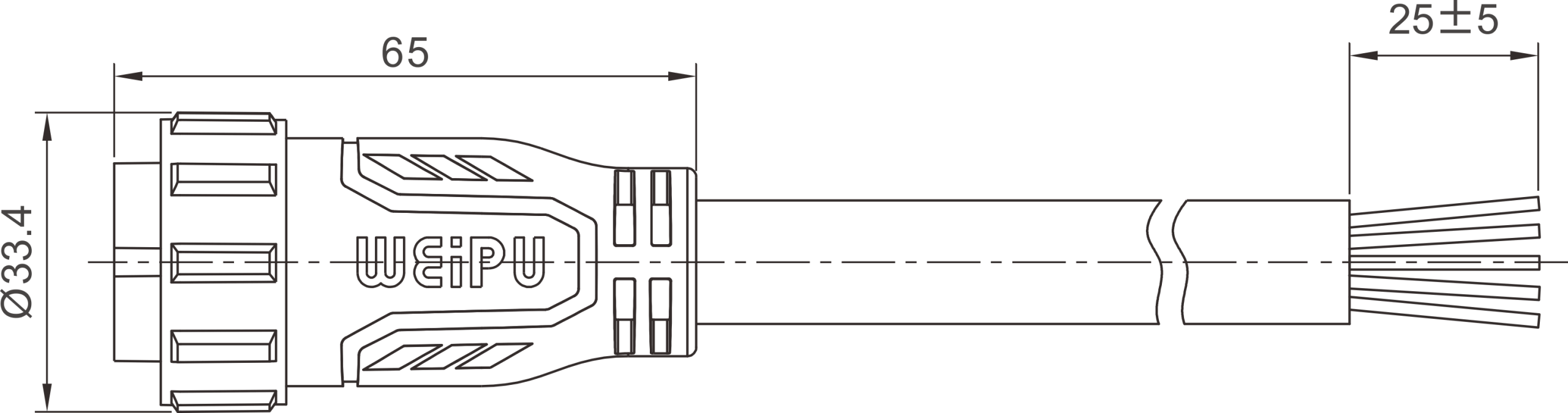

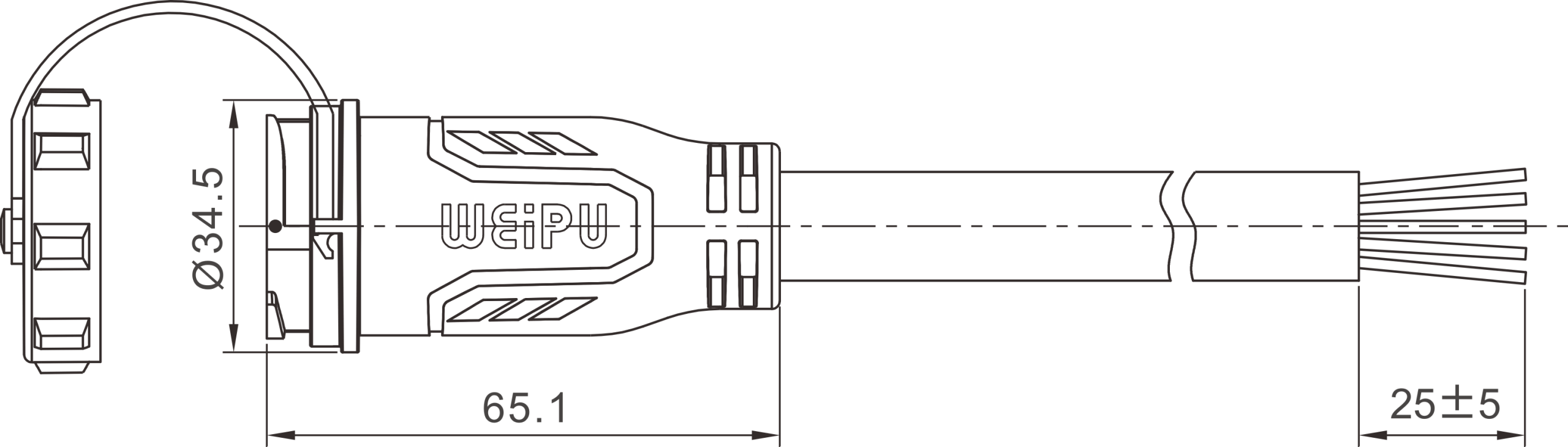

Mating Diagram

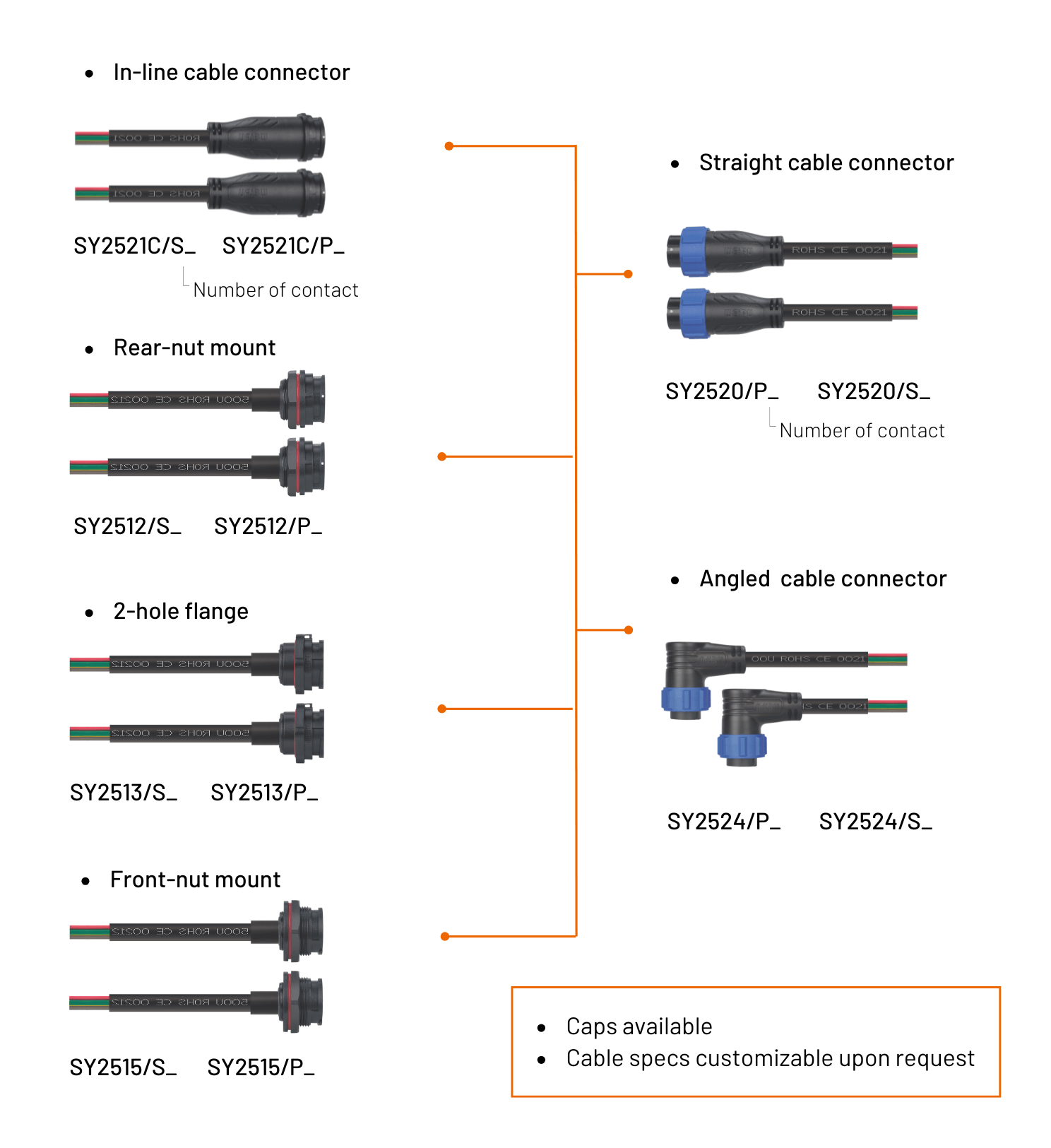

Different connector types

Available in both male and female.
Have options for plug, inline cable connector, panel socket

Success Story – SY Series Connectors in Medical Equipment

Discover how LOKTAL successfully integrated WEIPU's SY Series connectors into their medical equipment. Engineered to meet the high standards of the medical industry, these connectors have enhanced the reliability and safety of medical treatments by ensuring seamless, secure connections.
