WEIPU SY17 Cable Assemblies Waterproof Medium-Size Connectors Overmolding & Cable Assembly

IP67 Highly Sealed
Custom Cable Termination
Seamless Connector Integration

WEIPU SY17 Cable Assembly is based on the SY17 series waterproof connector, featuring overmolded and assembled solutions designed for secure, reliable use in challenging environments. It offers a robust, medium-sized waterproof solution with reliable performance in demanding environments, integrated with our customized cable overmolding and termination services for faster deployment and enhanced protection.

Key Benefits:

Medium size for versatile applications
IP67 protection when mated
Secure bayonet locking mechanism
Available contact count: 2-10
Designed for Power + Signal Integration
Perfect Compatibility: Connector and cable designed, tested, and assembled by engineers
Flexible Customization: Cable length, wire gauge, jacket type, overmold design, and color options
Seamless Overmolding Available: Improve anti-bending, waterproofing, and visual design

This connector with cable assembly is ideal for environments that demand high durability and sealing. It is widely applied in outdoor measurement and control systems, communications, lighting, industrial machinery, and motors. The overmolded design enhances resistance to water ingress, shock, and vibration.

Download Catalogue

Mating Diagram

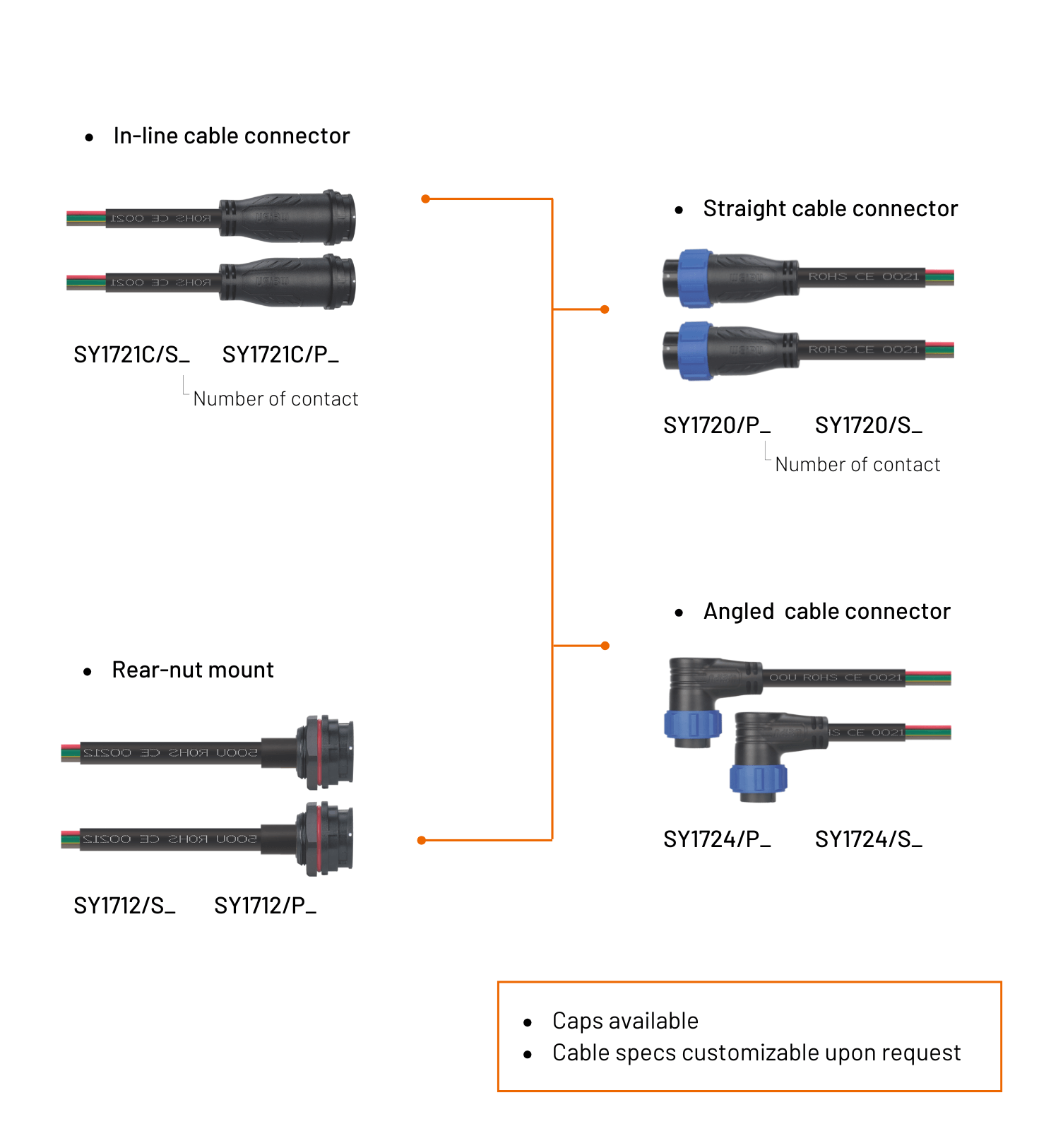

Different connector types

Available in both male and female.
Have options for plug, inline cable connector, panel socket

Success Story – SY Series Connectors in Medical Equipment

Discover how LOKTAL successfully integrated WEIPU's SY Series connectors into their medical equipment. Engineered to meet the high standards of the medical industry, these connectors have enhanced the reliability and safety of medical treatments by ensuring seamless, secure connections.
