WEIPU SY13 Cable Assemblies Waterproof Small-Size Connectors Overmolding & Cable Assembly

IP67 Highly Sealed
Custom Cable Termination
Seamless Connector Integration

WEIPU’s SY13 series now comes with full cable assembly and overmolding service — making it easier than ever to integrate small-size IP67 connectors into your system. Designed for tight space applications and high water resistance, the SY13 is ideal for industries requiring both space-saving design and durability, including outdoor equipment, instrumentation, lighting, and communication systems.

Key Benefits:

Small size for tight-space applications
IP67 protection when mated
Secure bayonet locking mechanism

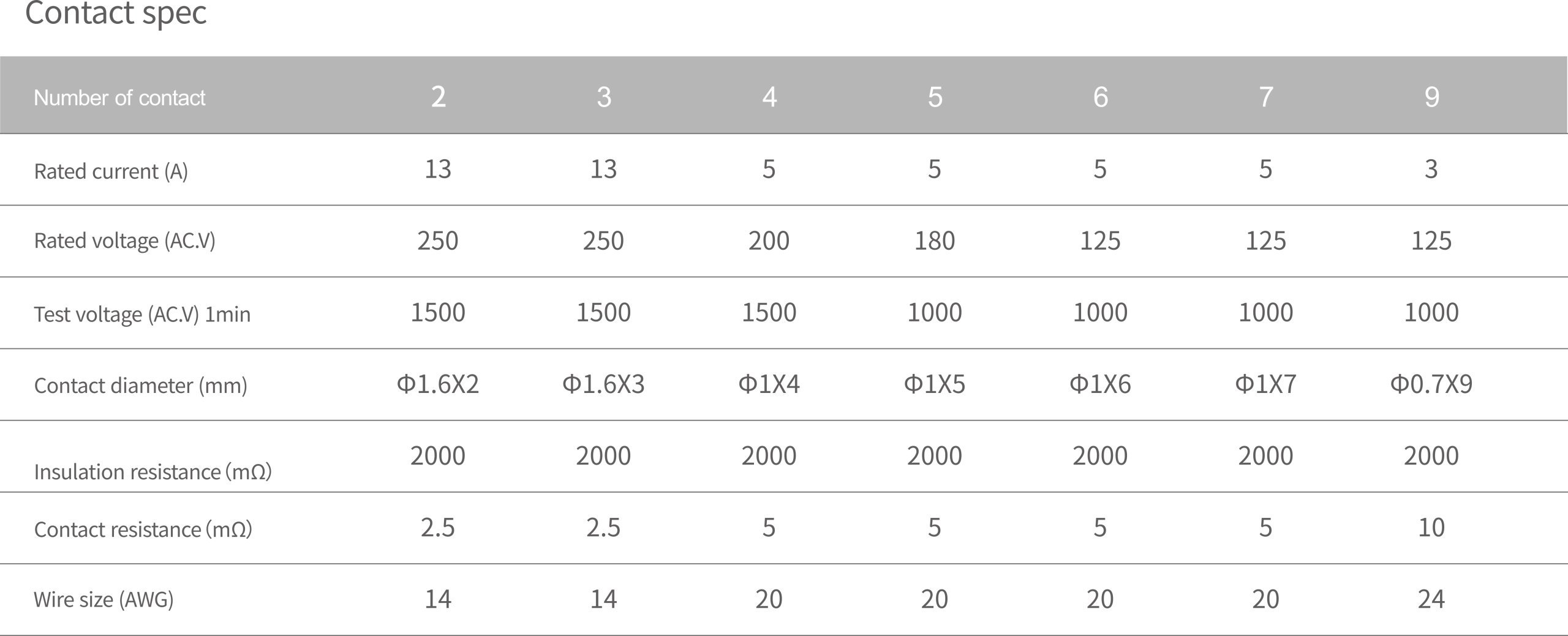

Available contact count: 2-9
Designed for Power + Signal Integration
Perfect Compatibility: Connector and cable designed, tested, and assembled by engineers
Flexible Customization: Cable length, wire gauge, jacket type, overmold design, and color options
Seamless Overmolding Available: Improve anti-bending, waterproofing, and visual design

This connector with cable assembly is ideal for environments that demand high durability and sealing. It is widely applied in outdoor measurement and control systems, communications, lighting, industrial machinery, and motors. The overmolded design enhances resistance to water ingress, shock, and vibration.

Download Catalogue

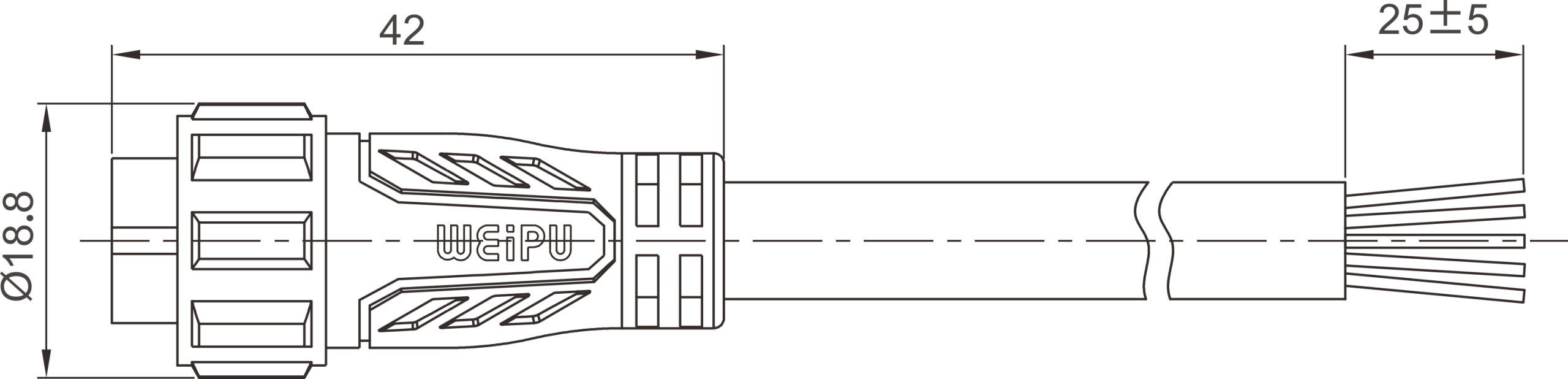

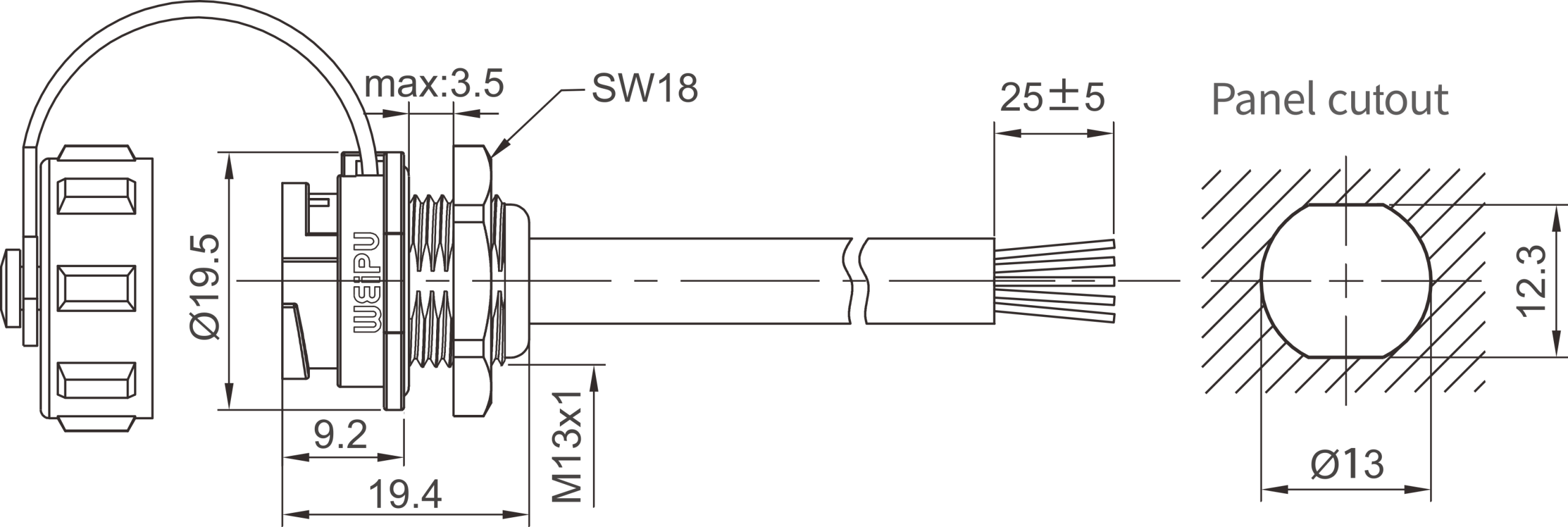

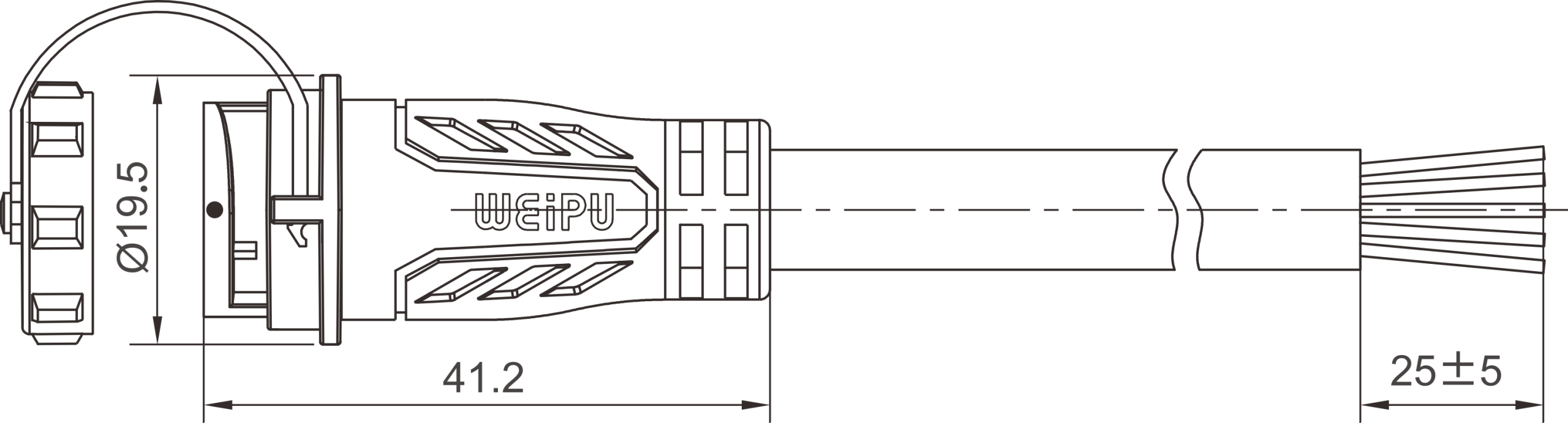

Mating Diagram

Different connector types

Available in both male and female.
Have options for plug, inline cable connector, panel socket

Success Story – SY Series Connectors in Medical Equipment

Discover how LOKTAL successfully integrated WEIPU's SY Series connectors into their medical equipment. Engineered to meet the high standards of the medical industry, these connectors have enhanced the reliability and safety of medical treatments by ensuring seamless, secure connections.
