WEIPU SY11 Cable Assemblies Waterproof Small-Size Connectors Overmolding & Cable Assembly

IP67 Highly Sealed
Custom Cable Termination
Seamless Connector Integration

The WEIPU SY11 Series is a compact IP67-rated waterproof connector designed for harsh environments and space-limited installations. Now, with custom cable assembly and overmolding service, we offer a more efficient and durable solution — perfect for manufacturers seeking high protection, flexible routing, and simplified installation. Whether you need short-run prototypes or high-volume custom harnesses, WEIPU’s overmolded SY11 connectors ensure tight seals, strain relief, and industrial-grade durability, reducing assembly time and increasing reliability in the field.

Why Choose SY11 Cable Assemblies?

Compact size, easy integration into small devices
IP67 waterproof sealing after mating
Flexible Customization: Cable length, wire gauge, jacket type, overmold design, and color options
Bayonet quick-lock mechanism
Improved flexibility, protection, and service life with overmolding

Ideal for: test instruments, outdoor communication devices, LED lighting systems, and rugged portable equipment.

Download Catalogue

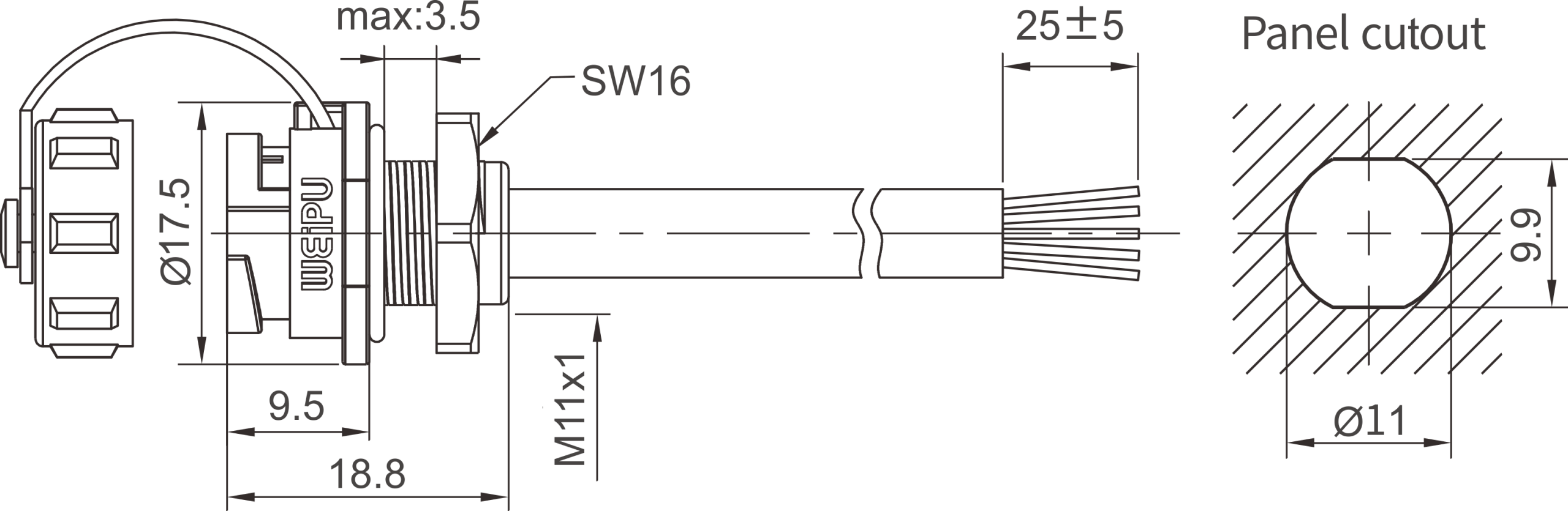

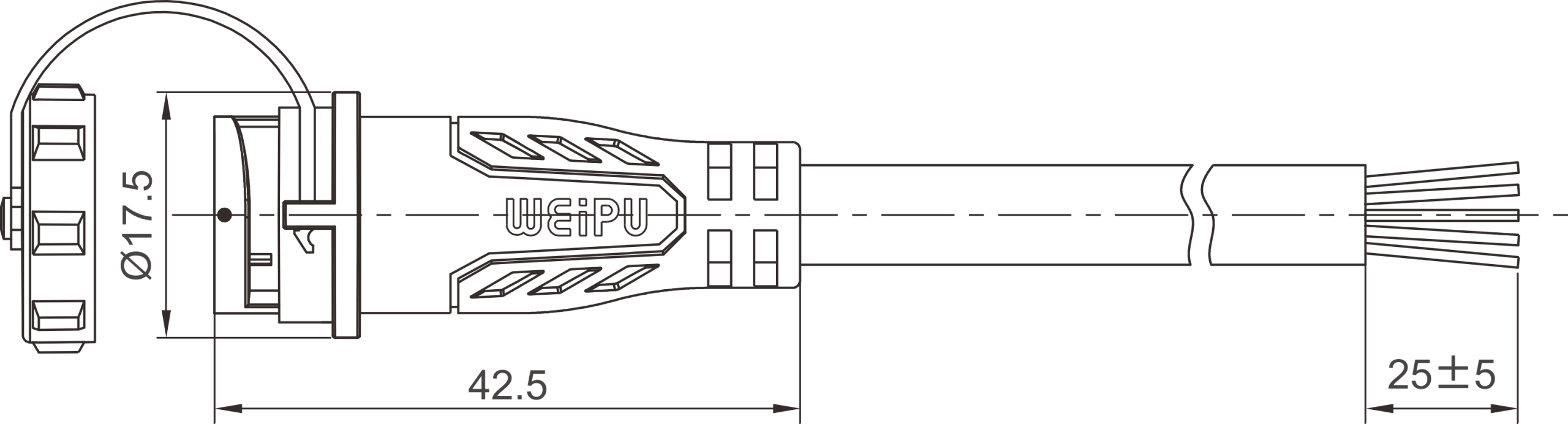

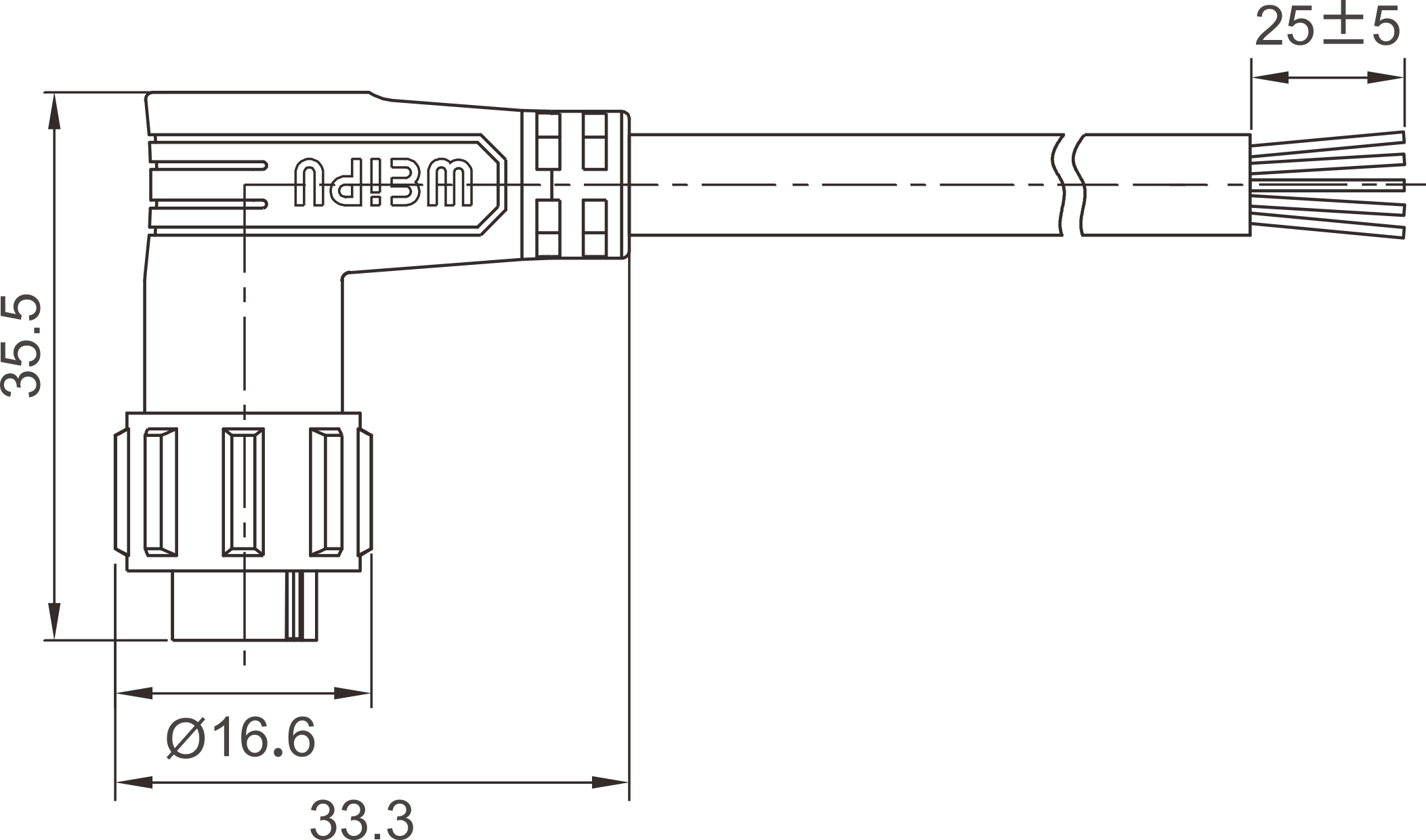

Mating Diagram

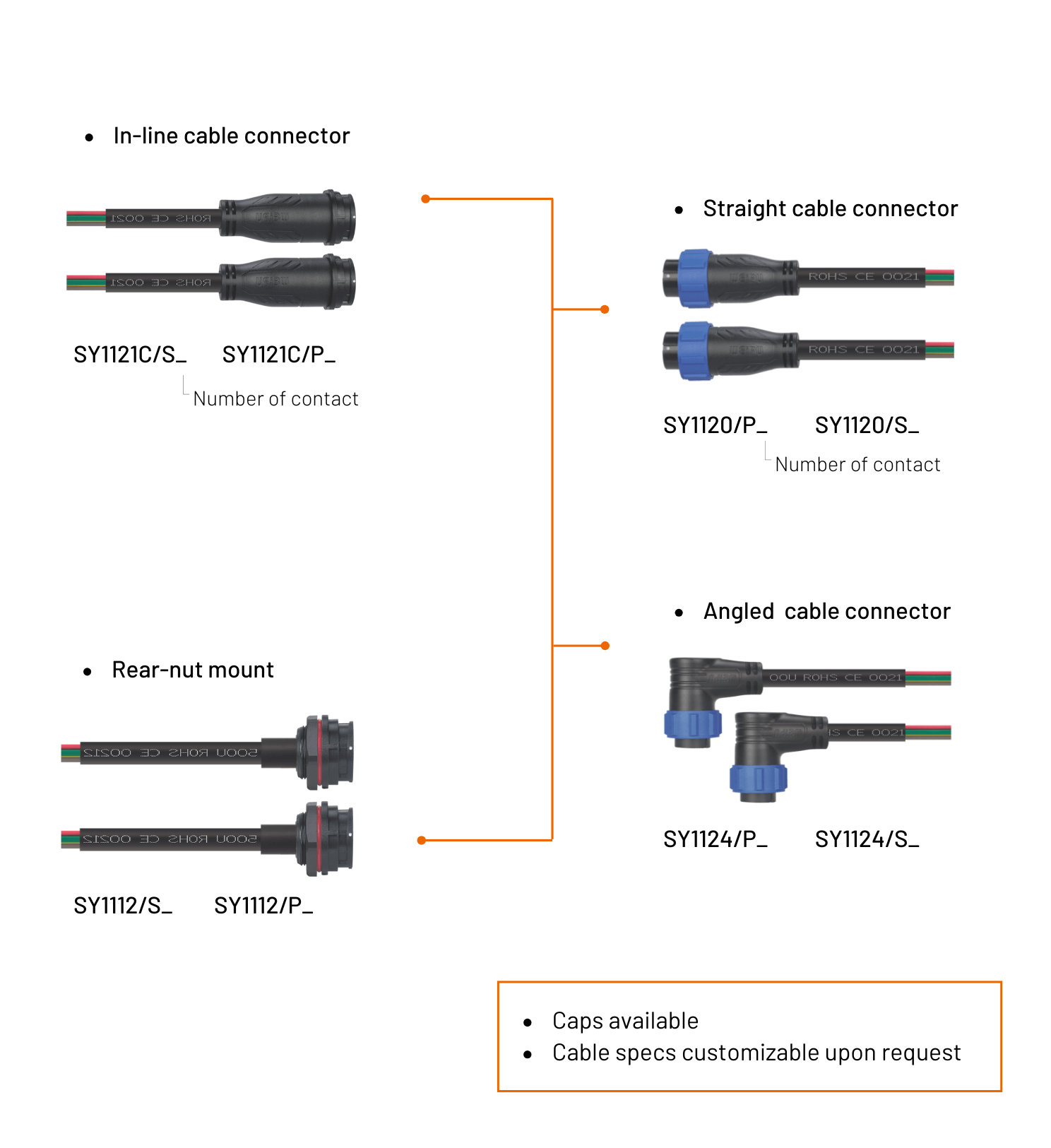

Different connector types

Available in both male and female.
Have options for plug, inline cable connector, panel socket

Success Story – SY Series Connectors in Medical Equipment

Discover how LOKTAL successfully integrated WEIPU's SY Series connectors into their medical equipment. Engineered to meet the high standards of the medical industry, these connectors have enhanced the reliability and safety of medical treatments by ensuring seamless, secure connections.
