WEIPU SP29 Cable Assemblies Waterproof Large Size Connectors Overmolding & Cable Assembly

IP68 Highly Sealed
Custom Cable Termination
Seamless Connector Integration

Built for the most challenging environments, the WEIPU SP29 Cable Assembly & Overmolding Solution delivers dependable power and signal connections under any conditions. With its rugged IP68 waterproof design, threaded locking system, and custom overmolded assembly, SP29 ensures lasting performance in extreme industrial and marine settings.

Each assembly is pre-tested and ready to install, reducing setup time while enhancing system reliability.

Key Benefits:

IP68 Waterproof Protection – Fully sealed against dust and water, ensuring continuous operation in harsh outdoor or industrial conditions.

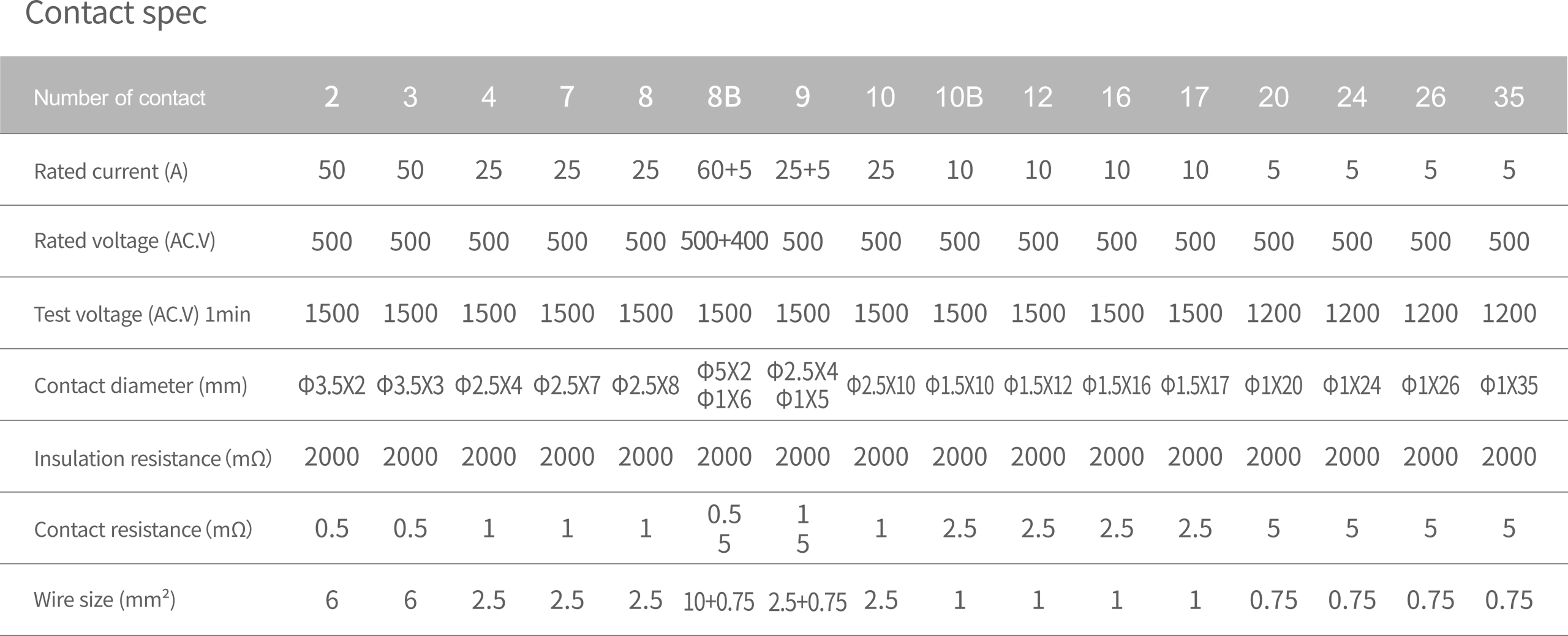

High Current & Multi-Contact Design – Supports 2–35 contacts and up to 60 A for heavy-power and signal applications.
Threaded Coupling Mechanism – Locks securely under vibration or mechanical stress.
Perfect Compatibility: Connector and cable designed, tested, and assembled by engineers
Custom Overmolding & Strain Relief – Protects cables from bending and impact for an extended lifespan.
100 % Factory Tested – Ensures optimal electrical performance and waterproof integrity before delivery.

Applications:

Ideal for automation equipment, marine systems, lighting, telecommunications, and heavy-duty outdoor machinery.

Download Catalogue

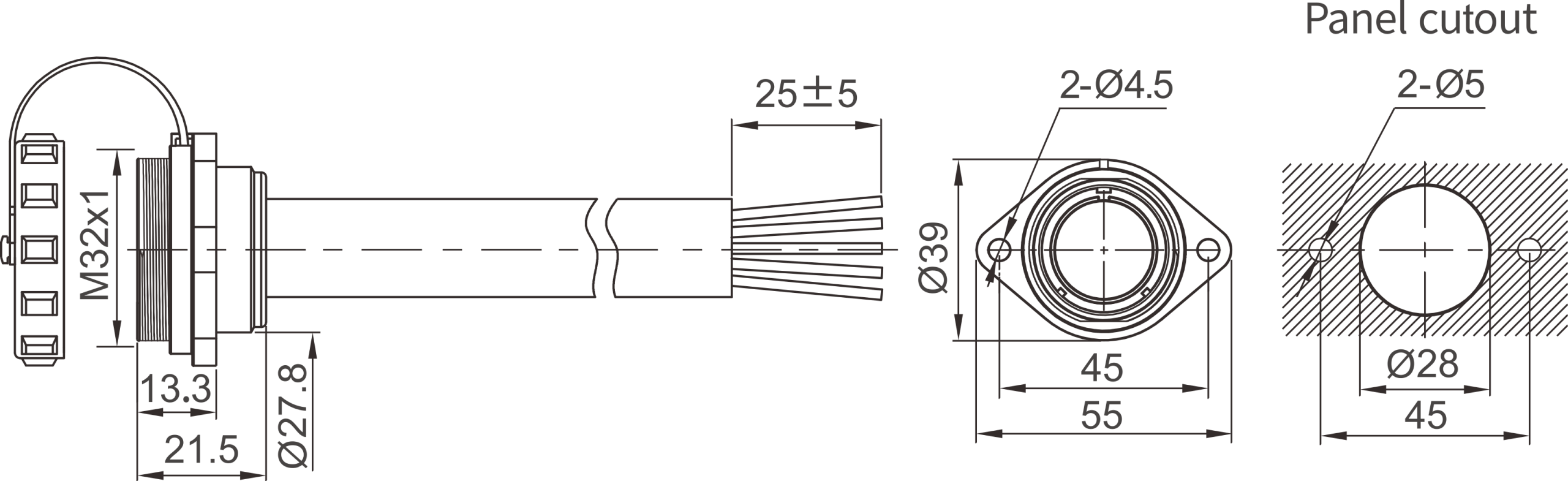

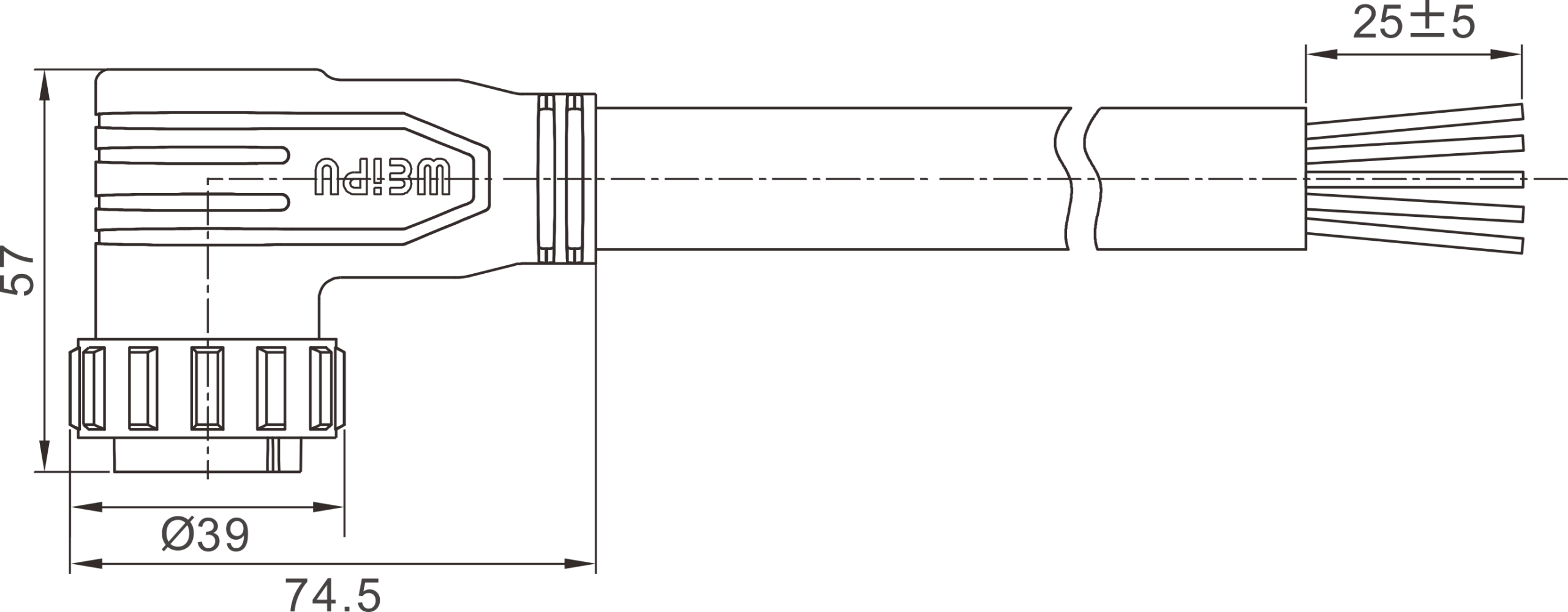

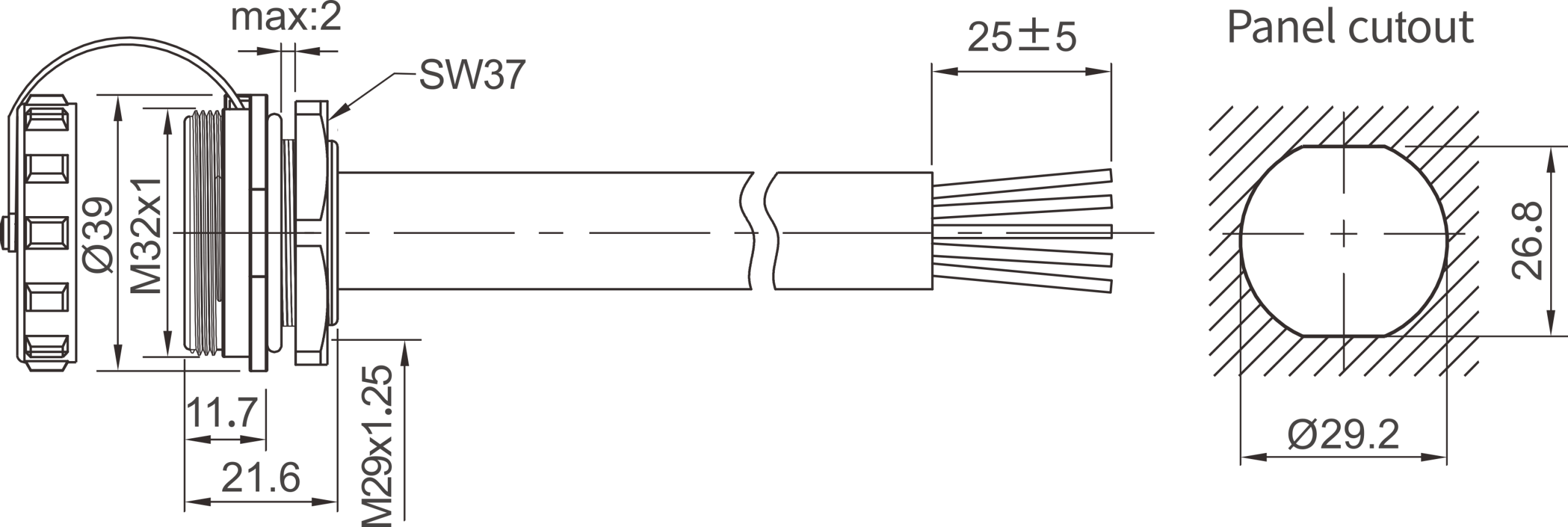

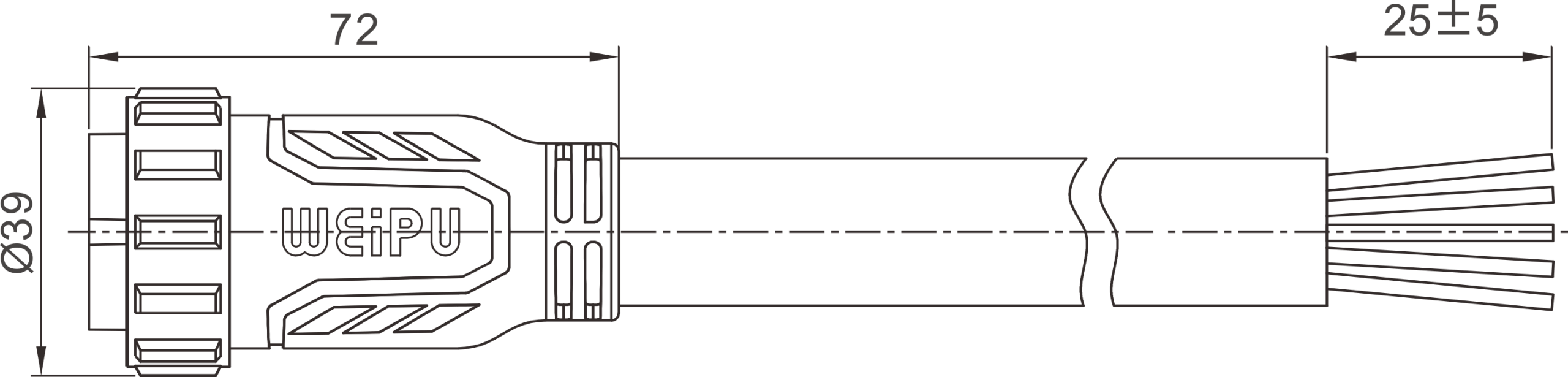

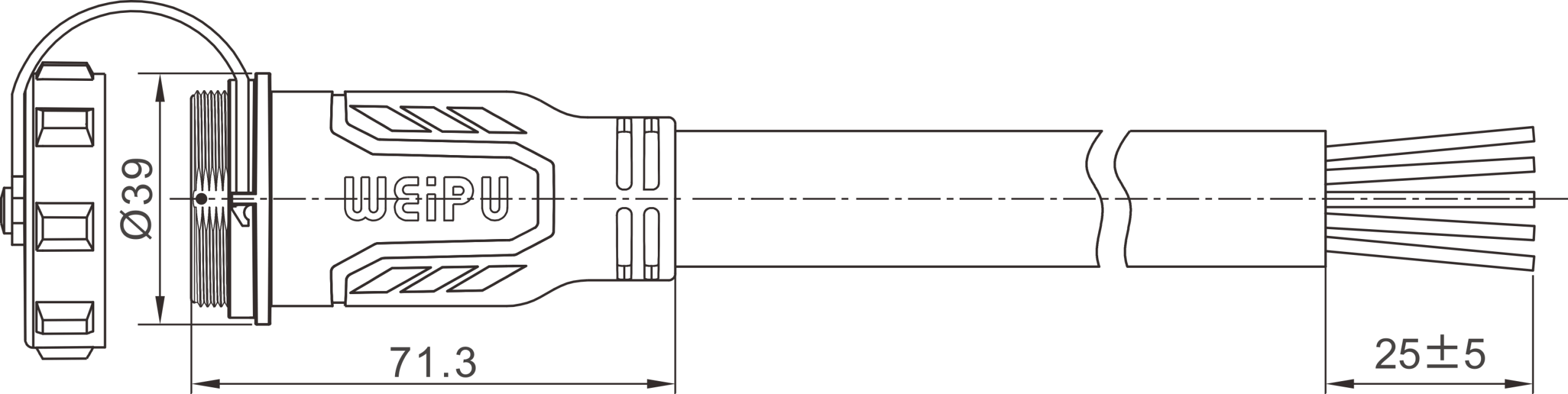

Mating Diagram

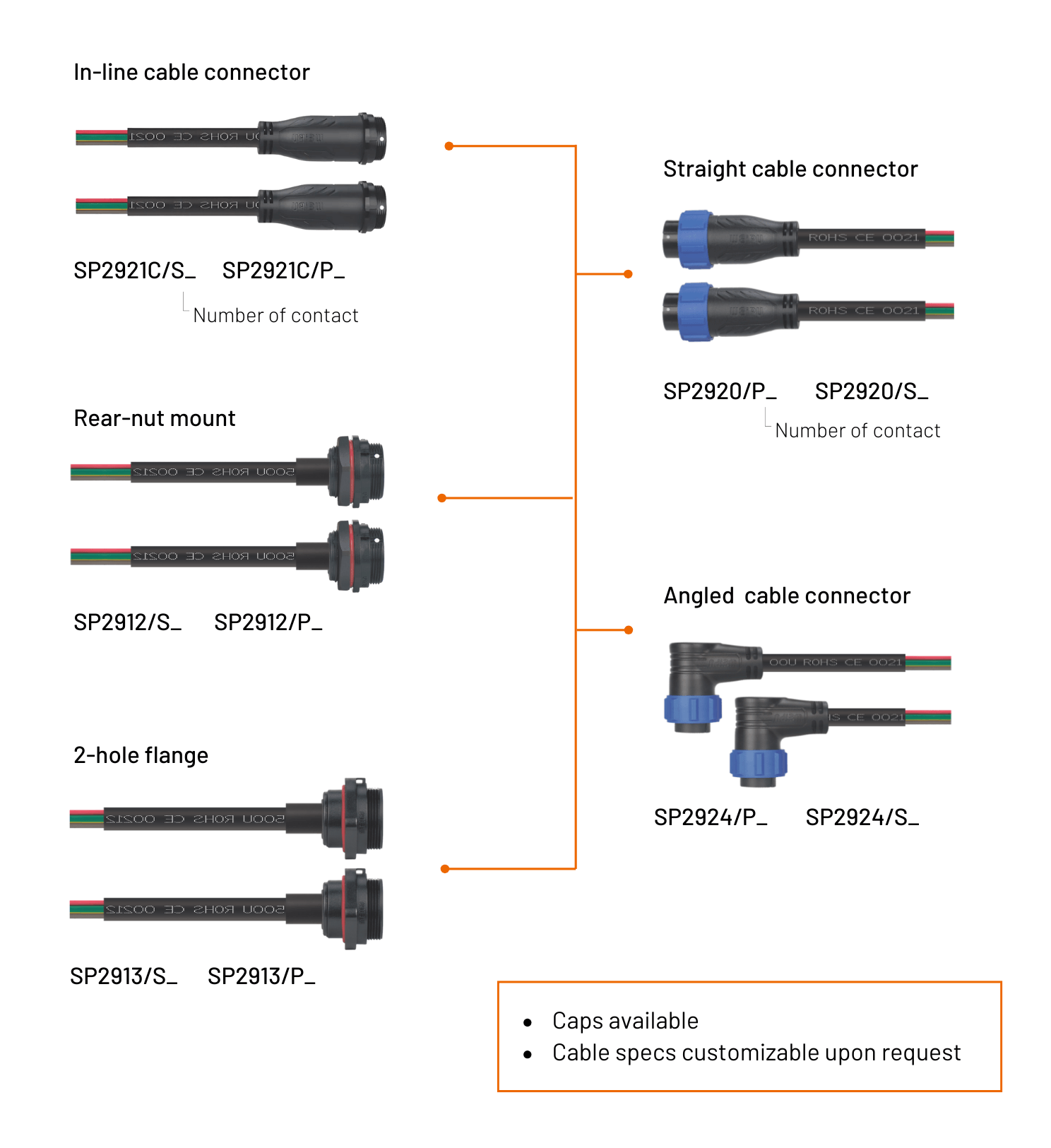

Different connector types

Available in both male and female.
Have options for plug, inline cable connector, panel socket

Case Study – SP Series Connectors for Outdoor Monitor

ApiCo integrated WEIPU SP Series waterproof connectors into their outdoor beehive monitoring systems to ensure stable and weatherproof performance. The IP68-rated SP connectors provide long-term protection against moisture, dust, and harsh environmental conditions, keeping monitoring devices reliable in the field.
