WEIPU SP11 Cable Assemblies Waterproof Small Size Connectors Overmolding & Cable Assembly

IP68 Highly Sealed
Custom Cable Termination
Seamless Connector Integration

Designed for compact devices requiring IP68 protection, WEIPU SP11 series assemblies deliver secure, space-saving connections with solder-terminated pins and fully molded strain-relief for long-term durability. Each assembly is custom-built to your required cable length, OD, and connector configuration to ensure perfect compatibility and reliable performance in demanding environments such as outdoor instruments, sensors, testing devices, and industrial controllers.

Key Benefits:

Compact design idea for space-limited devices
IP68 waterproof protection for harsh and outdoor conditions

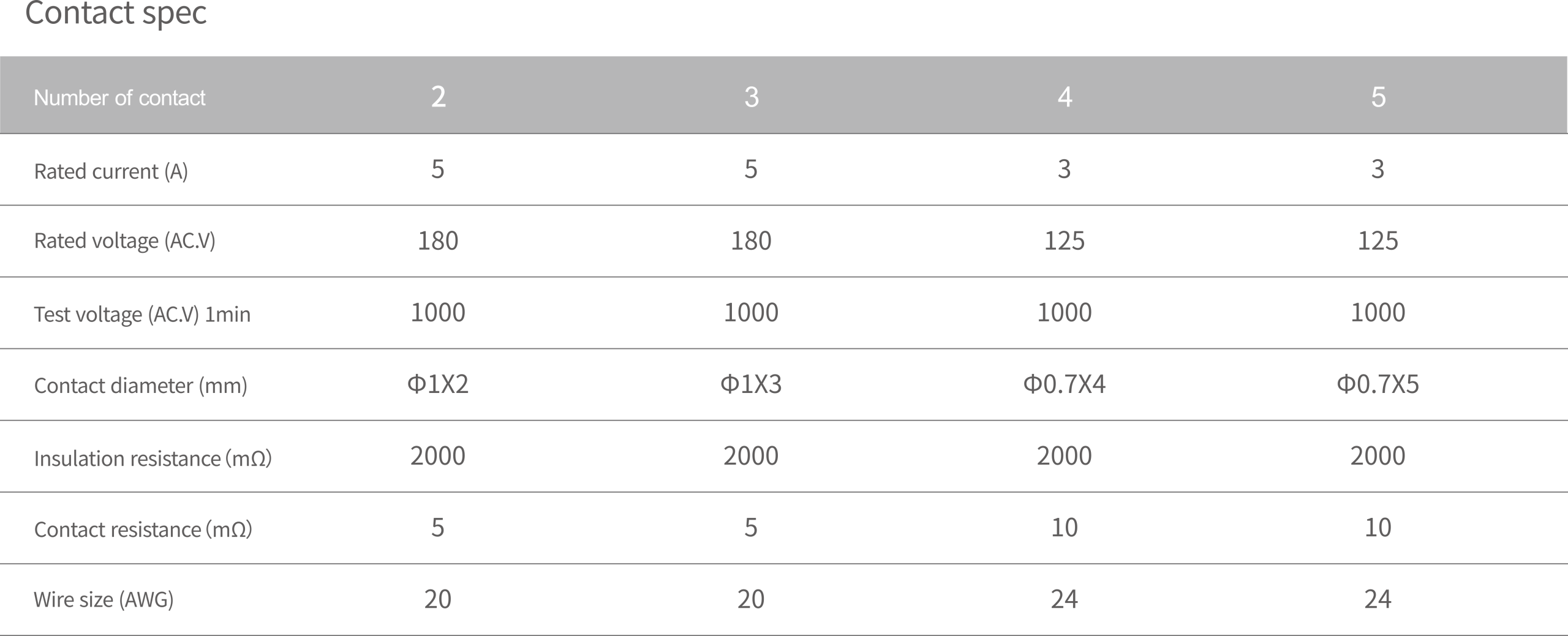

2–5 pin options for flexible system integration
Threaded Coupling Structure — ensures secure locking and vibration-proof performance.
Custom cable length & OD tailored to your application
Overmolded strain-relief improves durability and long-term sealing
Perfect Connector–Cable Integration — cable and connector designed, tested, and assembled by the engineering team.
100% Factory Tested — every assembly is verified for waterproofing, electrical safety, and long-term reliability.

Download Catalogue

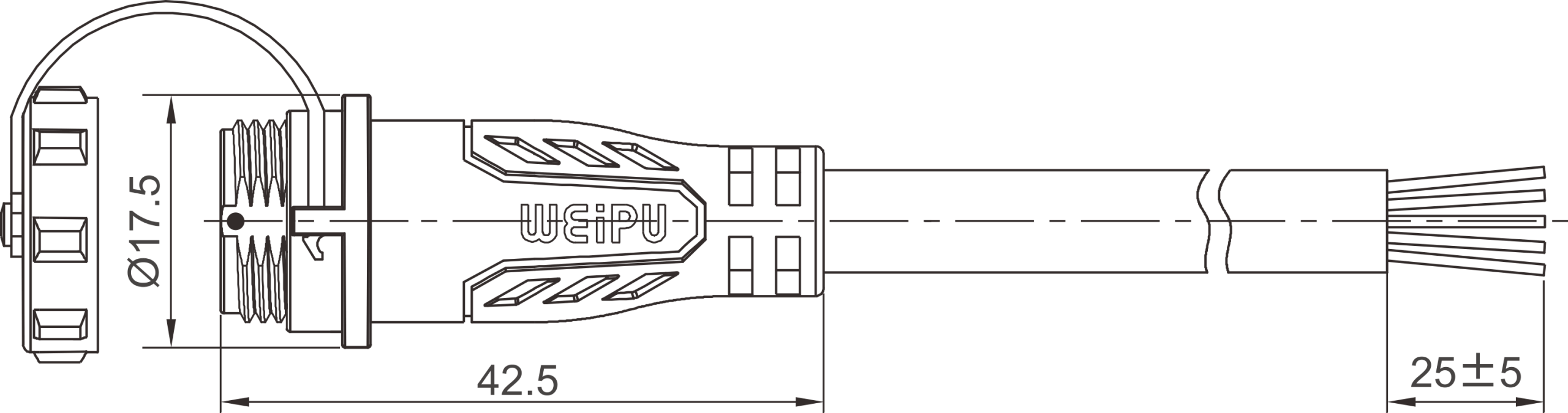

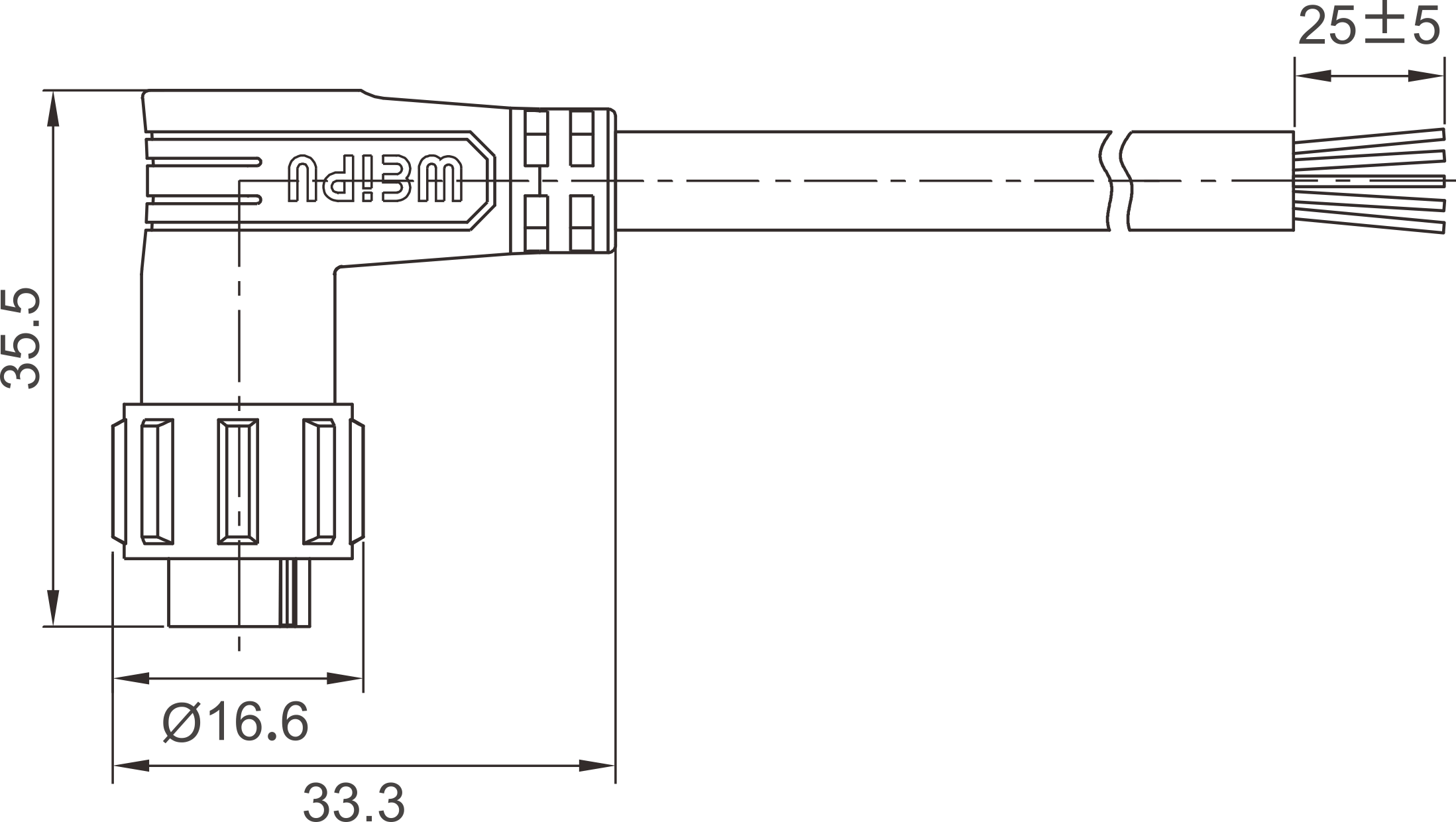

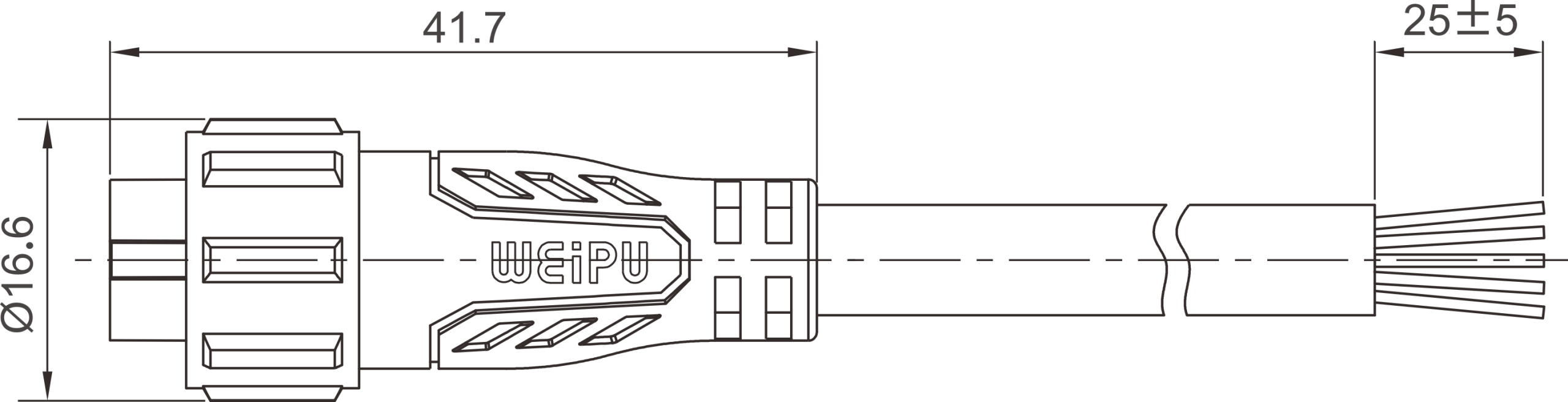

Mating Diagram

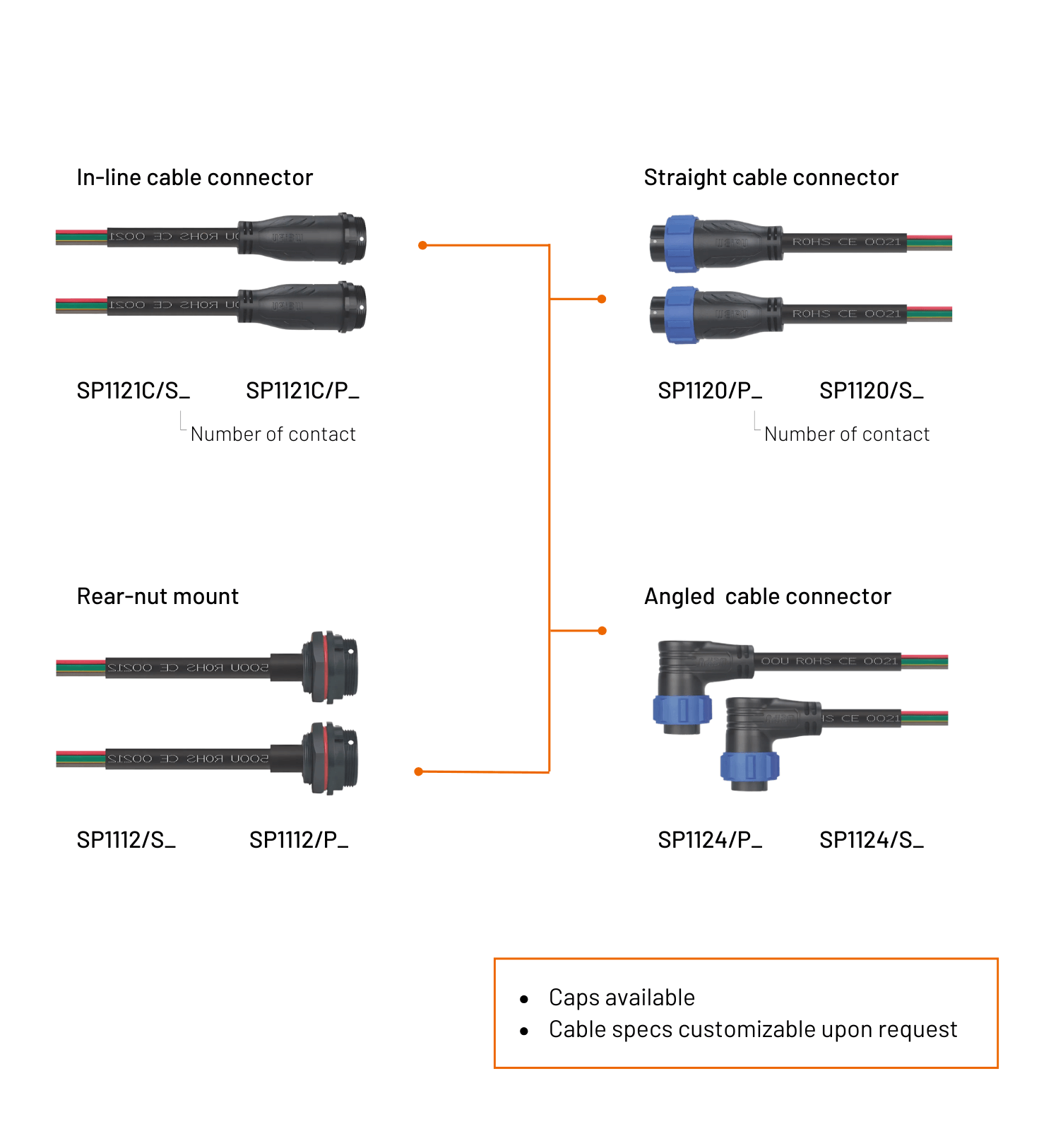

Different connector types

Available in both male and female.

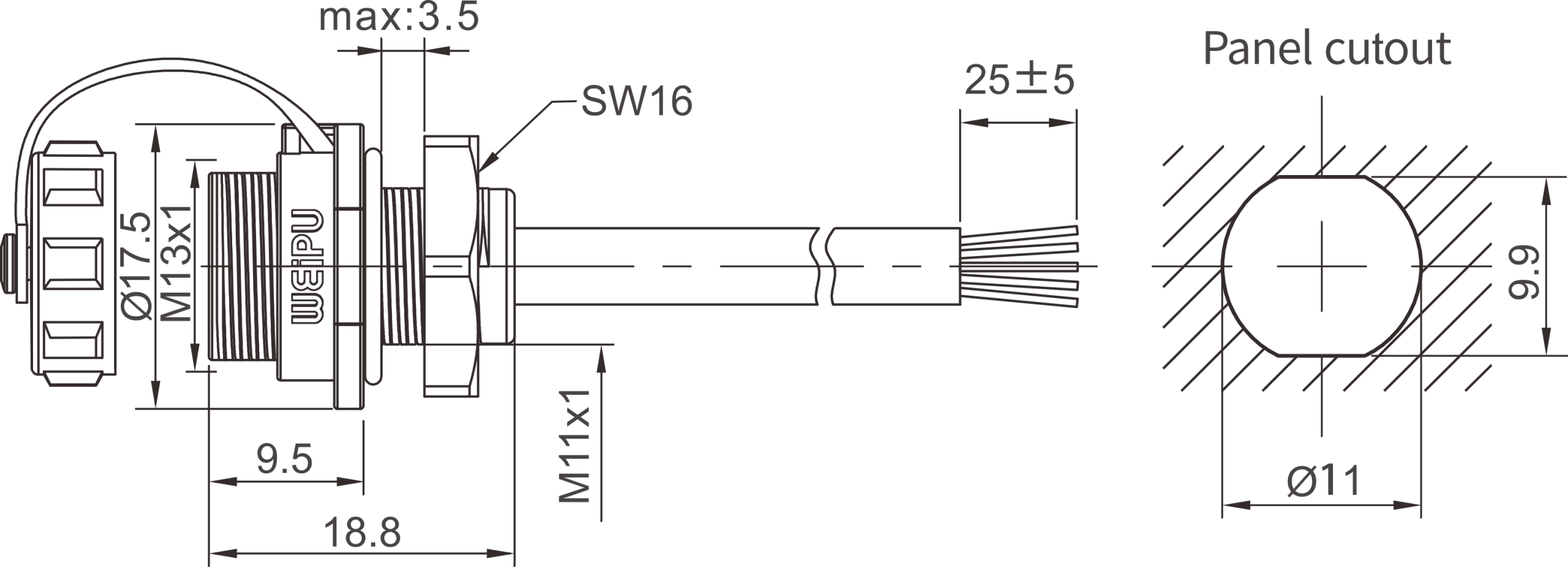

Have options for plug, inline cable connector, panel socket

Case Study – SP Series Connectors for LED Lighting

Karpas Engineering integrated WEIPU SP Series connectors into their latest LED lighting designs, ensuring secure, waterproof connections with IP68 protection. The SP Series delivers dependable performance in demanding lighting environments where durability and reliability are critical.
