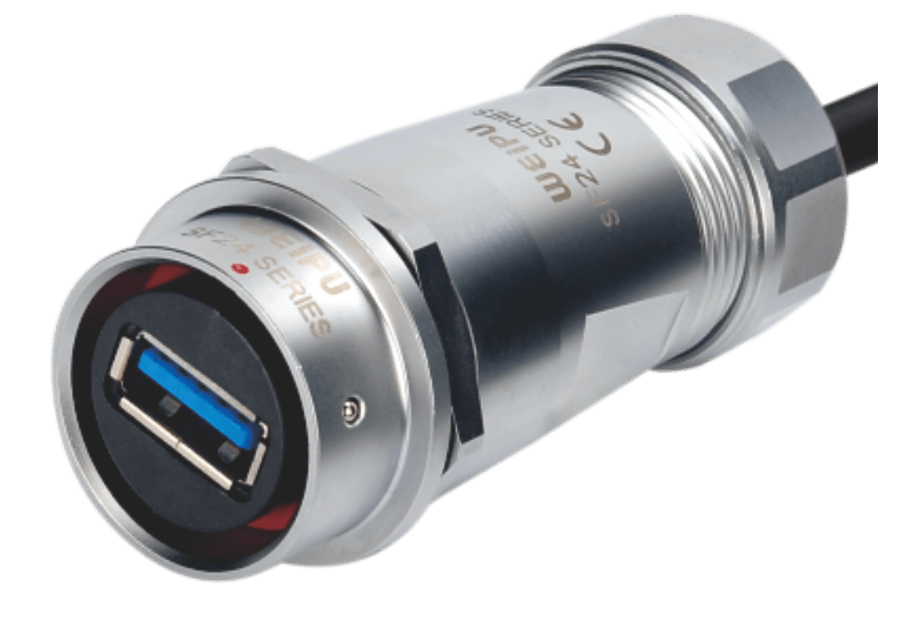

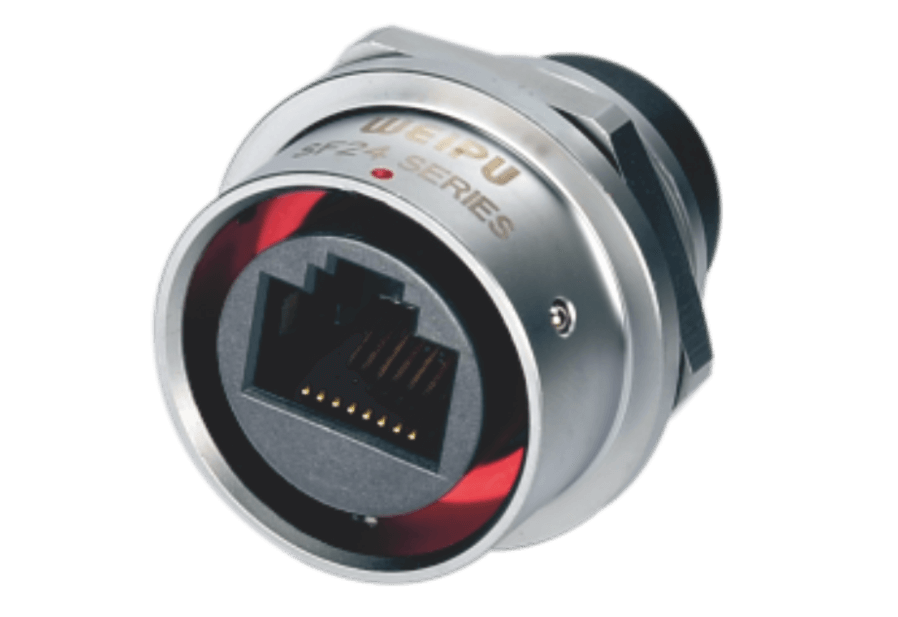

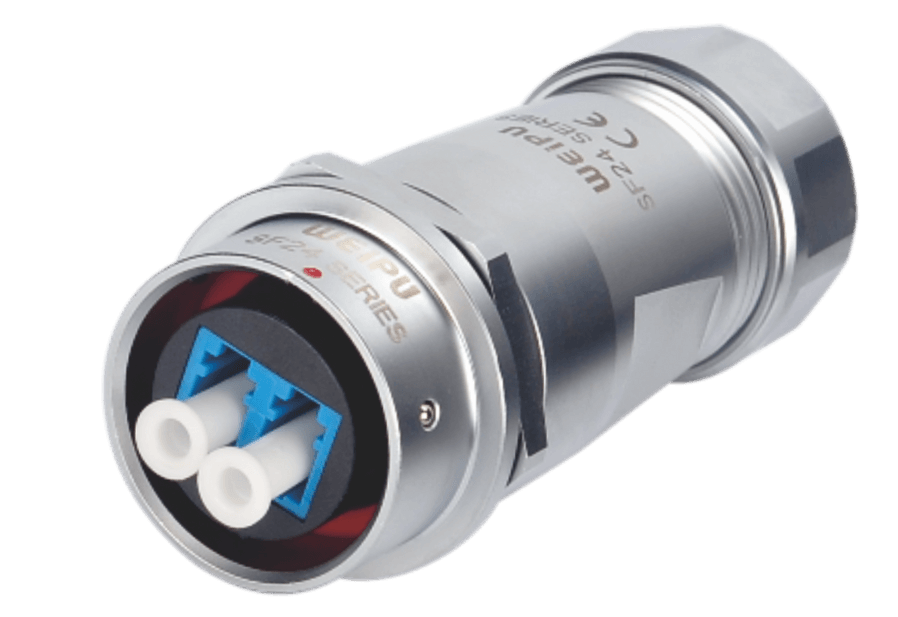

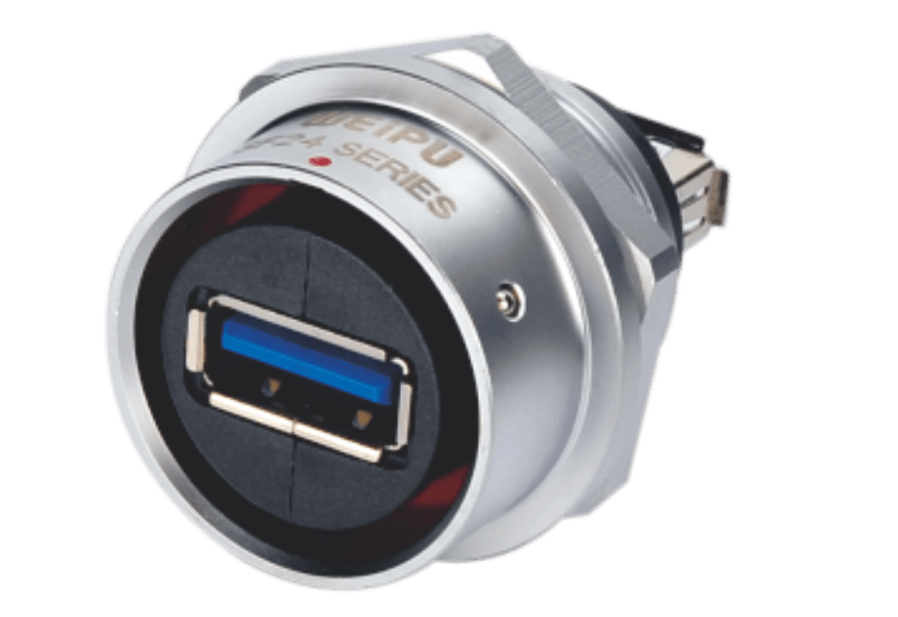

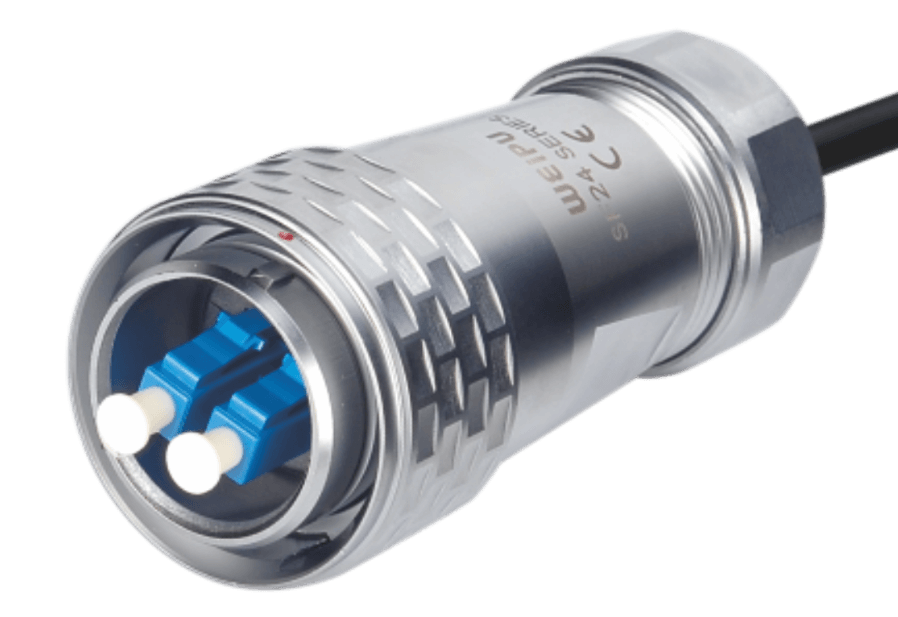

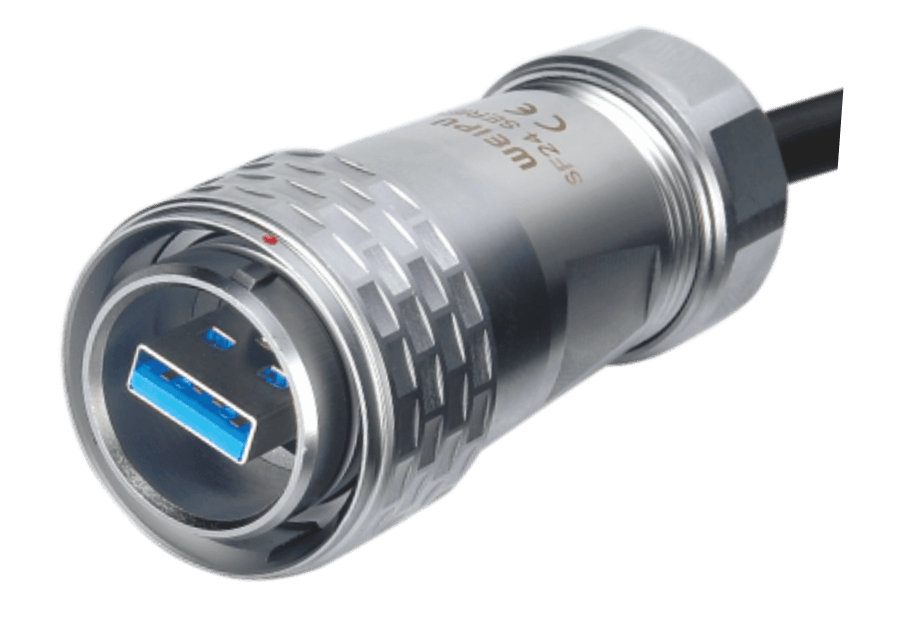

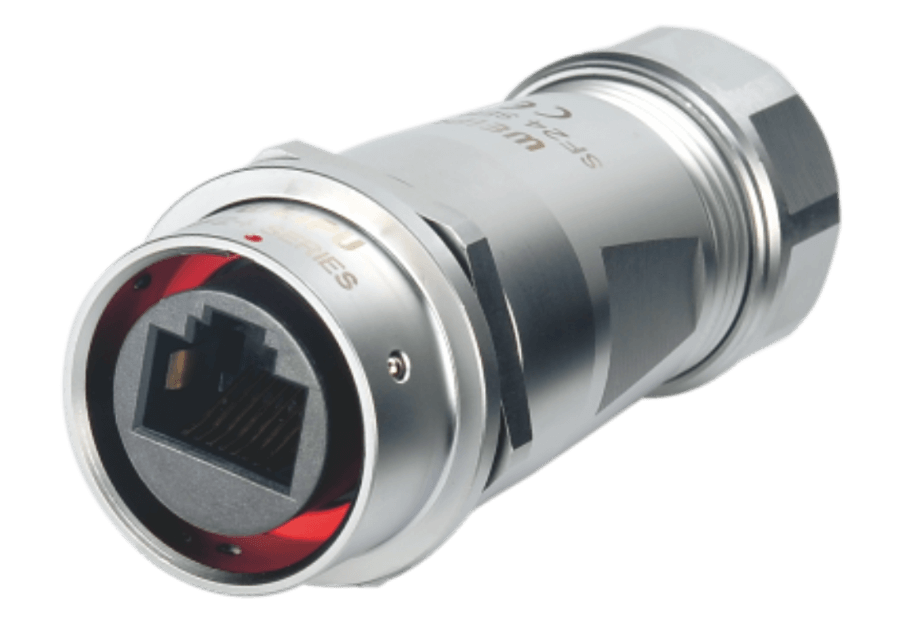

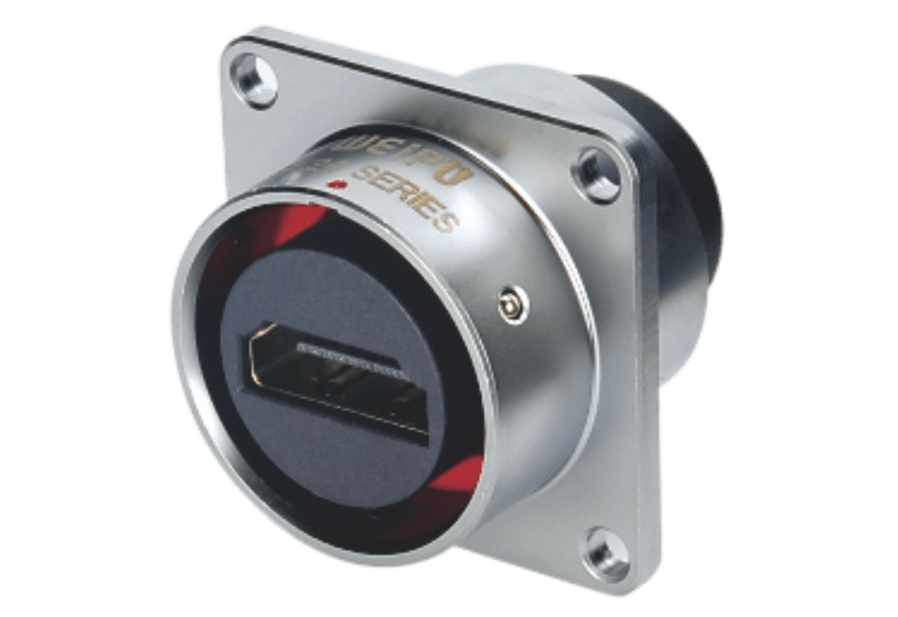

WEIPU SF24 Data Series Brass Push-pull locking with LC, RJ45, USB, HDMI

Data connection
Quick connection
Waterproof

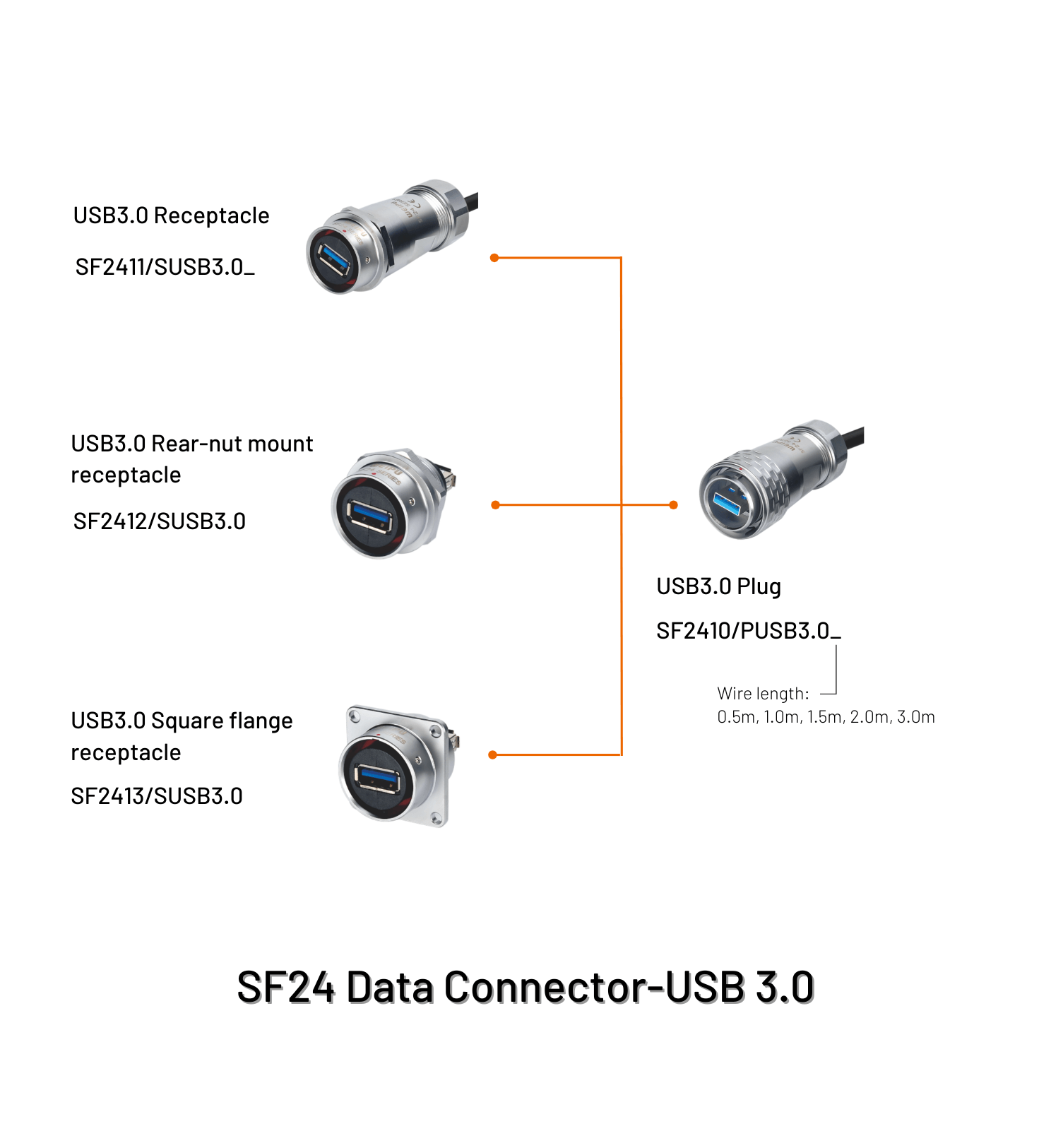

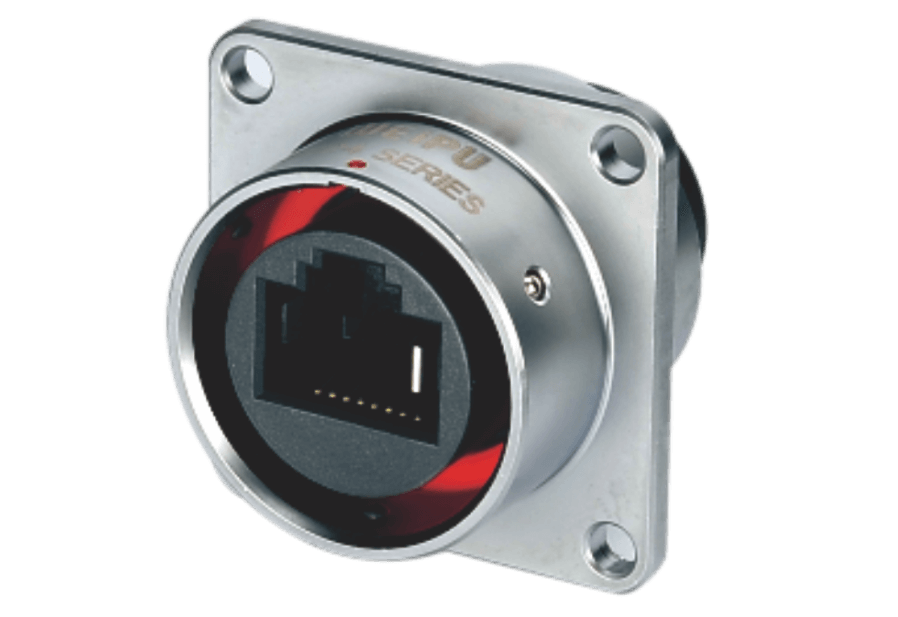

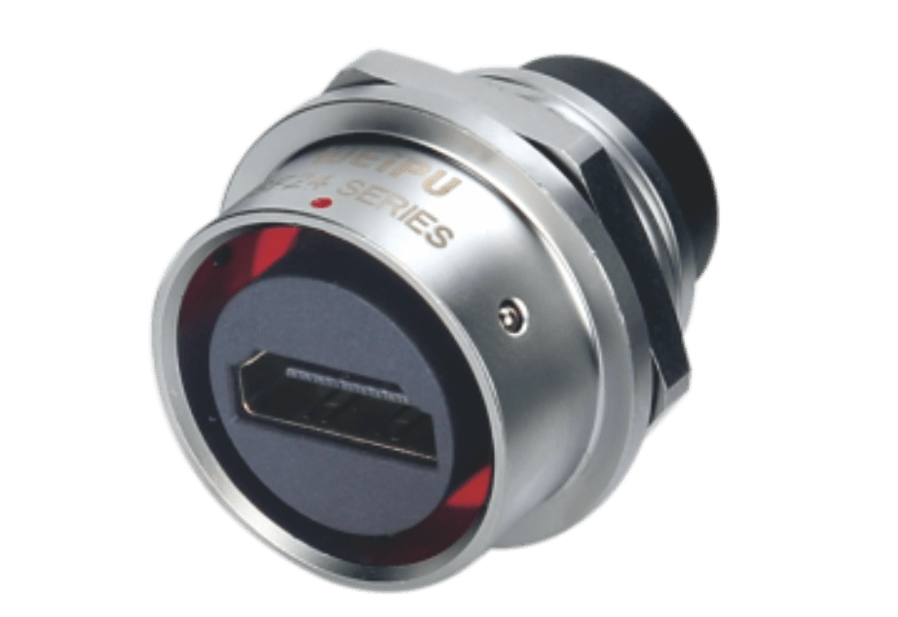

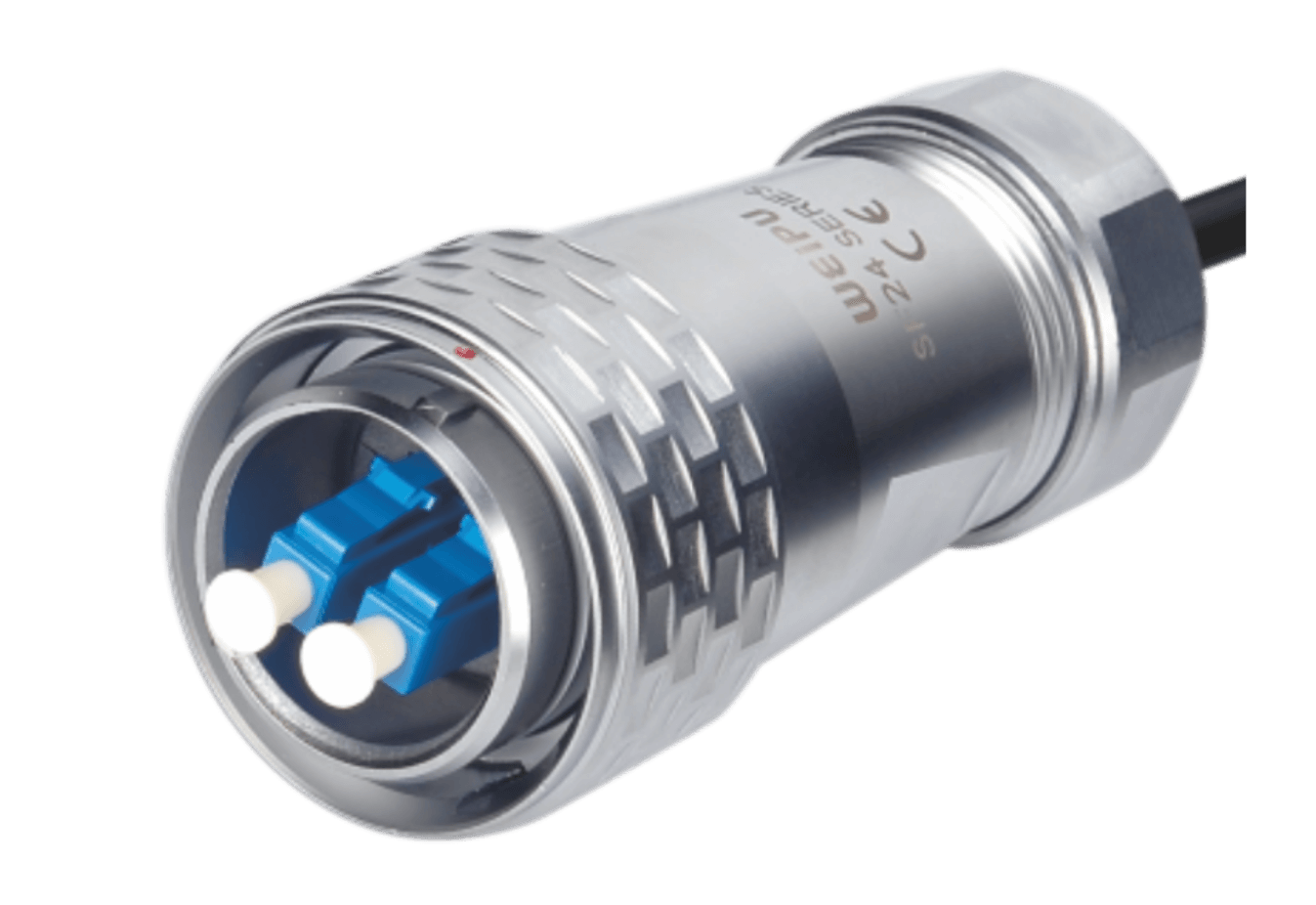

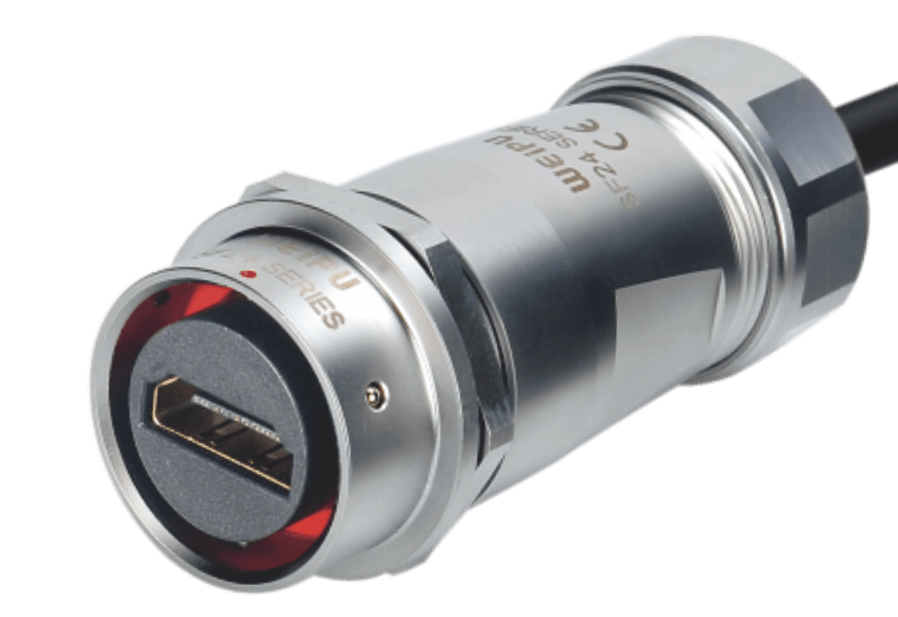

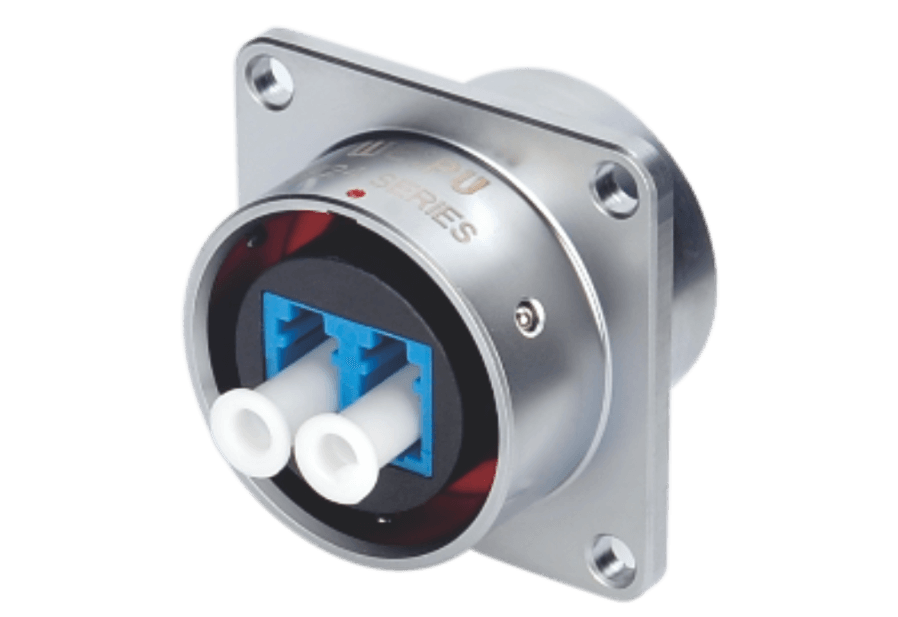

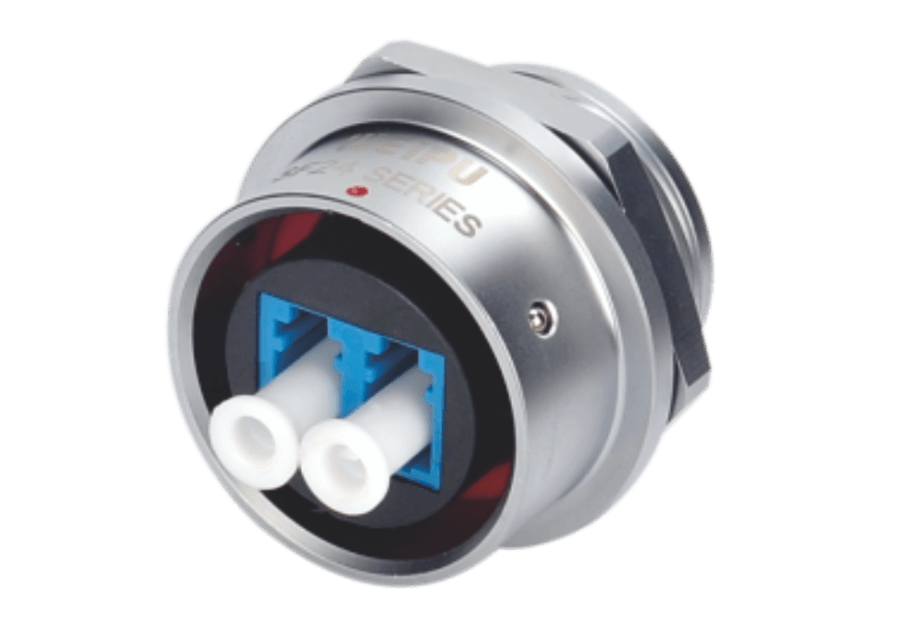

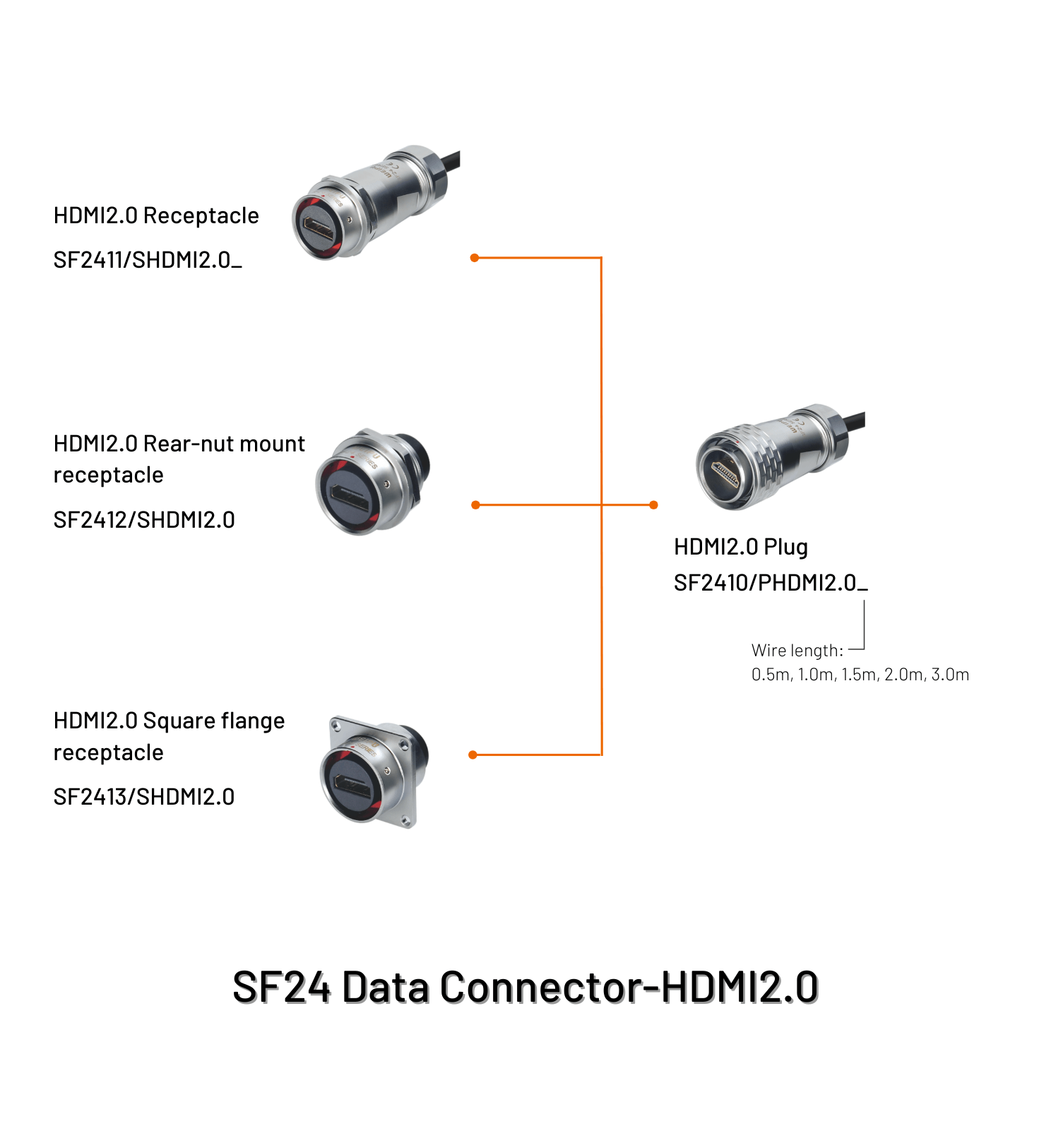

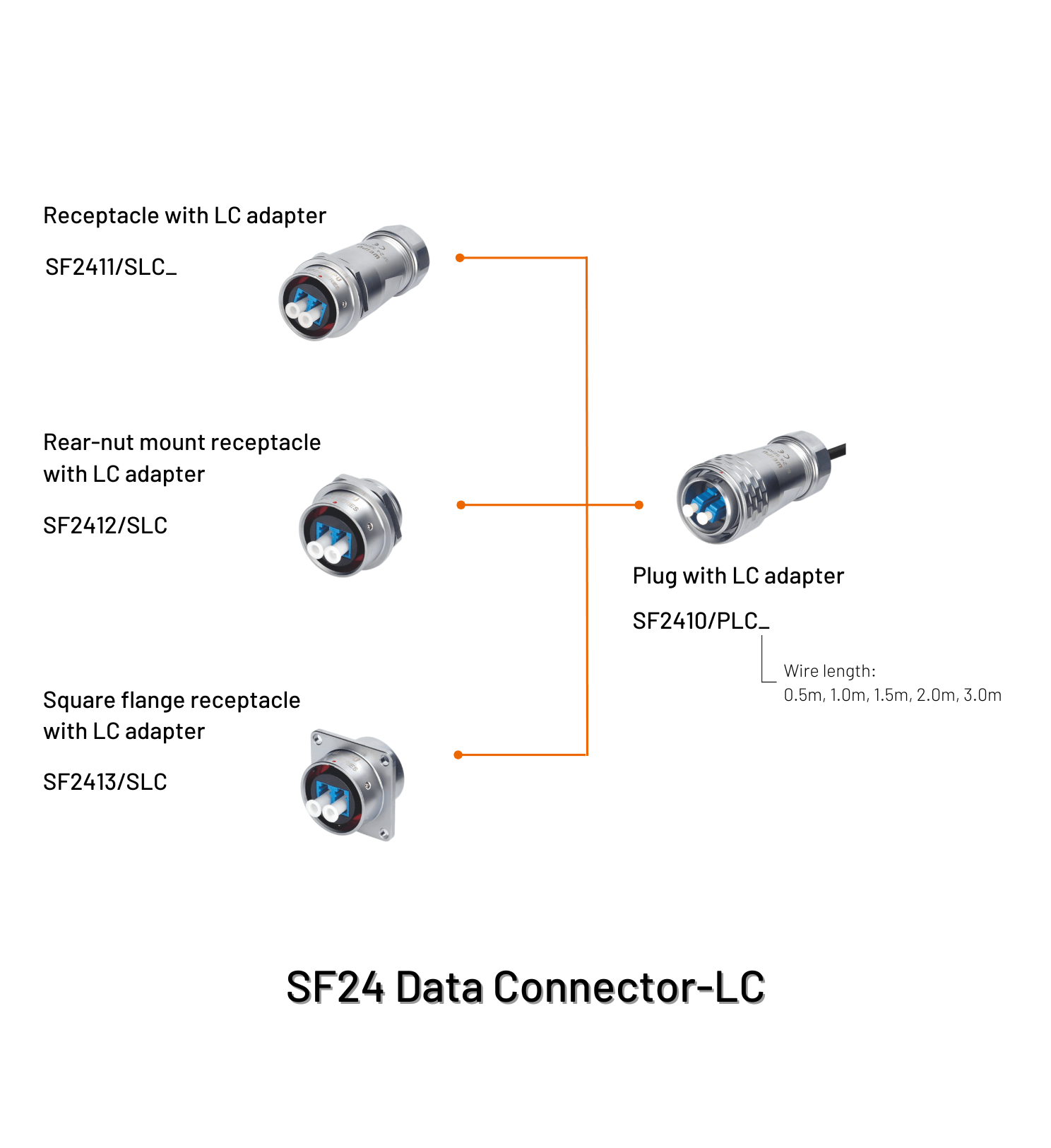

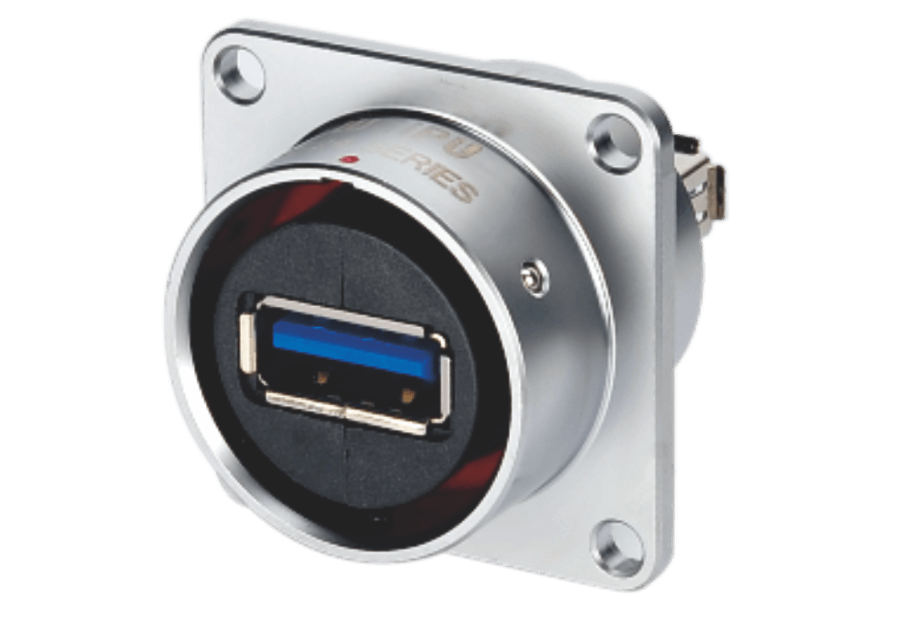

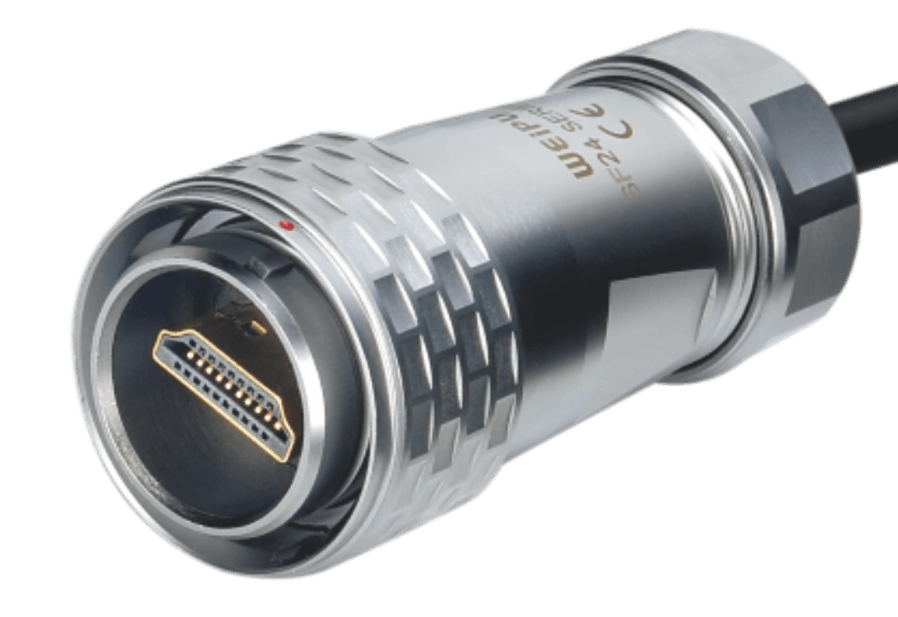

The WEIPU SF24 Data Connector Series is engineered for reliable, high-performance data transmission in industrial settings. Featuring LC, RJ45, USB 3.0, and HDMI 2.0 interface options, these connectors offer exceptional flexibility for a wide range of data communication applications, certified to CE and RoHS standards.

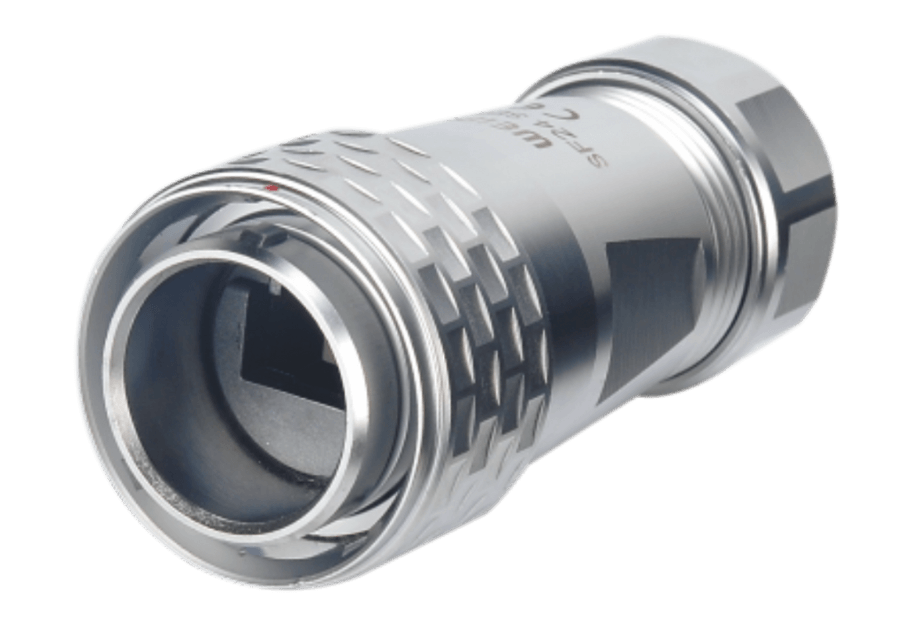

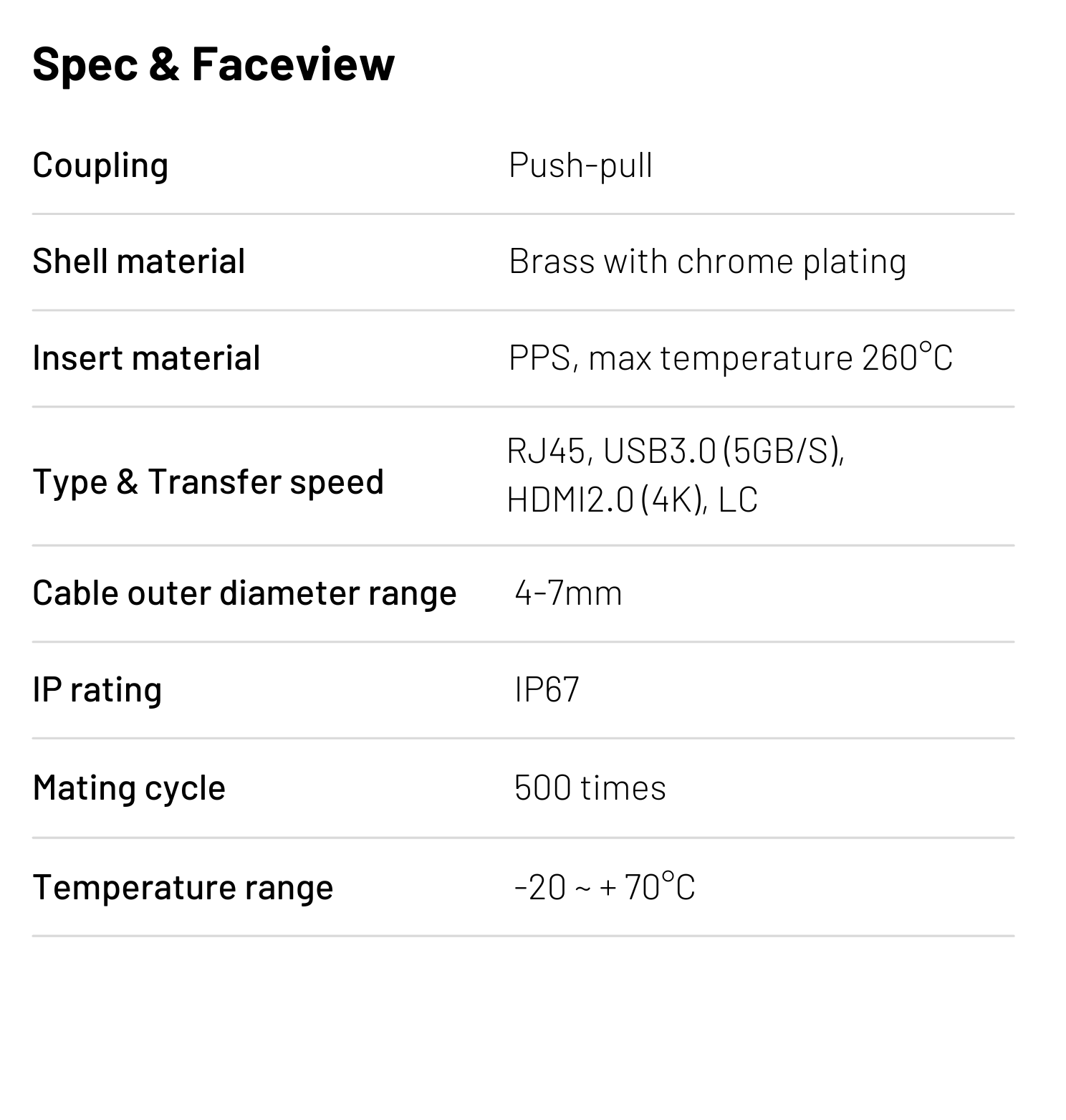

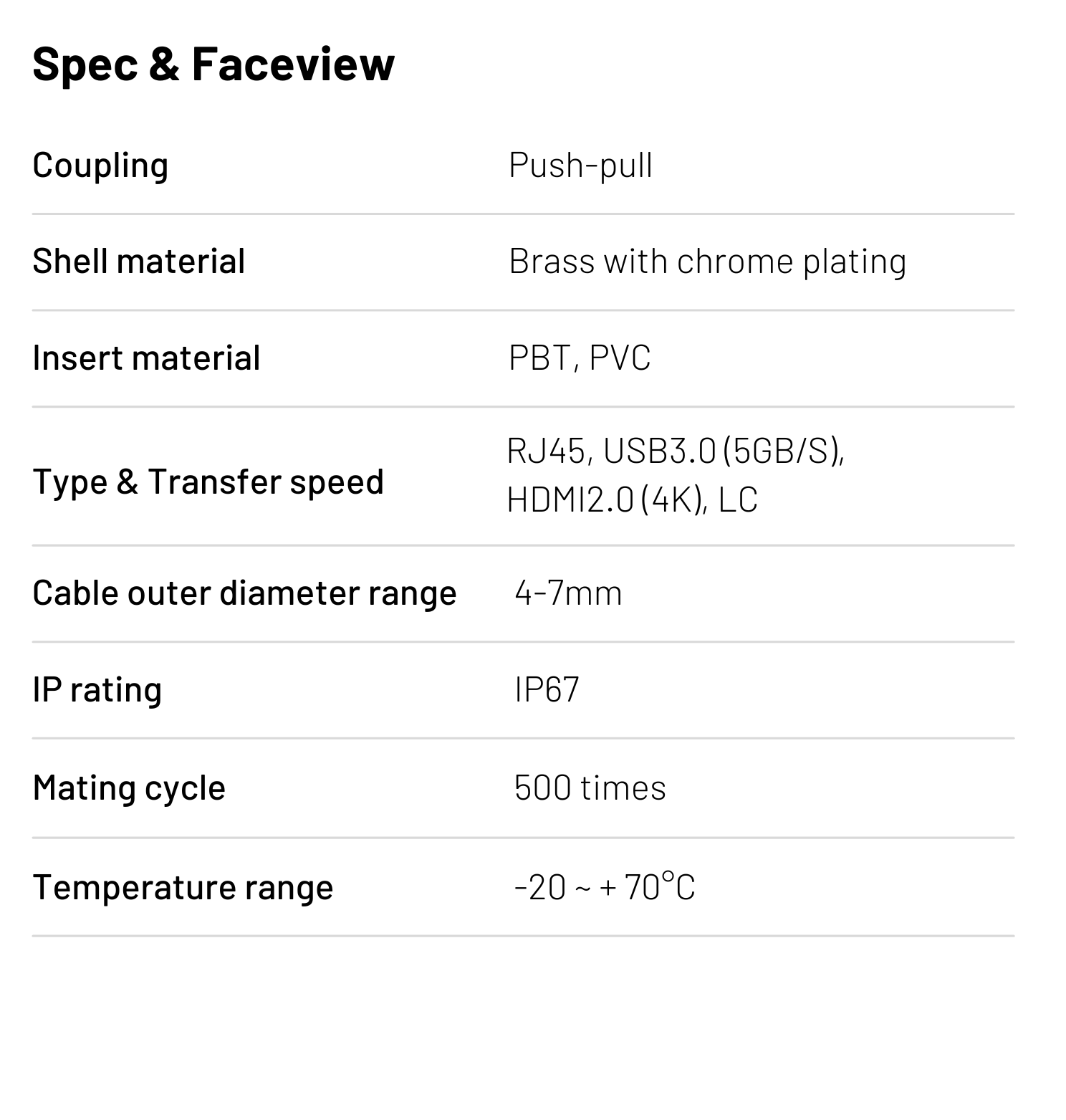

With a push-pull locking mechanism and IP67 protection rating, the SF24 series ensures dust-tight sealing and waterproof performance—perfect for harsh environments. Its brass shell with chrome plating provides excellent durability and shielding.

To streamline integration, custom cable assembly services are available to meet your specific system requirements.

Applications:

This series is designed to meet the demands of industries where data integrity and reliable performance are crucial. It is widely used in:
