WEIPU IP67 - METAL CONNECTOR M23 Standard connectors for power with threaded connection

  • waterproof

    Water-proof

  • International standard_European configuration _Various configuration options

    High performance materials

  • High mating cycles

    Mis-plug resistance with colorful bands

WEIPU M23 series power connectors are made of durable, high-performance material, used widely for connecting electrical drives and industrial automation applications.



* IP67 water-proof protection
* 6&8 contacts

* Rated current: 8A & 28A
* Crimp contacts for various cross-sections
* Gold Plated Brass contacts
* Temperature ranges from –40°C to +125°C
* 360° EMC shielding available
* Cable OD ranges: 4mm – 17mm



Download M23 Catalogue

2. M23 for power (Threaded)(waterproof)
  • 2. M23 Power

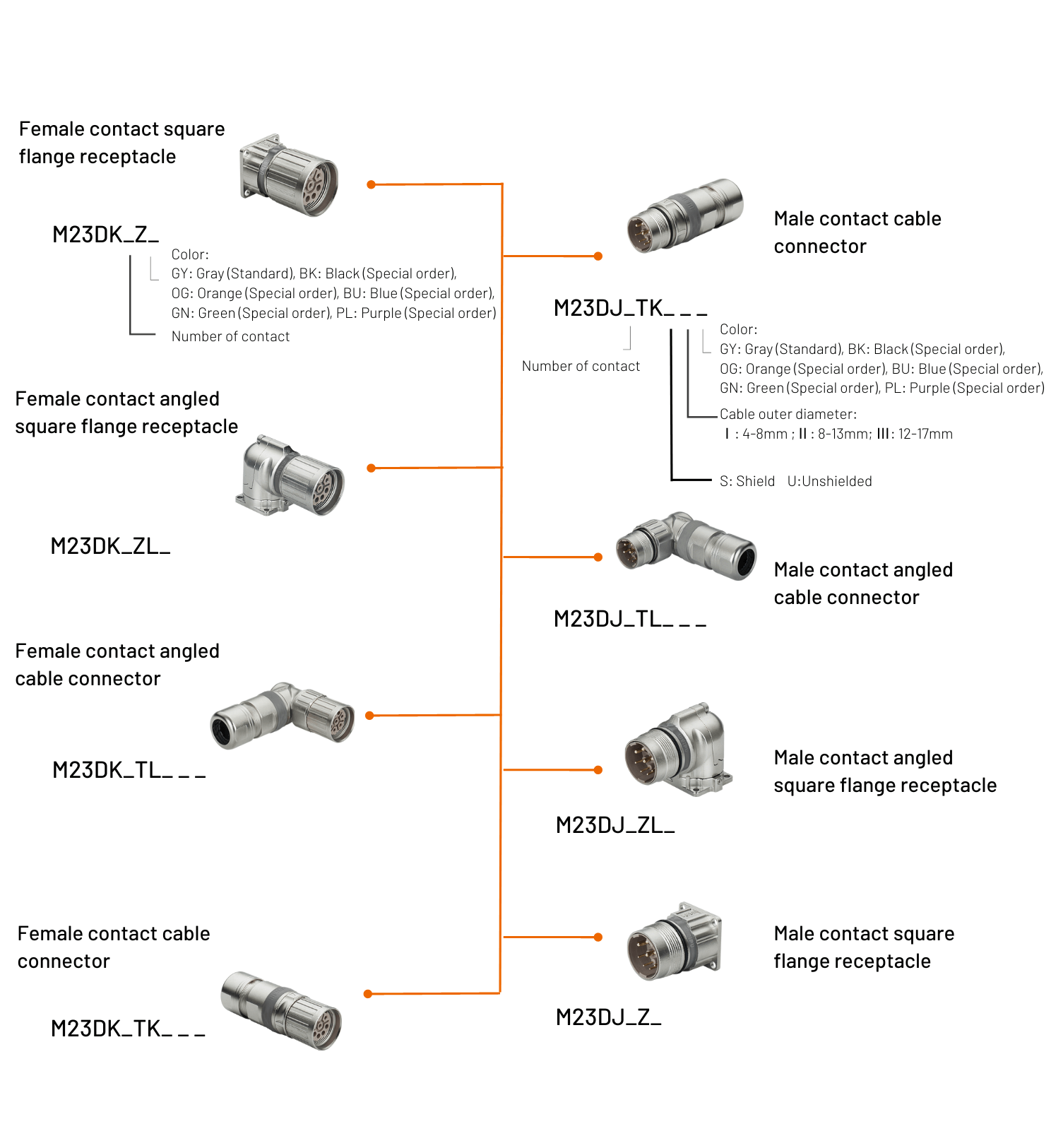

    M23 Power Mating Diagram

Having questions for M23 POWER midium?

INFO@WEIPUCONNECTOR.COM

+0086 021-56631111

Connect with WEIPU

assembly logo Cable Assembly Service

  • M23DJTK 2D

    M23DJTK 2D

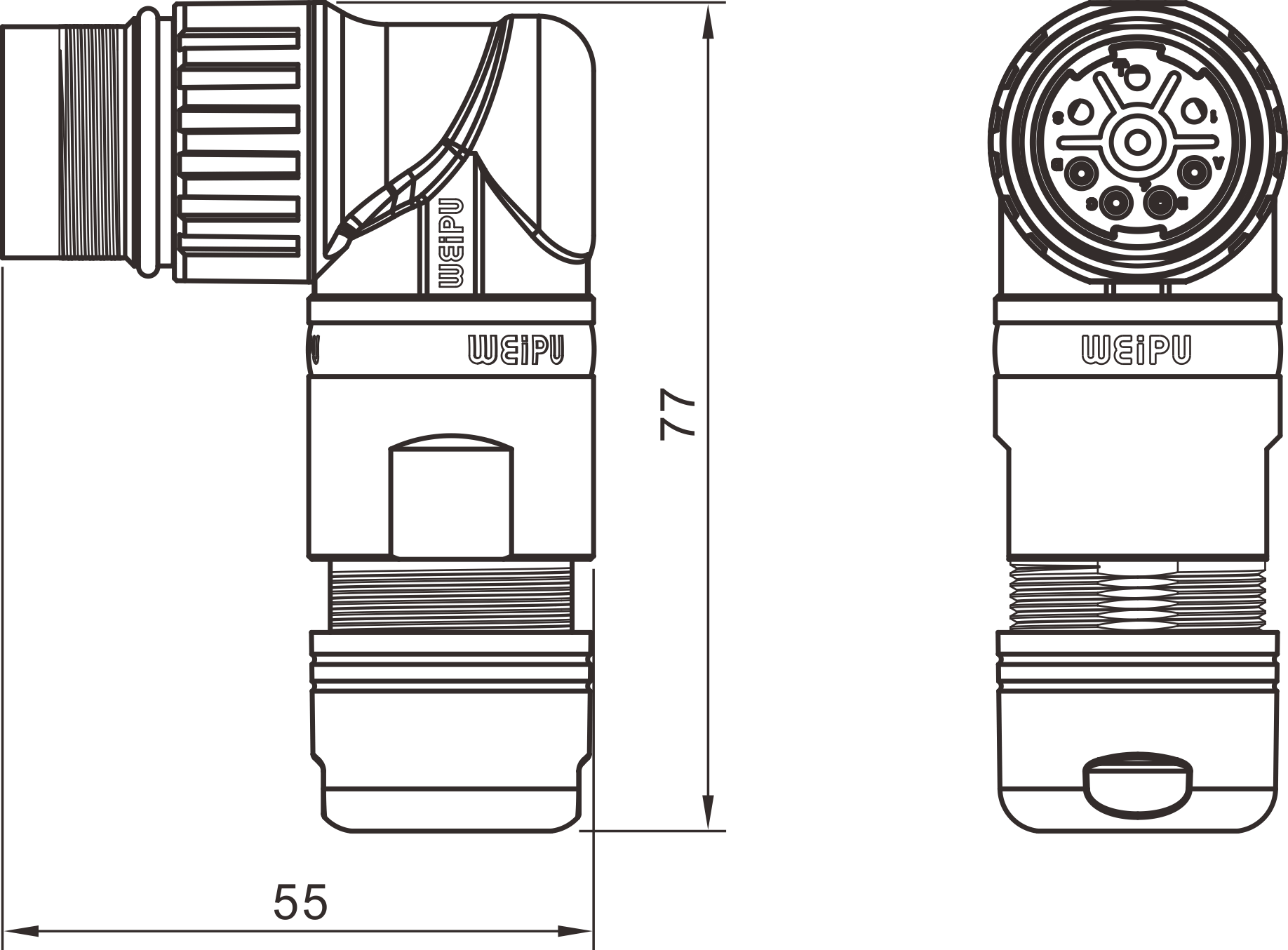

  • M23DJTL 2D

    M23DJTL 2D

  • M23DJZ 2D

    M23DJZ 2D

  • M23DJZL 2D

    M23DJZL 2D

  • M23DKTK 2D

    M23DKTK 2D

  • M23DKTL 2D

    M23DKTL 2D

  • M23DKZ 2D

    M23DKZ 2D

  • M23DKZL 2D

    M23DKZL 2D

  • Crimp Spec

    • M23 crimp
    • M23 power (2)
    • M23 power (3)

  • Crimp Tool

    • M23 power (1)
