WEIPU M12 Overmold Connectors IP67 M12 A-Code for Reliable Signal & Power

IP67 Highly Sealed
Custom Cable Termination
Seamless Connector Integration

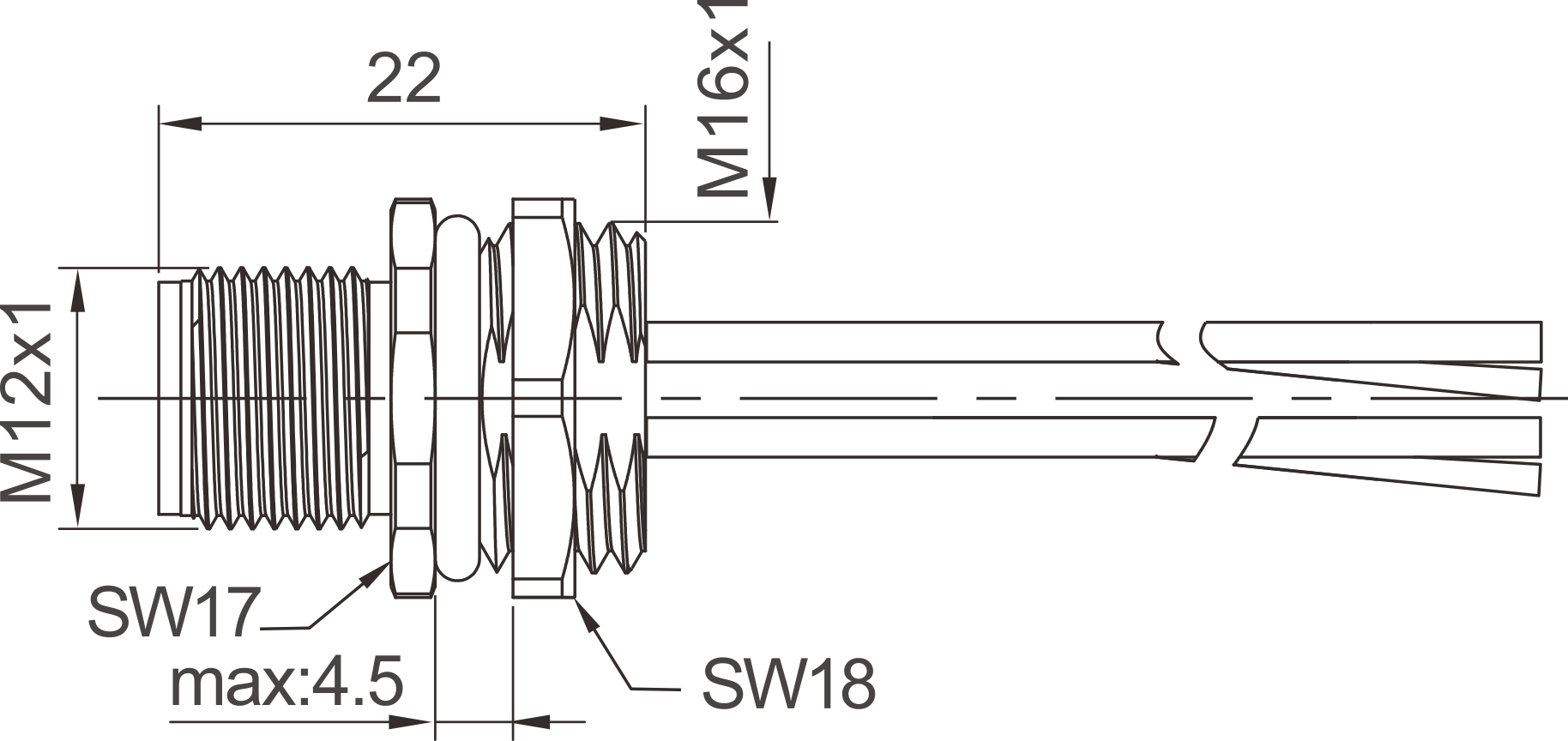

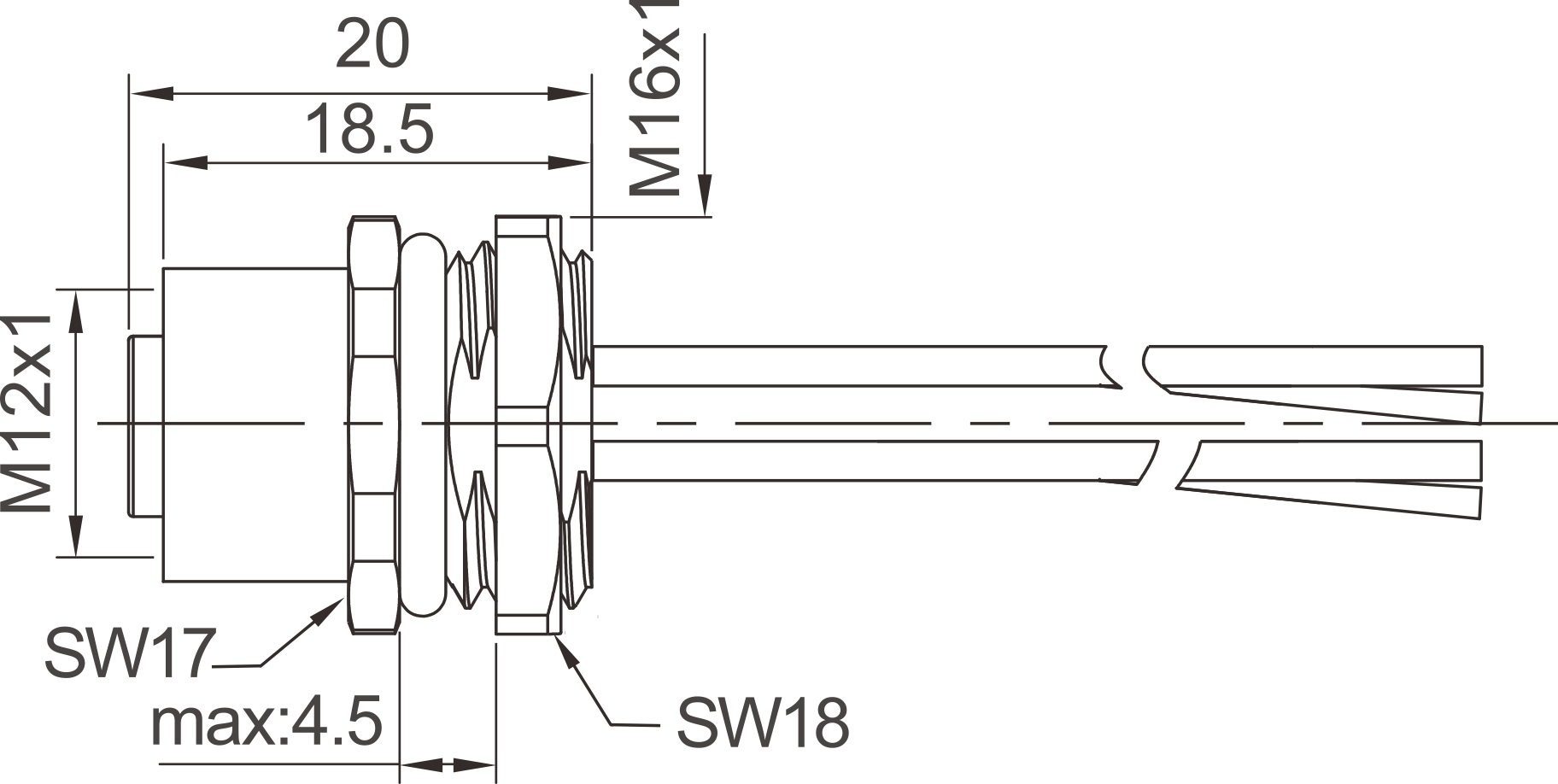

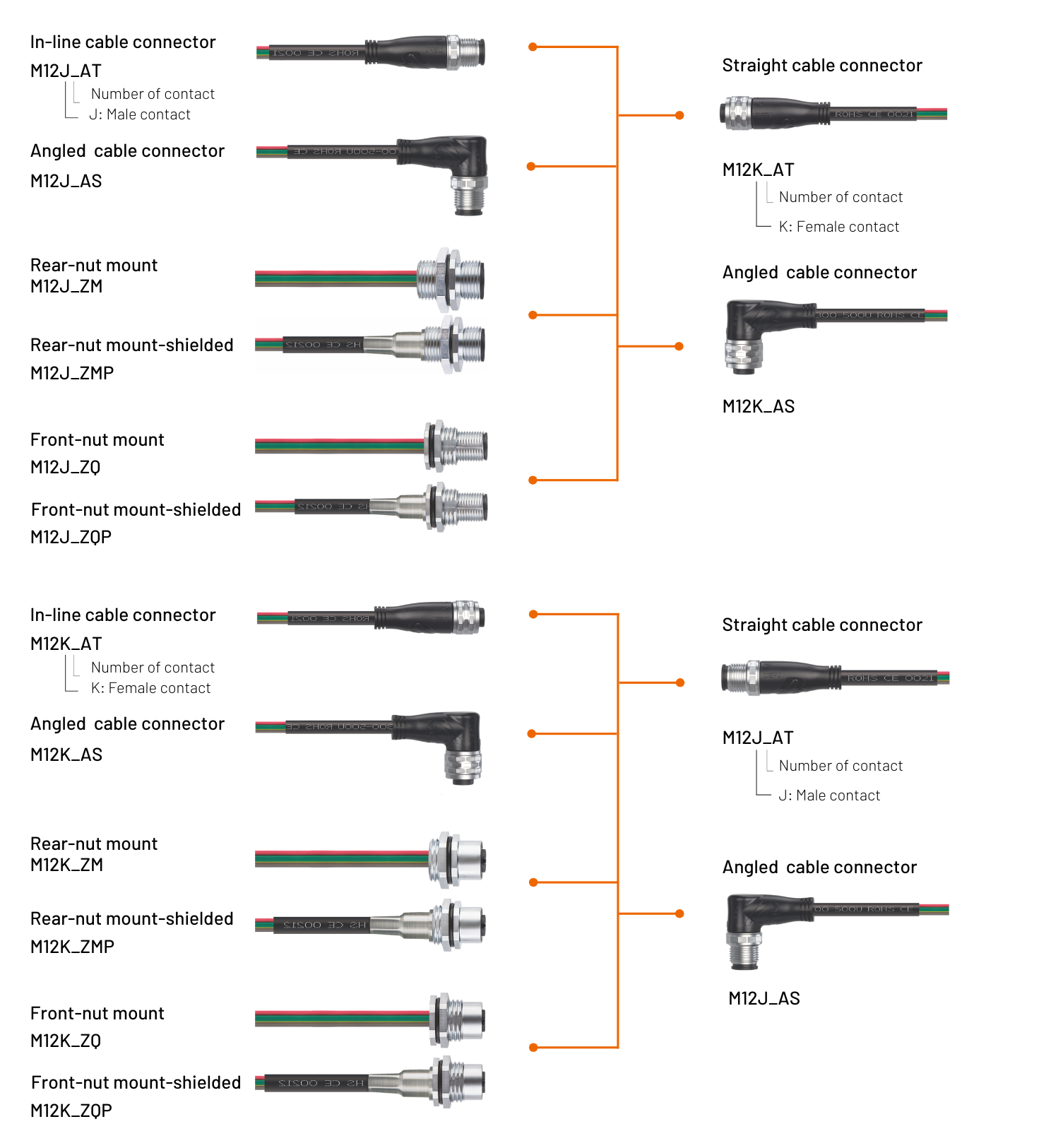

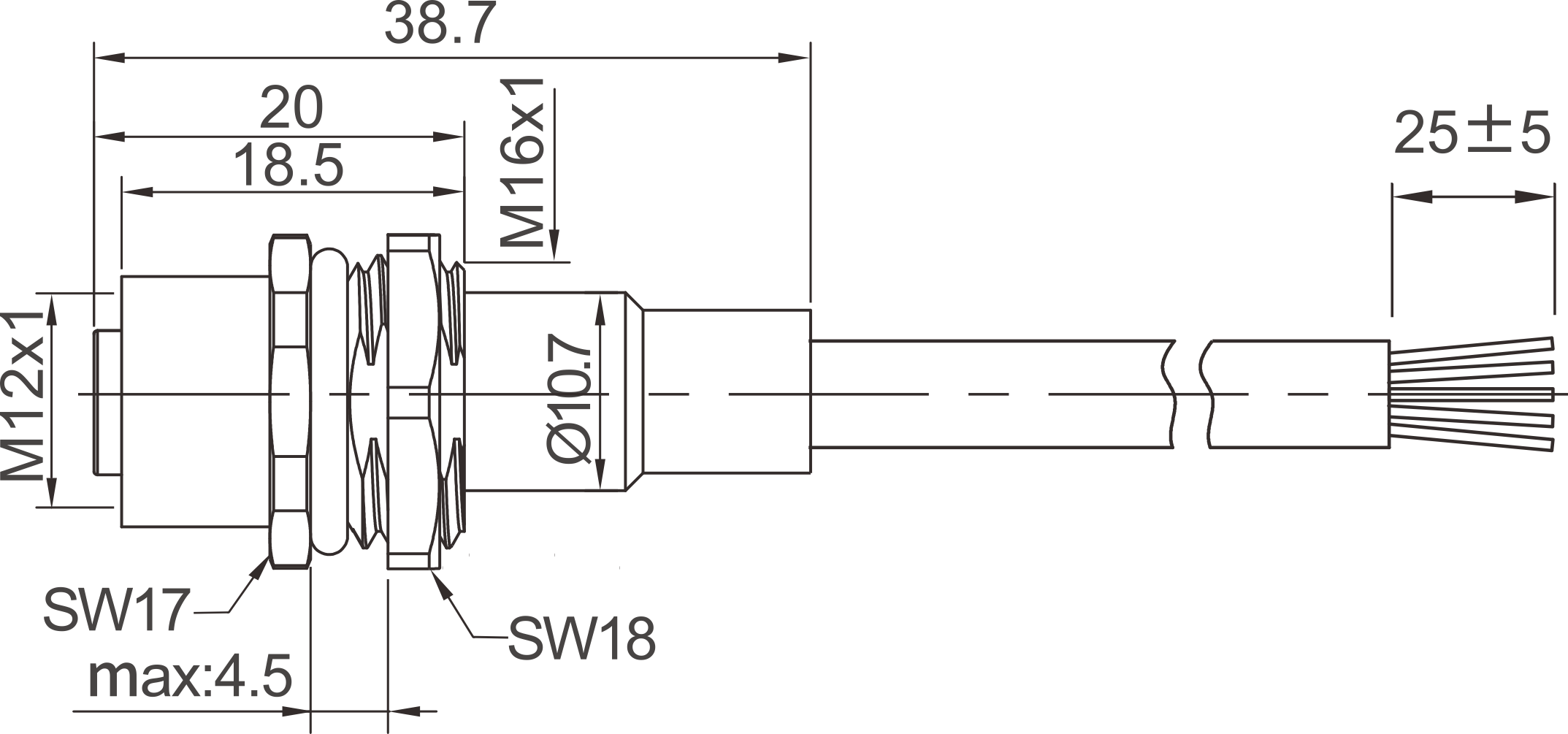

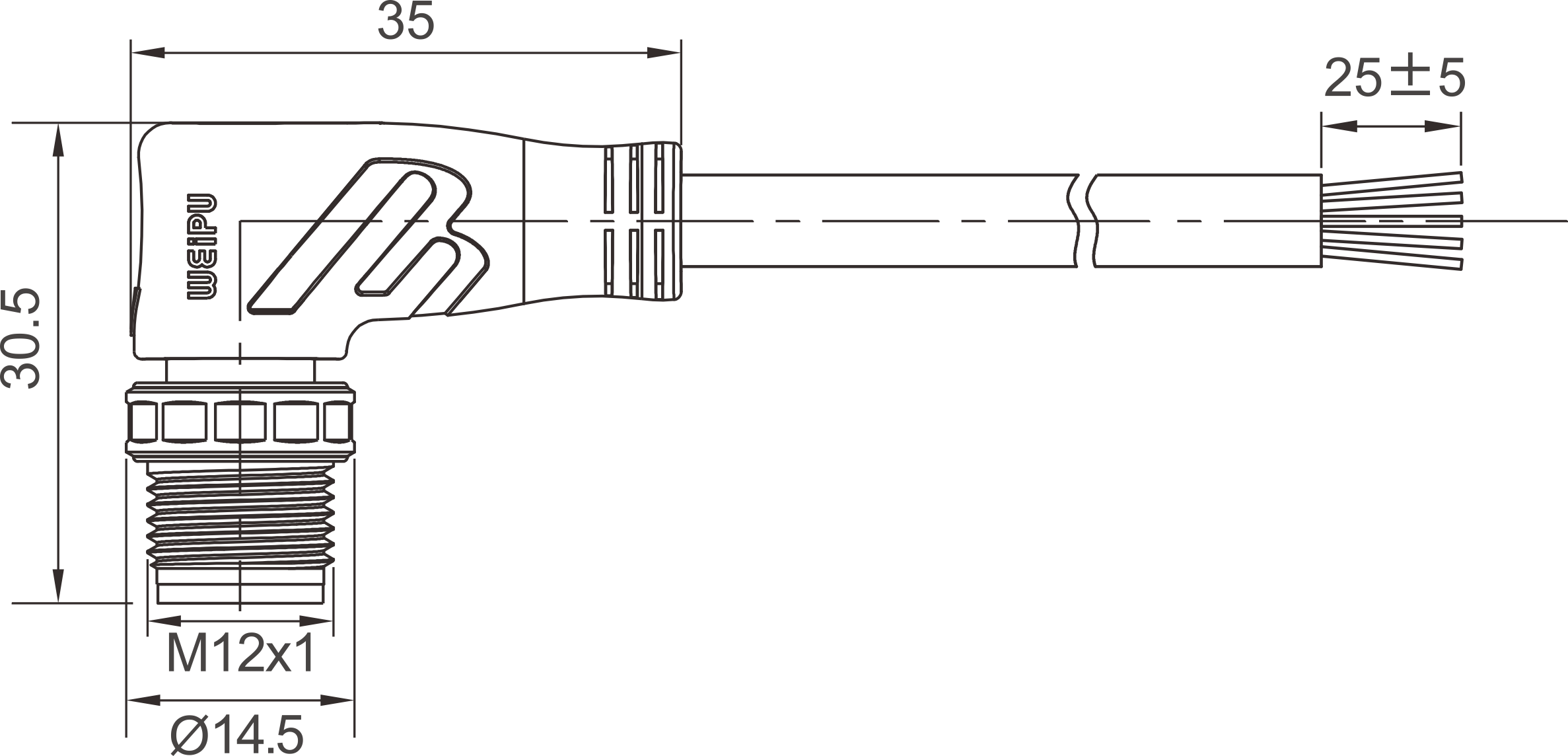

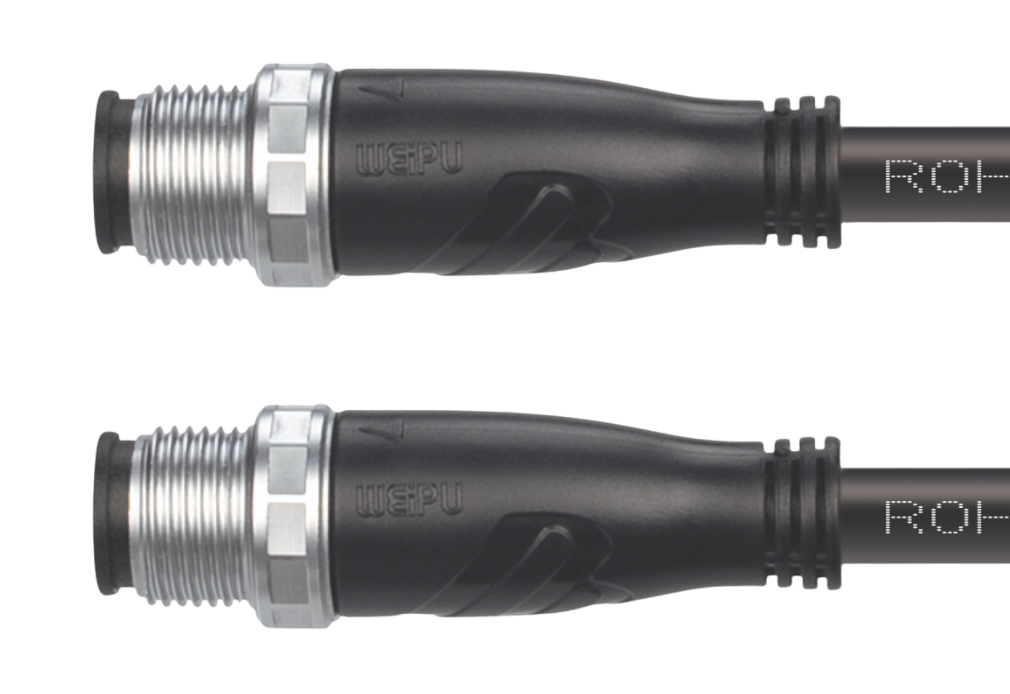

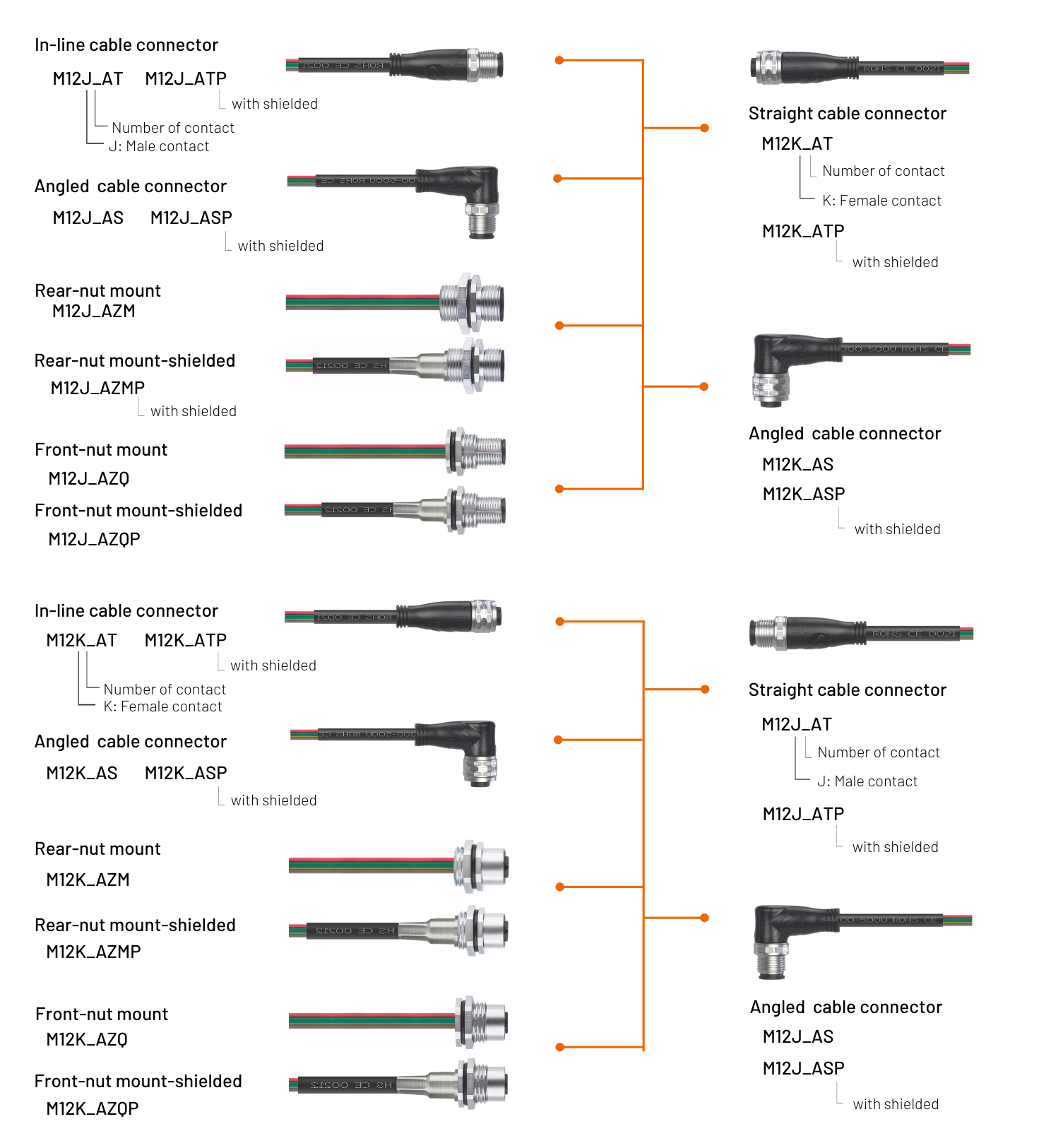

The WEIPU M12 A-code Overmolded Series combines the standard M12 interface with durable overmolding for a fully sealed, vibration-resistant, and compact waterproof solution. With IP67 protection, 3–12 pin options, and 1.5–4A rating, it provides reliable signal and low-power transmission for sensors, automation systems, and outdoor devices. Available in straight, angled, rear-nut, and front-nut versions, this integrated design offers plug-and-play installation with enhanced strain relief for long-term durability.

Key Benefits:

M12 A-code standard — widely compatible with global sensors and actuators
Integrated overmolded design — enhanced sealing, strain relief, and durability
IP67 waterproof rating — reliable for outdoor and harsh-environment applications

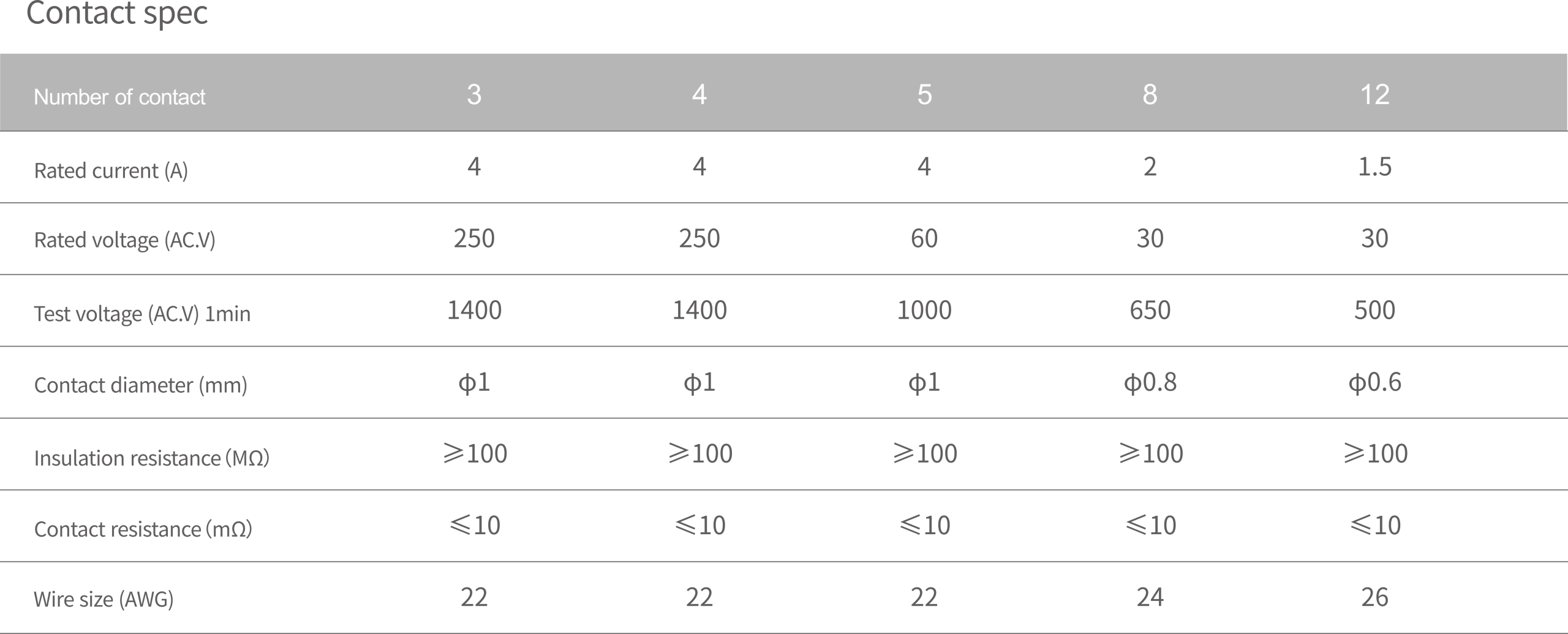

3–12 pin configurations — supports both signal and low-power transmission
1.5–4A rated current — suitable for sensor and industrial control systems
Threaded coupling — secure, vibration-proof connection
100% Factory Tested — every assembly is verified for waterproofing, electrical safety, and long-term reliability.

Applications:

WEIPU M12 A-Code Overmolded Connectors are designed for compact, waterproof, and reliable signal or power transmission across a wide range of industrial uses. They perform exceptionally well in automation systems, robotics, sensors, monitoring equipment, LED lighting, and outdoor or harsh-environment devices—providing stable connectivity wherever durability and IP67 protection are essential.
