WS Series Threaded
WS Series
WS Series
Material and Spec

★ Screw contact spec

Coupling Threaded
Shell material Zinc alloy with chrome plating
Insert material PPS, max temperature 260 ℃
Contact material Brass with gold plating
Termination Solder: Ø1, Ø1.5, Ø2.5, Ø3.5, Ø5,5mm;
Screw: Ø2.5, Ø3, Ø3.5mm;
Crimp: Ø1, Ø1.5, Ø2.5, Ø3.5, Ø5.5, Ø10mm
Mating cycle 500
Temperature range -40℃ ~ + 85℃
WS Series Mating diagram

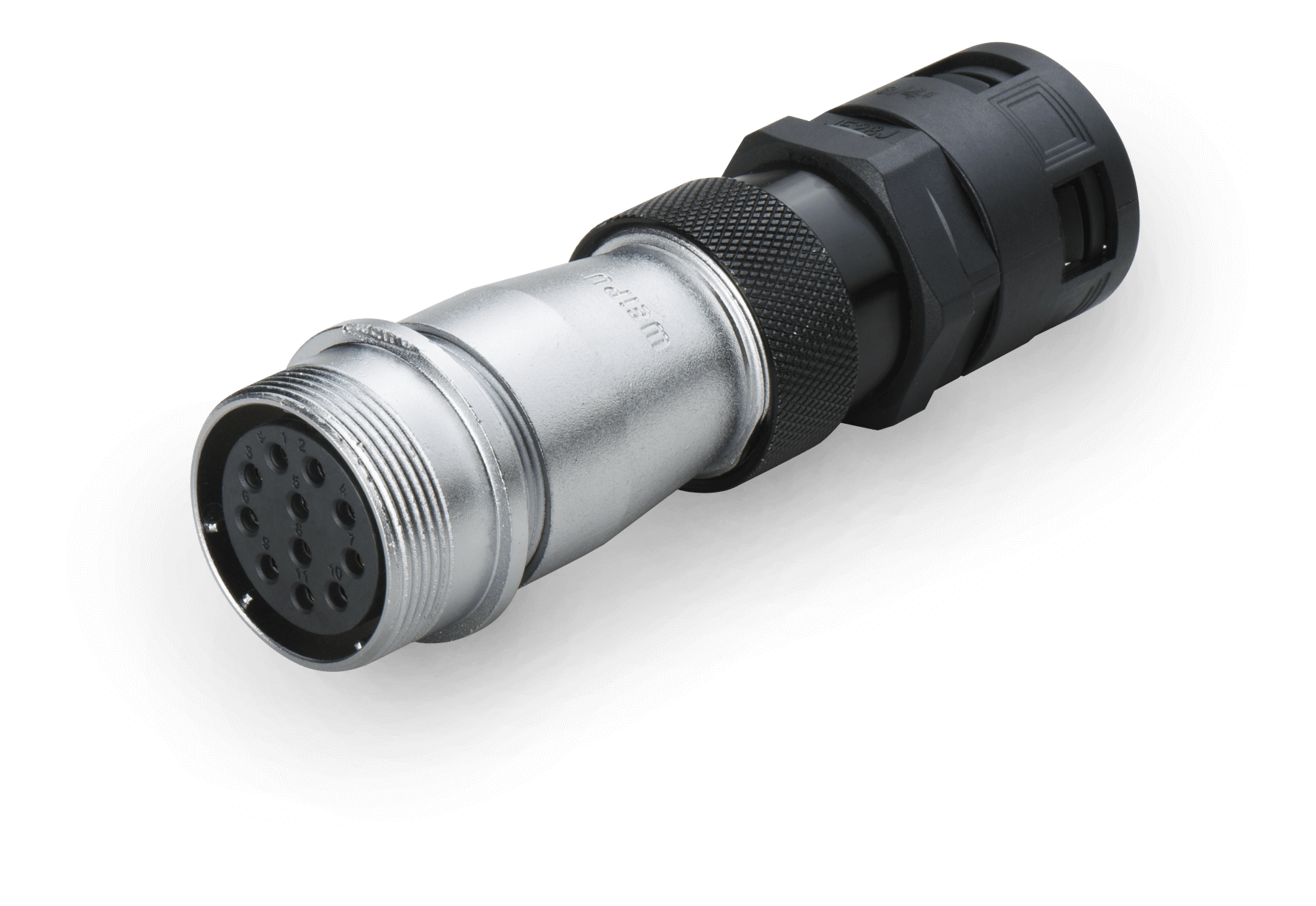

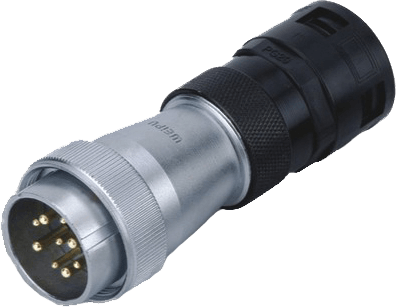

The WS, WY and WF series are metal shell connectors, they are a big family, these three series have the same insert, same contacts, and same electric spec, just different shell and different IP rating.
WS series is an economical indoor connector, no IP rating, not for outdoor,not waterproof, threaded coupling, it is a very strong connector, designed for indoor conditions only.

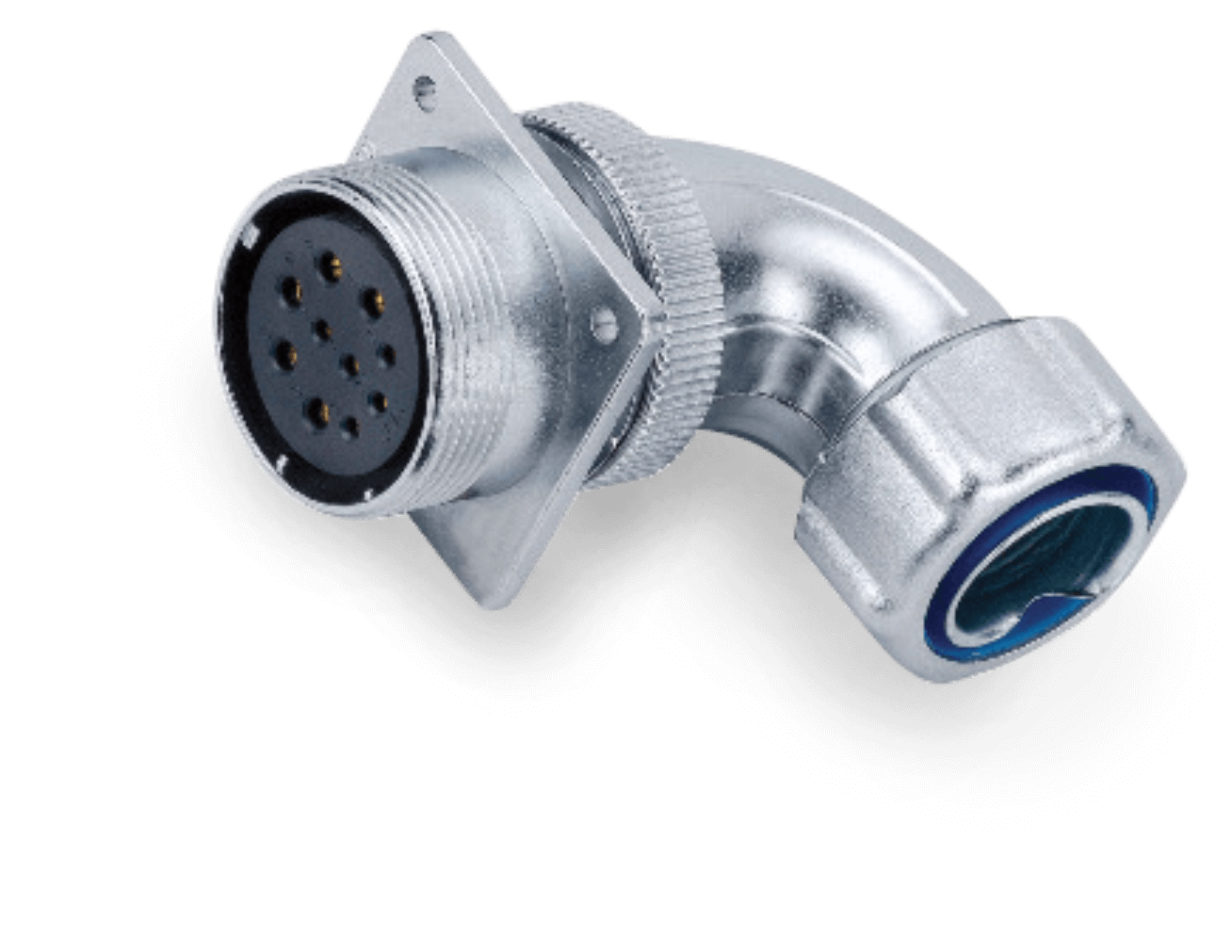

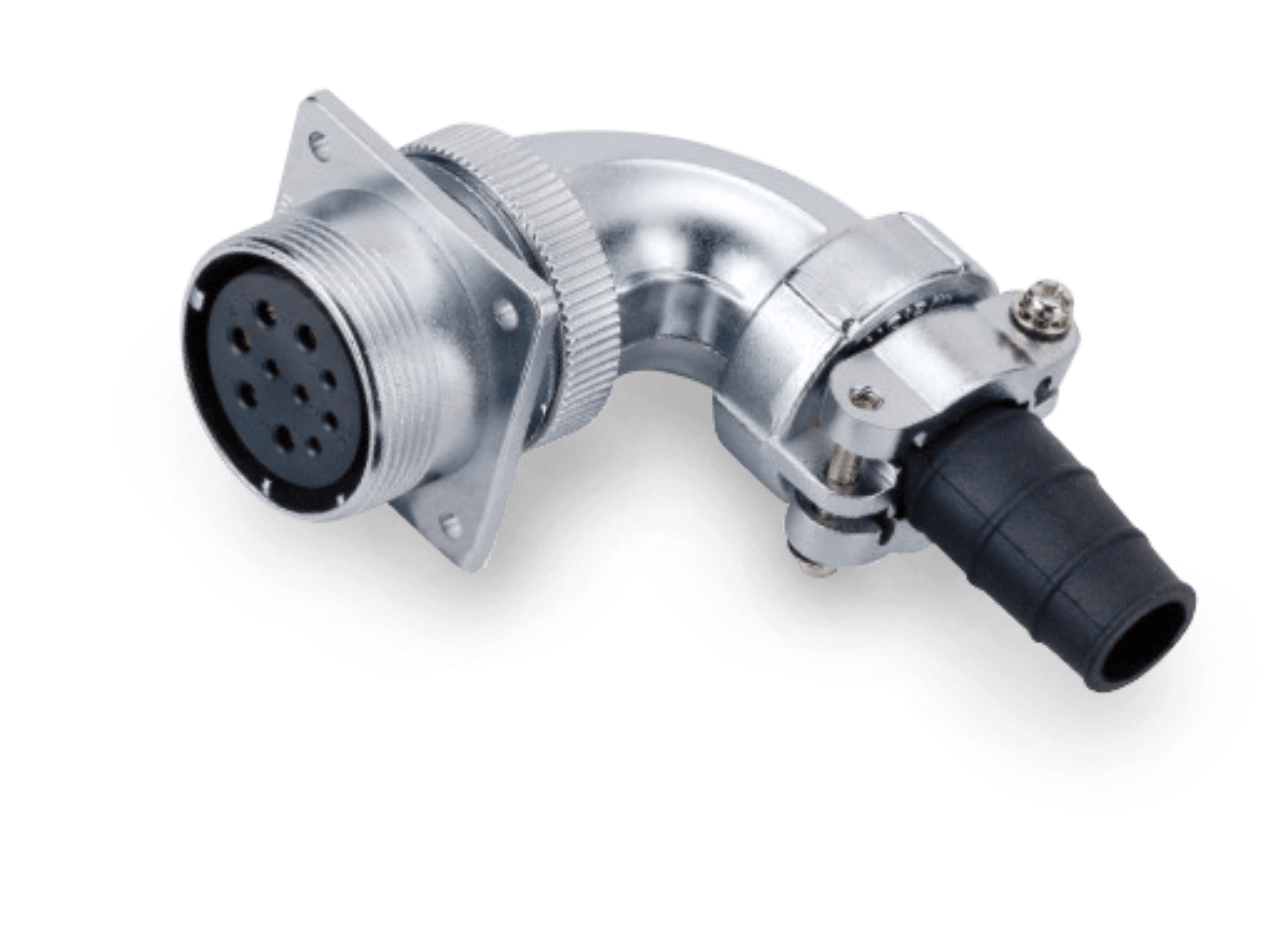

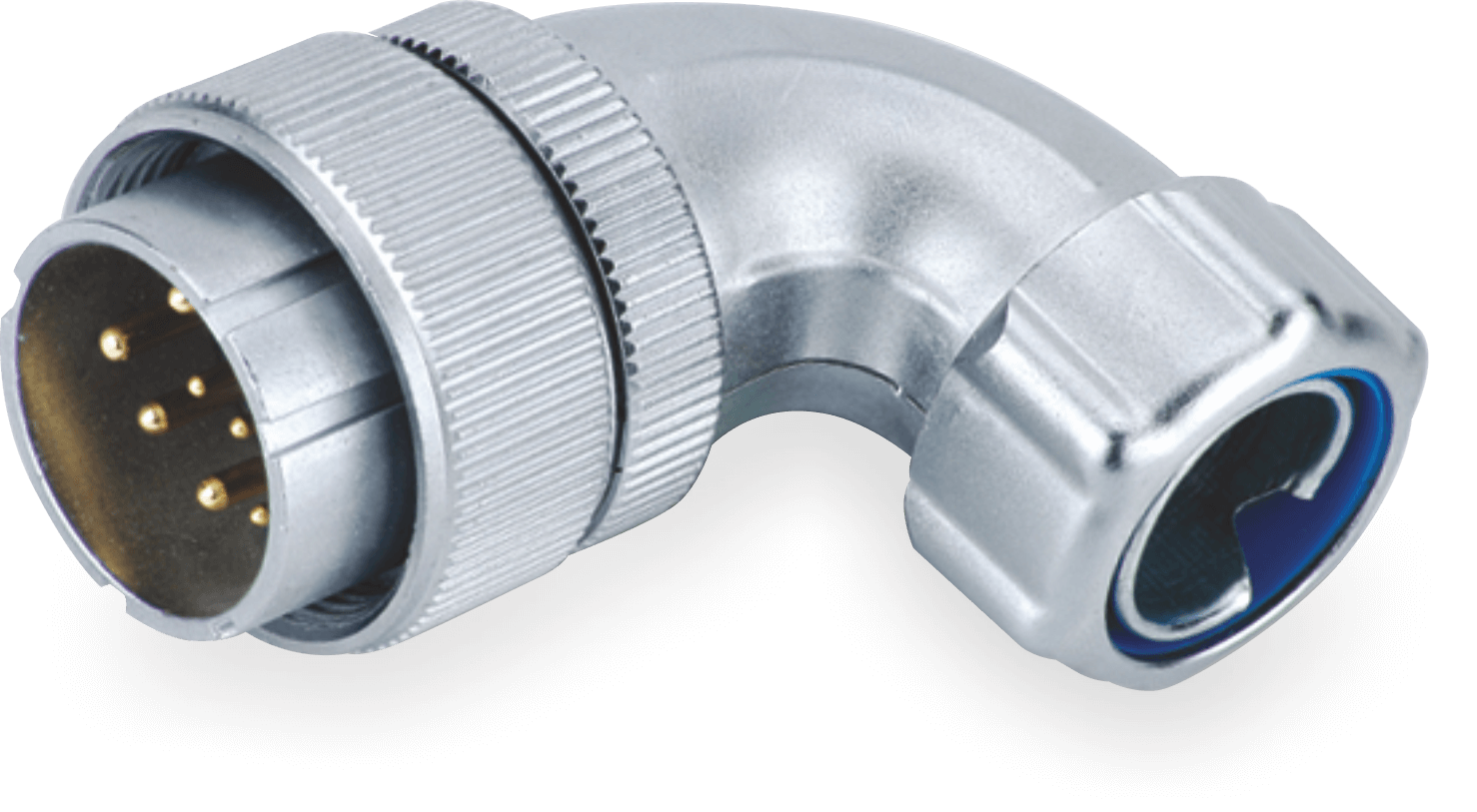

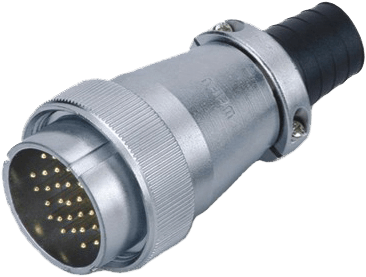

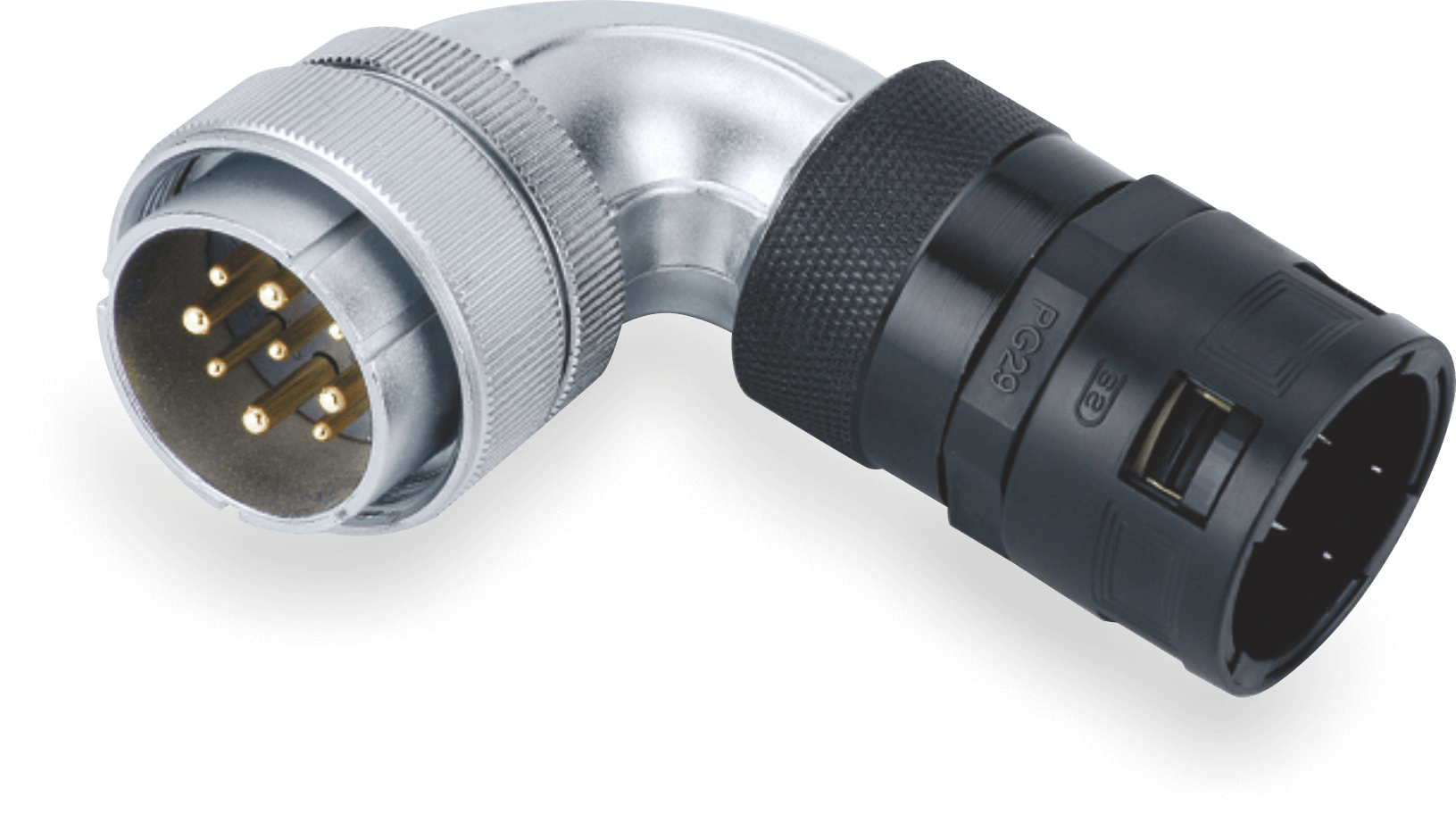

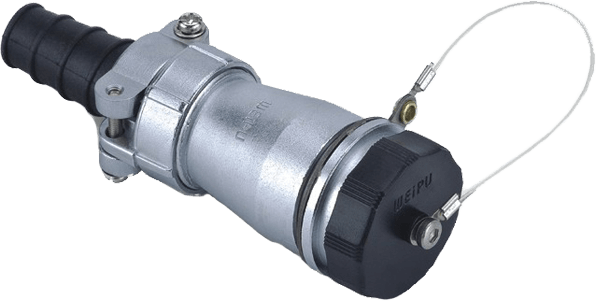

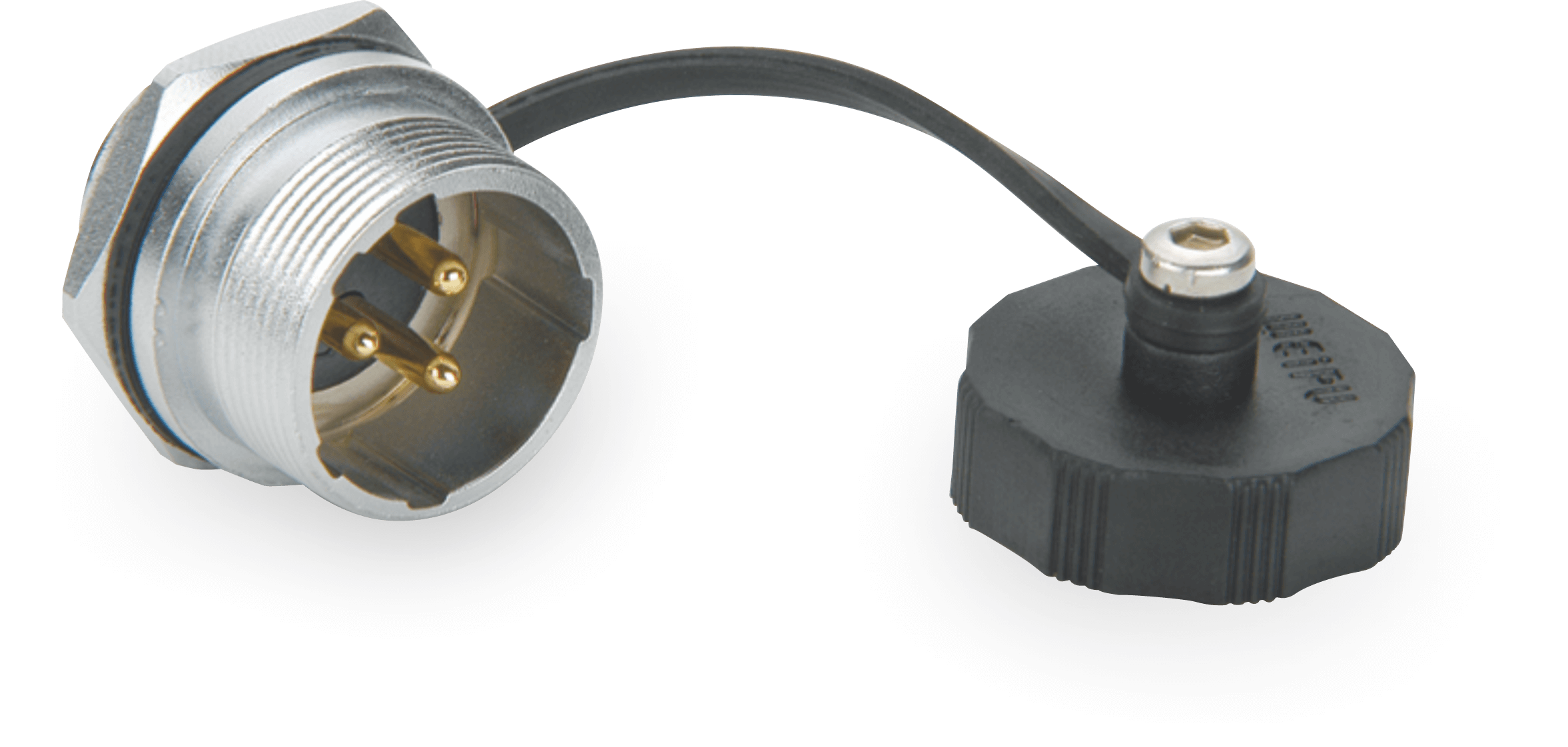

The connectors can be used for both cable to cable (in-line) and cable to panel-mount connections. Each side can be male or female contact, (Plug or socket versions).
1) shell diameter (the panel hole cutout size) : from 16mm to 55mm .
2) number of contacts : 2pin to 61pin
3) rated current: 5A-200A
4) IP rating : for indoor only
5) CE , ROHS approval
