WF Series Threaded
WF Series
WF Series
Material and Spec

★ Screw contact spec

Coupling Threaded
Shell material Zinc alloy with chrome plating
Insert material PPS, max temperature 260 ℃
Contact material Brass with gold plating
Termination Solder: Ø1, Ø1.5, Ø2.5, Ø3.5, Ø5,5mm;
Screw: Ø2.5, Ø3, Ø3.5mm;
Crimp: Ø1, Ø1.5, Ø2.5, Ø3.5, Ø5.5, Ø10mm
Mating cycle 500
Temperature range -40℃ ~ +85℃
WF Series Mating diagram

The WF, WY, and WS series are metal shell connectors, these series are a big family, these three series have the same insert, same contacts, and same electric spec, just different shell and different IP rating.
WF series is an IP55-67 waterproof connector, threaded coupling, it is a very strong connector, designed for indoor and outdoor, cold or hot,hush conditions.

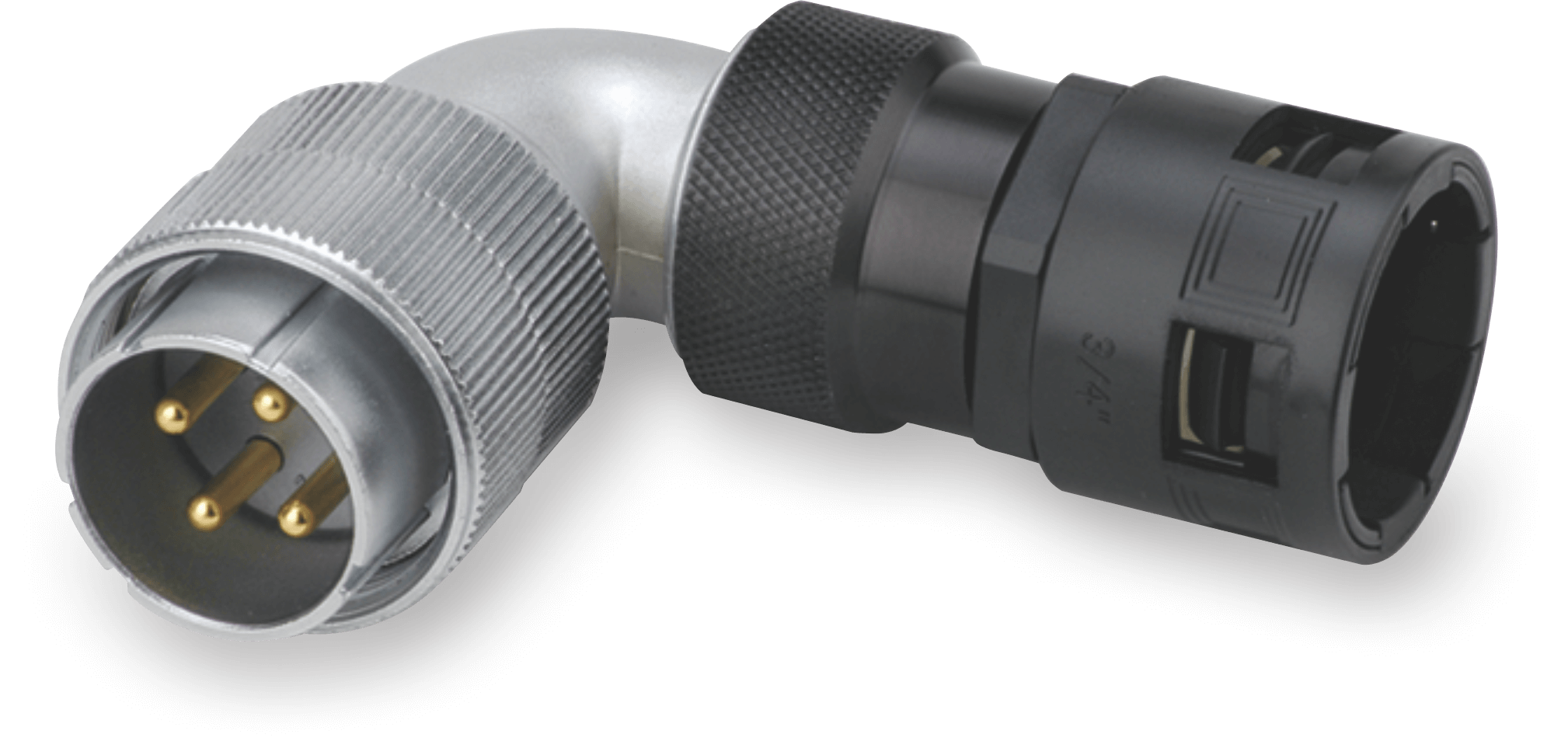

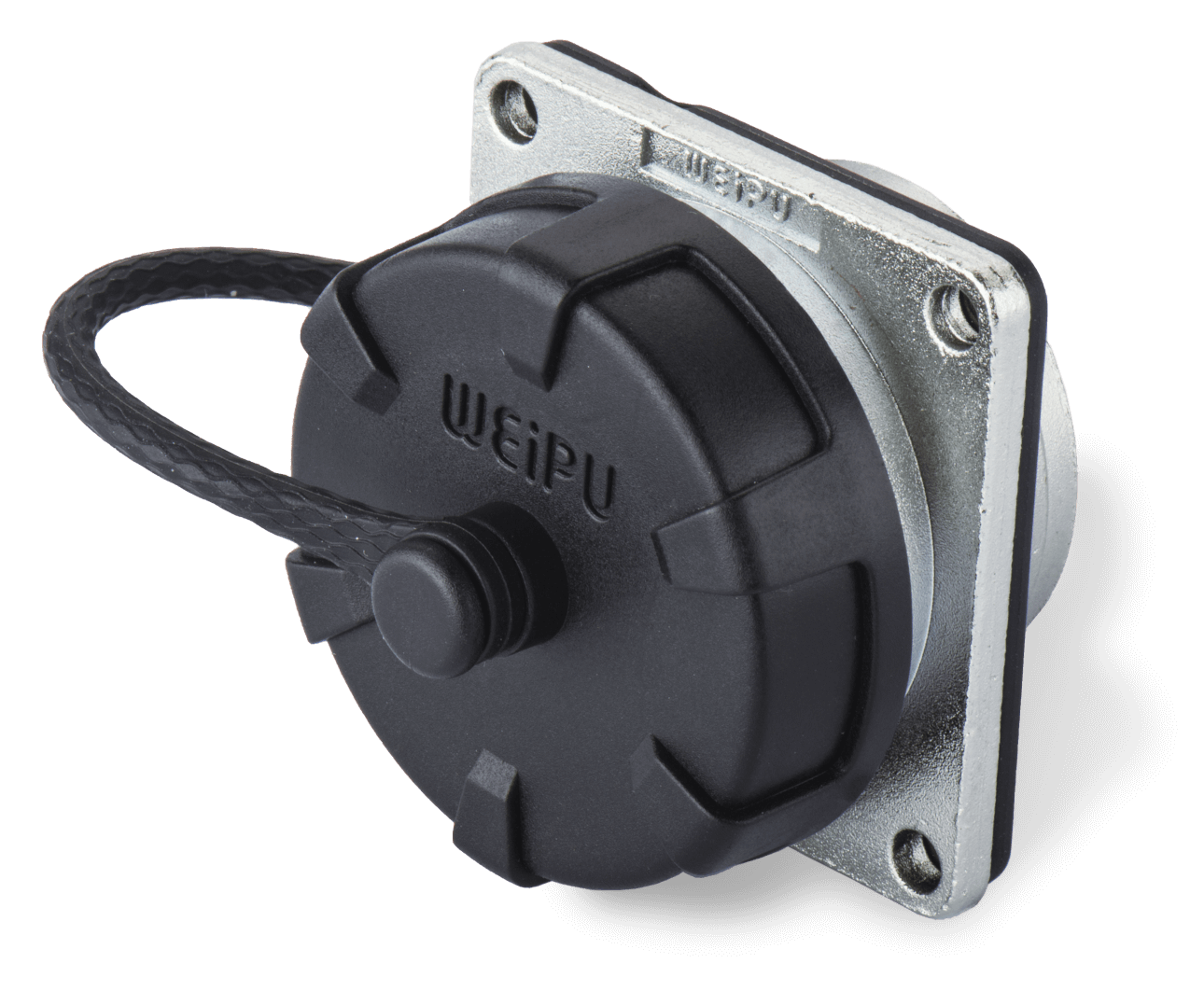

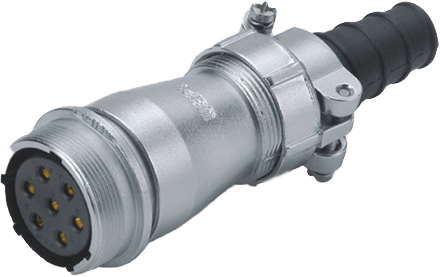

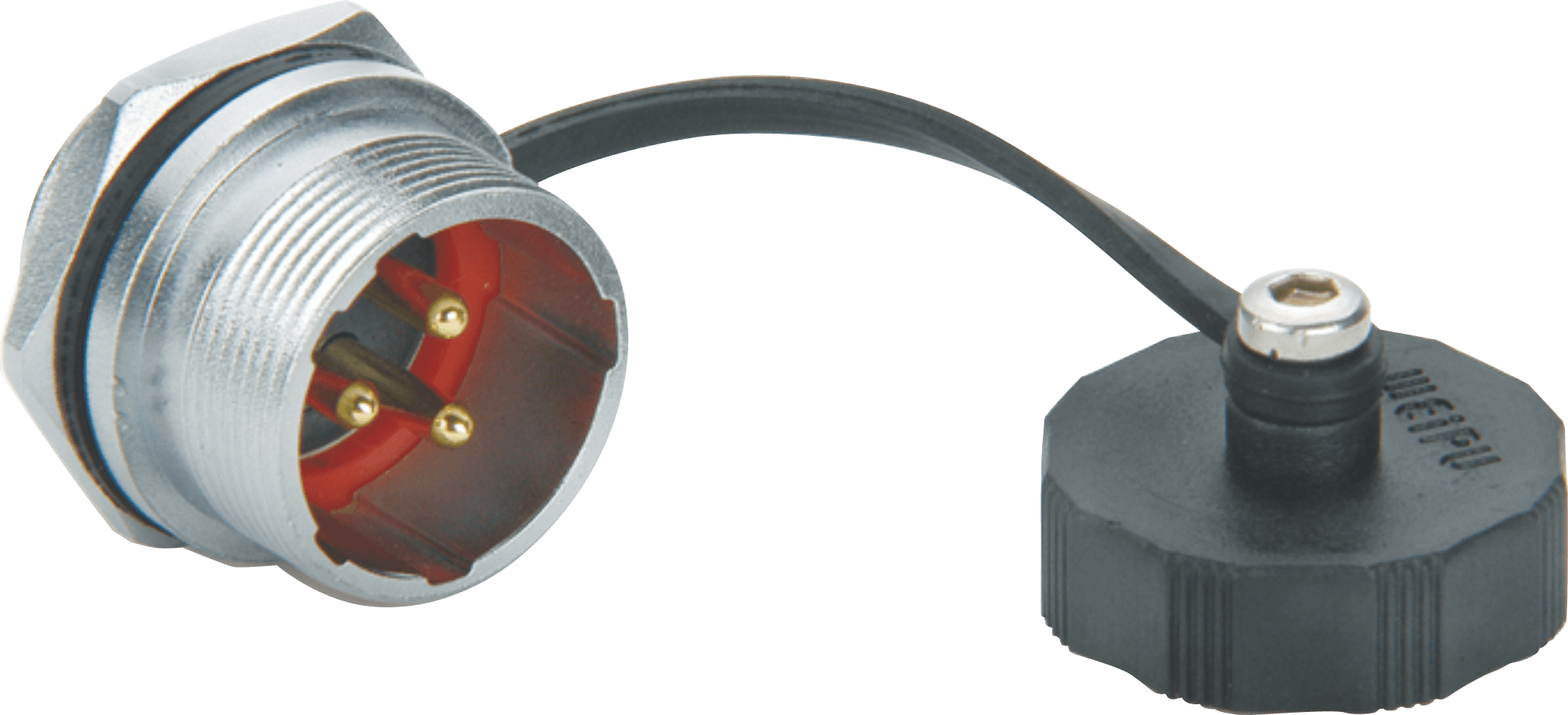

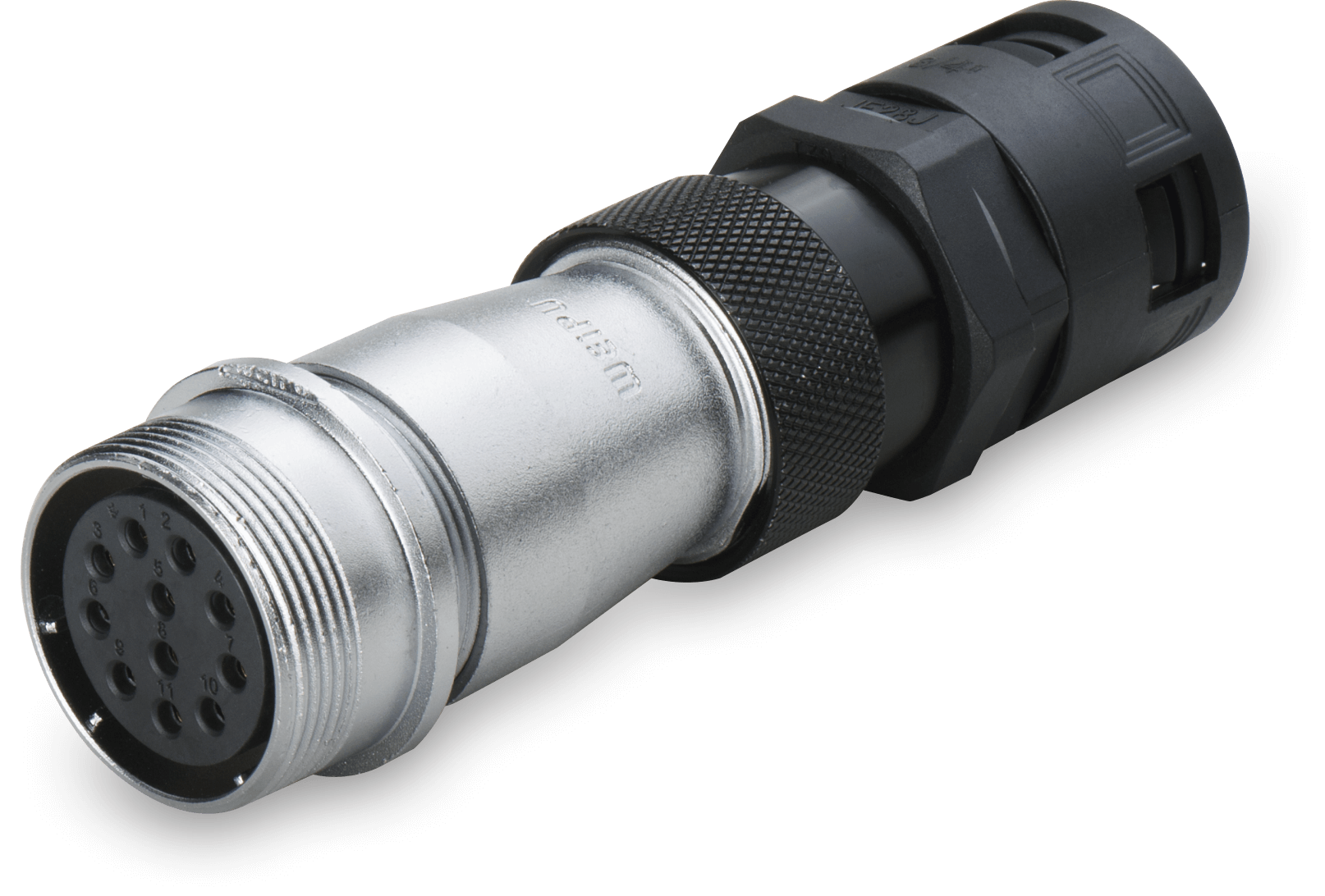

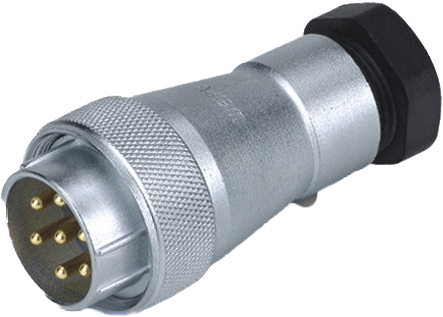

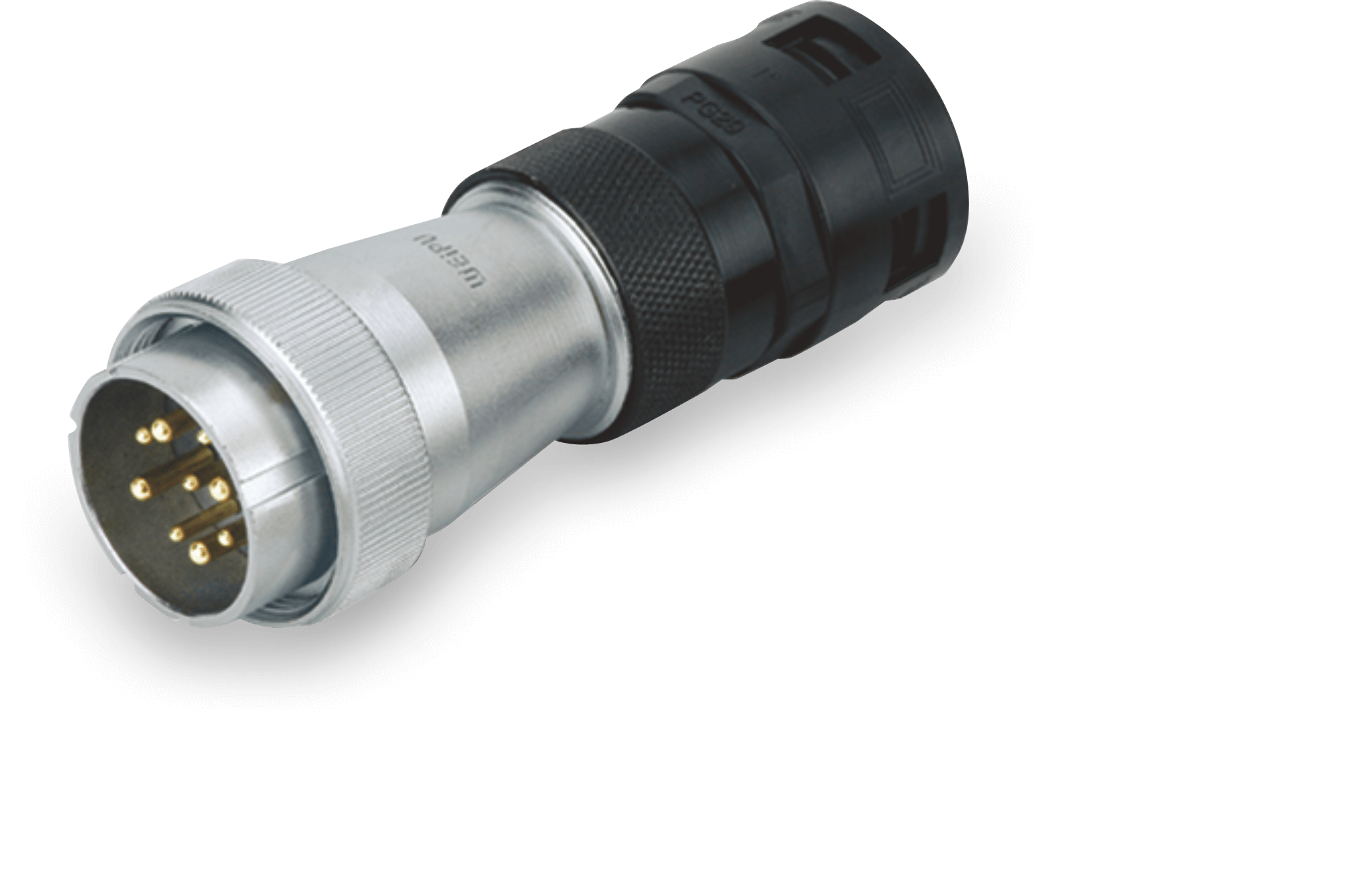

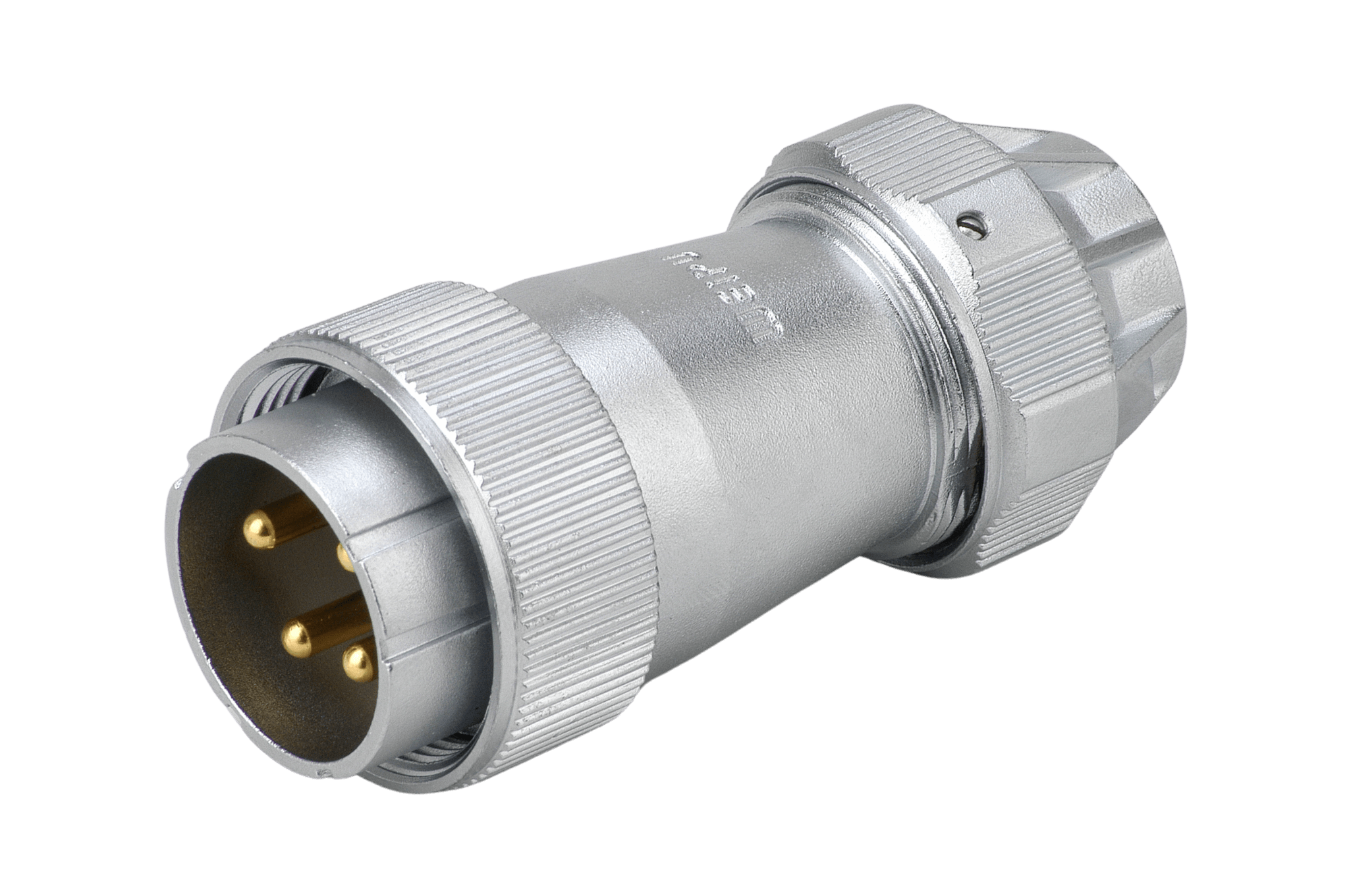

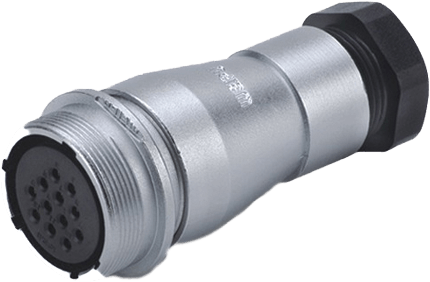

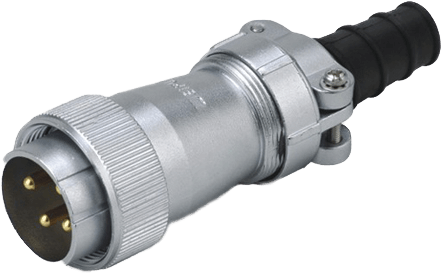

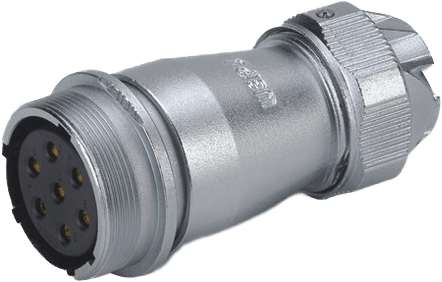

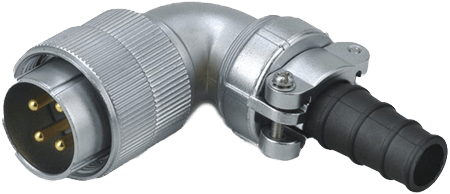

The connectors can be used for both cables to cable (in-line) and cable to panel-mount connections. Each side can be male or female contact, (Plug or socket versions), the IP44 caps are available on the panel connector.
1) shell diameter (the panel hole cutout size): from 16mm to 55mm.
2) number of contacts : 2pin to 61pin
3) rated current: 5A-200A
4) IP rating : IP55-IP67
5) CE,ROHS approval
