WEIPU SA28 Cable Assemblies Waterproof Large Size Connectors Overmolding & Cable Assembly

IP67 Highly Sealed
Flexible Options
Full Compatibility: connector + cable integration

The WEIPU SA28 Series supports optional factory cable assembly and customized overmolding, delivering a complete, ready-to-install interconnect solution for high-power and demanding environments. With a rugged anodized aluminum shell and multiple termination styles (solder, crimp, and screw), the SA28 cable assemblies combine mechanical strength, sealing reliability, and process efficiency in a single supply.

By integrating cable assembly at the source, WEIPU helps reduce on-site labor, improve sealing integrity, and ensure consistent performance from connector to wire routing.

Key Benefits:

Seamless integration: Connector + cable built and tested as one system
Push-pull coupling: Fast and easy use
IP67 waterproof sealing maintained under assembly conditions
Flexible Cable Options: Cable length, wire gauge, jacket type, overmold design, and color options
Quick & Easy Installation: Pre-wired assemblies reduce on-site labor and wiring errors.
Color Options: Connectors available in Black, Silver, Red, Blue, and Green options
Overmolded & Custom Cable Options: For additional strain relief and a polished appearance.

Typical Use Cases: LED displays and lighting power feeds, Industrial automation and machine tools, Energy storage and charging cabinets, Transportation and electric vehicles, Rugged security & control systems, etc.

Download Catalogue

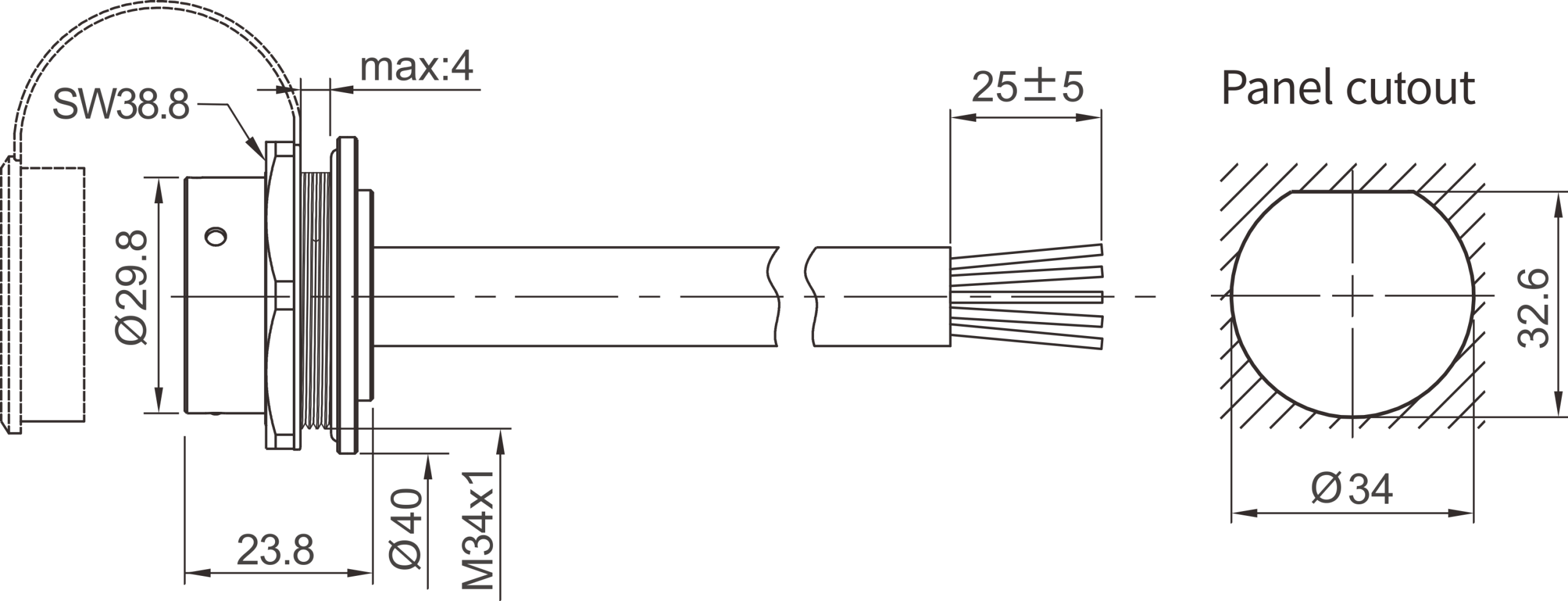

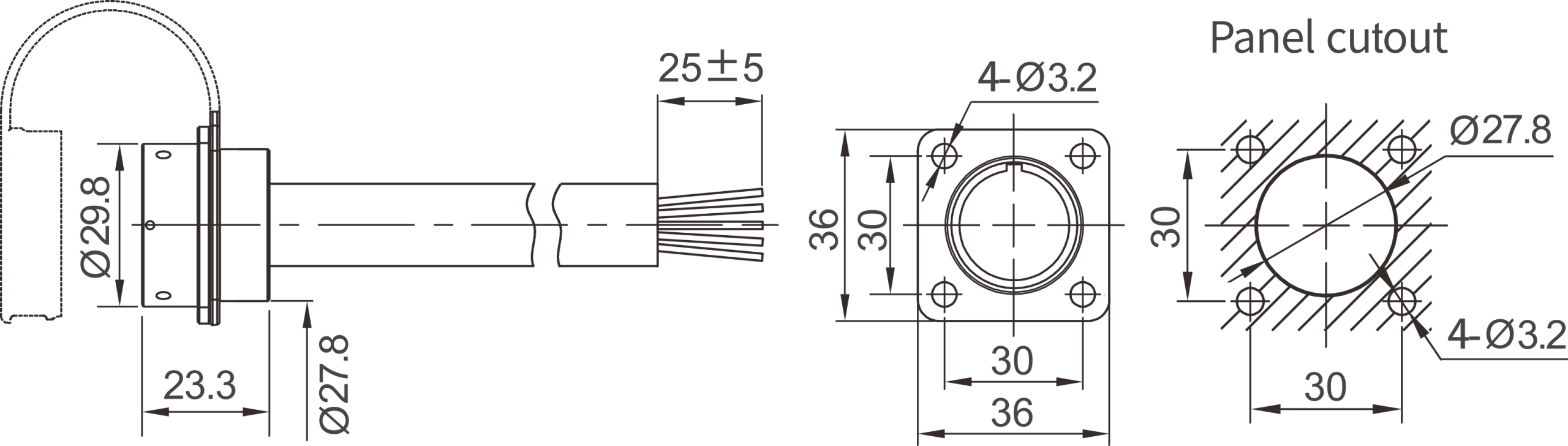

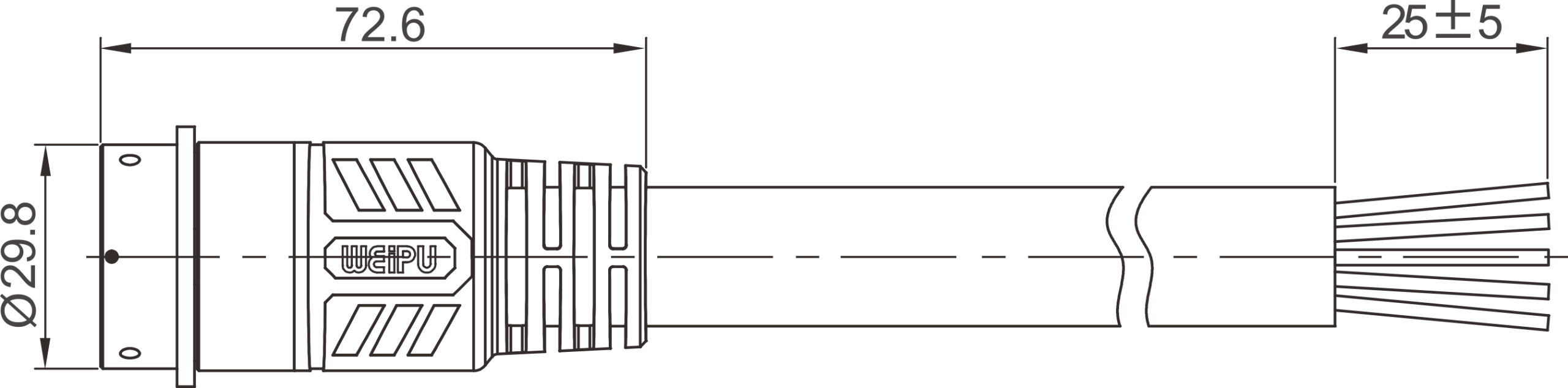

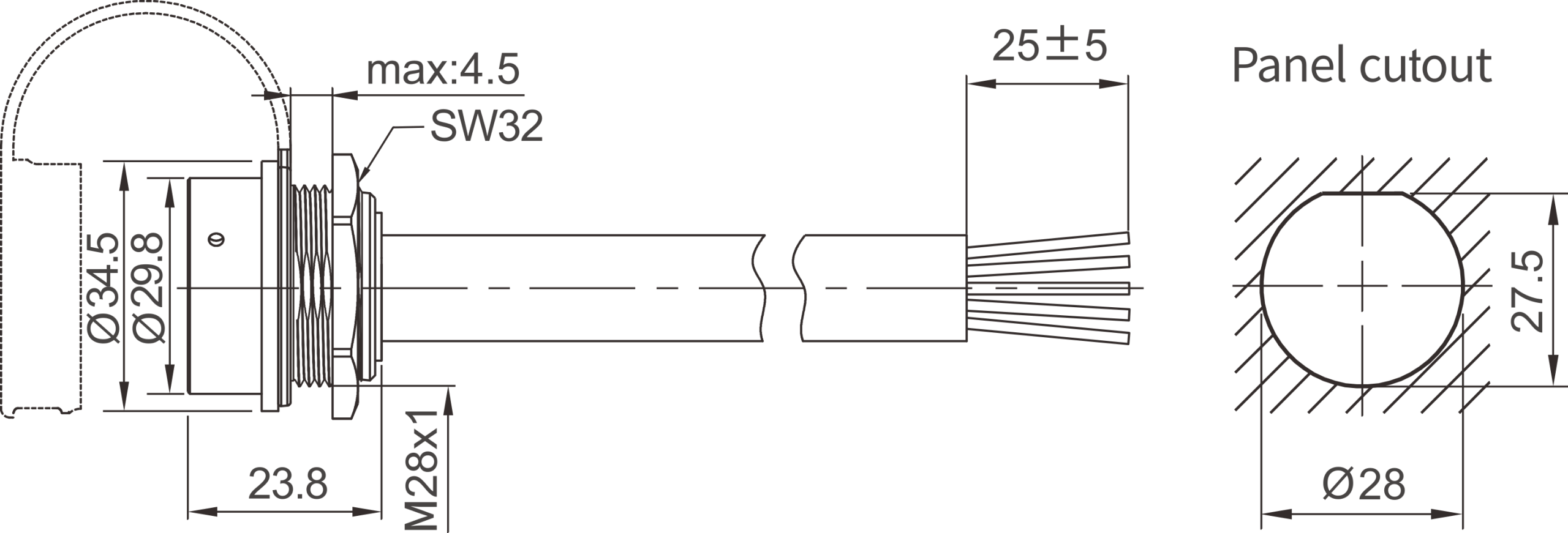

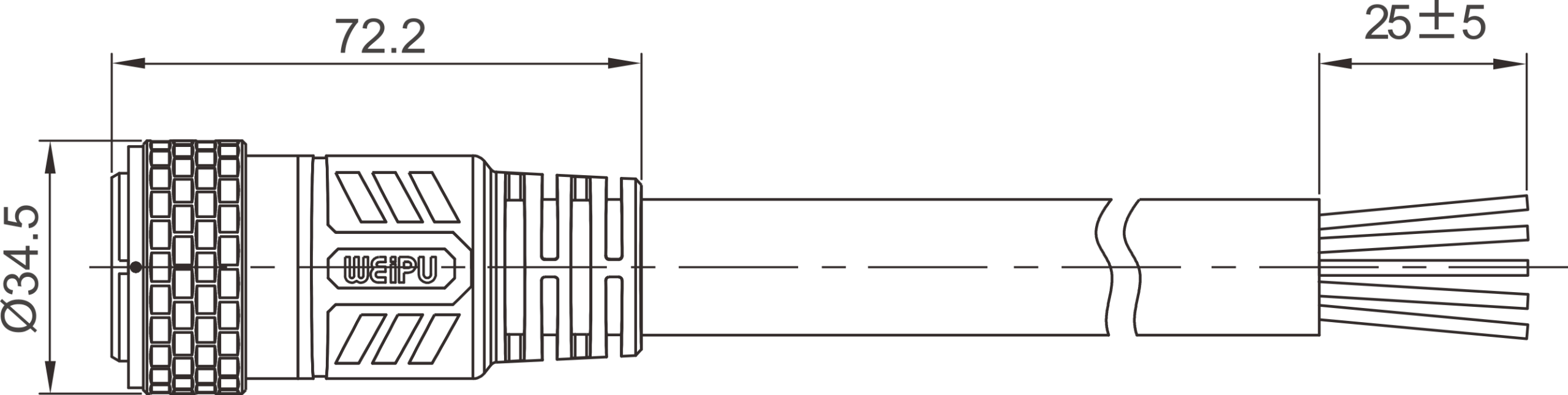

Mating Diagram

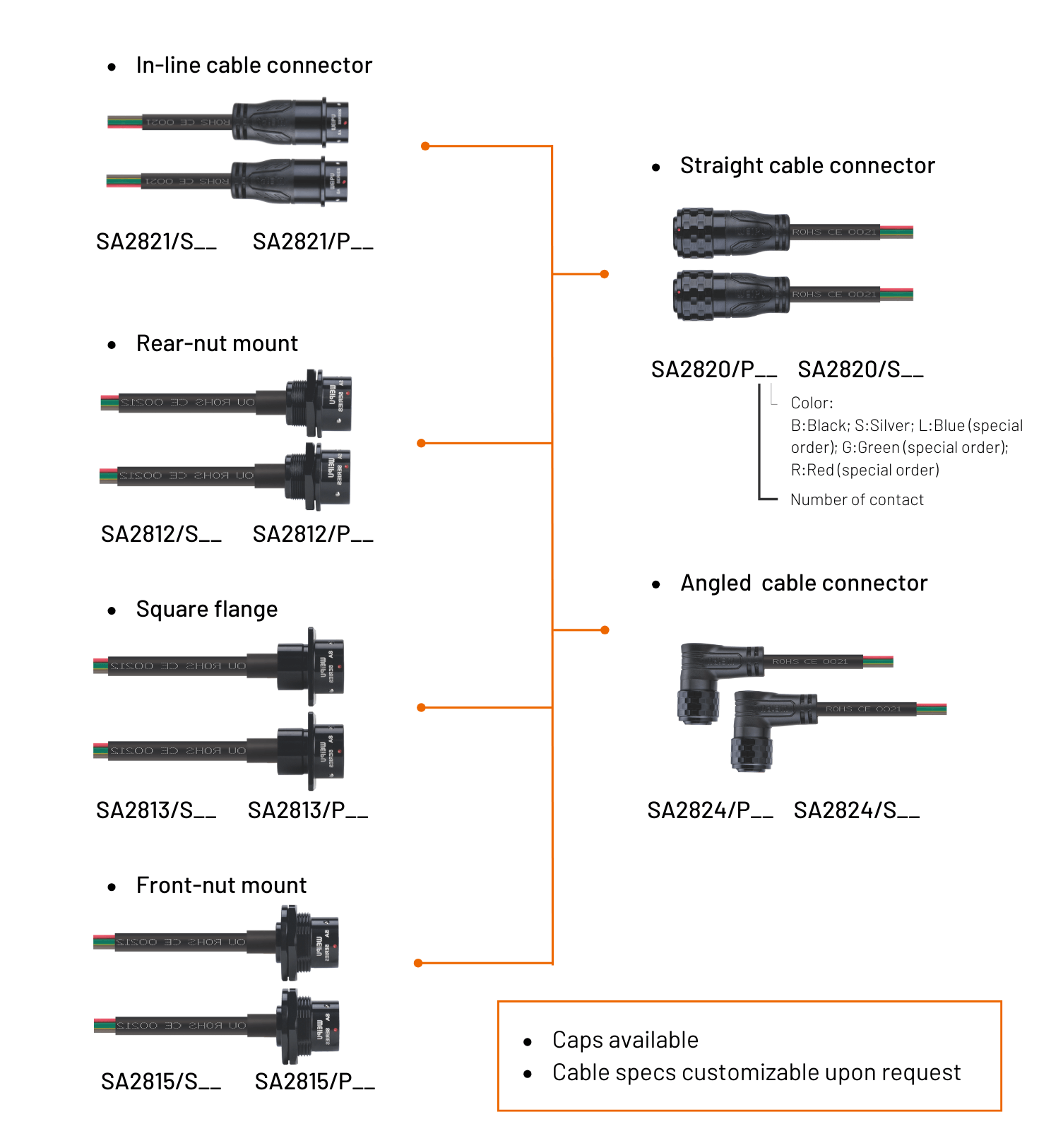

Different connector types

Available in both male and female.
Have options for plug, inline cable connector, panel socket

Successsful Case-SA series Case for Outdoor Bird Alert

As these devices are installed outdoors in cold, wet, and harsh weather conditions, the WEIPU SA metal waterproof series provides a secure and stable connection, ensuring long-term reliability and uninterrupted operation of the bird alert system.
