WEIPU SA20 Cable Assemblies Waterproof Medium Size Connectors Overmolding & Cable Assembly

IP67 Highly Sealed
Flexible Options
Full Compatibility: connector + cable integration

The WEIPU SA20 Series now features factory cable assembly and overmolding services, providing a complete, ready-to-install interconnect solution for power and data applications.

Built from anodized aluminum and rated to IP67 waterproof protection, the SA20 ensures reliable performance in harsh, wet, or dusty environments while simplifying system integration and maintenance.

Key Benefits:

Integrated IP67 Waterproof Design — Fully sealed against dust and water ingress, ensuring dependable operation in challenging environments.
Color Options: Connectors available in Black, Silver, Red, Blue, and Green options
Custom Overmolding — Provides strain relief and robust sealing, protecting connections from stress and vibration.
Flexible Termination Options — Supports solder, crimp, and screw terminals for different wiring needs.
Tailored Cable Lengths & Configurations — Customized to match your application and installation requirements.
100% Tested Assemblies — Each assembly undergoes full electrical and waterproof performance testing.

Applications:

It is ideal for environments demanding compact yet powerful waterproof solutions, including:

Industrial control systems and automation
LED displays and lighting systems
Security camera and monitoring equipment
Medical and laboratory devices
Communication systems and data transmission

Download Catalogue

Mating Diagram

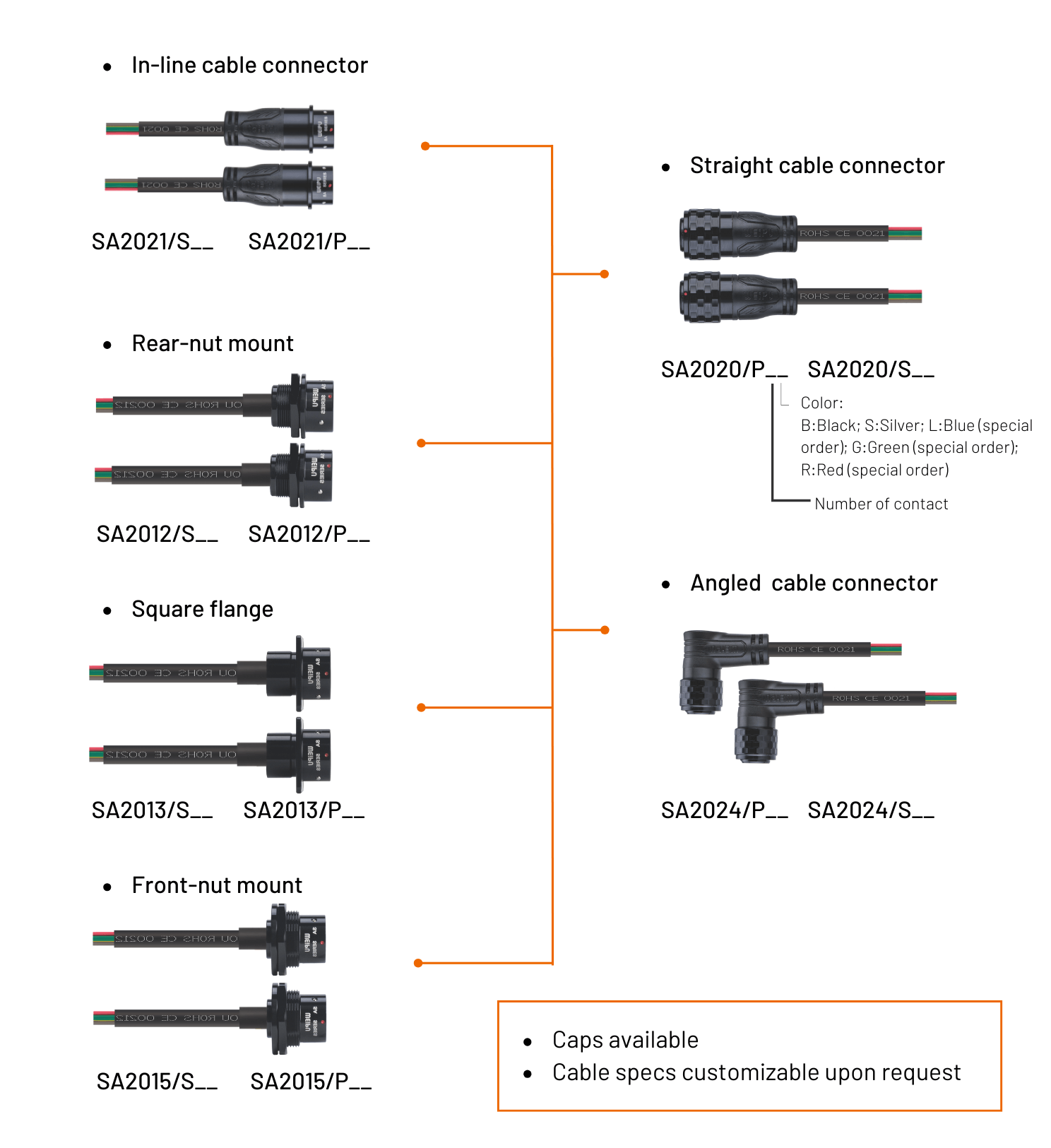

Different connector types

Available in both male and female.

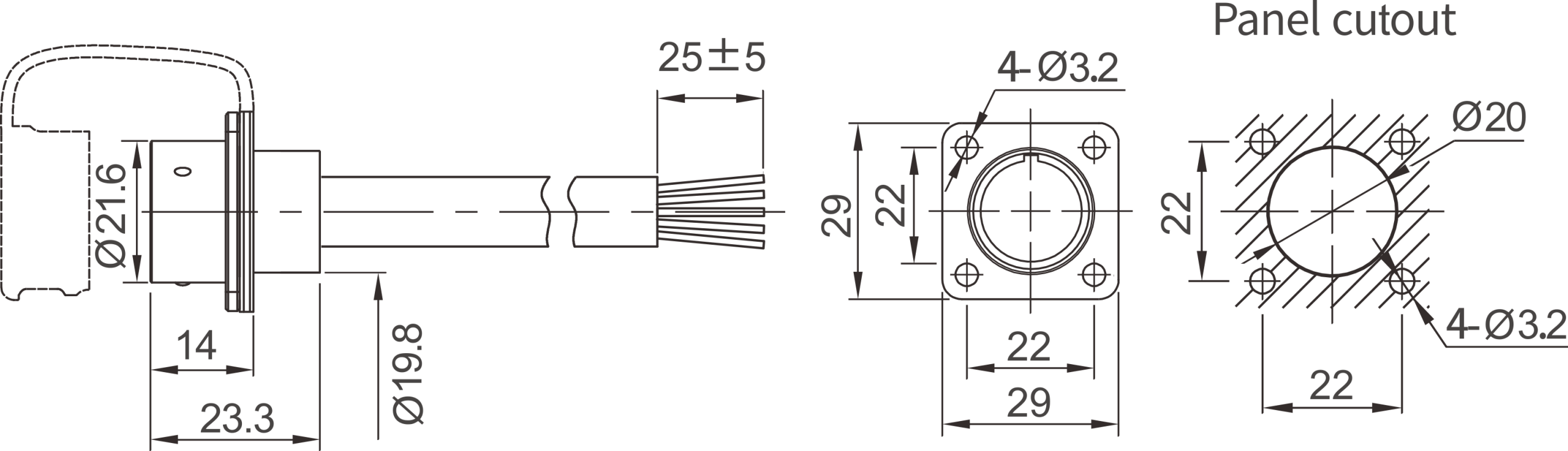

Have options for plug, inline cable connector, panel socket

Successsful Case-SA series Case for Outdoor Bird Alert

As these devices are installed outdoors in cold, wet, and harsh weather conditions, the WEIPU SA metal waterproof series provides a secure and stable connection, ensuring long-term reliability and uninterrupted operation of the bird alert system.
