Material and Spec
Shell material Zinc alloy with black nickel plating
Contact material Brass with gold plating
Insert material PA66
Insulation resistance ＞1013 mΩ
Termination Crimp
Temperature range -40°C~ + 125°C
Mating cycle 1000
Cable outer diameter range I: 4-8mm (Special order)
II: 8-13mm (Standard)
III: 12-17mm (Special order)
IP rating IP67
Coupling Threaded coupling
Solder contact spec
M23 contact spec
Features
The M23 connector is our new series connector, threaded coupling. The shell material is zinc alloy with nickel plating, insert material is PA66.
The shell diameter is 26. 5mm (the panel hole cutout diameter is 18mm), The connectors are used for cable to cable or to panel-mount connections. Each side can be male or female contact, (Plug or socket versions).

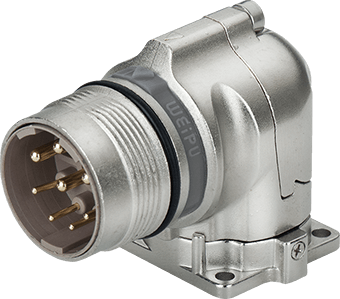

There are four different types: plug, square flange receptacle, angled plug, and angled square flange socket.
1) shell diameter (the panel hole cutout size): 26.5mm
2) number of contacts: 6/8 gold plated contacts
3) rated current and V: 8-28A, 300-600(AC. V)
4) IP rating: IP67
5) CE, ROHS approval
